Product Overview (Introduction)

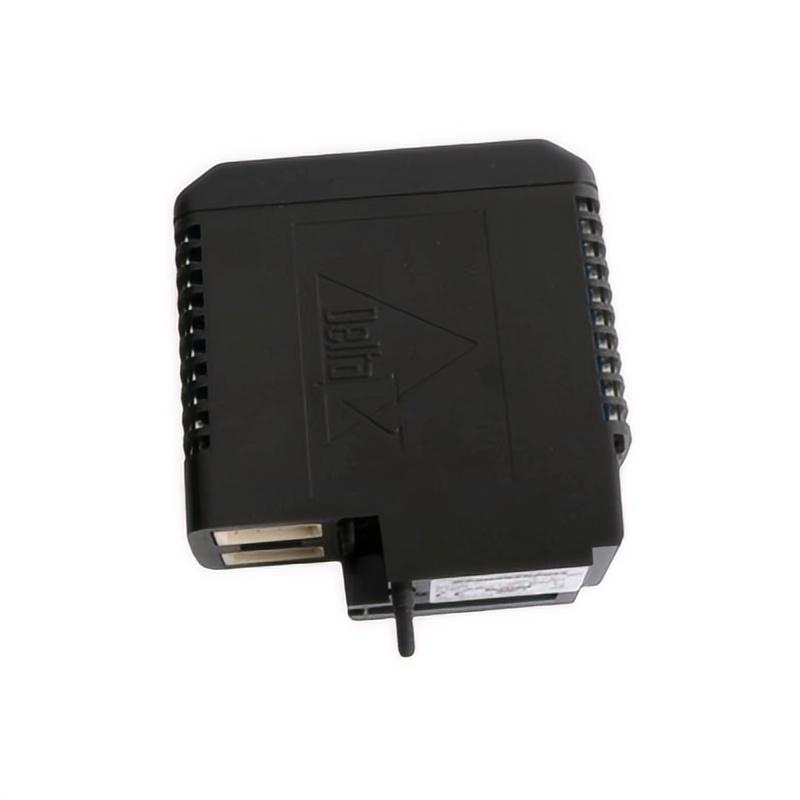

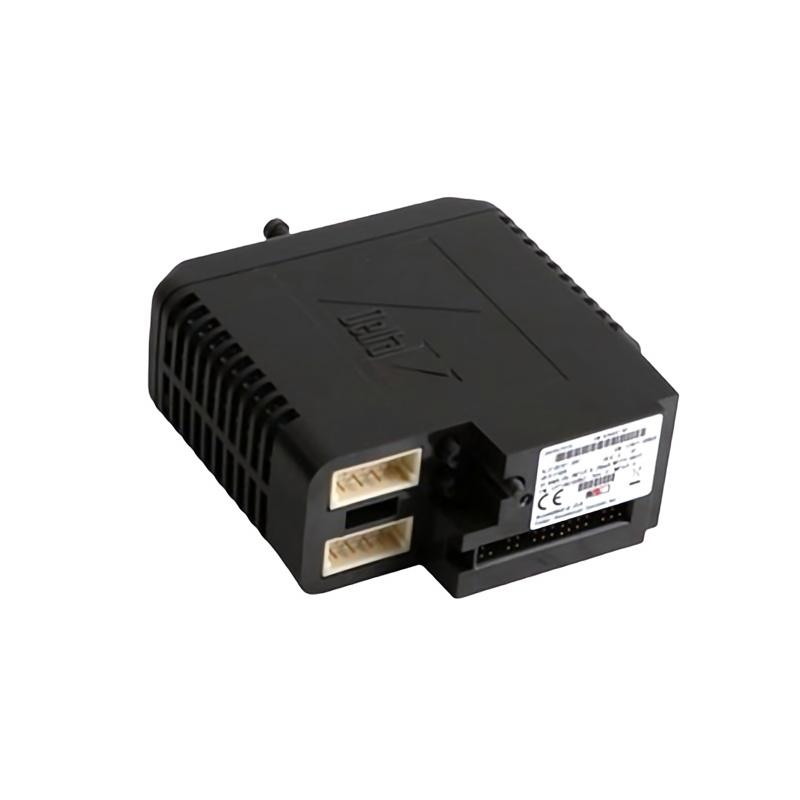

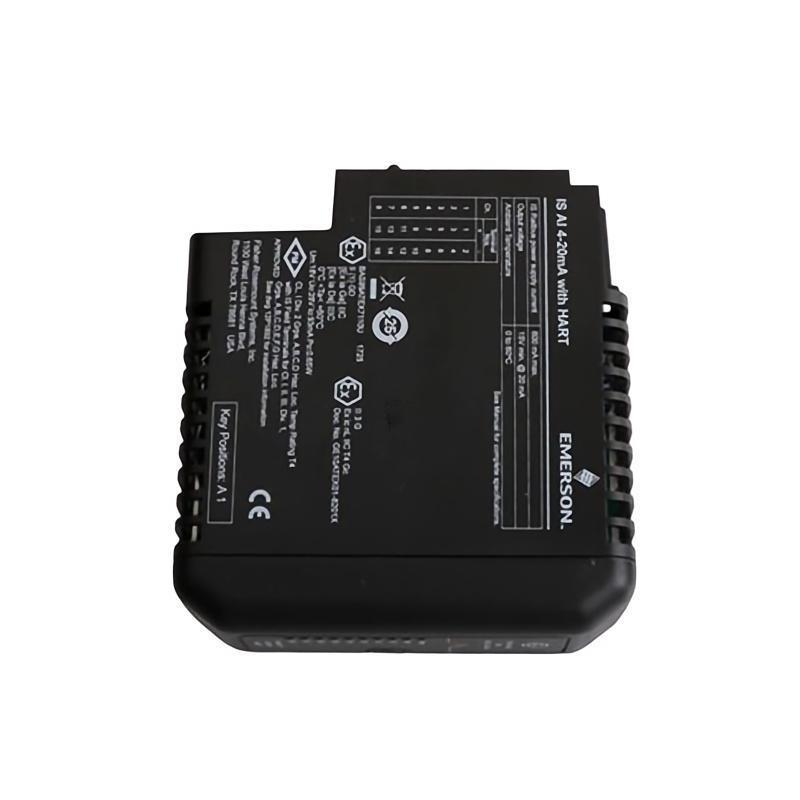

The Emerson KJ3102X032 DeltaV Analog Input Module is a high-precision analog interface designed to convert field sensor signals into digital data for Emerson DeltaV distributed control systems. It allows control engineers to monitor and regulate critical process parameters with accuracy and reliability.
By acquiring analog data from sensors such as temperature probes, pressure transducers, and flow meters, this module enables timely system responses and precise process control. Its industrial-grade design ensures reliable operation in challenging environments, and its modular architecture allows scalable integration within larger automation systems.
The DeltaV analog input module plays a vital role in maintaining operational efficiency, process stability, and safety across diverse industrial applications.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Emerson |
| Model Number | KJ3102X032 (12P1863X032) |
| Module Type | DeltaV Analog Input Module |
| Function | Analog Signal Acquisition and Conversion |
| System Compatibility | Emerson DeltaV Distributed Control Systems |
| Installation | Control System Rack Mount |
| Signal Type | Analog Input (4–20 mA, Voltage, Sensor Signals) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions | 44 mm × 102 mm × 108 mm |
| Weight | 0.22 kg (0.49 lb) |
Applications in Process Control and Measurement (Applications)
The Emerson KJ3102X032 DeltaV Analog Input Module is designed for high-precision analog signal acquisition in DeltaV distributed control systems. It converts field sensor signals into digital data, enabling accurate monitoring and control of process variables such as temperature, pressure, flow, and level.
Typical applications include:
-
Chemical and petrochemical plants for process variable monitoring
-
Oil & gas facilities for pipeline and process instrumentation
-
Power generation plants for pressure and flow measurement
-
Water and wastewater treatment facilities for level and flow control
-
Food and beverage production for temperature and process control
-
Industrial automation environments requiring high-resolution analog inputs
This module ensures reliable and precise acquisition of analog signals for improved process stability and operational efficiency.
Key Advantages (Advantages)
High-Accuracy Signal Conversion
Provides precise analog-to-digital conversion for reliable process monitoring.
Seamless DeltaV System Integration
Integrates easily into Emerson DeltaV distributed control systems for coordinated control.
Supports Multiple Analog Inputs
Capable of handling several channels of analog signals simultaneously, improving system scalability.
Robust Industrial Design
Engineered to maintain performance in electrically noisy or harsh industrial environments.
Compact and Modular Form Factor
Allows efficient installation in control cabinets and supports modular system expansion.
Technical FAQs (Technical FAQs)
1. What is the main function of the KJ3102X032 module?
It acquires analog signals from field sensors and converts them to digital data for the DeltaV control system.
2. Which types of signals can it process?
Supports analog signals such as 4–20 mA, voltage, or sensor outputs depending on configuration.
3. Which systems is it compatible with?
Designed for Emerson DeltaV distributed control systems.
4. How does the module communicate with the control system?
Signals are transmitted via the DeltaV backplane or communication interface.
5. Can it be used for high-precision measurement applications?
Yes. It supports high-resolution analog signal acquisition.
6. Is the module suitable for harsh industrial environments?
Yes. It is designed for continuous operation in environments with electrical noise or temperature variations.
7. How many input channels does it support?
Supports multiple analog channels, depending on system configuration.
8. Does it provide diagnostics?
Yes. Built-in diagnostics monitor signal integrity and module performance.
9. How is the module installed?
It is installed in a DeltaV control system rack or carrier.
10. What is the benefit of using a dedicated analog input module?
It ensures accurate, real-time acquisition of analog process variables, enhancing control precision and process safety.
