Product Overview (Introduction)

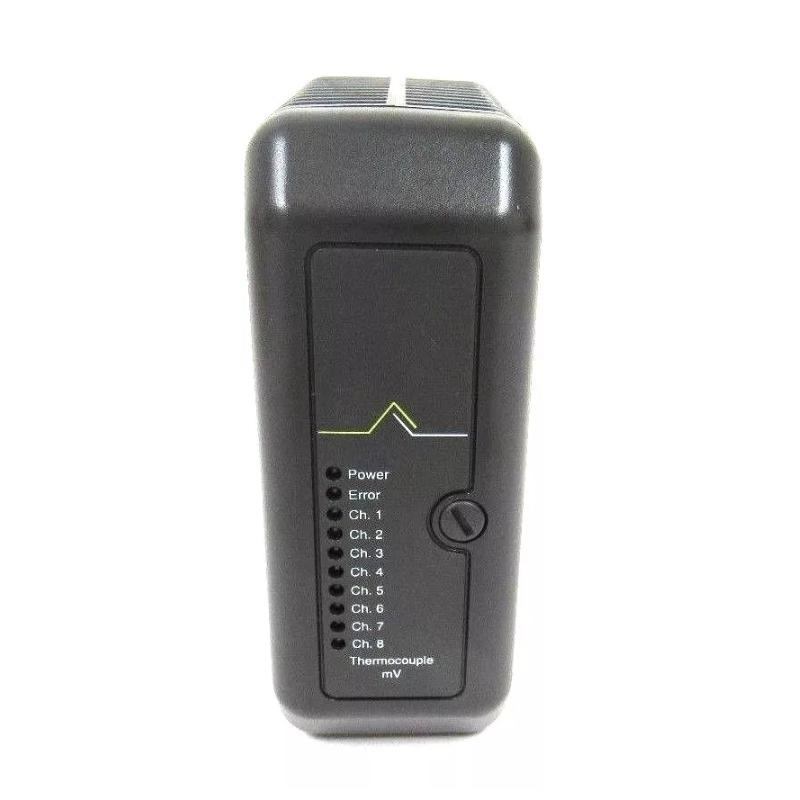

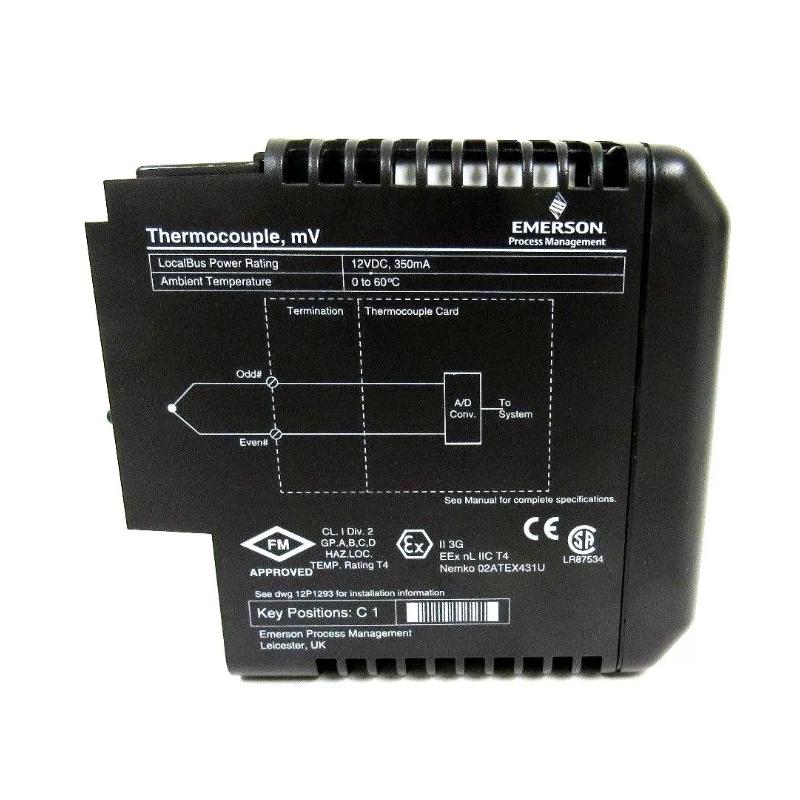

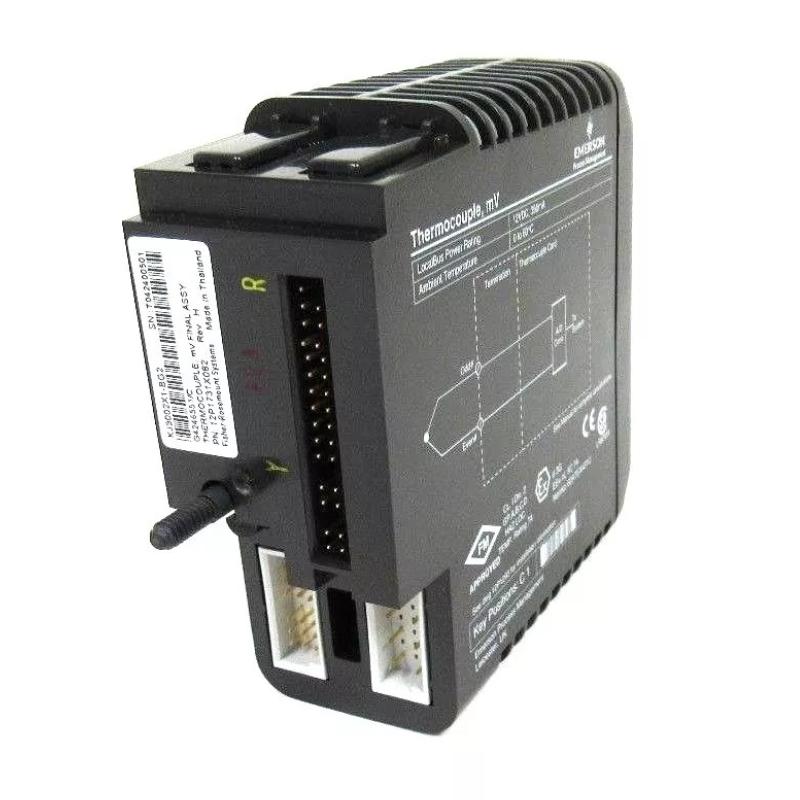

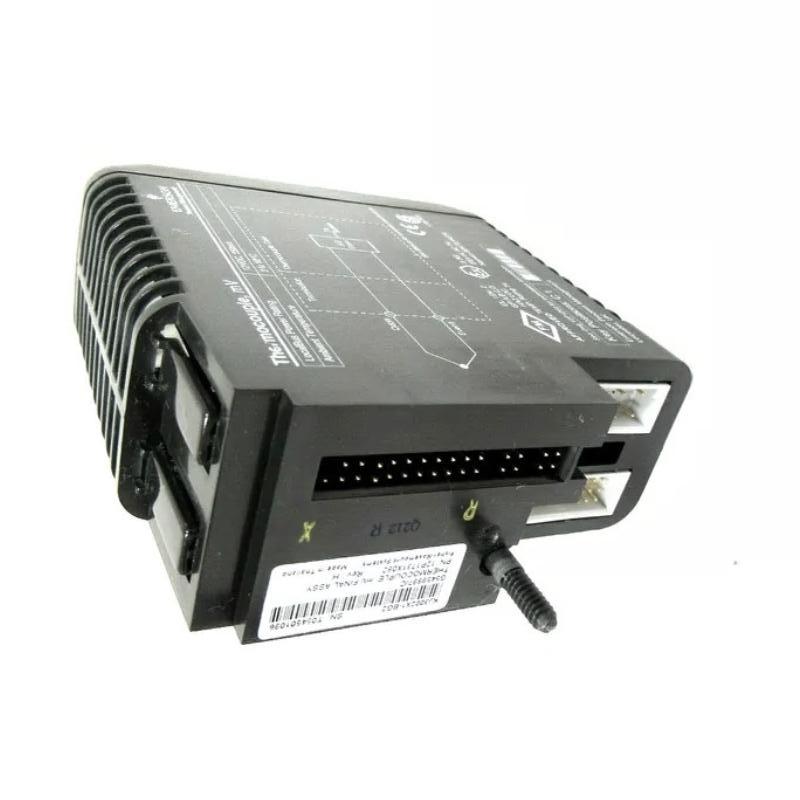

The Emerson VE4003S5B1 KJ3002X1-BG2 Thermocouple Input Module is a digital interface module designed to capture thermocouple signals from field sensors and deliver precise temperature data to Emerson distributed control systems.
Accurate temperature measurement is essential for process stability, safety, and energy efficiency in industrial environments. This module converts analog thermocouple signals into digital format, enabling reliable integration with DCS controllers.
Engineered for harsh industrial conditions, the module maintains signal integrity and supports continuous operation. Its compact and modular design allows for easy installation and scalable expansion, making it ideal for complex automation systems that require precise thermal monitoring.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Emerson |
| Model Number | VE4003S5B1 KJ3002X1-BG2 (12P1731X082) |
| Module Type | Thermocouple Input Module |
| Function | Temperature Signal Acquisition |
| System Compatibility | Emerson Distributed Control Systems |
| Installation | Control System Rack Mount |
| Signal Type | Thermocouple (Analog Input) |
| Supported Thermocouples | J, K, T types |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions | 107 mm × 41 mm × 105 mm |
| Weight | 0.281 kg (0.62 lb) |
Applications in Temperature Monitoring and Process Control (Applications)
The Emerson VE4003S5B1 KJ3002X1-BG2 Thermocouple Input Module is designed for precise temperature measurement in industrial automation systems. It converts thermocouple signals from field sensors into data suitable for distributed control systems, enabling accurate temperature monitoring and process control.
Common applications include:
-
Chemical and petrochemical plants for reaction temperature monitoring
-
Power generation and boiler control systems
-
Oil & gas processing for critical temperature sensing
-
Food and beverage production requiring precise thermal control
-
HVAC and environmental process control systems
-
Water and wastewater treatment plants for thermal monitoring
This module ensures accurate acquisition of thermocouple data, supporting safety, efficiency, and regulatory compliance in industrial processes.
Key Advantages for Industrial Engineers (Advantages)
High-Precision Temperature Measurement
Converts thermocouple signals into reliable digital data for accurate monitoring and control.
Seamless Integration with Emerson DCS
Compatible with Emerson distributed control systems, facilitating coordinated system operation.
Supports Multiple Thermocouple Types
Handles standard thermocouple types (e.g., J, K, T), enabling flexibility in sensor selection.
Robust Industrial Design
Engineered for stable operation under harsh conditions, including electrical noise and temperature fluctuations.
Compact and Modular Form Factor
Allows efficient installation in control panels and supports modular system expansion.
Technical FAQs (Technical FAQs)
1. What is the primary function of the VE4003S5B1 module?
It acquires thermocouple signals from field sensors and converts them into digital data for control systems.
2. Which systems is this module compatible with?
It is designed for Emerson distributed control systems (DCS).
3. What types of thermocouples can it process?
Supports standard thermocouple types, including J, K, and T types.
4. Can it handle multiple channels simultaneously?
Yes. It supports multi-channel thermocouple input for monitoring several sensors.
5. Is it suitable for industrial environments?
Yes. It is designed for continuous operation in harsh industrial conditions.
6. How does the module communicate with the control system?
Through the system backplane or communication interface integrated into Emerson DCS.
7. Does it include diagnostic capabilities?
Yes. It provides signal diagnostics and status monitoring for accurate process control.
8. Can it be used in safety-critical applications?
Yes. Accurate temperature monitoring can support safety interlocks and process protection systems.
9. How is the module installed?
It is mounted in a control system rack or carrier and connected to the backplane.
10. What is the benefit of using a dedicated thermocouple input module?
Provides high-precision temperature acquisition, supporting real-time control, system safety, and operational efficiency.
