Introduction

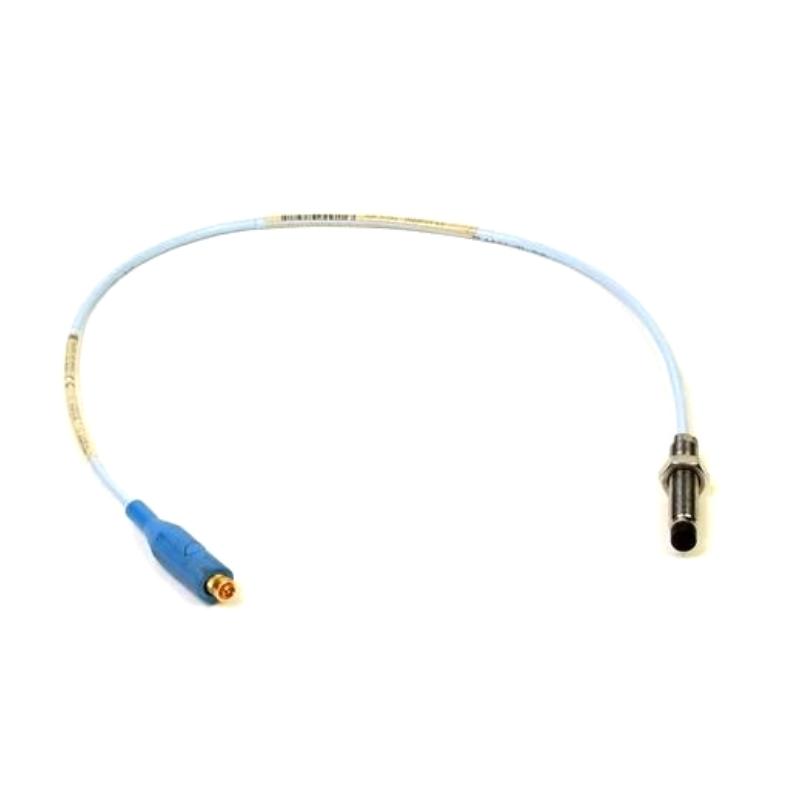

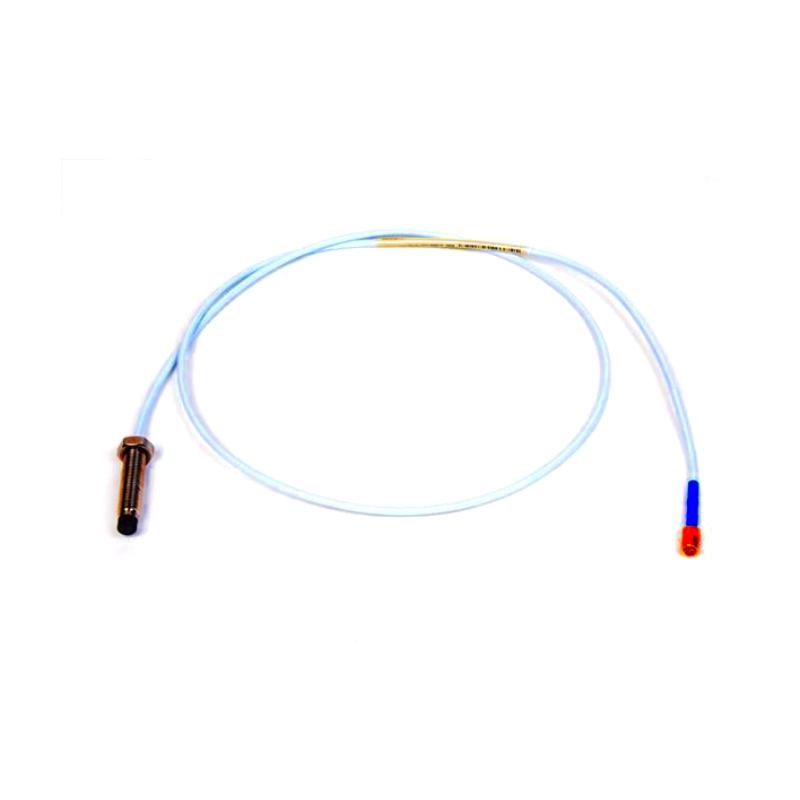

The Bently Nevada 330101-00-15-10-02-05 3300 XL 8 mm Proximity Probe is a precision non-contact sensor engineered for monitoring shaft vibration and position in rotating machinery. As a key element of the widely trusted 3300 XL vibration monitoring system, this probe delivers consistent and reliable measurement performance in demanding industrial environments.
Built with advanced eddy-current sensing technology, the probe accurately detects the distance between the probe tip and a conductive target surface. This capability enables early identification of mechanical faults such as imbalance, misalignment, and excessive shaft movement. With its rugged construction and proven long-term stability, the 3300 XL probe series has become a standard choice for machine protection systems across power plants, refineries, and heavy industrial facilities.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-00-15-10-02-05 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Probe Diameter | 8 mm |
| Thread Size | 3/8-24 UNF |
| Case Length | 1.5 in |
| Total Probe Length | 1.0 m |
| Connector Type | Miniature ClickLoc™ coaxial connector |
| Measurement Technology | Eddy-current proximity sensing |
| Linear Measurement Range | 2 mm (80 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Operating Temperature | −52°C to +177°C |
| Housing Material | Stainless steel |
| Dimensions | 63 × 25 × 25 mm |
| Weight | Approximately 0.30 kg |
