System Architecture Overview (Introduction)

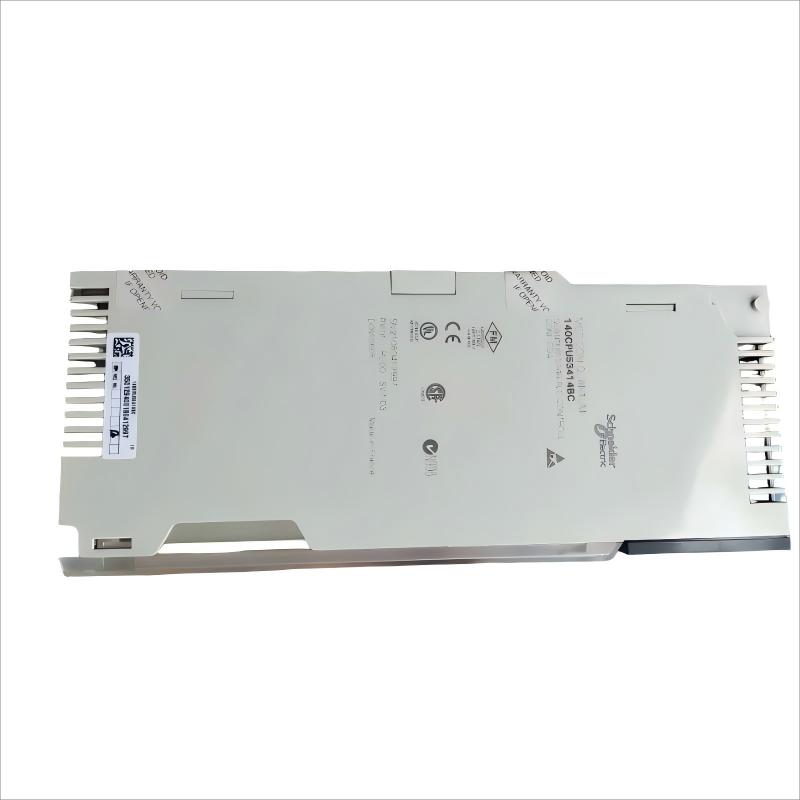

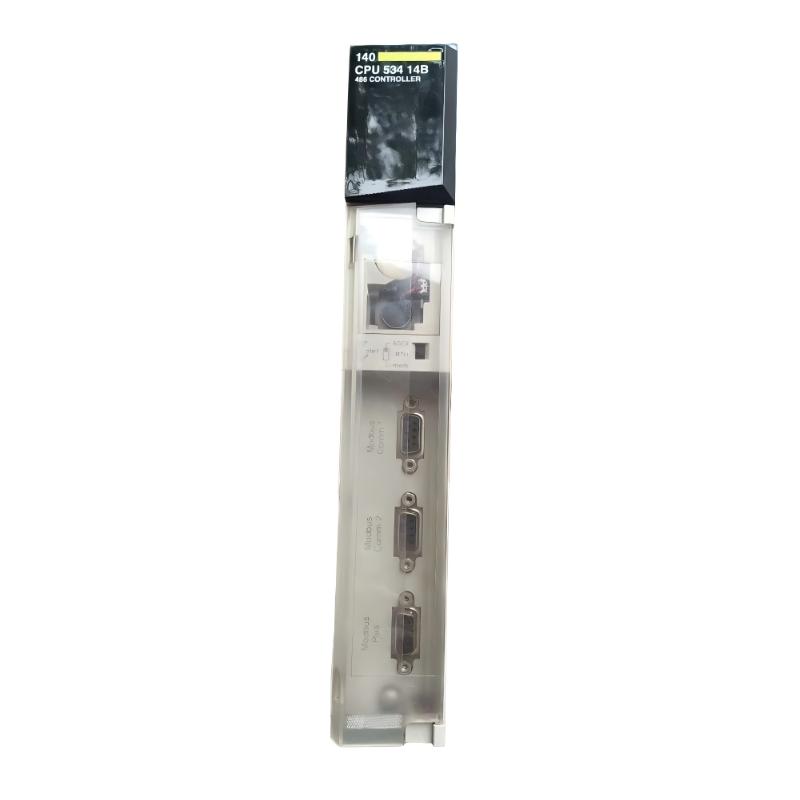

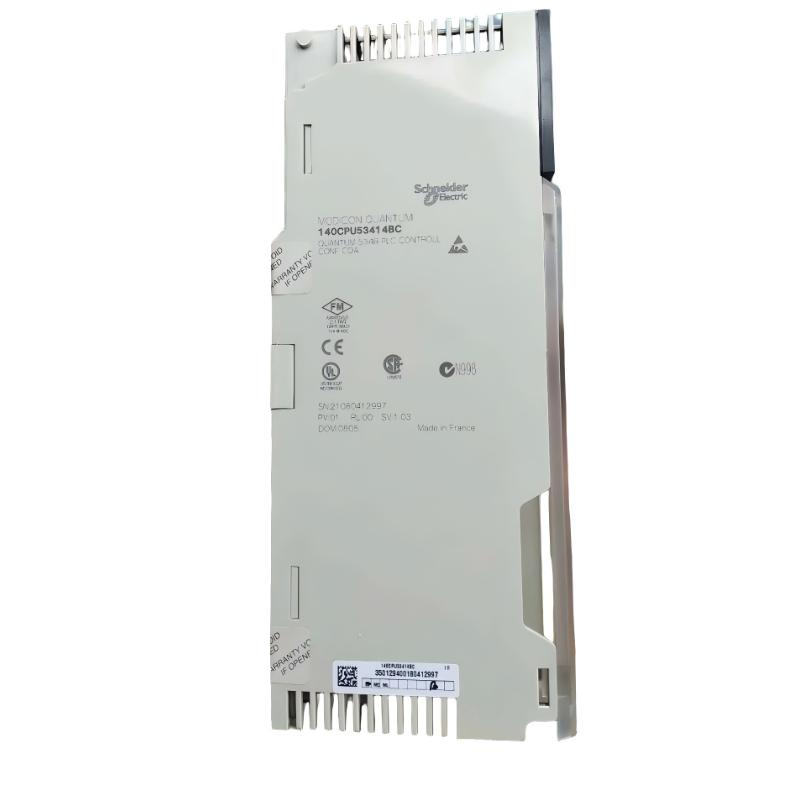

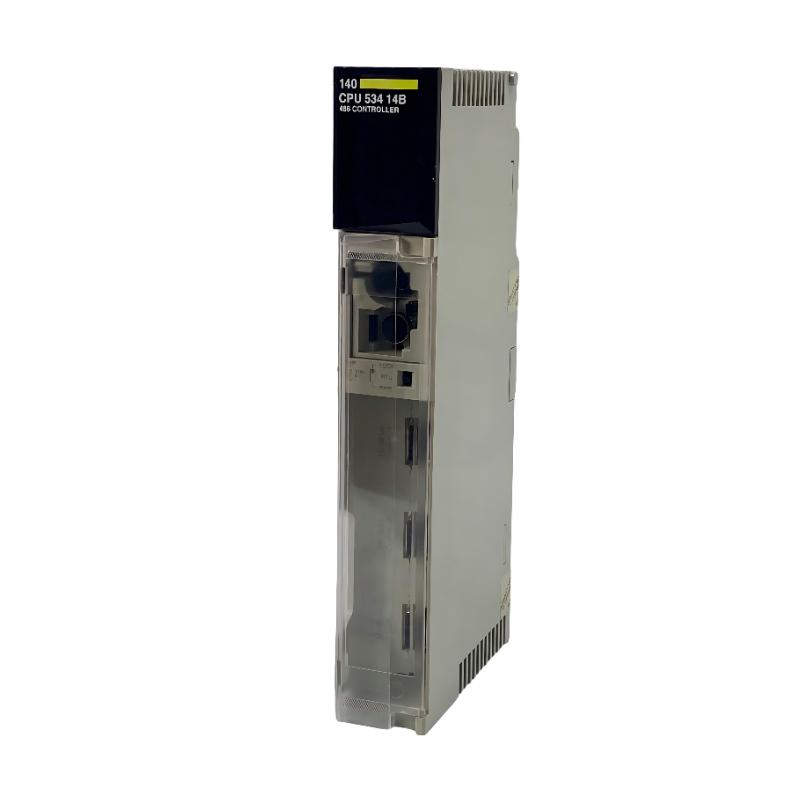

The Schneider 140CPU53414BC CPU Controller with Math Coprocessor is an advanced programmable logic controller processor designed for use within the Modicon Quantum automation platform. As the central controller of the PLC system, it executes control logic, processes I/O data, and manages communication between system components.
What distinguishes this model is the inclusion of a dedicated mathematical coprocessor, which enhances the CPU’s ability to perform complex calculations required by advanced industrial control applications. This capability is particularly valuable in environments where real-time computational accuracy directly affects process performance.
Industrial automation systems often rely on processors capable of coordinating large volumes of data while maintaining consistent control cycles. The 140CPU53414BC processor provides this capability by combining robust processing hardware with scalable system architecture.
Through its integration with Quantum PLC infrastructure, the controller supports modular expansion, allowing engineers to build automation systems that can grow alongside operational requirements.
Hardware and Engineering Data (Technical Specifications)
| Specification | Details |
|---|
| Manufacturer | Schneider Electric |
| Model Number | 140CPU53414BC |
| Module Type | CPU Controller with Math Coprocessor |
| Platform | Modicon Quantum PLC |
| Function | Central PLC Processing Unit |
| Installation | Quantum Rack Mount |
| Communication | Backplane Communication with I/O and Network Modules |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions | 103.9 mm × 40.3 mm × 250 mm |
| Weight | 0.85 kg (1.87 lb) |
Industrial Process Control Applications (Applications)
The Schneider 140CPU53414BC CPU Controller with Math Coprocessor is designed for advanced automation systems within the Modicon Quantum PLC platform. Equipped with an integrated mathematical coprocessor, this controller is particularly suited for industrial processes requiring intensive calculations, precise control algorithms, and real-time data processing.
Typical applications include:
-
Petrochemical process automation with complex control loops
-
Power plant control systems requiring advanced calculations
-
High-speed manufacturing processes with precision control requirements
-
Industrial robotics and motion-related automation
-
Water treatment facilities with dynamic flow and chemical dosing calculations
-
Energy monitoring and process optimization systems
The integrated math coprocessor enhances the controller’s ability to perform computational tasks efficiently, making it valuable in automation environments that depend on high-speed processing and complex algorithm execution.
System Capabilities and Operational Benefits (Advantages)
Integrated Mathematical Processing
The built-in math coprocessor accelerates computational tasks such as floating-point calculations, enabling faster execution of advanced control algorithms.
Optimized for Quantum PLC Systems
The controller is fully compatible with the Modicon Quantum platform, allowing seamless integration with Quantum I/O modules and communication interfaces.
Improved Performance for Complex Automation
Applications involving large datasets, process modeling, or precision calculations benefit from the additional processing capabilities.
Reliable Industrial Hardware Design
The module is engineered to operate consistently under industrial conditions including electrical noise, temperature fluctuations, and mechanical vibration.
Support for Large Automation Architectures
The CPU can coordinate extensive automation networks, including distributed I/O modules and communication systems across industrial facilities.
Engineering Knowledge Base (Technical FAQs)
1. What is the main function of the math coprocessor in the 140CPU53414BC?
The math coprocessor accelerates complex mathematical operations, improving performance for control algorithms and data processing tasks.
2. Which PLC platform supports this controller?
It is designed for the Schneider Modicon Quantum PLC platform.
3. What type of automation tasks benefit from the math coprocessor?
Applications involving advanced calculations, process modeling, and high-speed data analysis benefit significantly.
4. How does the CPU communicate with other modules?
Communication is handled through the Quantum backplane bus, enabling efficient data exchange with I/O and communication modules.
5. Can this controller manage distributed I/O networks?
Yes. With compatible network modules, it can coordinate remote I/O systems and distributed automation architectures.
6. What programming environments are compatible with this CPU?
It supports industrial programming methods commonly used within Schneider automation environments.
7. Is the controller suitable for process control industries?
Yes. It is widely used in continuous process industries such as chemical processing and energy production.
8. How does the controller support system diagnostics?
Integrated monitoring and diagnostic capabilities assist engineers in identifying faults and maintaining system stability.
9. Can the controller handle large automation systems?
Yes. It is capable of coordinating large-scale PLC systems with multiple modules and networks.
10. What role does the CPU play within the Quantum rack?
It serves as the central processing unit, executing the automation program and managing system-wide communication.
