Product Overview

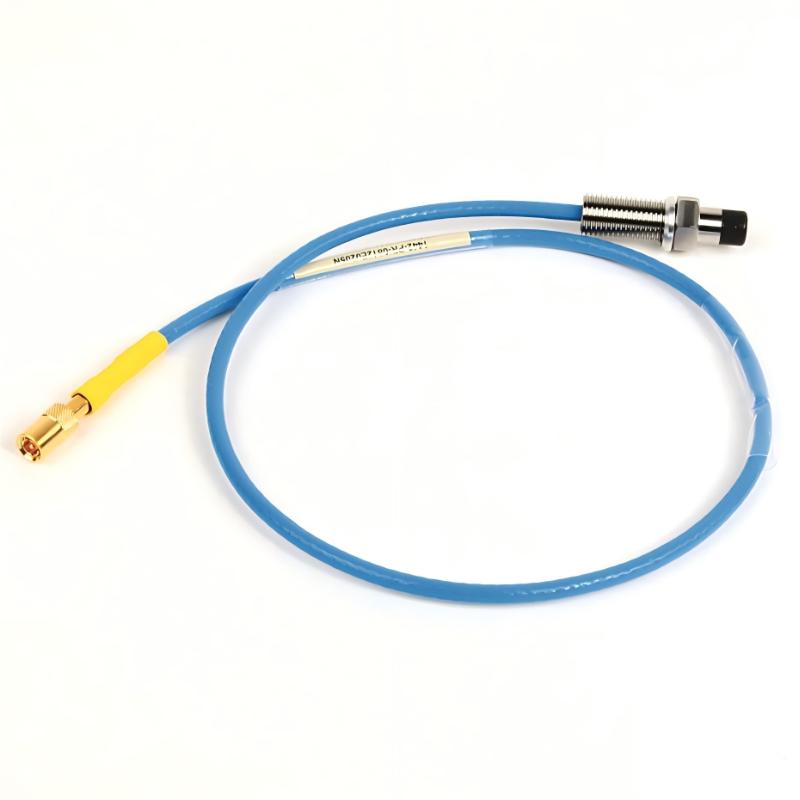

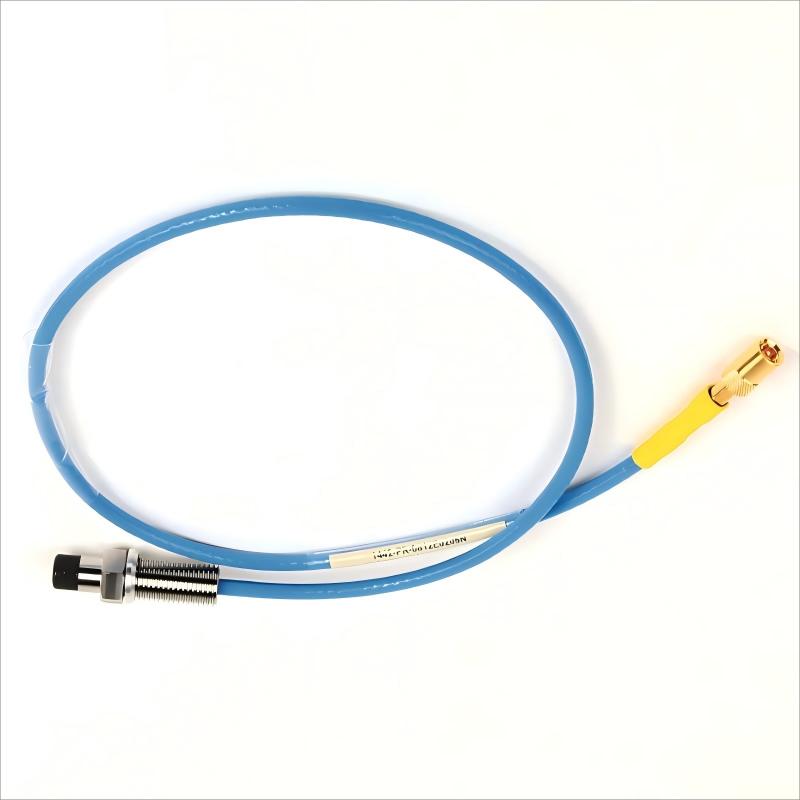

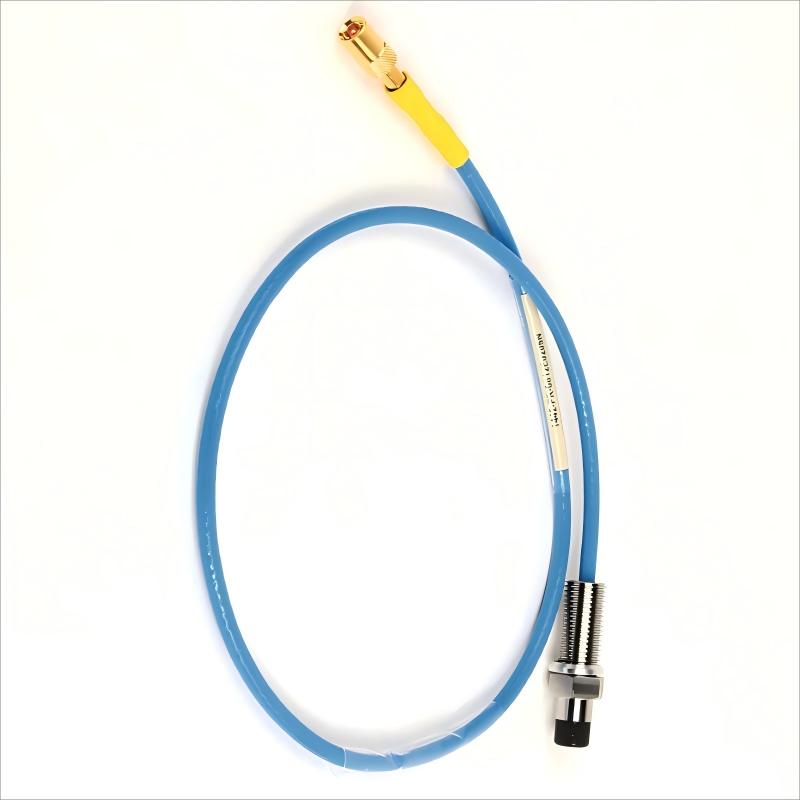

The Bently Nevada 1442-PR-0812E0205N 1442 Eddy Current Probe is an industrial sensor used to measure shaft displacement and vibration in rotating equipment. In condition monitoring systems, proximity-based sensors detect small variations in shaft position that can indicate developing mechanical issues.
The probe operates using eddy current sensing principles, generating an electromagnetic field that reacts to the proximity of conductive surfaces. Changes in this field are converted into electrical signals that monitoring systems analyze to evaluate machine condition.
Designed for integration into industrial machinery monitoring platforms, the probe provides accurate measurement capabilities that support predictive maintenance and machinery protection programs.
Technical Specifications
| Parameter | Specification |
|---|
| Product Model | 1442-PR-0812E0205N |
| Product Type | Eddy Current Probe |
| Manufacturer | Bently Nevada |
| Measurement Function | Shaft Displacement / Vibration Monitoring |
| Sensing Technology | Eddy Current |
| Cable Length | 0.5 m |
| Application Environment | Industrial Machinery Monitoring Systems |
| Dimensions | Probe Configuration Dependent |
| Shipping Weight | 3 kg (6.614 lb) |
Typical Industrial Use Cases
The Bently Nevada 1442-PR-0812E0205N 1442 Eddy Current Probe is designed for non-contact measurement of shaft displacement and vibration in rotating machinery. Eddy current probes are widely used in condition monitoring systems where accurate and continuous measurement of shaft movement is required.
These probes operate using electromagnetic sensing principles to detect changes in distance between the probe tip and the rotating shaft surface. The measurement data helps monitoring systems detect early indicators of mechanical issues such as imbalance, misalignment, or bearing wear.
Typical applications include:
-
Turbine shaft vibration monitoring in power generation facilities
-
Compressor displacement monitoring in oil and gas installations
-
Pump shaft movement monitoring in chemical processing plants
-
Motor vibration analysis in industrial manufacturing systems
-
Rotating equipment condition monitoring in heavy machinery environments
By providing precise displacement measurements, the probe helps maintain operational reliability and machine safety.
Key Functional Advantages
Non-Contact Measurement Technology
The probe measures shaft displacement without touching the rotating surface, eliminating mechanical wear and ensuring stable measurements.
High Sensitivity Detection
Eddy current sensing technology allows the probe to detect extremely small changes in shaft position.
Reliable Operation in Continuous Monitoring Systems
The probe is designed for installations that require long-term and uninterrupted machinery monitoring.
Compact Cable Configuration
With a 0.5 meter cable length, the probe can be conveniently integrated into monitoring systems with limited installation space.
Supports Predictive Maintenance Strategies
Accurate displacement data enables early detection of machine abnormalities before they develop into major faults.
Technical FAQs
1. What is the main function of the 1442-PR-0812E0205N eddy current probe?
It measures shaft displacement and vibration using non-contact electromagnetic sensing technology.
2. Why are eddy current probes commonly used in rotating machinery monitoring?
Because they provide precise measurements without physical contact with the rotating shaft.
3. What types of machines typically use this probe?
Steam turbines, gas turbines, compressors, pumps, and industrial motors.
4. How does the probe detect shaft movement?
It measures changes in the electromagnetic field between the probe tip and the shaft surface.
5. Can the probe operate continuously in industrial environments?
Yes, it is designed for long-term monitoring in continuous industrial operations.
6. How does shaft displacement monitoring improve machine reliability?
It helps detect abnormal vibration patterns and alignment problems early.
7. Is the probe compatible with vibration monitoring systems?
Yes, it is used with monitoring modules that analyze displacement and vibration signals.
8. Where is the probe typically installed?
Near the rotating shaft, usually mounted through machine housings or brackets.
9. What industries commonly use eddy current probes?
Power generation, oil and gas processing, petrochemical plants, and heavy manufacturing.
10. Why is non-contact sensing important in high-speed machinery?
It avoids mechanical interference while maintaining accurate measurements.
