Product Introduction

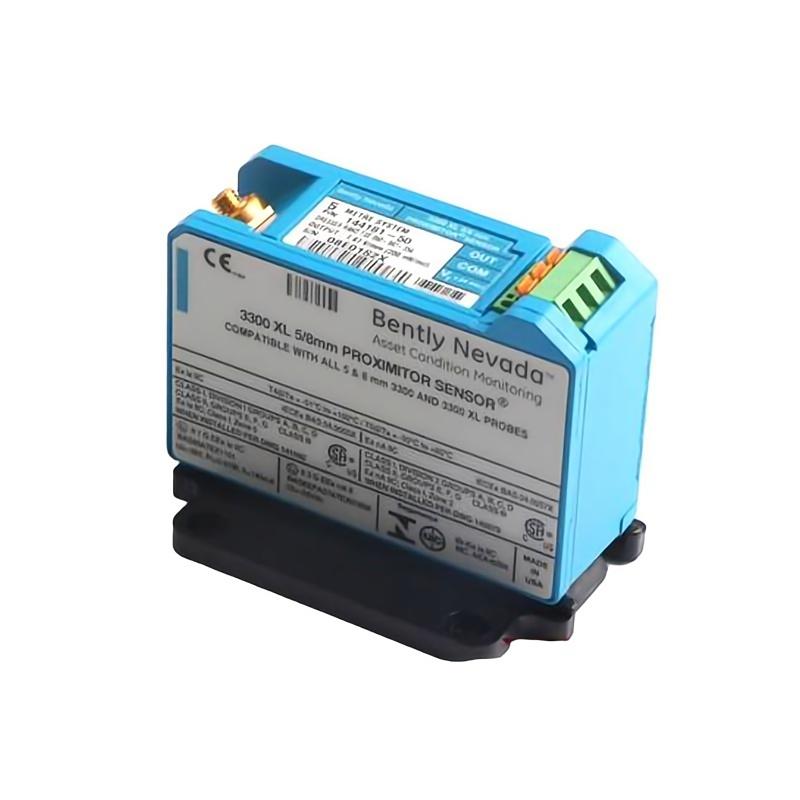

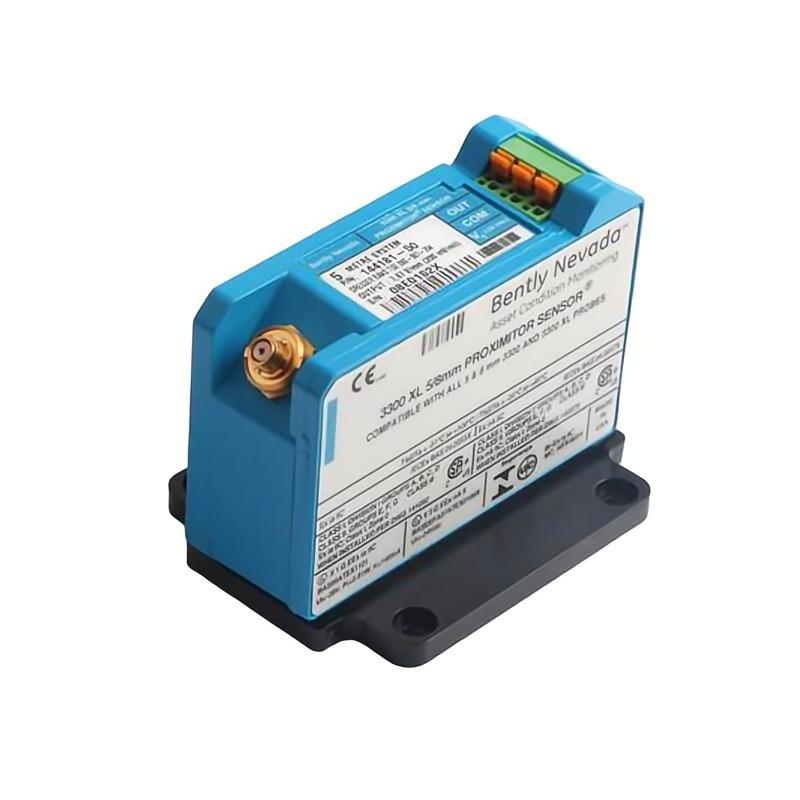

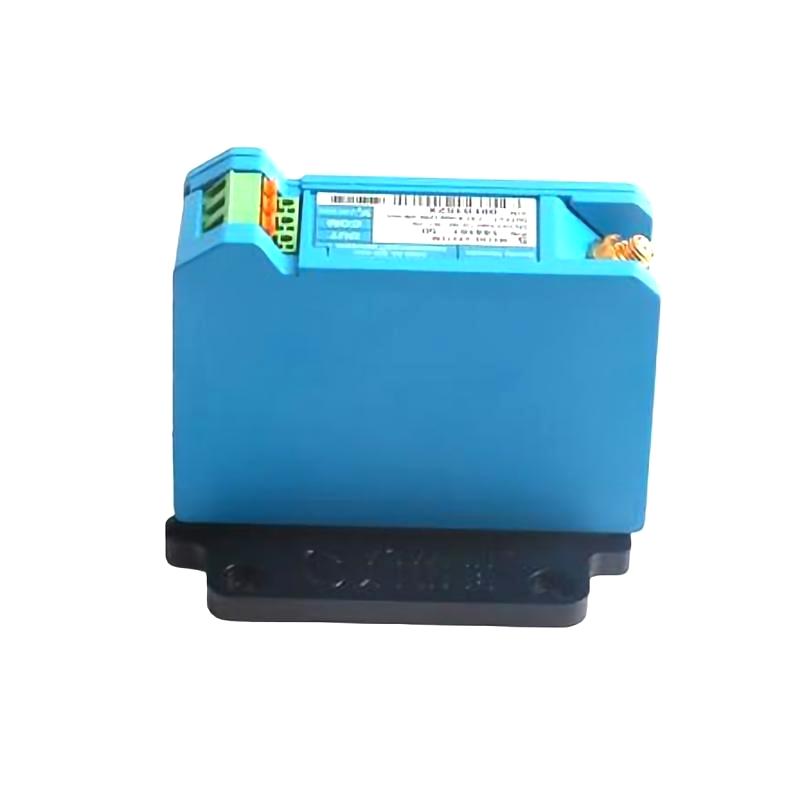

The Bently Nevada 144181-50 3300 XL 5/8 mm Preamplifier Sensor is an electronic signal conditioning component used in industrial machinery monitoring systems. In proximity probe installations, sensors detect shaft displacement and vibration levels in rotating machinery such as turbines, compressors, and motors.
The raw signals produced by these probes require amplification and conditioning before they can be accurately processed by monitoring modules. The preamplifier performs this function, ensuring that signals maintain their integrity as they travel through the monitoring system.
With its compatibility with the 3300 XL monitoring platform and robust industrial design, the 144181-50 preamplifier supports reliable signal processing in demanding machinery monitoring environments.
Technical Specifications
| Parameter | Specification |
|---|
| Product Model | 144181-50 |
| Product Type | 3300 XL Preamplifier Sensor |
| Manufacturer | Bently Nevada |
| Probe Compatibility | 5/8 mm Proximity Probe Systems |
| Functional Role | Signal Amplification and Conditioning |
| Application Environment | Industrial Machinery Monitoring Systems |
| Dimensions | 81.3 × 35.1 × 63.5 mm |
| Weight | 0.246 kg (0.542 lb) |
The Bently Nevada 144181-50 3300 XL 5/8 mm Preamplifier Sensor is designed to condition and amplify signals from proximity probes used in industrial machinery monitoring systems. Preamplifiers play a key role in vibration and displacement monitoring by strengthening sensor signals before they are transmitted to monitoring modules for analysis.
Within a proximity probe system, the preamplifier ensures that measurement signals maintain accuracy and integrity across the connection to monitoring equipment.
Typical industrial applications include:
-
Turbine shaft vibration monitoring in power generation facilities
-
Compressor condition monitoring in oil and gas processing plants
-
Pump and motor protection systems in manufacturing environments
-
Rotating equipment monitoring installations in heavy industry
-
Machinery protection systems utilizing the 3300 XL proximity probe platform
By conditioning sensor signals before they reach monitoring modules, the preamplifier supports precise measurement of shaft movement and vibration.
Engineering Advantages
Signal Amplification for Monitoring Accuracy
The preamplifier strengthens signals generated by proximity probes, ensuring they are transmitted clearly to monitoring systems.
Designed for the 3300 XL Monitoring Platform
It integrates with 3300 XL proximity probe systems widely used in industrial vibration monitoring.
Improved Signal Integrity
Signal conditioning reduces noise interference and enhances measurement reliability.
Compact Industrial Design
Its compact size allows installation near sensors or within monitoring assemblies.
Supports Continuous Machinery Monitoring
The device is engineered for systems that operate continuously to protect rotating equipment.
Technical FAQs
1. What is the primary function of the 144181-50 preamplifier sensor?
It amplifies and conditions signals from proximity probes before they are sent to monitoring modules.
2. Why are preamplifiers important in proximity probe systems?
They ensure that sensor signals remain strong and accurate during transmission.
3. Which monitoring platform typically uses this preamplifier?
It is designed for use with the 3300 XL proximity probe monitoring system.
4. What type of sensors connect to this preamplifier?
Proximity probes used for shaft displacement and vibration monitoring.
5. How does the preamplifier improve monitoring reliability?
By enhancing signal clarity and reducing the effect of electrical noise.
6. Where is the preamplifier typically installed?
Near the sensor or within the monitoring system wiring configuration.
7. What industries commonly use this type of device?
Power generation, oil and gas processing, and heavy industrial manufacturing.
8. Can the preamplifier operate continuously in monitoring systems?
Yes, it is designed for continuous industrial monitoring applications.
9. How does it contribute to predictive maintenance programs?
By ensuring accurate vibration and displacement measurements used in equipment diagnostics.
10. Why is signal conditioning important in vibration monitoring systems?
Because accurate sensor data is necessary to detect mechanical issues early.
