Product Introduction

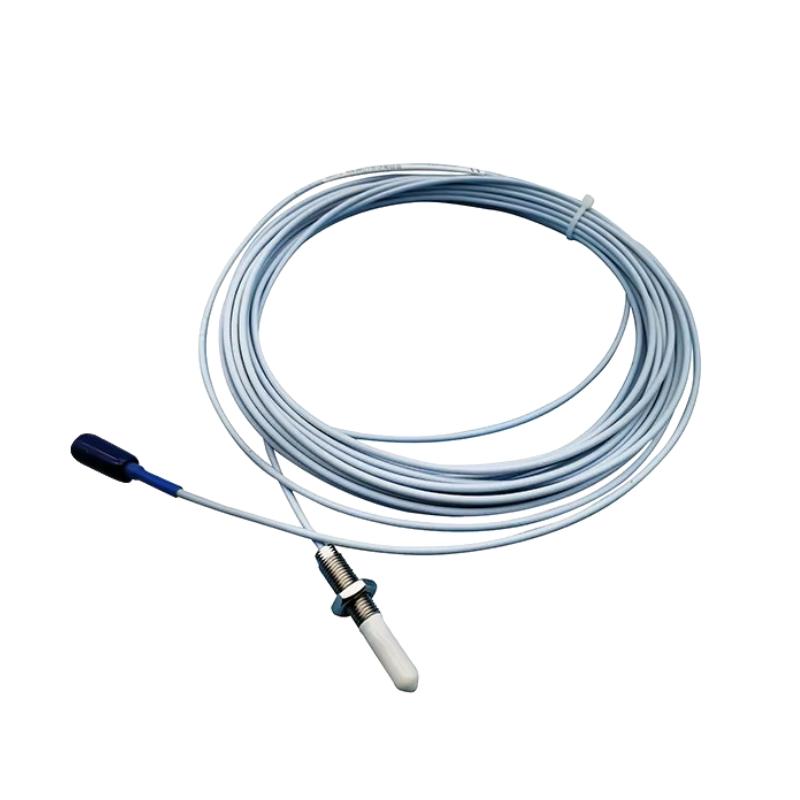

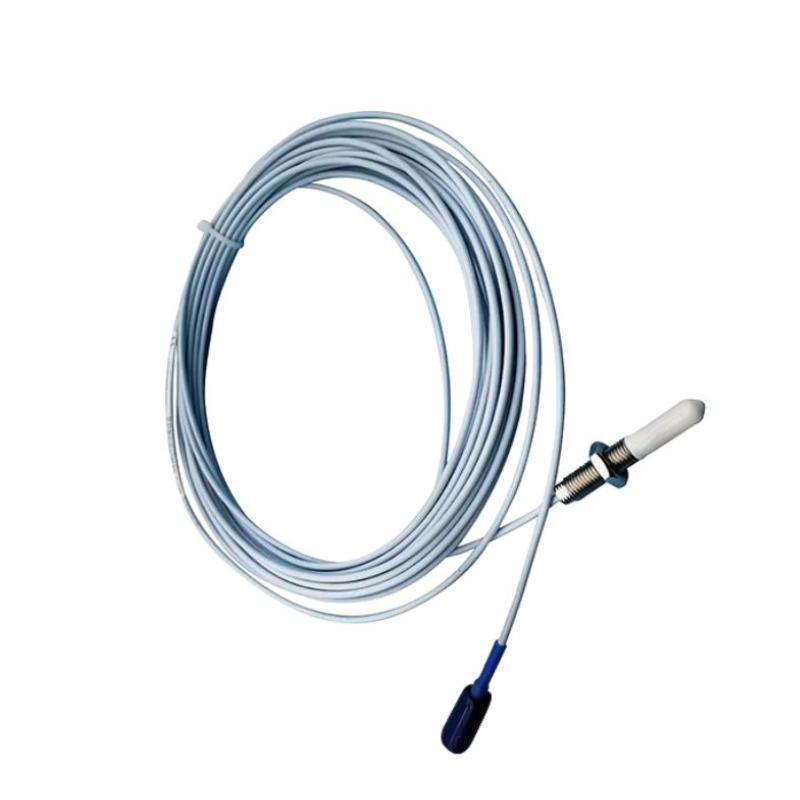

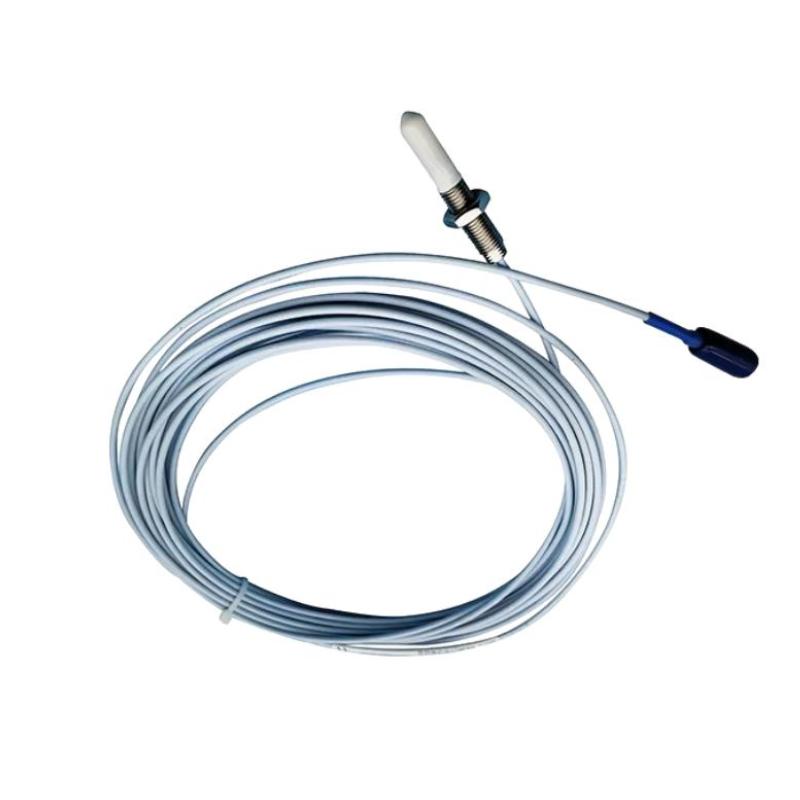

The Bently Nevada 137365-01-20-02-05 Proximity Probe is an industrial sensor used in machinery monitoring systems to measure shaft position and vibration without direct contact. Rotating equipment such as turbines, compressors, and motors operate under conditions where precise monitoring of shaft movement is necessary to prevent mechanical damage.
The probe detects changes in distance between its sensing tip and the rotating shaft surface. These measurements are transmitted to monitoring systems that analyze machine condition and trigger alarms if abnormal behavior is detected.
With flexible length options and compatibility with industrial monitoring infrastructures, the probe supports reliable measurement in demanding machinery protection applications.
Technical Specifications
| Parameter | Specification |
|---|
| Product Model | 137365-01-20-02-05 |
| Product Type | Proximity Probe |
| Manufacturer | Bently Nevada |
| Measurement Function | Shaft Displacement / Vibration Monitoring |
| Installation Type | Non-Contact Mount Near Rotating Shaft |
| Application Environment | Industrial Machinery Monitoring Systems |
| Total Length | Optional |
| Dimensions | Probe Configuration Dependent |
| Shipping Weight | 3 kg (6.614 lb) |
Typical Deployment in Industrial Machinery Monitoring
The Bently Nevada 137365-01-20-02-05 Proximity Probe is designed for precise non-contact measurement of shaft displacement and vibration in rotating machinery. Proximity probes are widely used in condition monitoring systems where accurate detection of shaft movement is essential for maintaining machine reliability and operational safety.
These sensors are installed near rotating shafts or critical mechanical components to measure small positional changes during operation. The data collected helps monitoring systems evaluate machine behavior and detect early signs of imbalance, misalignment, or mechanical wear.
Typical industrial applications include:
-
Steam and gas turbine shaft displacement monitoring
-
Compressor vibration monitoring in oil and gas facilities
-
Pump and motor condition monitoring systems
-
Generator shaft position supervision in power plants
-
Rotating machinery diagnostics in manufacturing plants
By providing real-time shaft position data, the probe supports predictive maintenance and machinery protection strategies.
Engineering Advantages
Non-Contact Measurement Technology
The probe measures shaft displacement without physical contact, reducing wear and ensuring long-term measurement stability.
High Sensitivity Detection
It is capable of detecting very small changes in shaft position and vibration levels.
Supports Continuous Machinery Monitoring
The probe is designed for systems that require uninterrupted monitoring of rotating equipment.
Flexible Installation Configurations
Optional probe length allows engineers to adapt the sensor to different machine designs and installation environments.
Reliable Integration with Monitoring Systems
The probe transmits displacement signals to monitoring modules used for condition analysis and protective functions.
Technical FAQs
1. What is the main purpose of the 137365-01-20-02-05 proximity probe?
It measures shaft displacement and vibration in rotating machinery using non-contact sensing technology.
2. Where is the probe typically installed?
Near the rotating shaft of turbines, compressors, motors, or pumps.
3. What type of measurement does a proximity probe provide?
It detects small positional changes in the shaft relative to the probe tip.
4. Why is non-contact measurement important for rotating equipment?
It avoids mechanical wear and allows accurate measurements even at high rotational speeds.
5. Can the probe operate continuously in industrial environments?
Yes, it is designed for continuous operation in machinery monitoring systems.
6. What monitoring systems typically use this probe?
Industrial vibration and machinery protection systems used in power generation and process industries.
7. How does the probe help with predictive maintenance?
By detecting early signs of vibration or displacement anomalies in rotating machinery.
8. Can the probe be integrated with vibration monitoring modules?
Yes, it is commonly connected to monitoring modules that analyze vibration and shaft position data.
9. Is the probe suitable for high-speed rotating equipment?
Yes, proximity probes are widely used for high-speed turbine and compressor monitoring.
10. Why is shaft displacement monitoring important?
Because abnormal shaft movement can indicate imbalance, bearing wear, or alignment problems.
