Product Introduction

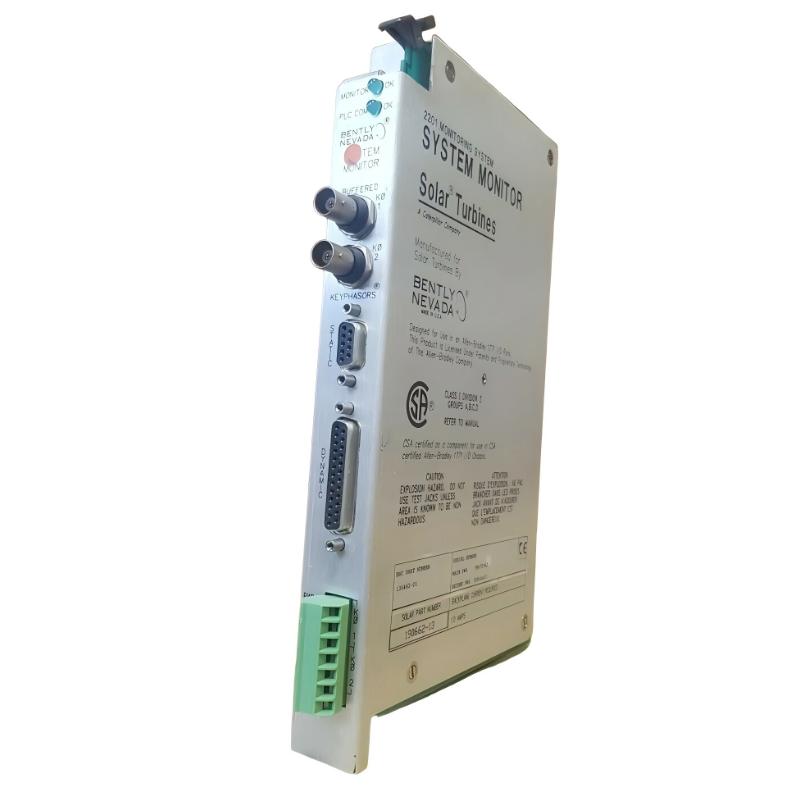

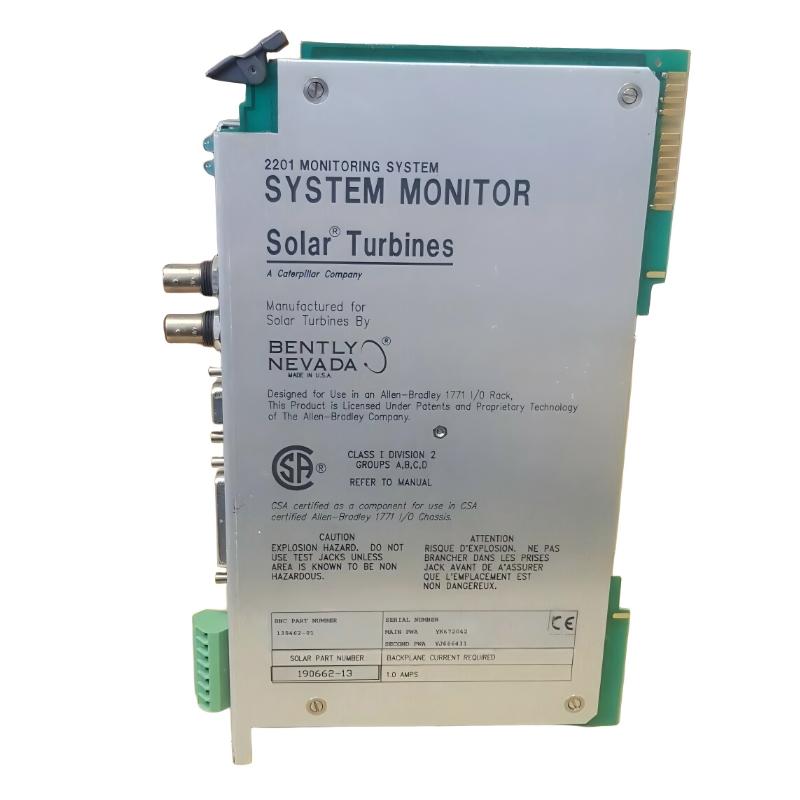

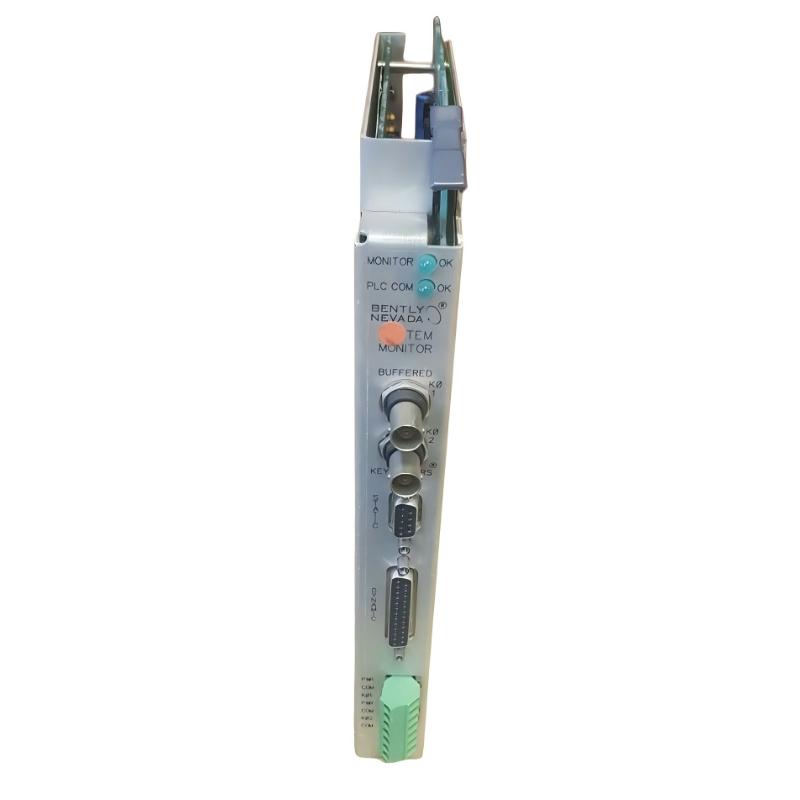

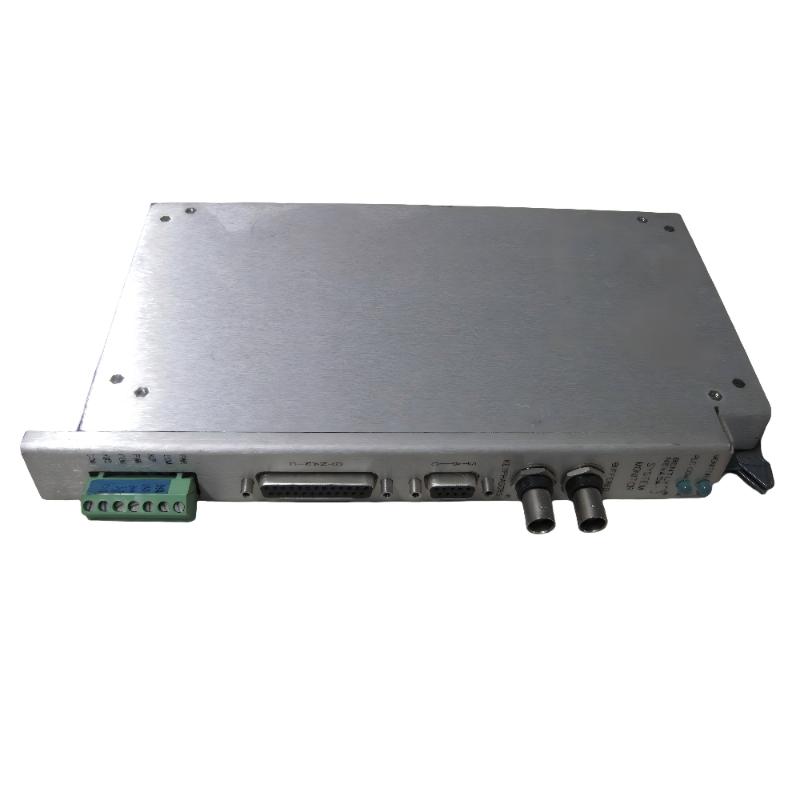

The Bently Nevada 135462-01 190662-13 2-Channel Monitor Module is an industrial monitoring component designed for turbine and rotating machinery protection systems. Industrial machines such as turbines, compressors, and large pumps require continuous supervision of vibration and mechanical movement to ensure reliable operation.
This module receives signals from two connected sensors and processes them within the monitoring system. By enabling real-time analysis of machine conditions, it helps operators detect abnormal vibration levels or displacement patterns that may indicate developing faults.
With its compatibility with turbine monitoring platforms and its robust industrial design, the module supports dependable machinery protection in demanding operational environments.
Technical Specifications
| Parameter | Specification |
|---|
| Product Model | 135462-01 |
| Secondary Part Number | 190662-13 |
| Product Type | 2-Channel Monitor Module |
| Manufacturer | Bently Nevada |
| Monitoring Channels | 2 |
| Functional Role | Machinery Condition Monitoring |
| Typical Application | Solar Turbine Monitoring Systems |
| Installation Type | Monitoring Rack / Control Cabinet |
| Dimensions | 241 × 24.4 × 99.1 mm |
| Weight | 0.78 kg (1.720 lb) |
Industrial Deployment Overview
The Bently Nevada 135462-01 190662-13 2-Channel Monitor Module is designed for continuous supervision of rotating machinery in turbine and industrial equipment monitoring systems. Monitor modules with multiple input channels allow maintenance teams and control systems to observe several measurement points simultaneously, supporting effective machinery diagnostics and protection.
In turbine-driven installations and other critical rotating equipment, monitoring modules collect signals from sensors such as vibration probes or displacement sensors. These signals are analyzed to detect abnormal operating conditions before mechanical damage occurs.
Typical industrial applications include:
-
Solar turbine monitoring installations in power generation facilities
-
Compressor vibration monitoring in oil and gas processing plants
-
Pump protection systems in industrial process environments
-
Rotating machinery diagnostics in manufacturing operations
-
Centralized machinery monitoring racks supervising multiple sensors
With its dual-channel capability, the module enables monitoring of two independent measurement points on a machine.
Key Operational Advantages
Dual-Channel Monitoring Capability
The module processes signals from two sensors simultaneously, enabling multi-point machinery monitoring.
Designed for Turbine Monitoring Systems
It integrates with turbine protection systems commonly used in industrial energy and processing facilities.
Real-Time Machinery Condition Tracking
Continuous data monitoring allows operators to detect vibration changes or displacement anomalies early.
Supports Equipment Protection Strategies
Sensor data processed by the module can be used to trigger alarms or initiate protective actions.
Industrial Reliability
Built for installation in monitoring cabinets that operate continuously in demanding industrial environments.
Technical FAQs
1. What is the primary role of the 135462-01 monitor module?
It receives and processes sensor signals used to monitor the condition of rotating machinery.
2. Why are multi-channel monitoring modules important in turbine systems?
They allow several measurement points to be monitored simultaneously for better diagnostic coverage.
3. What types of sensors typically connect to this module?
Vibration probes, displacement sensors, and other machinery monitoring devices.
4. How does the module improve machinery protection?
It processes sensor signals and identifies abnormal operating conditions that may require intervention.
5. What industries typically use this monitoring module?
Power generation, oil and gas processing, and heavy industrial manufacturing.
6. Can the module operate continuously in industrial monitoring systems?
Yes, it is designed for long-term operation in machinery protection environments.
7. Where is the module usually installed?
Inside monitoring racks or instrumentation cabinets within machinery monitoring systems.
8. Can it support predictive maintenance programs?
Yes, the monitoring data helps engineers analyze equipment health and identify early faults.
9. What is the advantage of two-channel monitoring?
It allows monitoring of two different machine components or sensor locations simultaneously.
10. Why is turbine monitoring important in industrial facilities?
Because turbines are critical assets where early fault detection helps prevent costly damage and downtime.
