Introduction

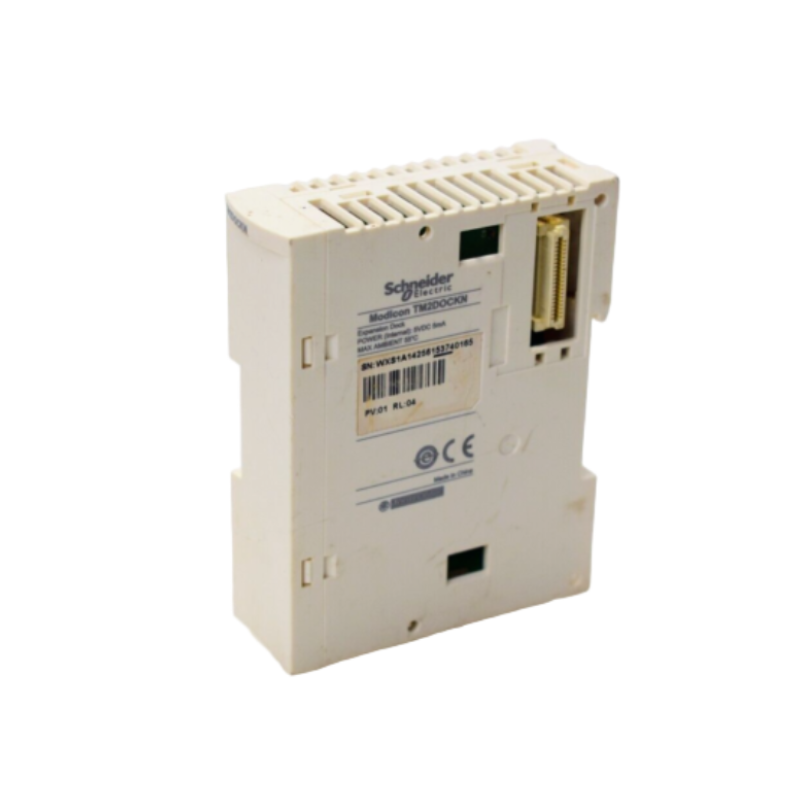

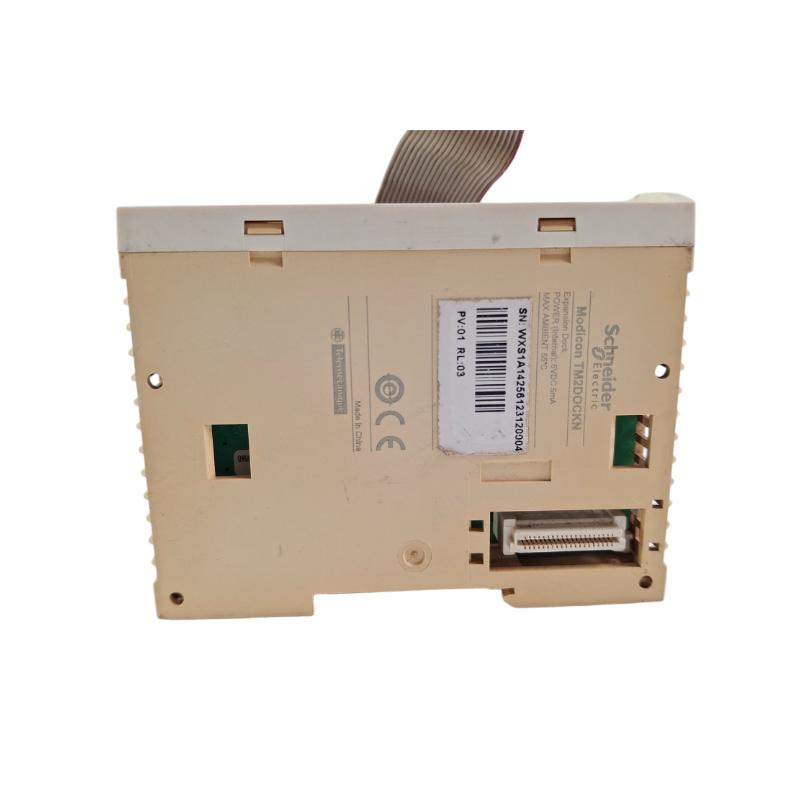

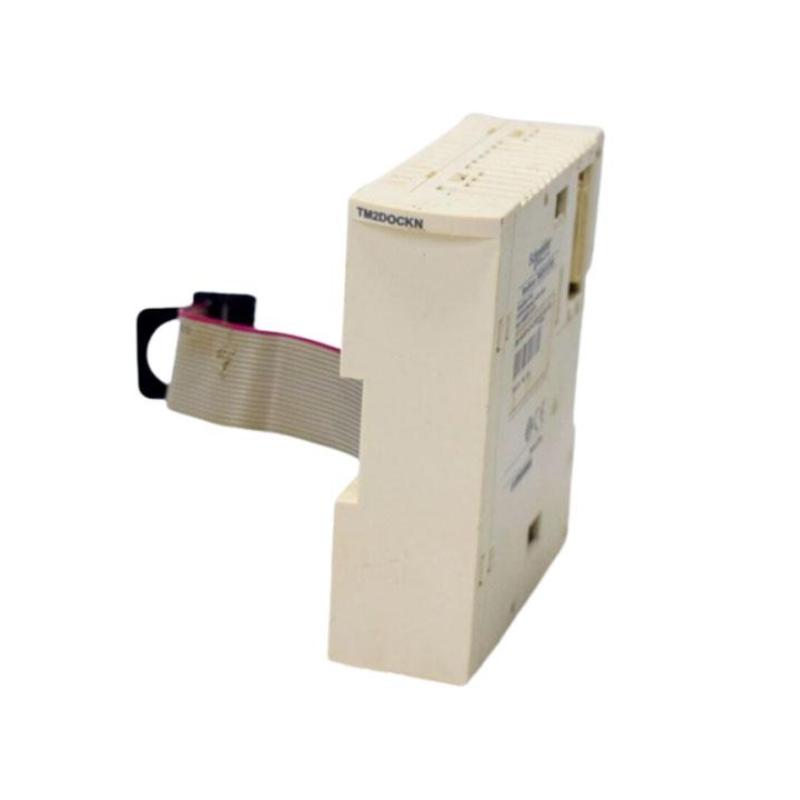

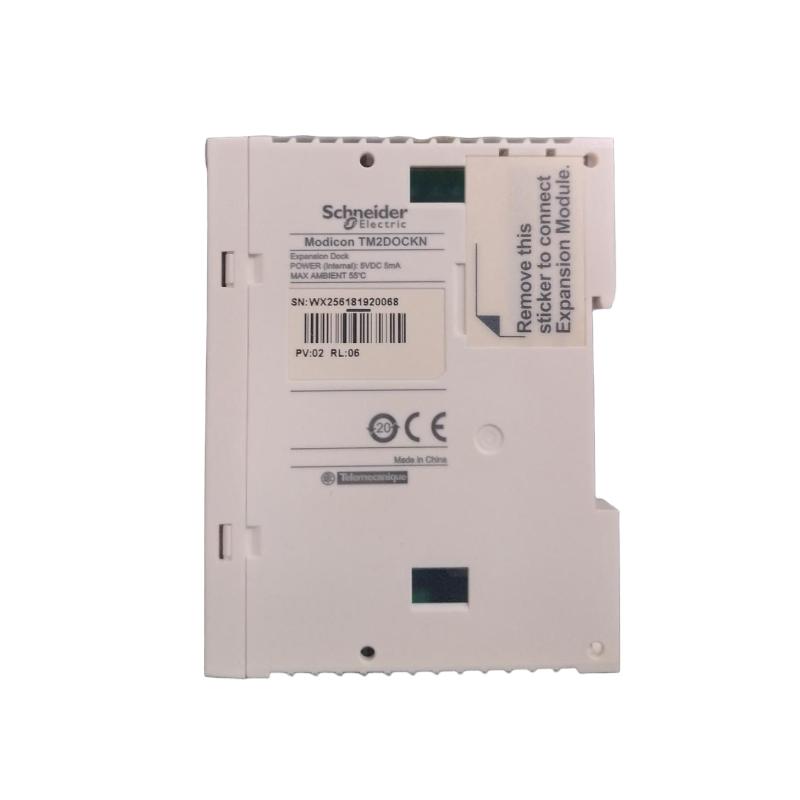

The Schneider TM2DOCKN Expansion Interface Module is a key component in the Modicon TM2 ecosystem, designed to enable flexible and efficient expansion of digital I/O and specialty modules on TM2 logic controllers. As automation systems grow in complexity, this module provides a reliable backbone for connecting additional I/O, ensuring seamless communication between the controller and its connected expansion modules.
With a compact footprint and industrial‑ready design, the TM2DOCKN simplifies system scaling, supports diverse I/O configurations, and enhances overall modularity — making it ideal for machine builders, OEM panels, and distributed control applications where expandability and maintainability are essential.
Technical Specifications
| Specification | Details |
|---|
| Model Number | TM2DOCKN |
| Module Type | Expansion Interface Module |
| Compatible System | Modicon TM2 Logic Controller Series |
| Function | Connects and supports expansion TM2 I/O modules |
| Expansion Slots Supported | Up to 8 TM2 expansion modules (varies by configuration) |
| Communication Type | Backplane bus interface to main controller |
| Mounting | DIN‑rail or symmetrical rail mount |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | −25°C to 70°C |
| Relative Humidity | 5–95% non‑condensing |
| Dimensions (approx.) | 90 mm × 23.5 mm × 70 mm |
| Weight | ~85 g |
| Connector Type | Modular backplane / ribbon bus connectors |
| Power Interface | Shared power distribution from controller bus |
This interface module provides a stable data and power channel, enabling TM2 I/O modules to communicate with the main controller through the backplane architecture.
Applications
The TM2DOCKN Expansion Interface Module is widely used in automation systems where modular I/O expansion and flexible configuration are required:
-
Industrial machine control requiring multiple digital and analog I/O modules
-
Distributed I/O systems in OEM equipment panels
-
Modular automation platforms with changing I/O needs
-
Machine retrofits where additional I/O must be added without redesigning the base controller
-
Panel‑mounted control systems with stacked modular I/O
It supports a clean and organized I/O expansion architecture, reducing wiring complexity and simplifying system layout.
Advantages
Easy System Expansion
Enables connection of additional TM2 I/O modules without complex wiring or custom backplane designs.
Modular Design
Supports up to multiple expansion modules, enhancing flexibility in control system layouts.
Compact Industrial Form Factor
DIN‑rail or symmetrical rail mounting keeps cabinet space optimized while maintaining ruggedness.
Reliable Backplane Communication
Provides a stable and efficient bus interface between expansion modules and the TM2 logic controller.
Simplified Maintenance
Modular expansion makes diagnostics, replacement, and upgrades fast and convenient.
Technical FAQs
1. What is the TM2DOCKN module used for?
It serves as the expansion interface that bridges TM2 logic controllers with additional TM2 I/O modules.
2. How many expansion modules can be supported?
It typically supports up to eight TM2 expansion modules (depending on system layout and power constraints).
3. What type of communication does it use?
Communication is handled through the backplane bus interface to the controller’s expansion port.
4. What controllers is it compatible with?
It is designed for use with Modicon TM2 logic controller series.
5. Does it require external power?
No, it shares the controller’s bus power distribution across expansion modules.
6. How is it mounted?
The module mounts easily on DIN‑rail or symmetrical rail alongside other TM2 modules.
7. What environmental conditions can it withstand?
It operates reliably under industrial conditions with 0°C to 60°C temperature range and high humidity tolerance.
8. Does it reduce wiring complexity?
Yes, its backplane design eliminates the need for extensive field wiring between I/O modules.
9. Can it be added to existing TM2 systems?
Yes, it is designed for retrofitting into existing TM2 controller architectures with expansion needs.
10. What types of expansion modules can connect through it?
It supports digital I/O, analog I/O, mixed I/O, and specialty TM2 expansion modules.
