Product Introduction

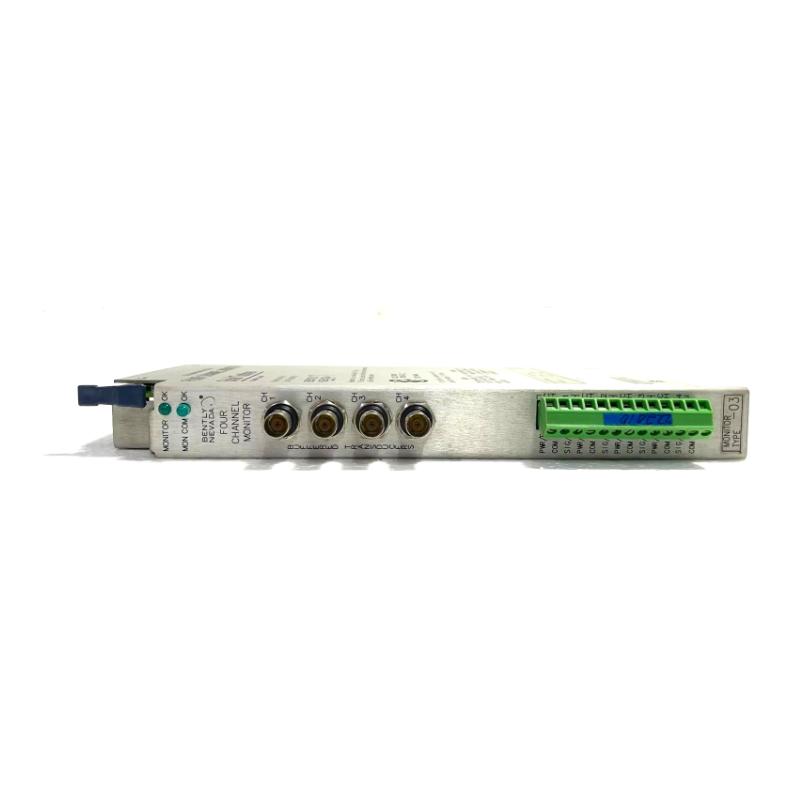

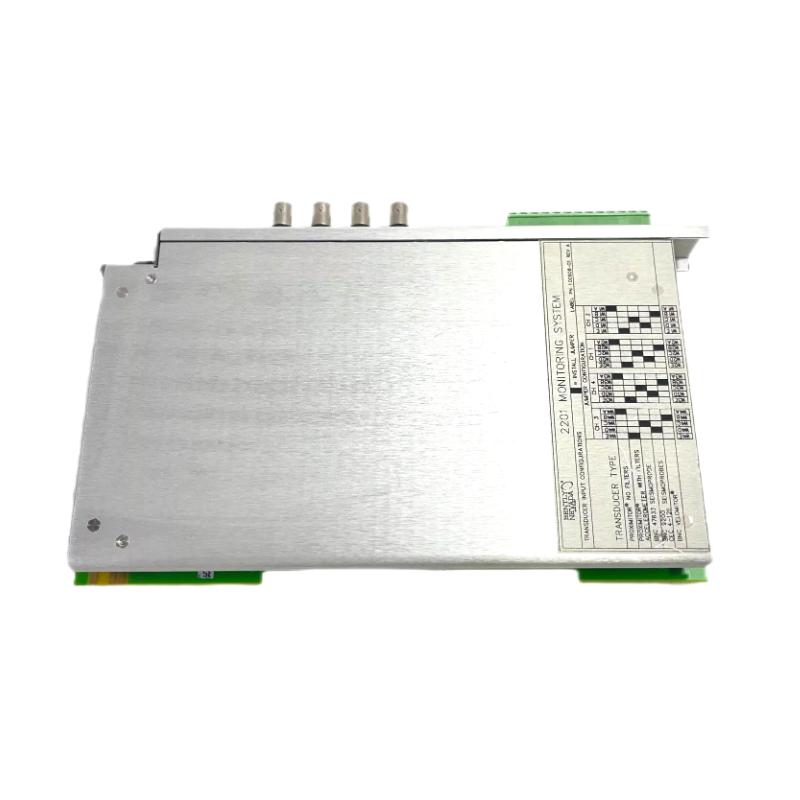

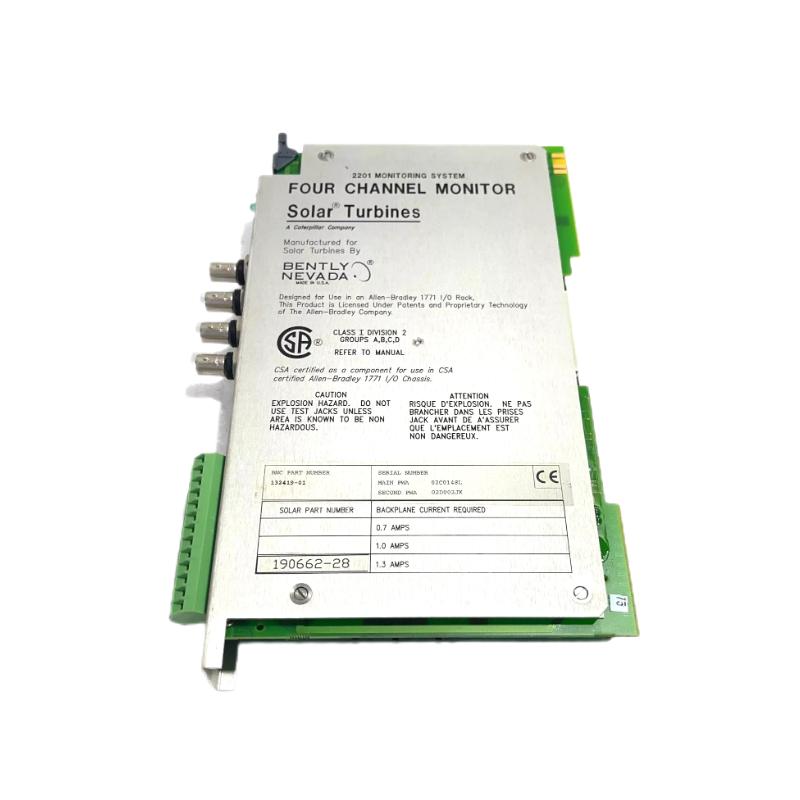

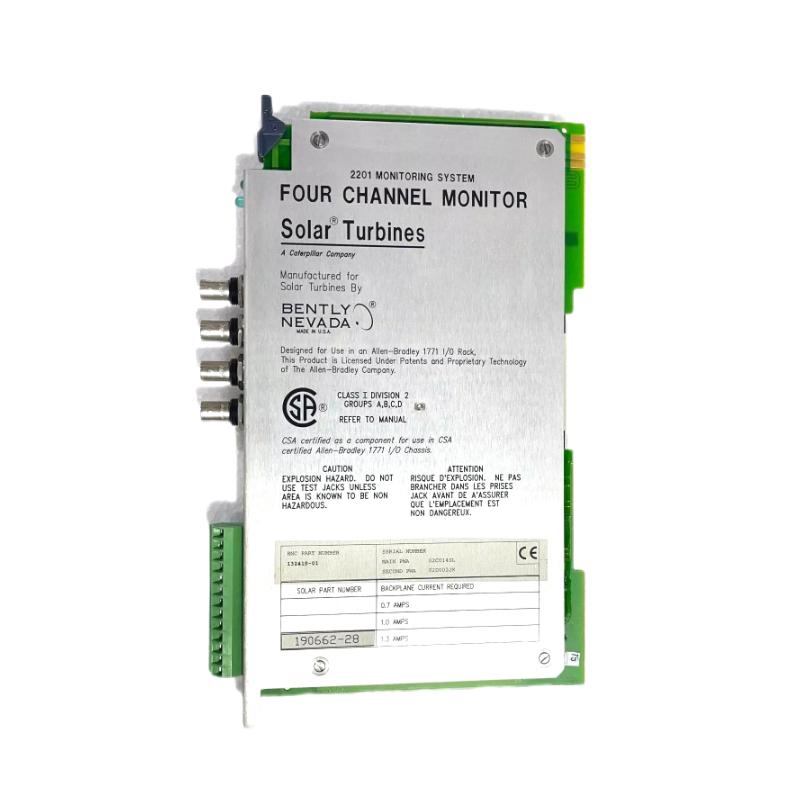

The Bently Nevada 132419-01 190662-28 4-Channel Monitor Module is a monitoring system component designed for turbine and rotating machinery protection systems. Industrial machines such as turbines, compressors, and large pumps often require multiple sensors to observe vibration, shaft movement, and other mechanical parameters.
This module receives signals from up to four sensors and processes them within the monitoring system, allowing operators to evaluate machine behavior in real time. Multi-channel monitoring capability improves diagnostic coverage and ensures that critical machine components are continuously supervised.
With its integration capability for turbine monitoring systems and robust industrial design, the module supports dependable condition monitoring and equipment protection in demanding industrial environments.
Technical Specifications
| Parameter | Specification |
|---|
| Product Model | 132419-01 |
| Secondary Part Number | 190662-28 |
| Product Type | 4-Channel Monitor Module |
| Manufacturer | Bently Nevada |
| Monitoring Channels | 4 |
| Functional Role | Machinery Condition Monitoring |
| Typical Application | Solar Turbine Monitoring Systems |
| Installation Type | Monitoring Rack / Control Cabinet |
| Dimensions | 241 × 24.4 × 99.1 mm |
| Weight | 0.75 kg (1.654 lb) |
Operational Environments and Use Cases
The Bently Nevada 132419-01 190662-28 4-Channel Monitor Module is designed for continuous monitoring of rotating machinery in industrial turbine applications. Multi-channel monitor modules are widely used in machinery protection systems where several sensors must be supervised simultaneously to track vibration, displacement, or other mechanical parameters.
This module is commonly deployed in turbine monitoring installations where reliable real-time diagnostics are essential for maintaining operational safety and equipment longevity.
Typical applications include:
-
Gas and steam turbine condition monitoring systems
-
Solar turbine machinery protection installations
-
Compressor monitoring in oil and gas processing plants
-
Industrial power generation equipment diagnostics
-
Centralized vibration monitoring cabinets supervising multiple sensors
By supporting four independent monitoring channels, the module allows operators to analyze multiple measurement points on a machine simultaneously, improving diagnostic accuracy.
System Advantages and Engineering Benefits
Multi-Channel Monitoring Capability
The module supports four independent channels, enabling simultaneous monitoring of multiple sensors on a machine.
Designed for Turbine Monitoring Systems
It integrates with machinery protection systems commonly used in turbine and rotating equipment environments.
Real-Time Condition Monitoring
Continuous signal processing allows operators to observe machine behavior and detect abnormal conditions early.
Improved Machinery Protection
The module contributes to protective monitoring strategies that help prevent mechanical damage.
Reliable Industrial Operation
Built for installation in monitoring racks and control cabinets operating in demanding industrial environments.
Technical FAQs
1. What is the main function of the 132419-01 monitor module?
It processes and monitors signals from multiple sensors used in rotating machinery monitoring systems.
2. Why are multi-channel monitors important in turbine systems?
They allow several measurement points on a machine to be monitored simultaneously.
3. What type of sensors typically connect to this module?
Vibration probes, proximity sensors, and other machinery monitoring devices.
4. How does the module support machinery protection systems?
It analyzes sensor data and helps detect abnormal vibration or displacement conditions.
5. Can the module monitor multiple machine components at once?
Yes, it provides four independent monitoring channels.
6. In which industries is this module commonly used?
Power generation, oil and gas processing, and heavy industrial manufacturing.
7. Can the module operate continuously in monitoring systems?
Yes, it is designed for systems that run continuously to protect critical equipment.
8. Where is the module typically installed?
Inside monitoring racks or instrumentation cabinets within machinery monitoring systems.
9. Does the module assist with predictive maintenance programs?
Yes, the data collected from sensors helps maintenance teams analyze machine health.
10. Why is turbine monitoring important in industrial plants?
Because turbines are critical assets where early detection of faults can prevent costly damage and downtime.
