Product Overview

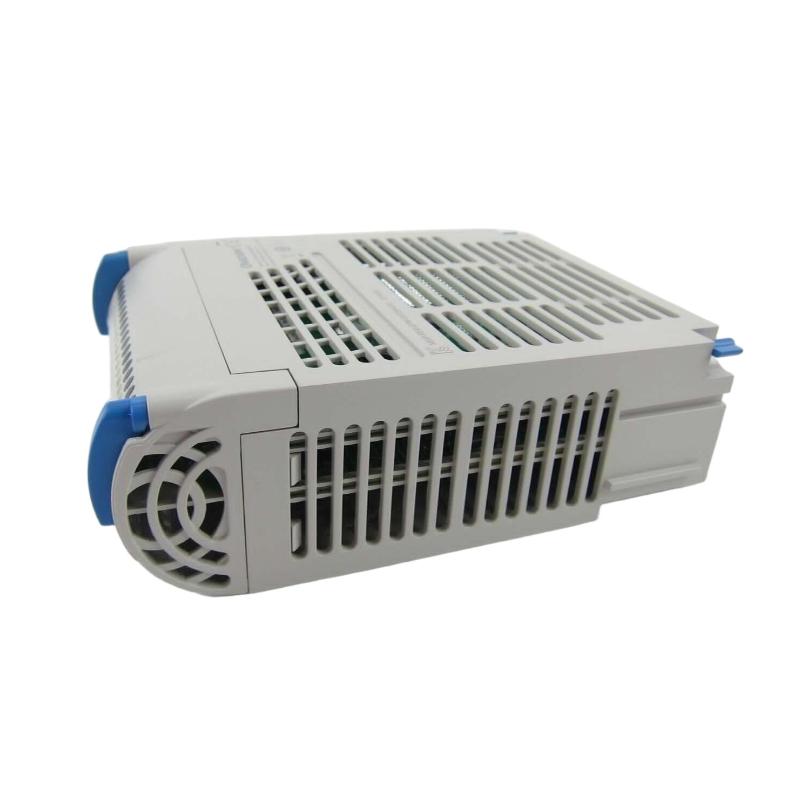

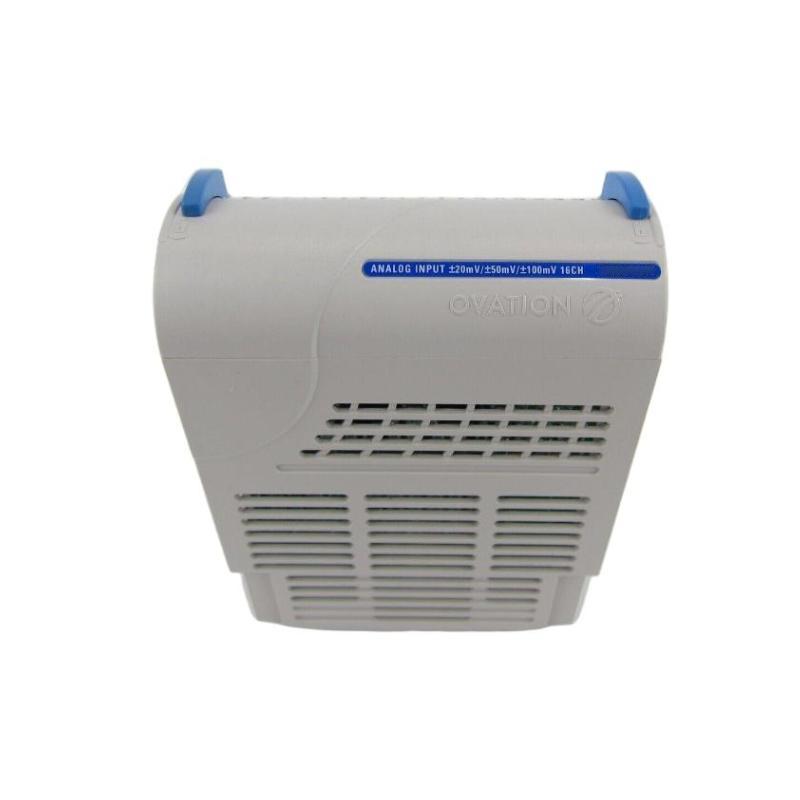

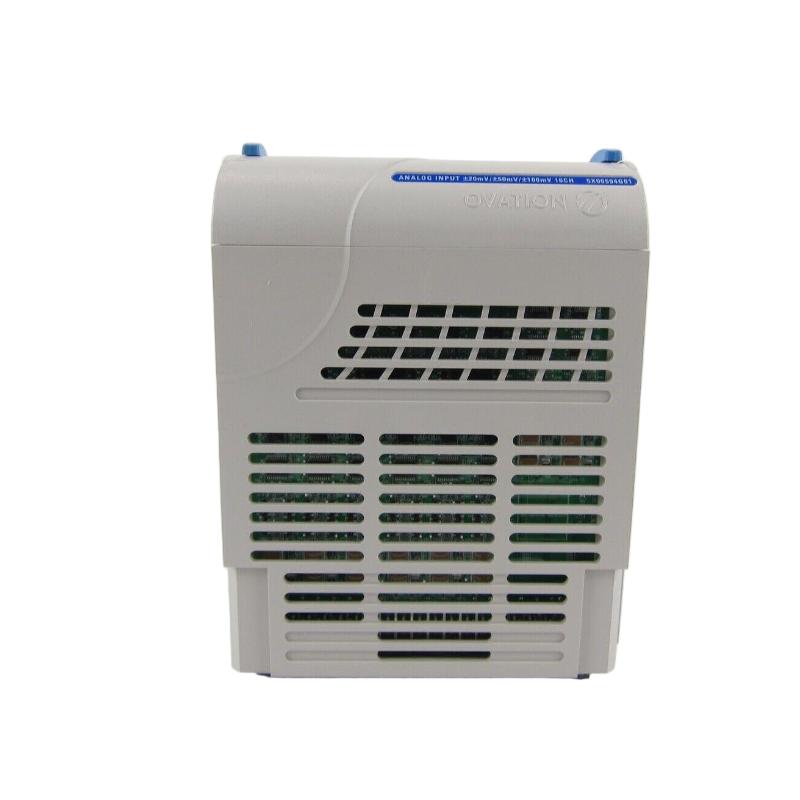

The Ovation 1C31179G02 Remote Input/Output (I/O) Module is a distributed I/O interface designed to extend field sensor and actuator connectivity within the Emerson Ovation Distributed Control System (DCS). This module enables both digital and analog signal acquisition and control in remote or distributed locations, feeding reliable field data back into the Ovation control network. Its versatile design supports integration with a wide range of process instruments, safety devices, and automation equipment, making it ideal for large‑scale industrial control architectures.
Built for industrial environments where signal integrity, modular scalability, and centralized monitoring are essential, the 1C31179G02 simplifies field wiring, enhances system responsiveness, and supports real‑time control logic across diverse automation applications.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Emerson |
| Model | 1C31179G02 |
| Product Type | Remote I/O Module |
| Supported I/O | Digital Inputs, Digital Outputs, Analog Inputs, Analog Outputs |
| Digital Input Voltage | 24 V DC logic |
| Digital Output Type | Open‑collector or relay (system dependent) |
| Analog Input Range | 4–20 mA / 0–10 V |
| Analog Output Range | 4–20 mA / 0–10 V |
| Analog Resolution | High‑resolution for precise measurement |
| Isolation | Channel‑to‑bus galvanic isolation |
| Communication Interface | Ovation control bus interface |
| Mounting | DIN‑rail or panel mount capable |
| Operating Temperature | −20 °C to +70 °C |
| Storage Temperature | −40 °C to +85 °C |
| Relative Humidity | Up to 95 % non‑condensing |
| Dimensions | Approx. 180 mm × 110 mm × 50 mm |
| Weight | Approx. 0.62 kg |
| Indicators | Status and activity LEDs |
| Enclosure | Rugged industrial design |
Application Scenarios
The 1C31179G02 Remote I/O Module is widely used in industrial automation environments requiring reliable distributed I/O connectivity.
Power Generation Control Systems
Collects and transmits field sensor and actuator signals for turbine, boiler, and auxiliary system monitoring.
Process Automation Plants
Interfaces remote field instruments such as flow meters, temperature sensors, and actuated valves back to central control logic.
Water & Wastewater Treatment Facilities
Handles level, pressure, quality, and control signals from remote process equipment.
Manufacturing and Facility Automation
Supports machine tool, conveyor, and environmental control systems that require both analog and digital signal integration.
Key Advantages
Comprehensive I/O Support
Handles both digital and analog inputs and outputs, reducing the need for separate modules.
Seamless Ovation Integration
Designed for direct compatibility with the Ovation DCS network, minimizing configuration overhead.
Galvanic Isolation
Isolated channels reduce electrical noise and protect against interference, improving signal integrity.
Industrial‑Grade Reliability
Rugged design with wide temperature and humidity tolerance ensures dependable operation in harsh environments.
Visual Diagnostics
LED indicators provide intuitive status and activity feedback for quick field troubleshooting.
Technical FAQs
1. What types of signals does the 1C31179G02 module support?
It supports digital inputs, digital outputs, analog inputs, and analog outputs.
2. How does it connect to the Ovation system?
It interfaces via the Ovation control bus for seamless integration into the controller network.
3. What analog signal ranges are supported?
Standard process signal ranges of 4–20 mA and 0–10 V are supported for both inputs and outputs.
4. Does the module provide isolation between channels?
Yes, each channel features galvanic isolation to enhance signal integrity and reduce noise.
5. How is the module mounted?
It can be mounted on a DIN‑rail or installed in panel cabinets depending on cabinet layout.
6. What environments is this module suitable for?
It is suitable for industrial, power plant, water treatment, and process automation environments.
7. What indicators are on the module?
Status and activity LEDs provide visual feedback on communication and I/O status.
8. What is the operating temperature range?
From −20 °C to +70 °C.
9. Can this module reduce field wiring complexity?
Yes, remote I/O placement reduces long hardwired connections and central rack congestion.
10. Is it interoperable with other Ovation I/O modules?
Yes, it is designed to work within the broader family of Ovation remote I/O and interface modules.
