Product Overview

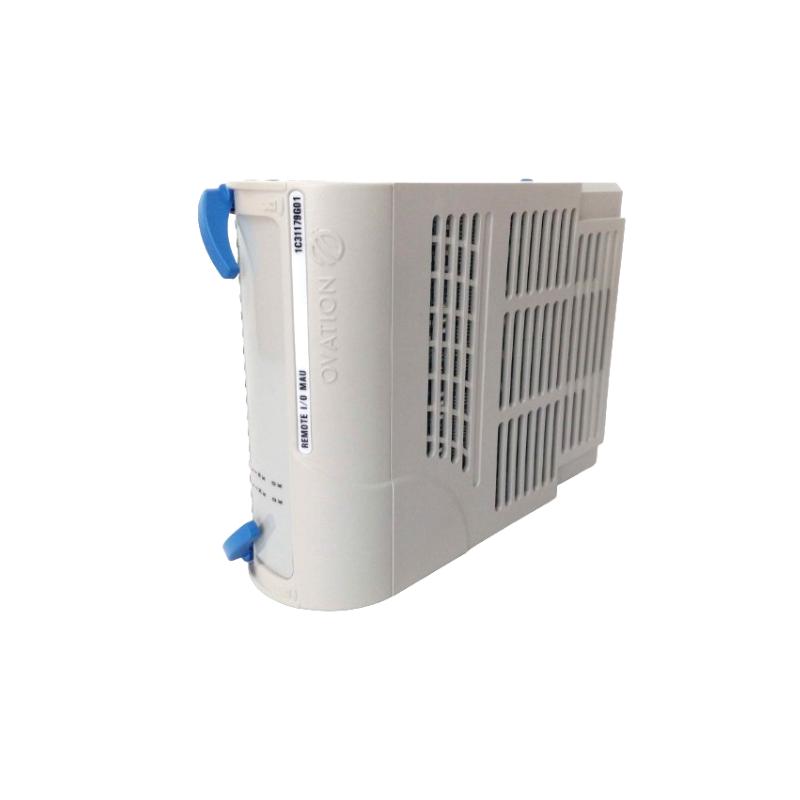

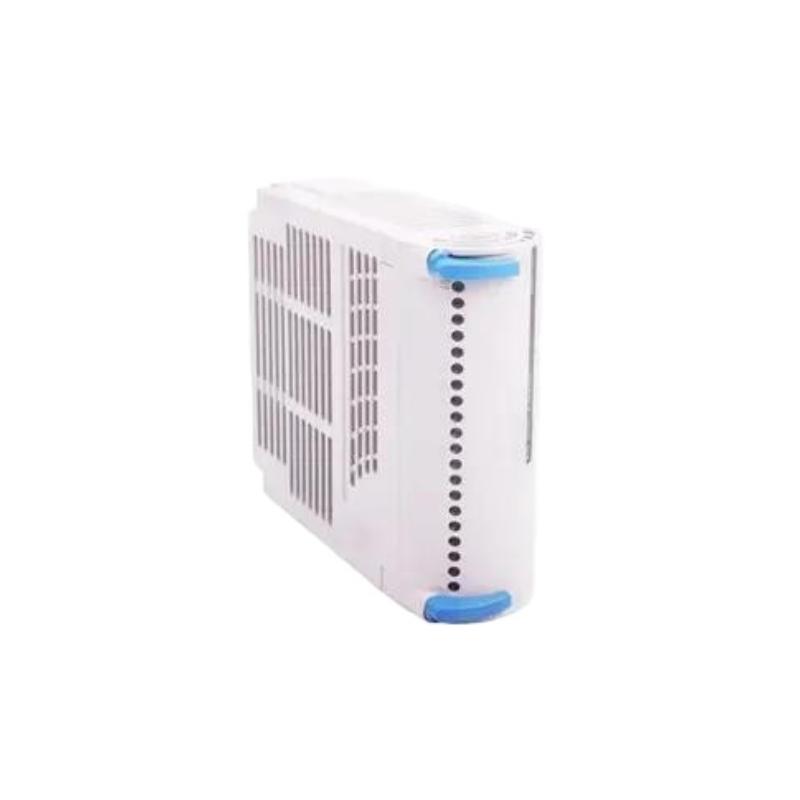

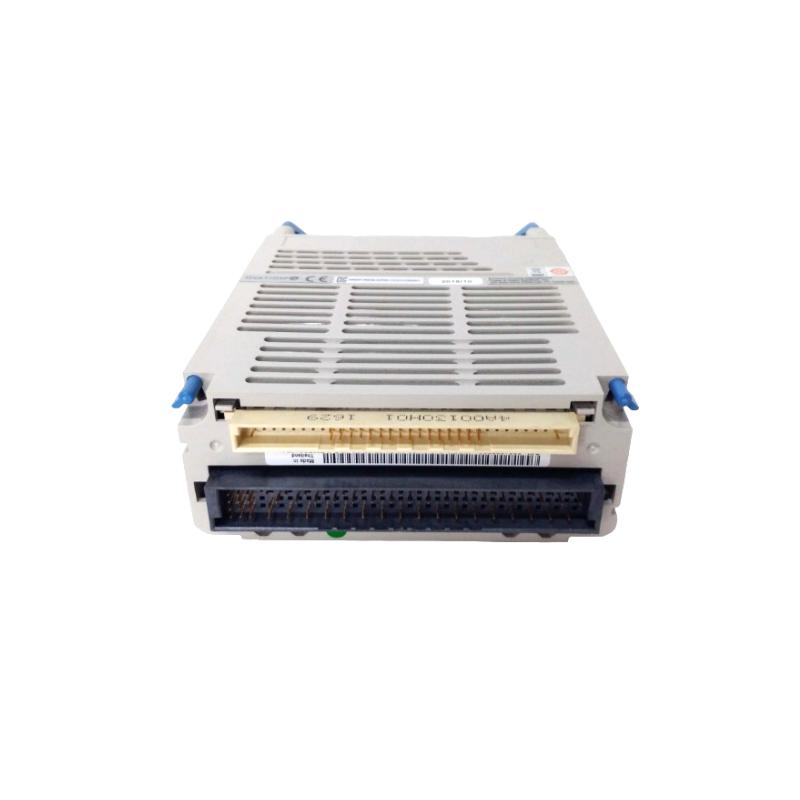

The Ovation 1C31179G01 Remote I/O Module is a distributed input/output interface unit engineered to extend the I/O capability of Emerson’s Ovation Distributed Control System (DCS). This module enables field‑level digital and analog signals from remote sensors and actuators to be reliably communicated to the central Ovation controller. It is designed for industrial process environments where flexibility, scalability, and dependable I/O communication are essential for automation performance.
Built with rugged industrial construction and engineered for seamless integration into Ovation system architectures, the 1C31179G01 helps streamline signal collection across turbine control systems, process plants, water/wastewater installations, and power generation plants. By enabling modular I/O distribution, this remote module reduces wiring complexity and enhances system responsiveness.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Emerson |
| Model | 1C31179G01 |
| Product Type | Remote I/O Module |
| I/O Types Supported | Digital inputs, digital outputs, analog inputs, analog outputs |
| Communication Interface | Industrial control bus to Ovation controller |
| Backplane/Field Bus | Ovation compatible interface |
| Digital Input Voltage | 24 V DC logic |
| Digital Output | Open‑collector or relay (application dependent) |
| Analog Input Range | 4–20 mA / 0–10 V |
| Analog Output Range | 4–20 mA / 0–10 V |
| Isolation | Channel‑to‑bus galvanic isolation |
| Operating Temperature | −20 °C to +70 °C |
| Storage Temperature | −40 °C to +85 °C |
| Mounting | DIN‑rail or panel mountable |
| Dimensions | Approx. 180 mm × 110 mm × 50 mm |
| Weight | Approx. 0.60 kg |
| Indicators | Status and activity LEDs |
| Protection | Industrial‑grade enclosure |
Application Scenarios
The 1C31179G01 Remote I/O Module is ideal for systems where centralized control needs to interact with widely distributed field devices.
Turbine and Boiler Controls
Collects sensor data and drives actuators located near turbines, boilers, and other power equipment.
Process Automation Plants
Extends digital and analog I/O for process control loops across chemical, refining, and manufacturing facilities.
Water and Wastewater Treatment
Connects remote level, flow, pressure, and valve signals to Ovation DCS for regulation and alarm logic.
Remote Skid and Field Cabinets
Used in remote junction or field cabinets to reduce long hardwired connections back to the central rack.
Key Advantages
Distributed I/O Flexibility
Supports both digital and analog I/O in a single module, enabling flexible field signal integration.
Seamless Ovation Compatibility
Designed for direct compatibility with Ovation DCS architectures, reducing configuration complexity.
Channel Isolation
Galvanic isolation per channel enhances signal integrity and reduces susceptibility to electrical noise.
Industrial Durability
Built to withstand vibration, temperature variation, and industrial environmental stresses.
Visual Diagnostics
LED indicators provide immediate feedback on module status and I/O activity for simplified troubleshooting.
Technical FAQs
1. What types of signals does the 1C31179G01 support?
It supports digital inputs/outputs and analog inputs/outputs for field devices.
2. How does it communicate with the Ovation controller?
Communication occurs via the Ovation system’s industrial control bus interface.
3. What analog signal ranges are supported?
Analog inputs/outputs support 4–20 mA and 0–10 V standard process instrumentation ranges.
4. Does it include isolation between channels?
Yes, galvanic isolation is provided to protect against noise and signal interference.
5. What mounting options are available?
It can be mounted on DIN‑rail or on panel surfaces within control cabinets.
6. Is it suitable for harsh environments?
Yes, rated for industrial use with wide temperature tolerances and rugged housing.
7. What indicators are on the module?
Status and activity LEDs provide visible operational feedback.
8. Can this module reduce wiring back to the central rack?
Yes, remote I/O placement reduces long hardwired connections and simplifies system wiring.
9. What typical applications is it used in?
Power plants, process automation, water/wastewater systems, and remote field control cabinets.
10. Does it handle both input and output signals?
Yes, it handles both digital and analog I/O for process and control functions.
