Product Overview

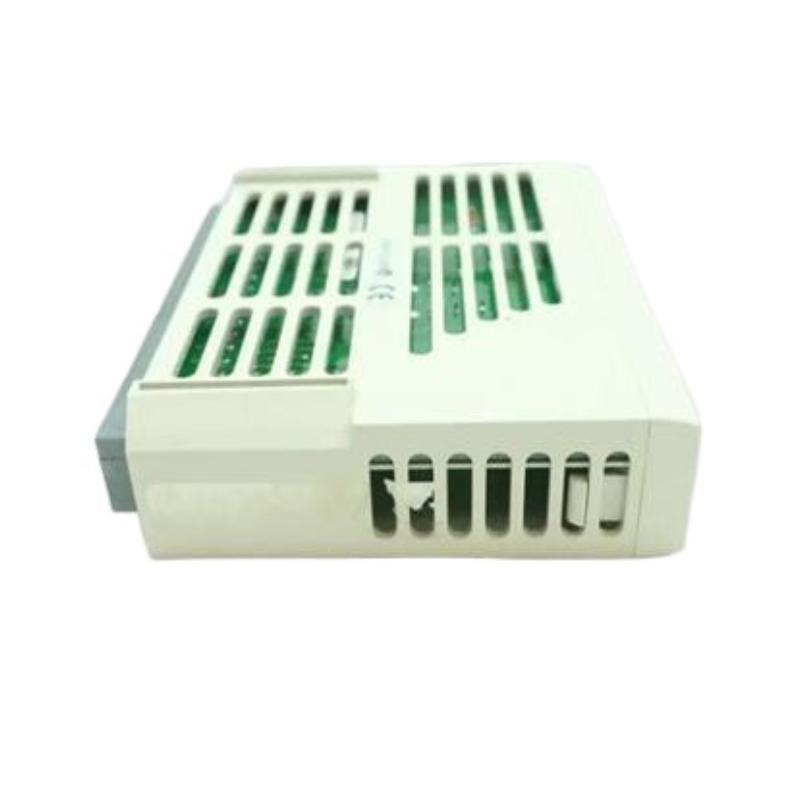

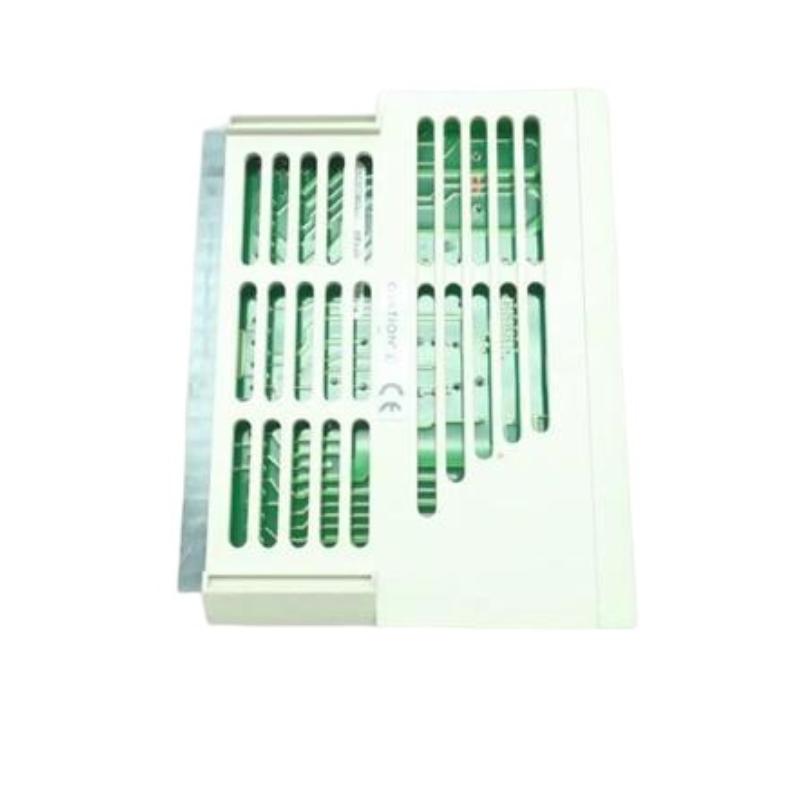

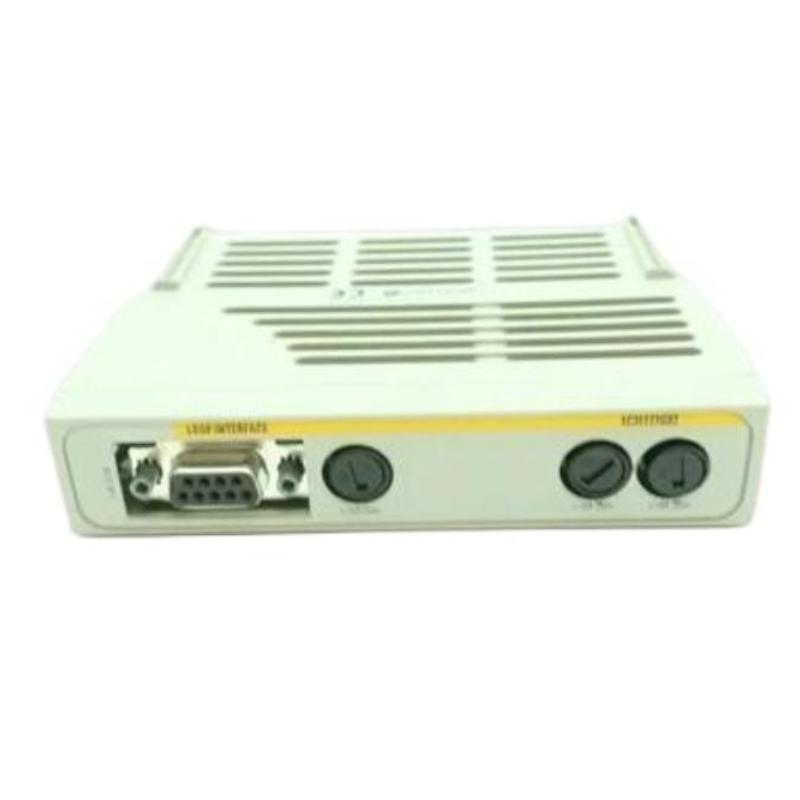

The Ovation 1C31177G02 Loop Interface Module is a precision analog interface device engineered to connect field instrumentation loops with the Emerson Ovation Distributed Control System (DCS). Designed for industrial process control environments, this module conditions, isolates, and transmits analog 4–20 mA signals from sensors and transmitters into the Ovation control network with high accuracy and stability.
This interface module plays a key role in systems where dependable analog measurements are critical for process control, such as power plants, water treatment facilities, and manufacturing installations. Built to withstand harsh industrial conditions, the 1C31177G02 ensures signal integrity and reliable data delivery, supporting automated control logic and operator decision‑making.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Emerson |
| Model | 1C31177G02 |
| Product Type | Loop Interface Module |
| Supported Signals | 4–20 mA process instrumentation |
| Channel Configuration | Single or multi‑channel variants (system dependent) |
| Input Isolation | Galvanic isolation per loop channel |
| Signal Accuracy | Typically ±0.1 % of span |
| Response Time | Fast analog response for control loops |
| Output Interface | Ovation backplane or field bus interface |
| Supply Voltage | 24 V DC typical |
| Operating Temperature | −20 °C to +70 °C |
| Storage Temperature | −40 °C to +85 °C |
| Mounting | DIN‑rail or panel mount |
| Dimensions | Approx. 110 mm × 75 mm × 40 mm |
| Weight | Approx. 0.40 kg |
| Indicators | Status/health LEDs |
| Protection | Rugged industrial enclosure |
Application Scenarios
The 1C31177G02 Loop Interface Module supports a wide range of process automation environments that require analog signal integration into a distributed control platform.
Power Generation Control Systems
Interfaces temperature, pressure, and flow transmitter loops to turbine, boiler, and balance‑of‑plant controls for precise regulation.
Industrial Process Plants
Used in chemical, petrochemical, and refining operations to bring reliable analog measurements into the Ovation controller for regulation and safety logic.
Water & Wastewater Automation
Connects level, pH, turbidity, and flow sensors to the DCS for automated treatment process control.
Manufacturing Facility Automation
Integrates analog sensor outputs for machine control, quality feedback, and process monitoring across production lines.
Key Advantages
Accurate Analog Conditioning
Provides precise 4–20 mA signal conditioning with low measurement error, ensuring reliable process data for control logic.
Galvanic Isolation per Channel
Channel isolation enhances noise immunity and protects systems from electrical interference and ground loops.
Seamless Ovation Integration
Designed specifically for Emerson Ovation architectures, enabling straightforward deployment and configuration.
Industrial‑Grade Durability
Rugged housing and wide temperature range make it suitable for industrial environments.
Visual Diagnostics
Status LEDs on the module provide immediate visual feedback on signal and module health, aiding maintenance and diagnostics.
Technical FAQs
1. What is the main purpose of the 1C31177G02 module?
It interfaces and conditions analog 4–20 mA field loops for integration into the Ovation DCS.
2. What signal types does it support?
It supports standard analog 4–20 mA process loop signals from typical industrial sensors.
3. Does the module provide electrical isolation?
Yes, each loop channel offers galvanic isolation to reduce noise and protect the system.
4. What signal accuracy can be expected?
Typical signal conditioning accuracy is around ±0.1 % of span.
5. How is the module mounted?
It supports DIN‑rail or panel mounting to fit into industrial control cabinets.
6. What environments is it suitable for?
Industrial, power generation, water treatment, and process automation environments.
7. What visual indicators are available?
LED indicators provide status and health indications for each channel.
8. What is the operating temperature range?
The module is rated from −20 °C to +70 °C.
9. Can it handle multiple analog loops?
Depending on the variant, it can support single or multiple analog channel loops.
10. Is this module compatible with other Ovation hardware?
Yes, it is engineered to integrate seamlessly with Ovation DCS controllers and related modules.
