Introduction

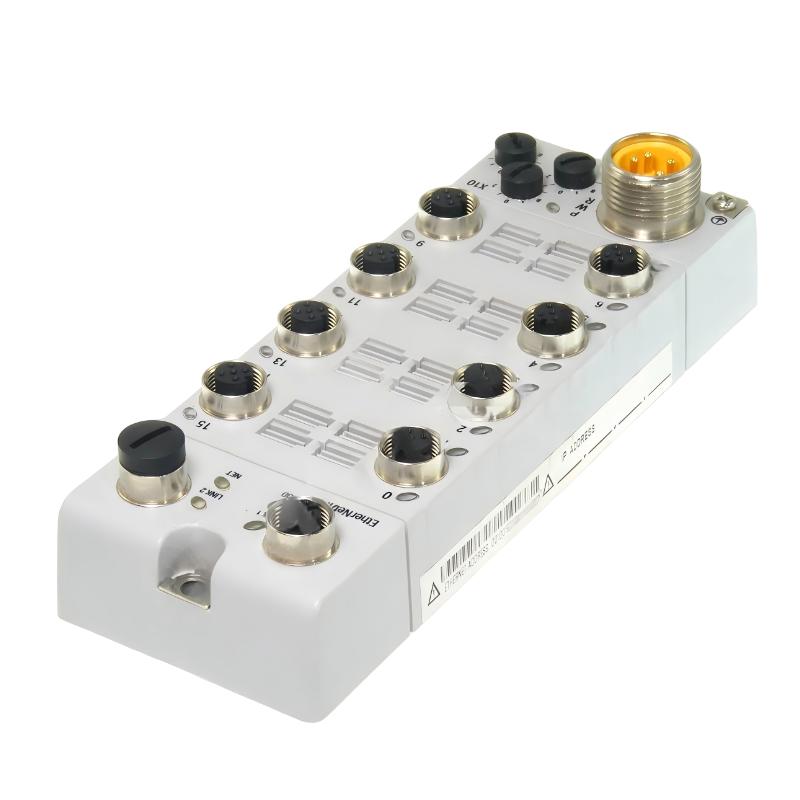

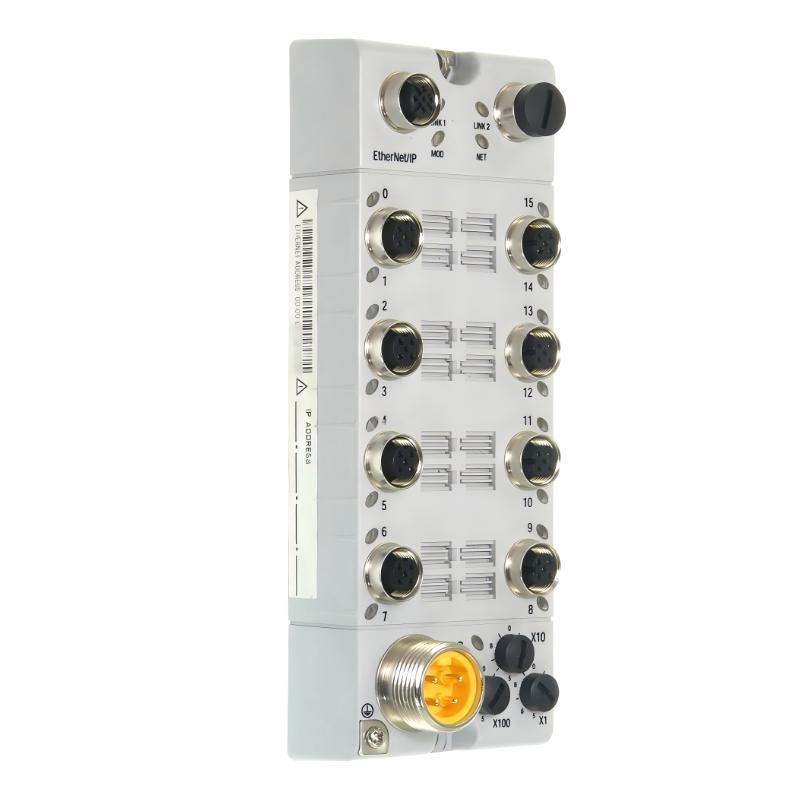

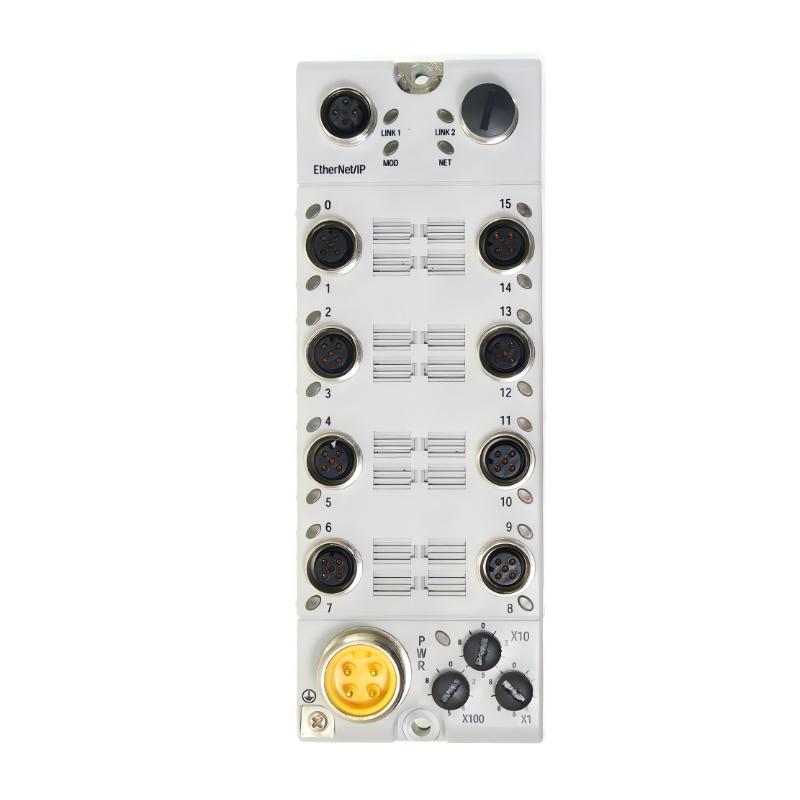

The Allen Bradley 1732E-IB16M12R I/O Module is a distributed digital input device designed for machine-level automation systems. Modern manufacturing environments often require decentralized architectures where sensors and field devices are connected directly to networked I/O modules rather than centralized control cabinets.
This module provides sixteen digital input channels for capturing equipment status signals and transmitting them to the central control system. Its rugged design and integrated M12 connectors allow it to be mounted close to machinery, reducing cable lengths and simplifying system installation.
Because of these capabilities, the 1732E-IB16M12R module is widely used in modular automation systems, robotics installations, and industrial production lines where flexible and scalable I/O connectivity is required.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Allen Bradley |
| Model | 1732E-IB16M12R |
| Module Type | Digital Input I/O Module |
| Function | Acquisition of discrete signals from field devices |
| Input Channels | 16 Digital Inputs |
| Connector Type | M12 Industrial Connectors |
| Application | Machine-level distributed I/O systems |
| Installation | Machine-mounted / field installation |
| Operating Mode | Continuous industrial operation |
| Dimensions | 179 × 65 × 43.25 mm |
| Weight | 0.34 kg (0.75 lb) |
Machine-Level Distributed Input Applications
The Allen Bradley 1732E-IB16M12R I/O Module is designed for distributed automation systems where digital input signals must be collected directly from field devices on the factory floor. As part of a machine-mounted I/O architecture, this module allows sensors and switches to connect directly to the industrial network without routing all wiring back to a central control cabinet.
With sixteen digital input channels, the module efficiently captures signals from multiple devices such as proximity sensors, limit switches, and push buttons. Its integrated M12 connector interface simplifies field wiring and reduces installation time, making it ideal for modular machine designs and decentralized automation systems.
Typical industrial implementations include:
-
Machine automation in assembly and packaging lines
-
Sensor integration for robotic work cells
-
Conveyor system monitoring in logistics facilities
-
Digital signal acquisition in automotive manufacturing equipment
-
Distributed I/O systems in modular production machines
-
Real-time monitoring of machine status signals on factory floors
By collecting field signals close to the equipment, the module improves system responsiveness and simplifies electrical infrastructure.
Engineering Advantages
16 Digital Input Channels
Allows simultaneous monitoring of multiple sensors and machine status signals.
M12 Quick-Connect Interface
Standard industrial connectors enable rapid installation and reliable field connections.
Machine-Mounted Design
Supports installation directly on production equipment, minimizing cable routing.
Distributed I/O Architecture
Improves scalability by enabling decentralized signal acquisition.
Industrial Durability
Engineered for harsh manufacturing environments with vibration and dust exposure.
Technical FAQs
1. What is the main purpose of the 1732E-IB16M12R module?
It collects digital input signals from field devices and sends them to the control system.
2. How many input channels are available on this module?
The module provides 16 independent digital input channels.
3. What types of devices connect to the module inputs?
Proximity sensors, limit switches, push buttons, safety contacts, and other discrete sensors.
4. What connector type does the module use for field devices?
It uses M12 connectors for quick and secure industrial wiring.
5. Where is the module typically installed?
It is installed directly on machines or near field devices in distributed automation systems.
6. Why are distributed I/O modules used in machine automation?
They reduce wiring complexity and allow sensors to connect closer to the control network.
7. How does this module improve system scalability?
Additional distributed I/O units can be added easily as the automation system expands.
8. What industries commonly use machine-mounted I/O modules?
Automotive manufacturing, packaging equipment, robotics, and material handling systems.
9. Can the module operate continuously in industrial environments?
Yes, it is designed for continuous operation in demanding factory environments.
10. What benefits do M12 connectors provide in automation systems?
They provide secure, vibration-resistant connections and faster installation.
