Product Overview

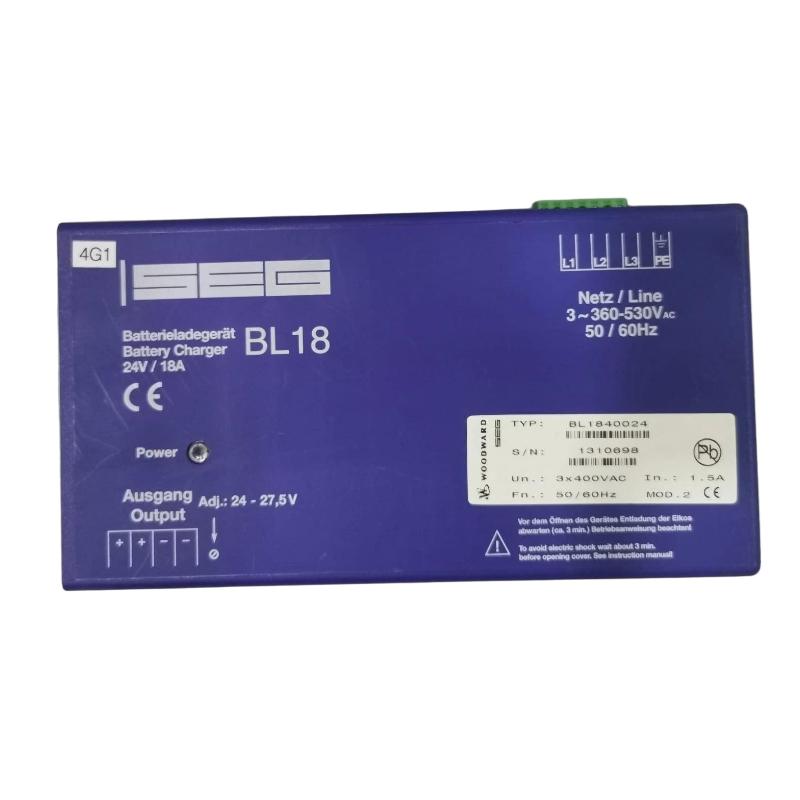

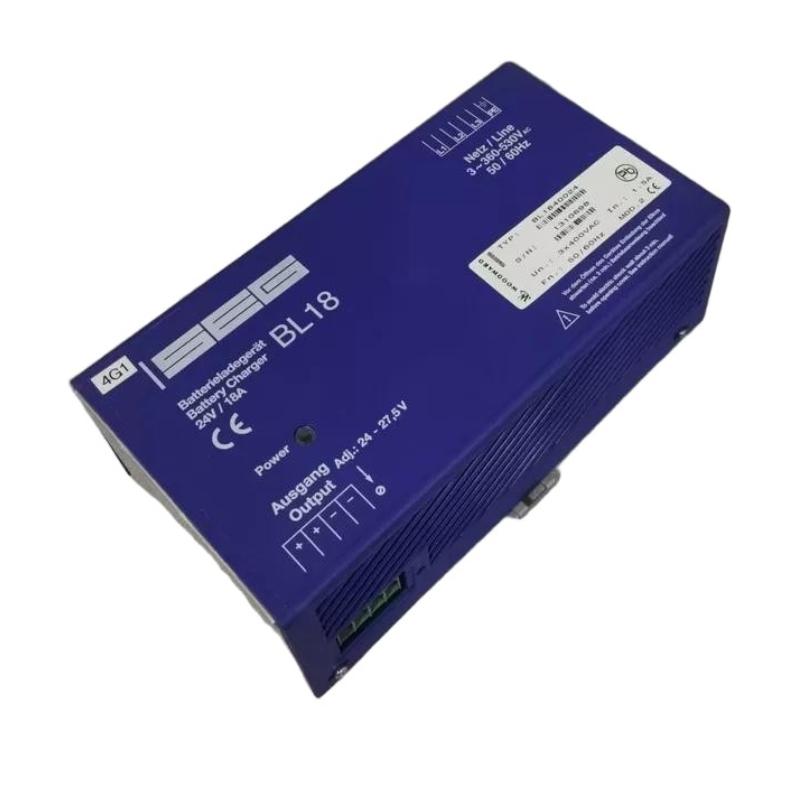

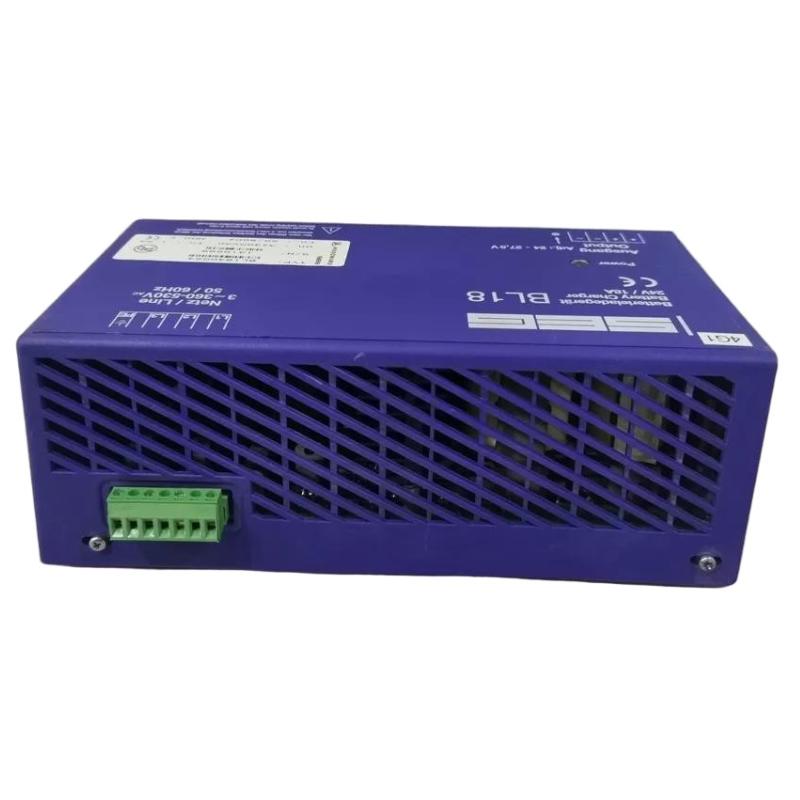

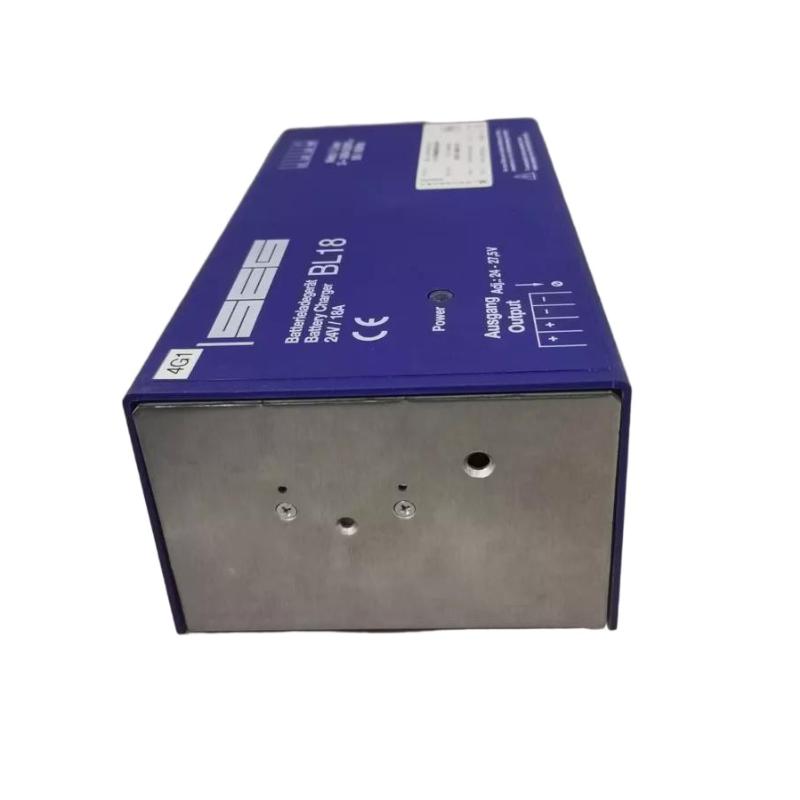

The Woodward BL1840024 Battery Charger is a rugged industrial charger engineered to provide precision charging and dependable standby power for 24 V DC battery systems. Designed for demanding environments where continuity and battery health are critical, this charger offers stable, multistage charging combined with robust protection features to support long‑term operation of control system batteries, engine starting batteries, and backup power sources.
Whether installed in generator control cabinets, power automation racks, or marine electrical systems, the BL1840024 ensures optimal battery performance through intelligent voltage regulation and temperature compensation. Its compact form factor and durable construction make it an excellent solution for applications that require both reliability and simplicity.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Woodward |
| Model | BL1840024 |
| Product Type | Battery Charger |
| Output Voltage | 24 V DC |
| Output Current | 10 A (nominal) |
| Input Voltage | 100–240 VAC, 50/60 Hz |
| Charging Stages | Bulk, absorption, float |
| Voltage Regulation | Precision regulated |
| Temperature Compensation | Automatic |
| Ripple Voltage | ≤ 1 % typical |
| Protection | Overload, short‑circuit, reverse polarity |
| LEDs | Power/charge status indicators |
| Mounting | Panel or DIN‑rail mountable |
| Operating Temperature | −10 °C to +50 °C |
| Storage Temperature | −20 °C to +70 °C |
| Dimensions | Approx. 200 × 120 × 80 mm |
| Weight | Approx. 1.3 kg |
| Cooling | Convection‑cooled enclosure |
Application Scenarios
The Woodward BL1840024 Battery Charger is widely used in systems that depend on reliable DC power and battery readiness.
Generator Control Systems
Maintains battery health for generator start‑up and control logic circuits.
Industrial Automation Platforms
Supplies dependable 24 V DC for PLCs, HMIs, and distributed I/O systems.
Backup and UPS Systems
Ensures batteries remain charged and ready for emergency power delivery.
Marine and Offshore Electrical Systems
Supports 24 V battery banks for vessel systems and auxiliary power applications.
Key Advantages
Stable Voltage Output
Provides consistent, regulated 24 V DC output with minimal ripple to ensure battery health.
Intelligent Charging
Multistage charging with automatic temperature compensation maintains long battery life and performance.
Robust Protection Features
Designed with overload, short‑circuit, and reverse polarity protection to safeguard both charger and battery.
Flexible Mounting
Panel or DIN‑rail installable, adapting to various control cabinet and power system layouts.
Visual Status Feedback
LED indicators make on‑site monitoring of power and charging status straightforward.
Technical FAQs
1. What is the nominal output current of the BL1840024 charger?
It provides approximately 10 A of regulated 24 V DC charging current.
2. What input voltage does the charger accept?
It operates from a universal AC input range of 100–240 VAC at 50/60 Hz.
3. Does it support multistage charging?
Yes, it features bulk, absorption, and float stages for efficient battery maintenance.
4. Is temperature compensation included?
Yes, the charger automatically compensates based on ambient temperature for optimal charging.
5. What types of batteries are supported?
It is designed for 24 V lead‑acid and AGM battery systems.
6. What protection functions are included?
The charger includes protection against overload, short circuits, and reverse polarity.
7. How is the charger mounted?
It can be mounted via panel or DIN‑rail installation.
8. What is the operating temperature range?
It operates between −10 °C and +50 °C.
9. Does the charger include status indicators?
Yes, it features LED indicators for power and charging status.
10. Is the charger suitable for industrial use?
Yes, it is built to meet the durability and continuity requirements of industrial power systems.
