Product Overview

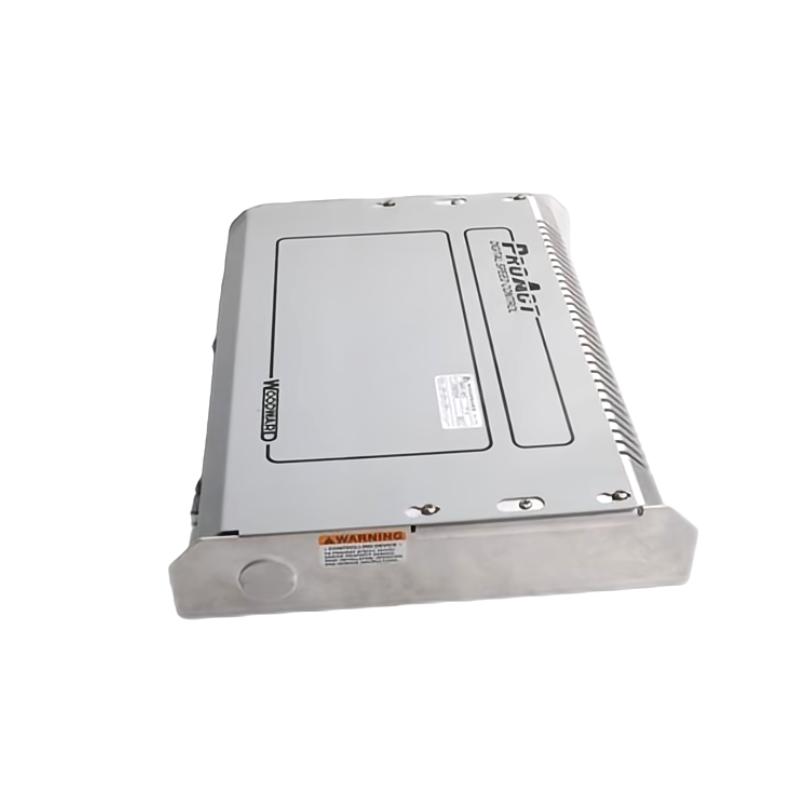

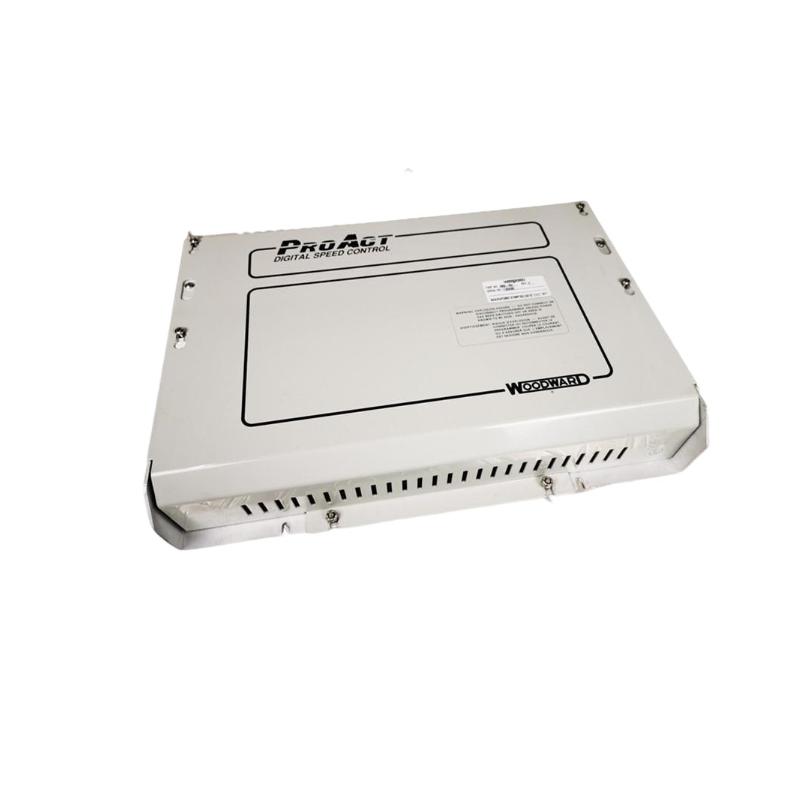

The Woodward 9905‑463 Digital Speed Control Module is a precision governor controller designed to provide robust and accurate engine speed regulation in industrial power systems. Built with advanced digital control algorithms, this module delivers stable speed management under diverse load conditions, improving overall engine performance and response. Its compact design and reliable electronics make it a trusted component in power generation, marine propulsion, and heavy‑duty engine control applications.
Engineers favor the 9905‑463 for its responsiveness, flexibility, and compatibility with a range of Woodward governor systems. It excels in applications where precise engine speed control, enhanced stability, and reduced transient deviation are required, while its rugged construction ensures long service life in challenging industrial environments.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Woodward |
| Model | 9905‑463 |
| Product Type | Digital Speed Control Module |
| Control Type | Digital governor controller |
| Input Voltage | 12 / 24 V DC |
| Operating Voltage | 9 – 32 V DC |
| Control Output | PWM / analog actuator output |
| Speed Sensing | Frequency or tachometer feedback |
| Response Accuracy | High‑precision digital regulation |
| Operating Temperature | −40 °C to +85 °C |
| Storage Temperature | −40 °C to +105 °C |
| Mounting Method | Panel or DIN‑rail compatible |
| Dimensions | 115 mm × 90 mm × 50 mm |
| Weight | Approx. 0.28 kg |
| Protection | Industrial‑grade housing |
Application Scenarios
The Woodward 9905‑463 Digital Speed Control Module is ideal for any engine system that demands accurate speed regulation and robust performance.
Industrial Power Generation
Maintains precise engine speed under varying electrical load conditions to ensure stable power output.
Marine Propulsion Systems
Provides dependable speed control in marine diesel engines, improving vessel performance and responsiveness.
Heavy‑Duty Engines
Used in generator sets and pumps where consistent speed regulation maximizes operational reliability.
Construction and Mining Equipment
Delivers responsive engine control for robust equipment used in extreme environments.
Key Advantages
Accurate Digital Control
Advanced digital algorithms deliver precise speed management and rapid response to load changes.
Wide Voltage Compatibility
Operates on both 12 V and 24 V DC systems, offering flexibility for diverse engine installations.
Robust Industrial Build
Durable housing and broad temperature tolerance ensure consistent performance in harsh environments.
Flexible Installation
Panel or DIN‑rail mounting options simplify integration into existing control systems.
Improved Engine Efficiency
Enhanced governor performance reduces speed fluctuation and improves fuel efficiency.
Technical FAQs
1. What is the 9905‑463 primarily used for?
It provides digital speed control for engines and generator sets.
2. What input voltages does the module support?
The module operates on 12 V or 24 V DC power supplies.
3. How does it achieve speed regulation?
Through advanced digital algorithms that adjust output based on feedback from speed sensors.
4. What types of engines is it compatible with?
It can be used with diesel and gas engines requiring precise speed control.
5. What is the operating temperature range?
From −40 °C to +85 °C, suitable for harsh industrial environments.
6. How is the controller mounted?
It supports panel or DIN‑rail mounting.
7. Does it support different speed feedback inputs?
Yes, it accepts frequency or tachometer signals for speed sensing.
8. What benefits does the digital design offer?
Enhanced precision, fast response, and reduced transient deviation compared to analog controllers.
9. Is the module suitable for marine use?
Yes, its rugged design and wide temperature tolerance make it suitable for marine propulsion control.
10. Can it improve fuel efficiency?
Improved speed regulation helps reduce fuel consumption and operating costs.
