Product Overview

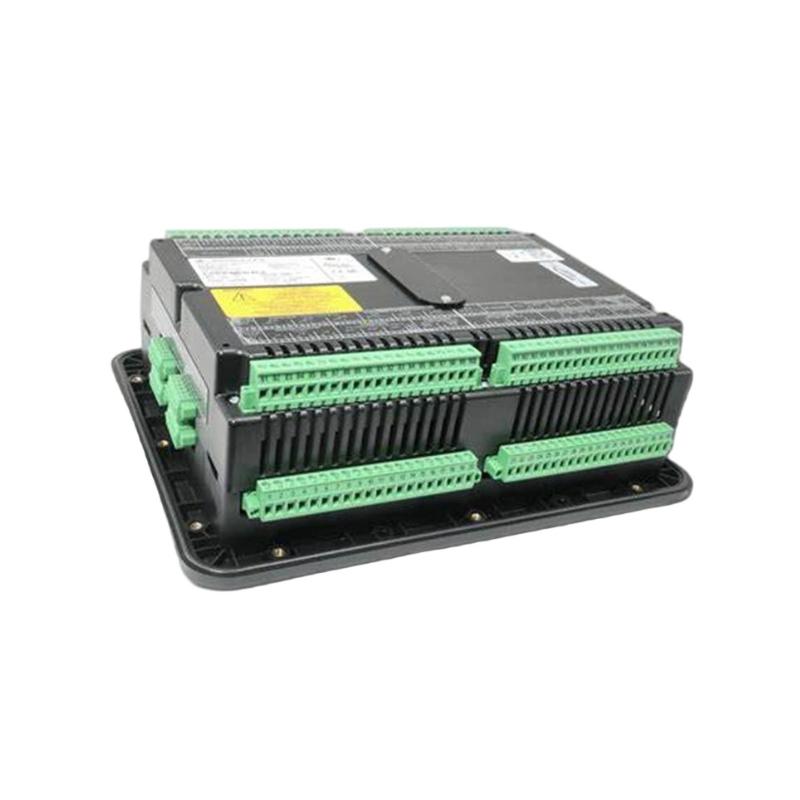

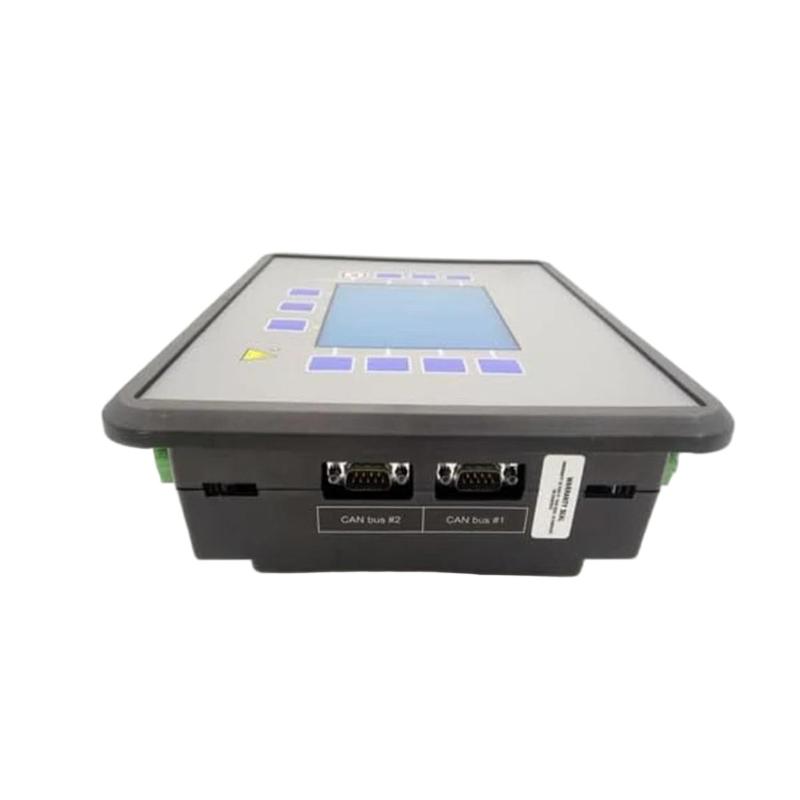

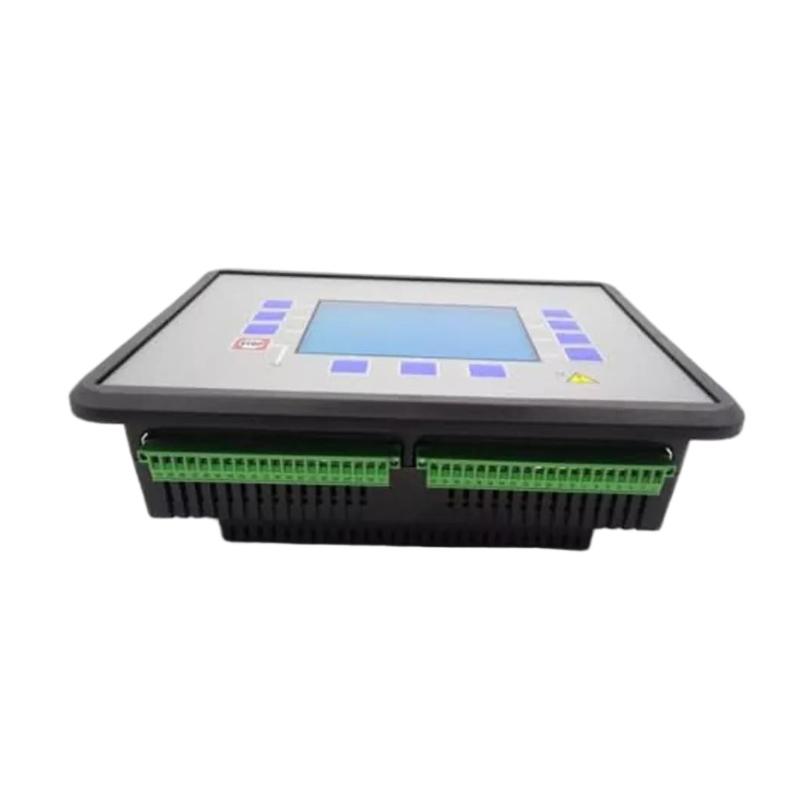

The Woodward 8440-2082 Controller is a high-performance generator management device from the easYgen-3000XT series, engineered to deliver precise control, monitoring, and protection for generator sets operating in demanding industrial environments. This advanced controller integrates synchronization, load sharing, power management, and generator protection functions into a single platform, making it an ideal solution for both standalone and multi-generator installations.
Designed with powerful processing capability and flexible communication options, the 8440-2082 controller allows seamless integration into PLC systems, SCADA platforms, and modern power management networks. Its rugged construction and intelligent control architecture make it widely used in power plants, industrial facilities, marine applications, and distributed energy systems where reliability and stability are essential.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Woodward |
| Model | 8440-2082 |
| Product Type | Genset Controller |
| Series | easYgen-3000XT |
| Power Supply | 12 / 24 V DC |
| Operating Voltage Range | 8 – 40 V DC |
| Power Consumption | ≤ 14 W |
| Frequency Range | 40 – 85 Hz |
| Voltage Measurement | 50 – 650,000 VAC (via VT) |
| Current Measurement | 1 A / 5 A CT inputs |
| Digital Inputs | Up to 12 configurable |
| Relay Outputs | Up to 12 configurable |
| Analog Inputs | 3 isolated inputs |
| Analog Outputs | 2 programmable outputs |
| Communication Interfaces | Ethernet, CANopen, J1939, USB, RS-485 (Modbus RTU/TCP) |

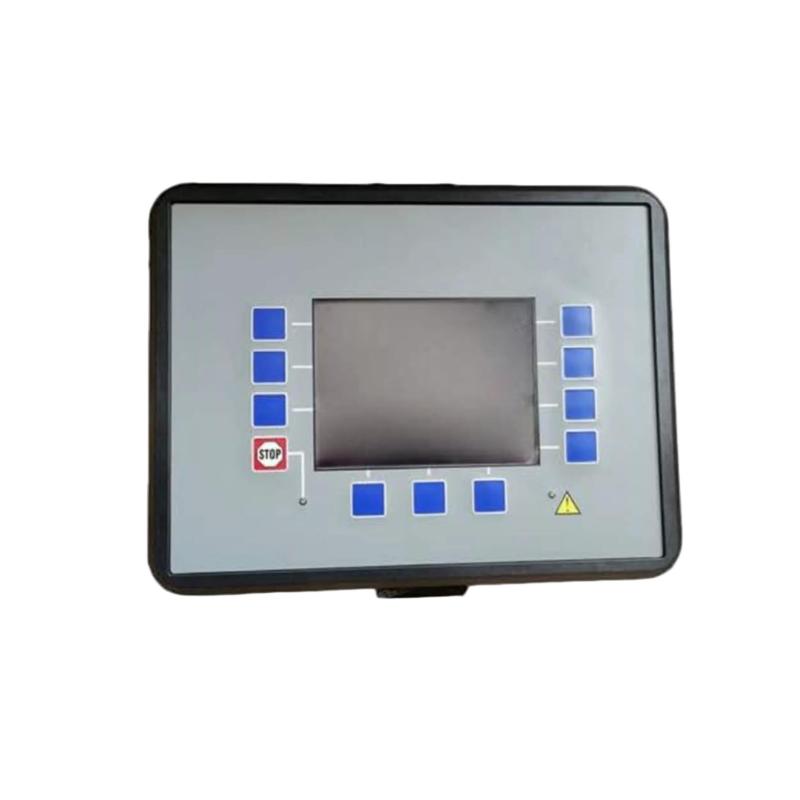

| Display | 5.7-inch color LCD with programmable soft keys |
| Protection Rating | IP66 front / IP20 rear |
| Operating Temperature | −20 °C to +70 °C |
| Storage Temperature | −30 °C to +80 °C |
| Dimensions | 282 mm × 216 mm × 96 mm |
| Weight | Approx. 1.85 kg |
Application Areas
The 8440-2082 generator controller is widely deployed in environments requiring precise generator synchronization and load management.
Industrial Power Generation
Controls multiple generator sets in manufacturing plants and industrial facilities to maintain continuous power supply.
Backup and Emergency Power Systems
Ensures automatic start, synchronization, and load distribution for standby generators in hospitals, airports, and data centers.
Marine and Offshore Installations
Manages onboard generator systems for ships and offshore platforms where dependable electrical supply is critical.
Microgrid and Hybrid Energy Systems
Supports integrated power networks combining diesel generators, renewable sources, and utility grid connections.
Key Advantages
Advanced Multi-Generator Control
Capable of managing and synchronizing up to 32 generators in complex power systems.
Flexible Communication Integration
Supports Ethernet, CAN bus, and Modbus protocols for easy integration with SCADA and industrial automation systems.
Programmable Control Logic
Built-in LogicsManager functionality allows engineers to implement customized automation logic.
Comprehensive Protection Functions
Provides protection against overload, reverse power, short circuits, and abnormal operating conditions.
User-Friendly Interface
A bright 5.7-inch color display with programmable soft keys simplifies system monitoring, configuration, and diagnostics
Technical FAQs
1. What is the primary function of the Woodward 8440-2082 controller?
It manages generator operation, synchronization, load sharing, and protection in power generation systems.
2. Which series does the controller belong to?
It belongs to the Woodward easYgen-3000XT controller series.
3. What power supply does the controller require?
The controller operates with 12 V DC or 24 V DC power.
4. How many generators can it control simultaneously?
It can coordinate up to 32 generators operating in parallel.
5. What communication protocols are supported?
Ethernet, CANopen, J1939, RS-485, and Modbus RTU/TCP.
6. Does the controller support load sharing between generators?
Yes, it provides both active and reactive power load sharing.
7. Can it operate in both island mode and grid-parallel mode?
Yes, it supports both standalone generator operation and grid synchronization.
8. What type of display does the controller include?
It features a 5.7-inch color LCD display with programmable keys.
9. What industries typically use this controller?
Power generation, oil and gas, marine systems, industrial plants, and microgrid installations.
10. What is the operating temperature range?
The controller operates between −20 °C and +70 °C.
