Introduction

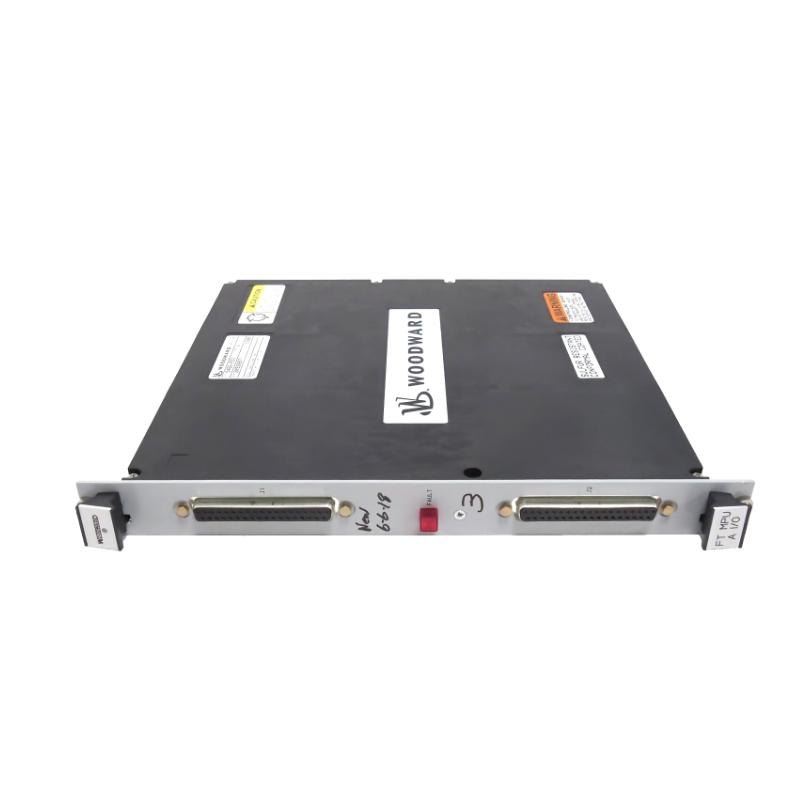

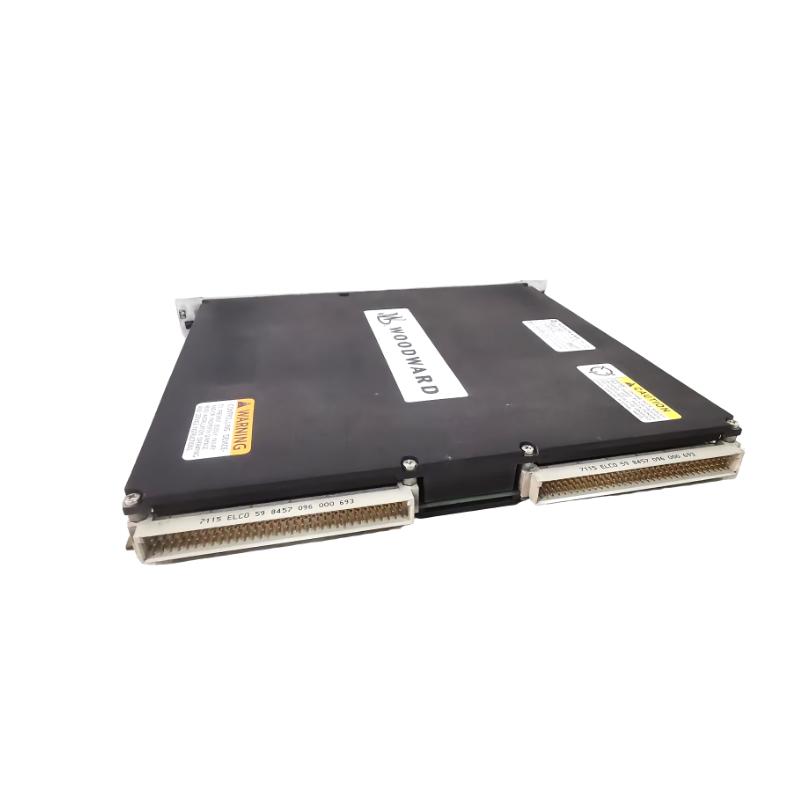

The Woodward 5466-253 Simulation Combined Module is an industrial testing interface used in control systems to simulate operational signals and verify system functionality. In complex automation platforms, engineers often need to test control logic and protection systems before connecting actual field devices.
This module allows simulation of input and output signals so that system responses can be analyzed under controlled conditions. By providing this capability, the module helps engineers confirm that control algorithms, alarms, and protective functions operate as expected.
Because of its role in testing and validation, the module is widely used in industrial automation environments such as turbine control systems, power plants, and process industries where reliable system operation is essential.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Woodward |
| Model | 5466-253 |
| Module Type | Simulation Combined Module |
| Function | Signal simulation and control system testing |
| Application | Automation system commissioning and diagnostics |
| System Compatibility | Woodward industrial control platforms |
| Installation | Control system rack / automation cabinet |
| Operating Mode | Continuous industrial operation |
| Dimensions | 180 × 120 × 80 mm |
| Weight | 0.839 kg (1.85 lb) |
System Testing and Simulation in Industrial Control Environments
The Woodward 5466-253 Simulation Combined Module is designed to support system testing, signal simulation, and diagnostic operations within industrial control and turbine automation systems. Simulation modules allow engineers to emulate operational signals and system conditions without requiring actual field equipment, making them valuable tools for commissioning, maintenance, and troubleshooting.
By generating simulated inputs and responses, the module helps validate system behavior, verify control logic, and test alarm or protection mechanisms before equipment is placed into active service. This capability reduces the risk of unexpected operational issues and improves the reliability of control system deployment.
Typical industrial applications include:
-
Control system commissioning in power generation facilities
-
Simulation testing for turbine automation platforms
-
Control logic validation in industrial process plants
-
Maintenance diagnostics in oil and gas control systems
-
Operator training environments for automation platforms
-
Verification of protection and alarm functions in safety systems
Through controlled simulation of system signals, the module allows engineers to analyze system behavior and confirm correct control responses under different operating conditions.
Operational Advantages
Integrated Simulation Capability
Provides a convenient platform for generating test signals and simulated system responses.
Supports Control System Commissioning
Allows engineers to verify control logic and system performance before full deployment.
Enhanced Maintenance Diagnostics
Facilitates troubleshooting and system verification without interrupting live operations.
Compatible with Woodward Control Platforms
Designed for integration within Woodward industrial automation systems.
Improved System Reliability
Helps identify configuration issues early in system testing stages.
Technical FAQs
1. What is the primary function of the 5466-253 module?
It provides signal simulation and system testing capabilities for industrial control systems.
2. Why are simulation modules important in automation systems?
They allow engineers to test control logic and system responses without connecting real equipment.
3. What systems typically use this module?
Industrial control systems and turbine automation platforms using Woodward architectures.
4. Where is the module installed in a system?
Inside control racks or test environments within industrial automation cabinets.
5. Can the module simulate multiple system conditions?
Yes, it can generate various test signals to emulate operational scenarios.
6. What stages of system development benefit from simulation modules?
Commissioning, system integration testing, maintenance diagnostics, and operator training.
7. Which industries commonly use control system simulation modules?
Power generation, petrochemical processing, oil and gas production, and manufacturing.
8. How does simulation improve control system reliability?
It allows engineers to detect configuration or logic errors before live operation.
9. Can the module operate continuously during system testing?
Yes, it is designed for continuous operation during diagnostic and testing procedures.
10. What problems can simulation testing help prevent?
Unexpected control behavior, improper logic configuration, and system integration errors.
