Product Overview

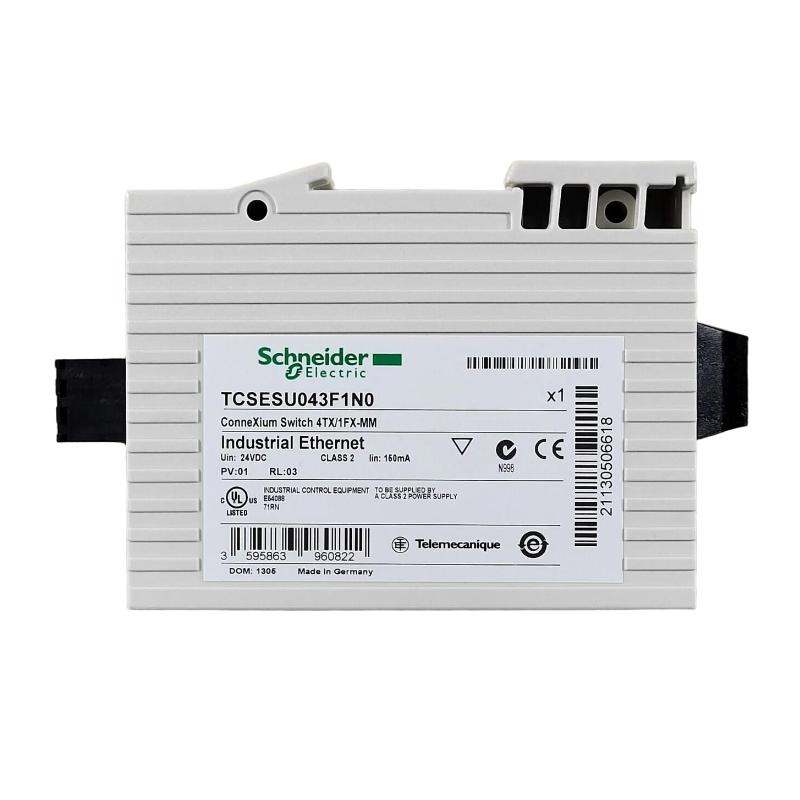

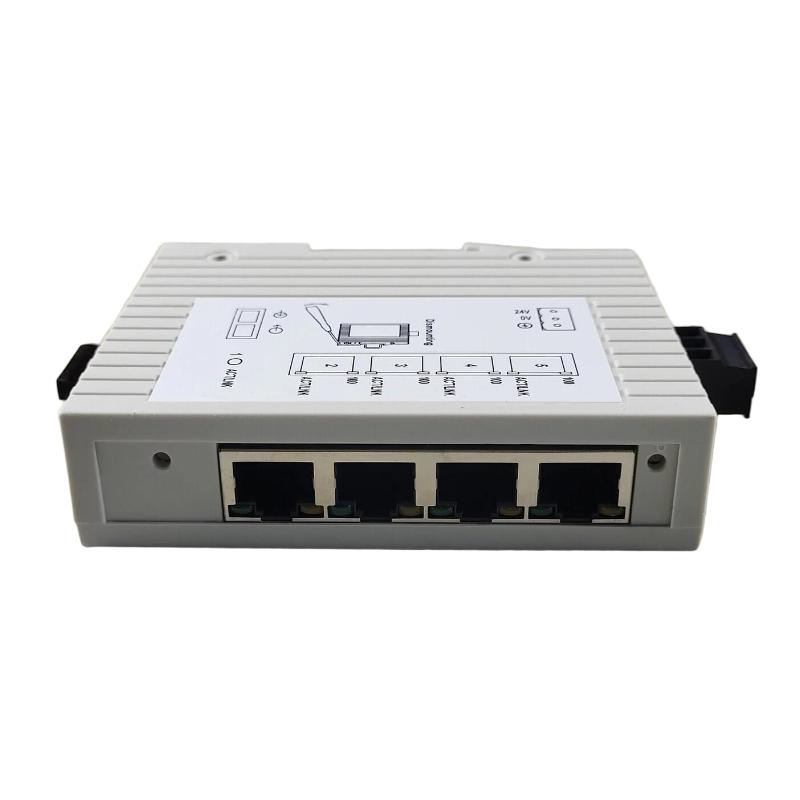

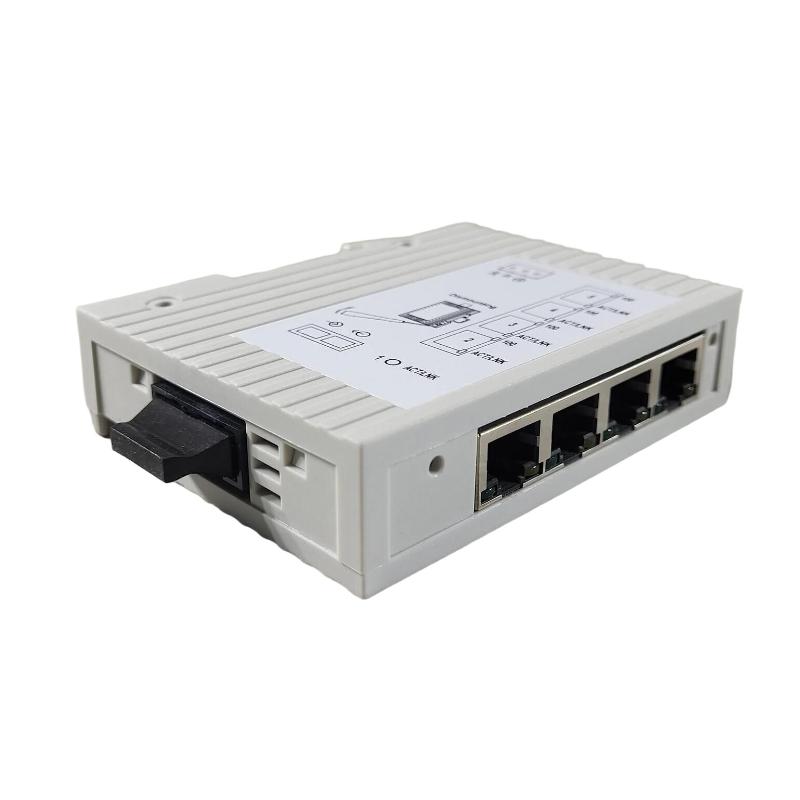

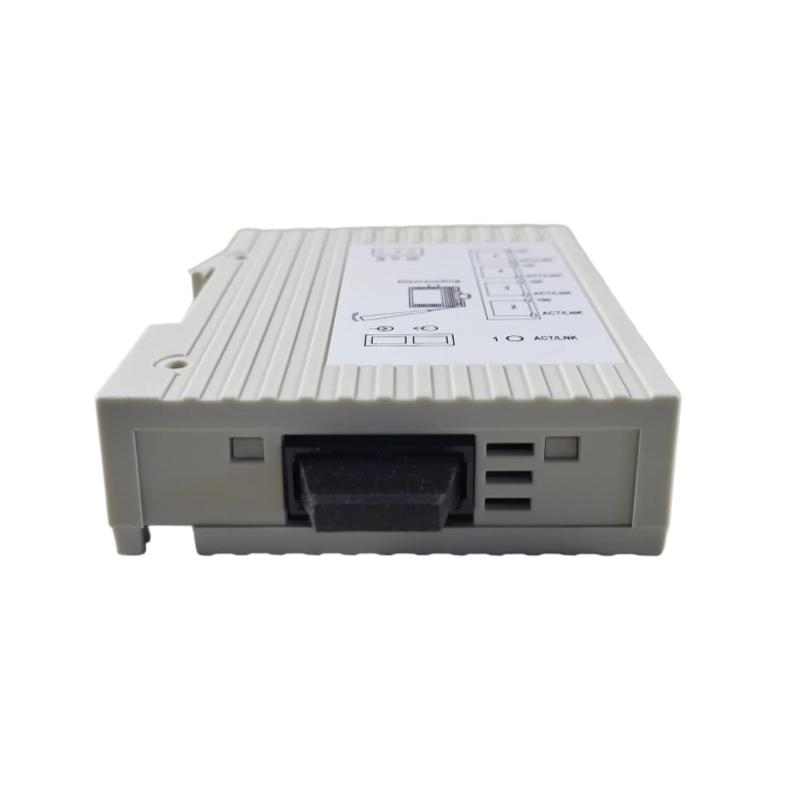

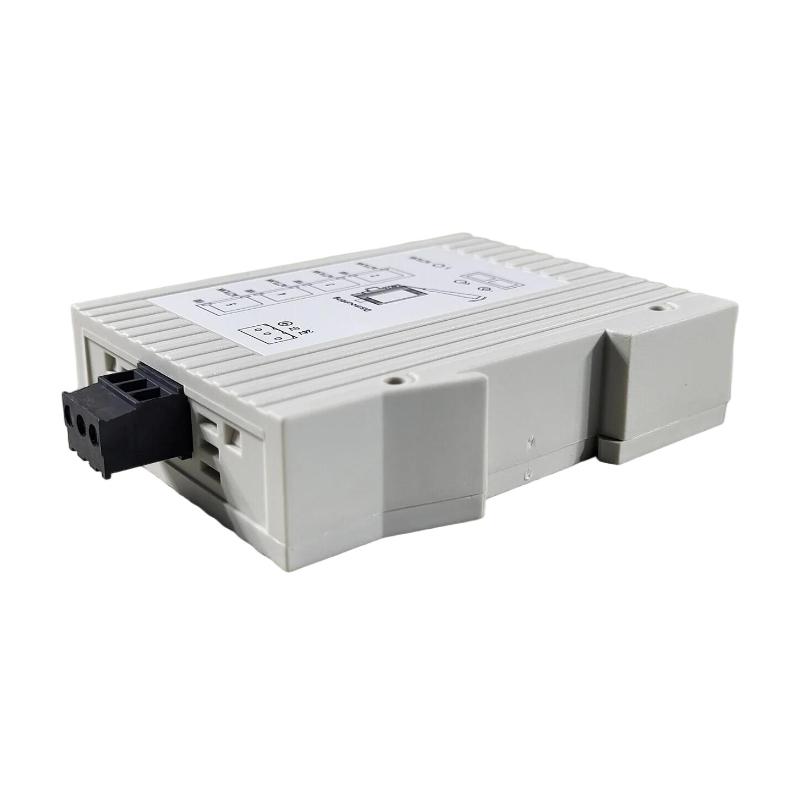

The Schneider TCSESU043F1N0 Ethernet TCP/IP Unmanaged Switch is a compact industrial network device from Schneider Electric’s ConneXium family. Designed for straightforward TCP/IP Ethernet connections, this unmanaged switch delivers reliable plug‑and‑play connectivity for industrial networks without the need for complex configuration. It is ideal for connecting multiple field devices such as PLCs, HMIs, and sensors in automation environments that require stable communication with minimal setup.
This unmanaged Ethernet switch excels in environments where simplicity and durability are valued, offering consistent network service across both copper and fiber links while maintaining robust performance in typical industrial temperature and humidity conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | TCSESU043F1N0 |
| Product Type | Ethernet TCP/IP Unmanaged Switch |
| Product Series | ConneXium |
| Number of Ports | 4 × RJ45 + 1 × Fiber optic SC |
| Ethernet Speeds | 10/100 Mbps (Auto‑negotiation) |
| Copper Port Protocol | 10BASE‑T / 100BASE‑TX |
| Fiber Port Protocol | 100BASE‑FX (Multimode) |
| Supply Voltage | 24 V DC nominal |
| Supply Range | 9.6 – 32 V DC SELV |
| Power Consumption | Approx. 3.9 W |
| Mounting | DIN‑rail (35 mm sym.) |
| Indicators | LEDs for power, link/activity, data rate |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | -40 °C to 85 °C |
| Relative Humidity | 0–95 % non‑condensing |
| Protection Rating | IP30 enclosure |
| Dimensions (W×H×D) | 25 mm × 114 mm × 79 mm |
| Weight | Approx. 0.12 kg |
