Product Overview

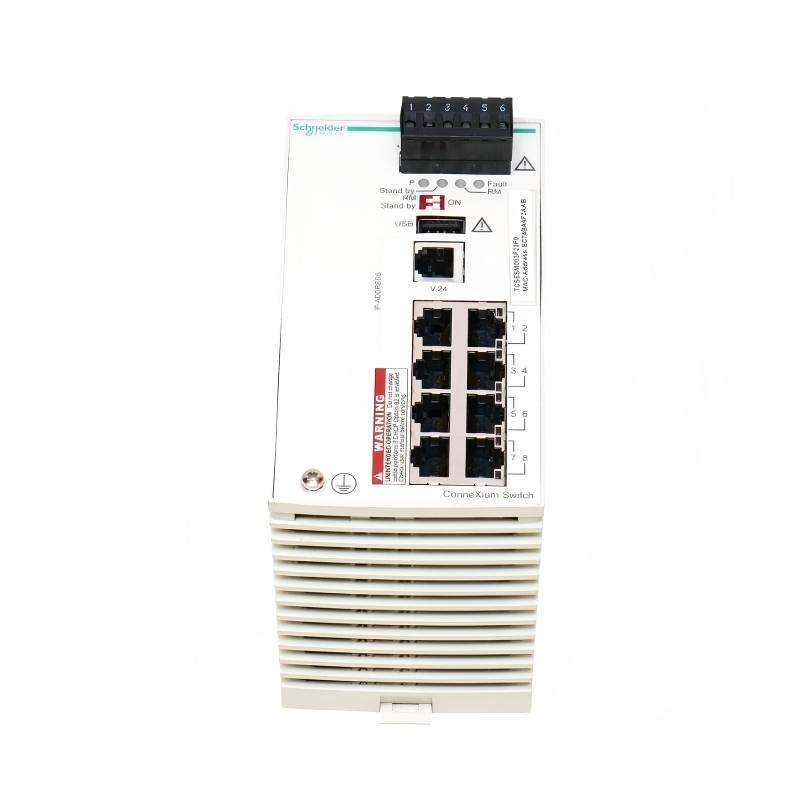

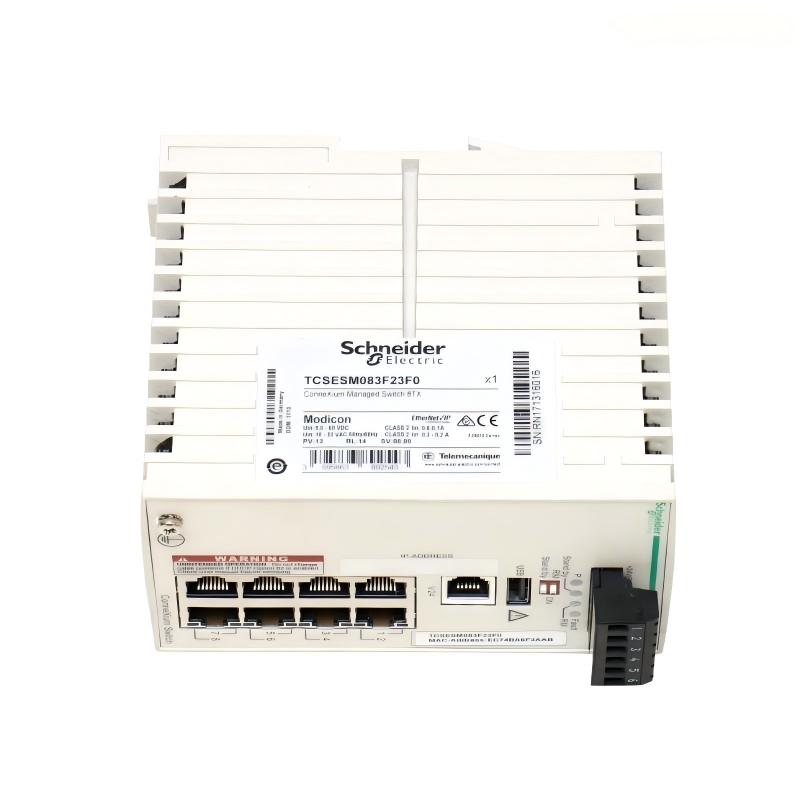

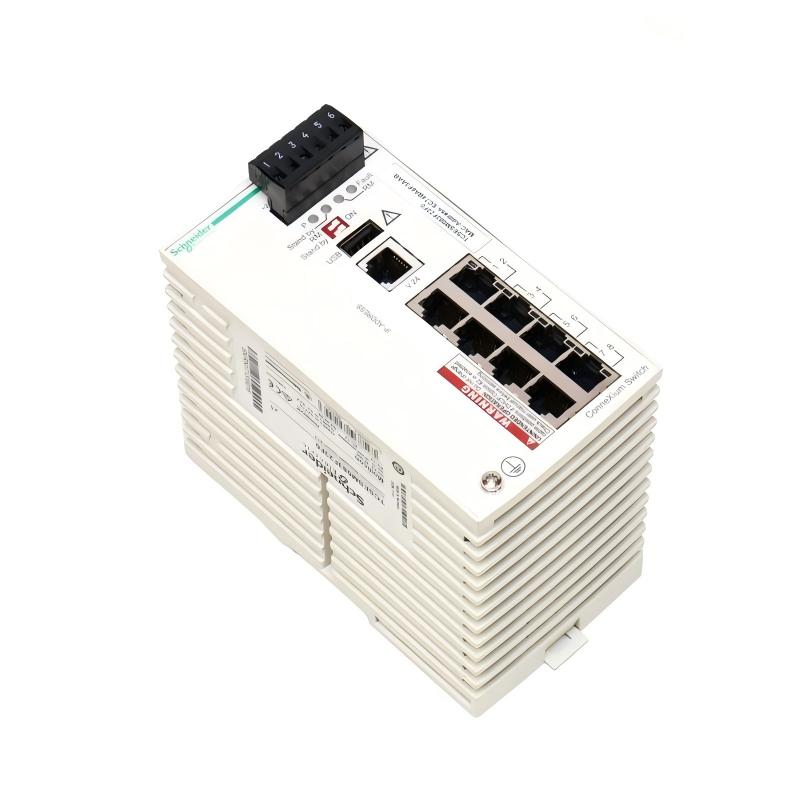

The Schneider TCSESM083F23F0 ConneXium Managed Switch is a high-performance industrial Ethernet switch designed for reliable network management in harsh automation environments. Part of Schneider Electric’s ConneXium series, this managed switch provides advanced features such as VLAN segmentation, Quality of Service (QoS), and redundancy protocols to ensure uninterrupted communication across industrial networks.
With robust protection against electrical disturbances, wide temperature tolerance, and a compact DIN-rail form factor, the TCSESM083F23F0 is ideal for factories, process plants, and energy facilities requiring secure, high-speed, and deterministic network performance. Its user-friendly web interface and configuration software make it easy to deploy and maintain, helping engineers optimize network efficiency and reduce downtime.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Schneider Electric |
| Model | TCSESM083F23F0 |
| Product Type | Managed Industrial Ethernet Switch |
| Product Series | ConneXium |
| Number of Ports | 8 × 10/100/1000 Base-T RJ45 + 2 × Gigabit SFP |
| Switching Capacity | 20 Gbps |
| Forwarding Rate | 14.9 Mpps |
| VLAN Support | 802.1Q VLAN, up to 256 VLANs |
| Redundancy Protocols | RSTP, MSTP, ERPS |
| Quality of Service | Layer 2 QoS with 4 priority queues |
| Management | Web interface, SNMP v1/v2c/v3, CLI |
| Power Supply | 24 V DC nominal |
| Power Range | 18–30 V DC |
| Power Consumption | 7 W max |
| Operating Temperature | -40°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Mounting | DIN Rail |
| Dimensions | 160 mm × 130 mm × 75 mm |
| Weight | Approx. 0.95 kg |
| Protection | IP30, EMC compliance for industrial environments |
Application Scenarios
The TCSESM083F23F0 ConneXium Managed Switch is widely used in industrial network architectures where reliability, speed, and security are critical.
Factory Automation
Connects PLCs, HMIs, and motion controllers in manufacturing lines, ensuring high-speed deterministic communication.
Process Industries
Maintains reliable Ethernet connectivity in chemical plants, oil & gas facilities, and water treatment systems.
Energy and Utilities
Supports real-time monitoring, control, and SCADA systems in electrical substations and renewable energy plants.
Material Handling and Logistics
Manages networking for conveyor systems, automated warehouses, and distribution centers with low-latency communication.
Key Advantages
Advanced Network Management
Supports VLANs, QoS, and redundancy protocols to optimize traffic and minimize downtime.
Industrial Reliability
Designed to withstand wide temperature ranges, vibration, and electromagnetic interference typical in industrial settings.
High-Speed Performance
Provides 10/100/1000 Mbps connectivity with Gigabit SFP ports for flexible network expansion.
Flexible Deployment
DIN-rail mounting and compact design enable easy integration into control cabinets or network racks.
Easy Configuration and Monitoring
Web interface, SNMP support, and CLI allow simple setup, monitoring, and troubleshooting of complex networks.
Technical FAQs
1. What is the primary function of the TCSESM083F23F0?
It acts as a managed Ethernet switch for industrial networks, providing secure, high-speed connectivity with advanced traffic management.
2. How many ports does the switch have?
It has 8 RJ45 Gigabit ports and 2 Gigabit SFP ports for fiber connections.
3. What network redundancy protocols are supported?
RSTP, MSTP, and ERPS are supported for high network availability.
4. Can VLANs be configured on this switch?
Yes, it supports up to 256 VLANs using 802.1Q tagging.
5. What power supply does it require?
The switch operates on 24 V DC nominal, with an allowable range of 18–30 V DC.
6. What is the operating temperature range?
-40°C to 70°C.
7. Does it support Quality of Service (QoS)?
Yes, Layer 2 QoS with 4 priority queues is available for traffic management.
8. How is the switch mounted?
It is designed for DIN-rail mounting.
9. Can it be managed remotely?
Yes, via web interface, SNMP, and CLI.
10. What industrial environments is it suitable for?
Factories, process plants, utilities, logistics centers, and energy facilities requiring reliable, deterministic Ethernet networks.
