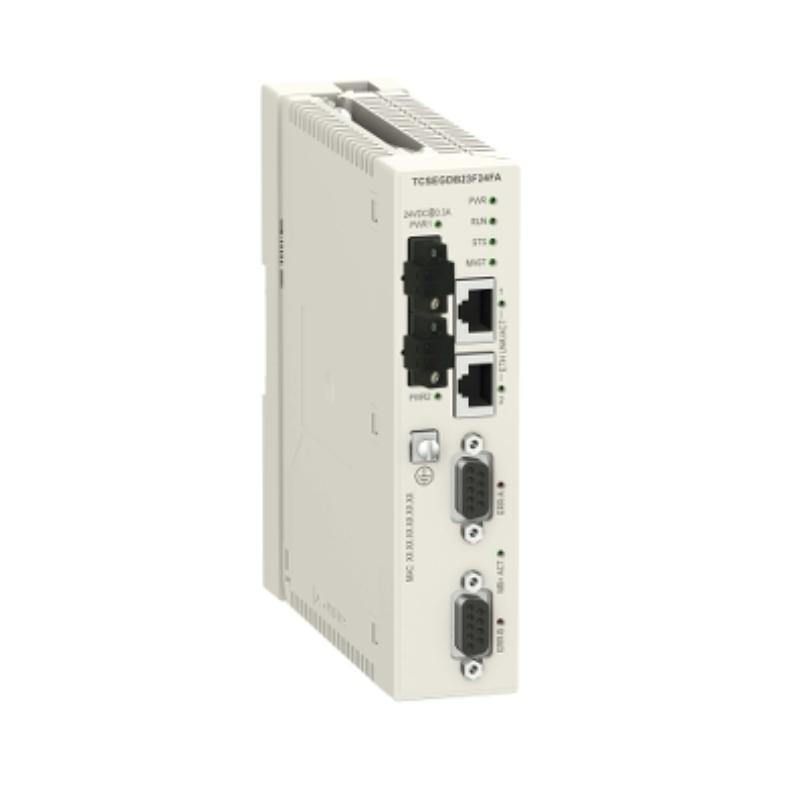

Product Overview
The Schneider TCSEGDB23F24FA Proxy Module is a robust and versatile interface device designed for the Modicon TeSys™ T range of automation systems. Acting as a signal translator and isolation interface, this module ensures reliable communication between control circuits and field devices. Its primary function is to safely manage digital signals while protecting sensitive control electronics from overcurrent, voltage spikes, or interference from high-power actuators.
Built for industrial environments, the TCSEGDB23F24FA is ideal for applications requiring precise signal management, seamless integration with PLCs, and durable operation in harsh conditions. Its compact design and DIN-rail mounting make it convenient for control cabinets of all sizes. The module is especially suited for discrete manufacturing, packaging, and material handling systems where consistent signal integrity is critical.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Schneider Electric |
| Model | TCSEGDB23F24FA |
| Product Type | Proxy Module |
| Product Series | TeSys T |
| Input Signal | 24 V DC digital signal |
| Output Signal | 24 V DC isolated output |
| Input Current | Max 10 mA per channel |
| Output Current | Max 0.5 A per channel |
| Number of Channels | 2 relay outputs |
| Isolation | 2.5 kV between input and output |
| Switching Frequency | Up to 1 kHz |
| Mounting Method | DIN Rail |
| Diagnostic Indicators | LED status for each channel |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions | 90 mm × 22.5 mm × 60 mm |
| Weight | Approx. 0.14 kg |
Application Scenarios
The TCSEGDB23F24FA Proxy Module is commonly used to interface between PLCs and field devices, isolating sensitive control circuits from high-power actuators.
Discrete Manufacturing Automation
Interfaces sensors, pushbuttons, and control panels with PLCs for reliable signal transfer.
Packaging Lines
Protects control electronics while managing actuators such as solenoids, motors, and valve controls.
Material Handling Systems
Ensures safe signal transmission to conveyors, lifts, and automated storage equipment.
Industrial Process Control
Provides isolation and signal conditioning in chemical, pharmaceutical, and food production environments.
Key Advantages
Electrical Isolation
Galvanic isolation protects the control circuits from voltage spikes and interference from high-power loads.
Reliable Signal Transmission
Ensures consistent and accurate digital signal transfer, reducing errors in automated systems.
Compact DIN-Rail Design
Space-saving form factor allows installation in crowded control cabinets.
Channel Diagnostics
LED indicators provide immediate visual feedback on channel operation and status.
Industrial Durability
Designed to operate across a wide temperature range and in harsh industrial conditions, minimizing maintenance and downtime.
Technical FAQs
1. What is the primary function of the TCSEGDB23F24FA module?
It provides electrical isolation and signal interfacing between PLCs and field devices.
2. What voltage does the module operate on?
The module is designed for 24 V DC digital input and output signals.
3. How many channels does it have?
It has 2 relay output channels.
4. What is the maximum output current per channel?
Each channel supports up to 0.5 A.
5. Does the module provide electrical isolation?
Yes, up to 2.5 kV between input and output.
6. What mounting method is supported?
DIN-rail mounting is used for convenient installation.
7. Are there diagnostic indicators?
Yes, LED indicators show the status of each channel.
8. What is the operating temperature range?
The module operates from -20°C to 60°C.
9. Can it be used in harsh industrial environments?
Yes, it is designed for reliability in industrial conditions.
10. What types of applications is it suitable for?
Discrete manufacturing, packaging, material handling, and process automation systems requiring signal isolation.
