Product Overview

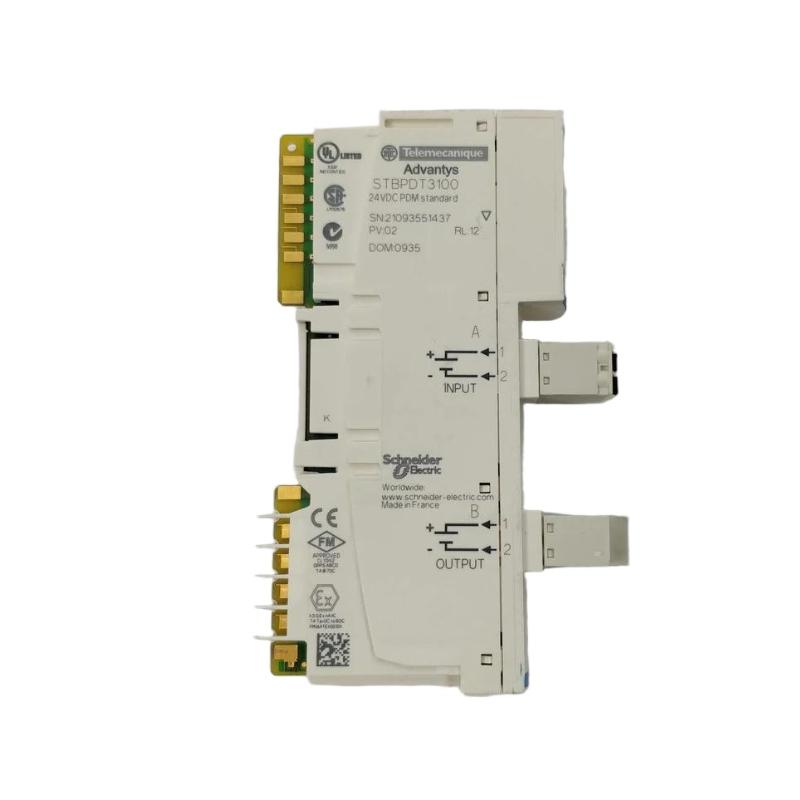

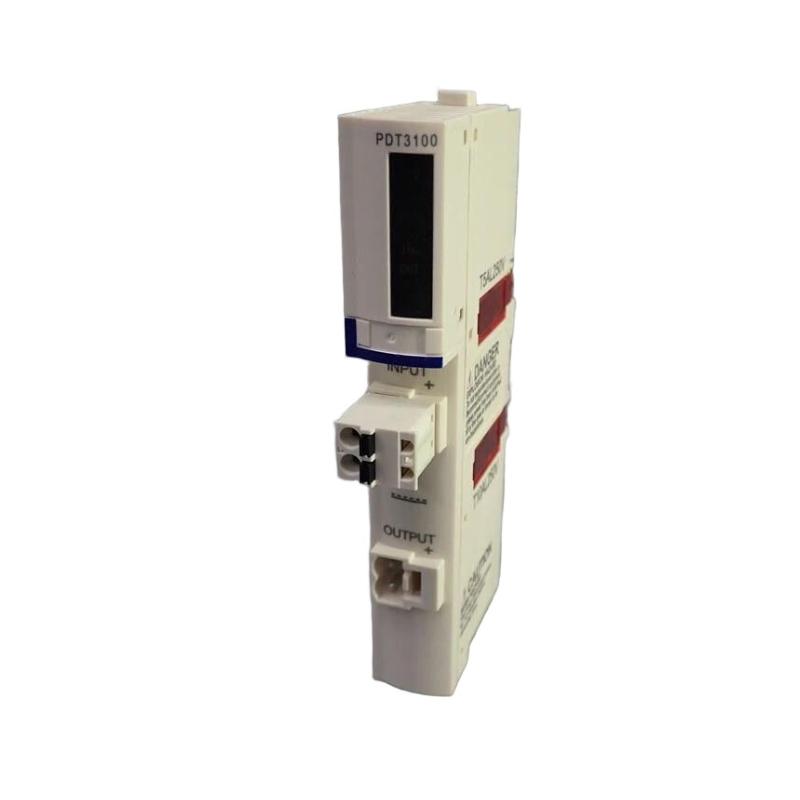

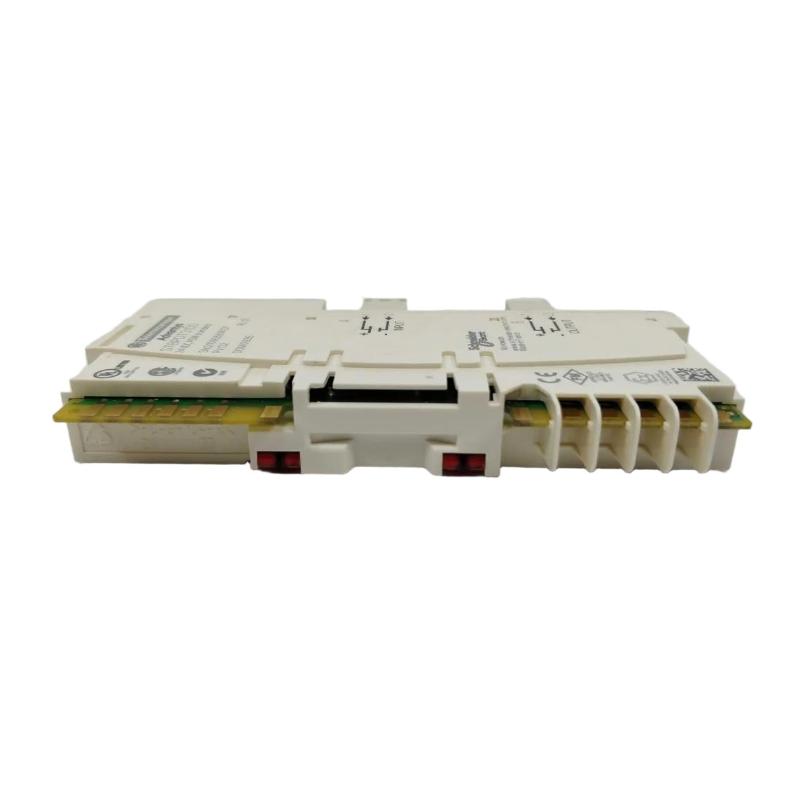

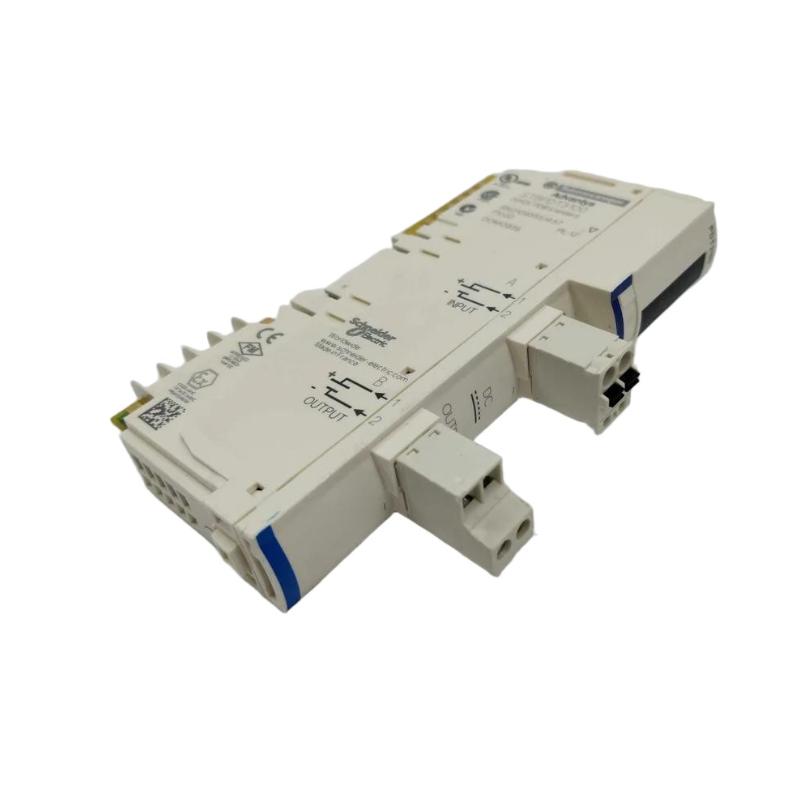

The Schneider STBPDT3100 Standard Power Distribution Module is a key component of the Modicon Advantys STB distributed I/O platform, designed to provide stable and organized power distribution across automation systems. This module acts as the central power management unit within the STB island, distributing 24 V DC power to sensors, actuators, and I/O modules while ensuring reliable operation of the automation network.
Engineered for industrial reliability, the STBPDT3100 incorporates built-in protection mechanisms and diagnostic indicators to maintain consistent electrical performance even in demanding environments. Its compact DIN-rail design allows seamless integration into control cabinets, while compatibility with the Advantys STB architecture enables efficient deployment in distributed automation systems.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Schneider Electric |
| Model | STBPDT3100 |
| Product Type | Standard Power Distribution Module |
| Product Series | Modicon Advantys STB |
| Rated Supply Voltage | 24 V DC |
| Voltage Range | 19.2 – 30 V DC |
| Maximum Output Current | 10 A at 45°C |
| Output Current Range | Up to 12 A at 30°C (I/O circuits) |
| Input Circuit Current | 0–4 A |
| Output Circuit Current | 0–8 A |
| Permissible Ground Current | 30 A for 2 minutes |
| Protection Features | Overcurrent protection, reverse polarity protection |
| Diagnostic Indicators | LED status indicators |
| Protection Rating | IP20 |
| Mounting Method | DIN Rail |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions | 125 mm × 18.4 mm × 65.1 mm |
| Weight | Approx. 0.13 kg |
Application Scenarios
The STBPDT3100 power distribution module is widely used in distributed automation systems that require reliable power management for multiple field devices.
Industrial Manufacturing Systems
Provides stable power delivery to distributed sensors and actuators in automated production lines.
Packaging and Material Handling Equipment
Supports conveyor systems, packaging machines, and robotic handling units with centralized power distribution.
Process Control Facilities
Maintains consistent power supply for chemical processing plants, water treatment systems, and energy facilities.
Automotive Assembly Operations
Ensures stable power delivery across multiple automation zones in robotic assembly lines and automated inspection stations.
Key Advantages
Efficient Power Distribution
Delivers consistent power across distributed devices, improving overall system stability and performance.
Integrated Protection Mechanisms
Built-in overcurrent and reverse polarity protection safeguards connected devices.
Compact Industrial Design
Slim profile allows easy installation within crowded control cabinets.
Flexible System Integration
Fully compatible with the Advantys STB distributed I/O system, supporting modular and scalable architectures.
Enhanced System Diagnostics
LED indicators provide immediate visual feedback on system power conditions, helping technicians quickly identify issues.
Technical FAQs
1. What is the main function of the STBPDT3100 module?
It distributes 24 V DC power to sensors, actuators, and I/O modules within the Advantys STB system.
2. What supply voltage does the module require?
The module operates with a nominal input voltage of 24 V DC.
3. What is the maximum output current capacity?
The module supports up to 10 A at 45 °C for I/O circuits.
4. Does the module include built-in protection?
Yes, it includes overcurrent protection and reverse polarity protection.
5. What type of mounting is supported?
The module is designed for standard DIN-rail installation.
6. What diagnostic indicators are available?
LED indicators display the operational status of sensor and actuator power buses.
7. Is the module compatible with Advantys STB systems?
Yes, it is designed specifically for the Modicon Advantys STB platform.
8. What is the operating temperature range?
The module operates reliably between 0°C and 60°C.
9. What is the protection rating of the module?
The module is rated IP20 for indoor industrial control cabinet use.
10. Can the module handle temporary high current loads?
Yes, it can tolerate up to 30 A for short durations on the grounding terminal.
