Product Overview

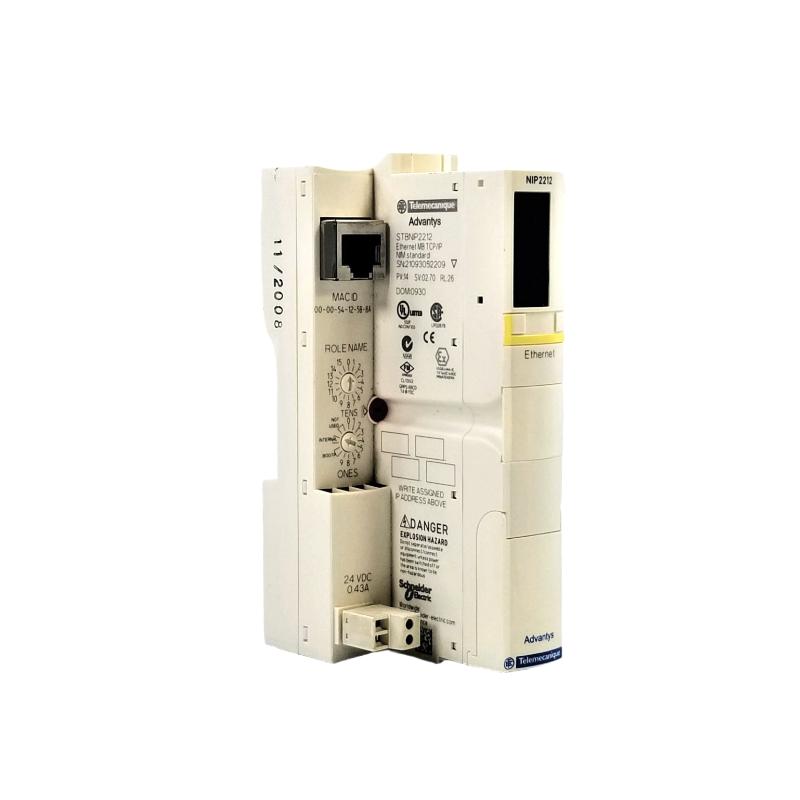

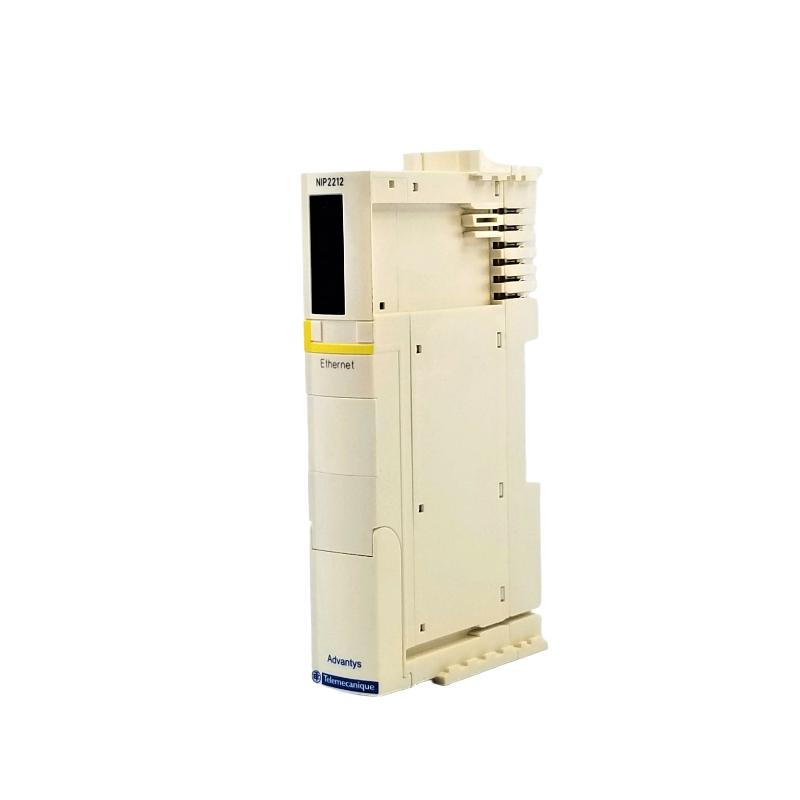

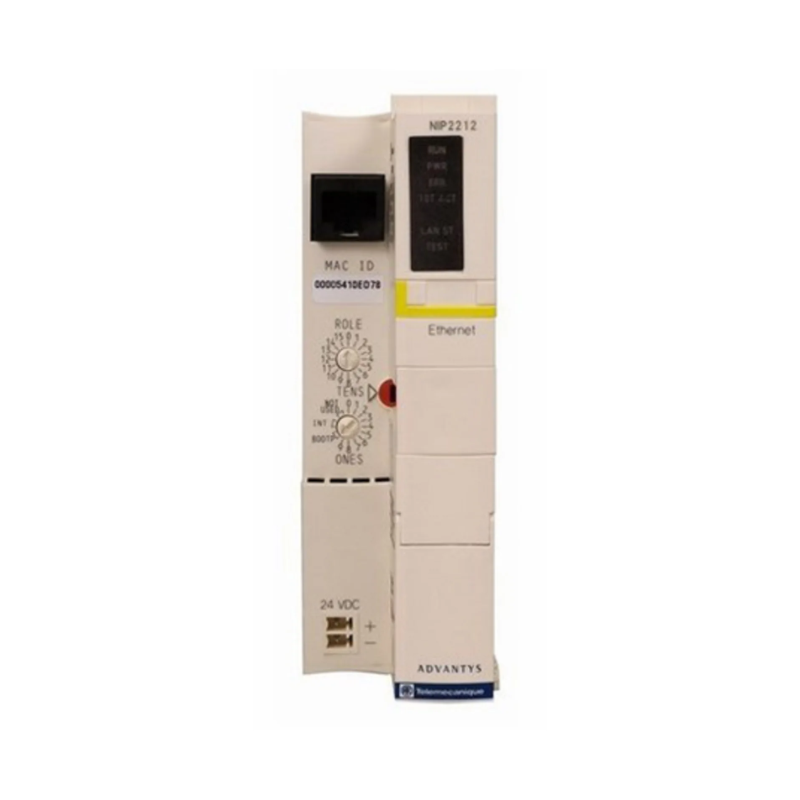

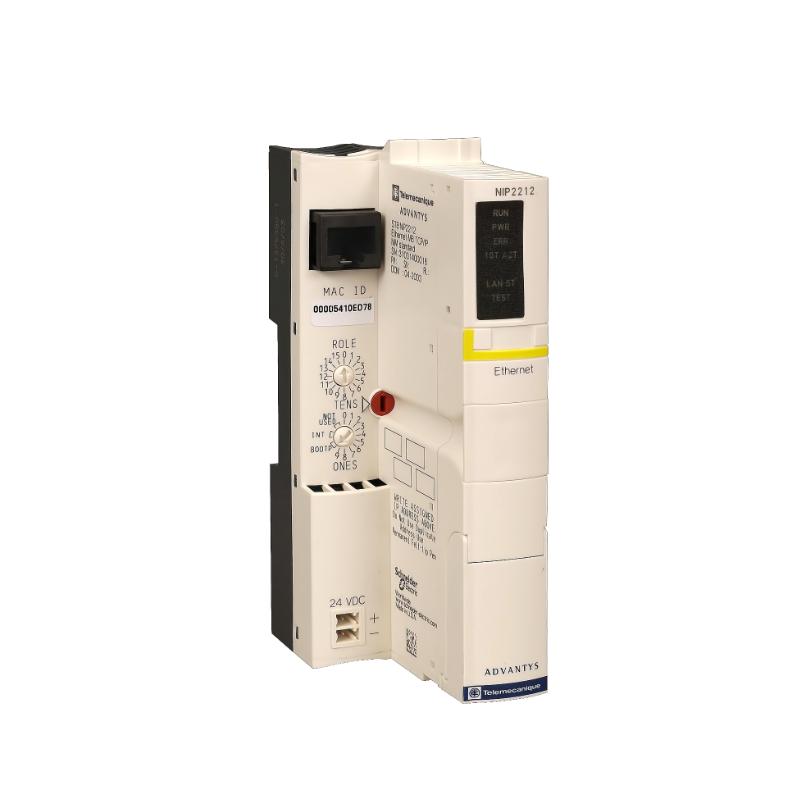

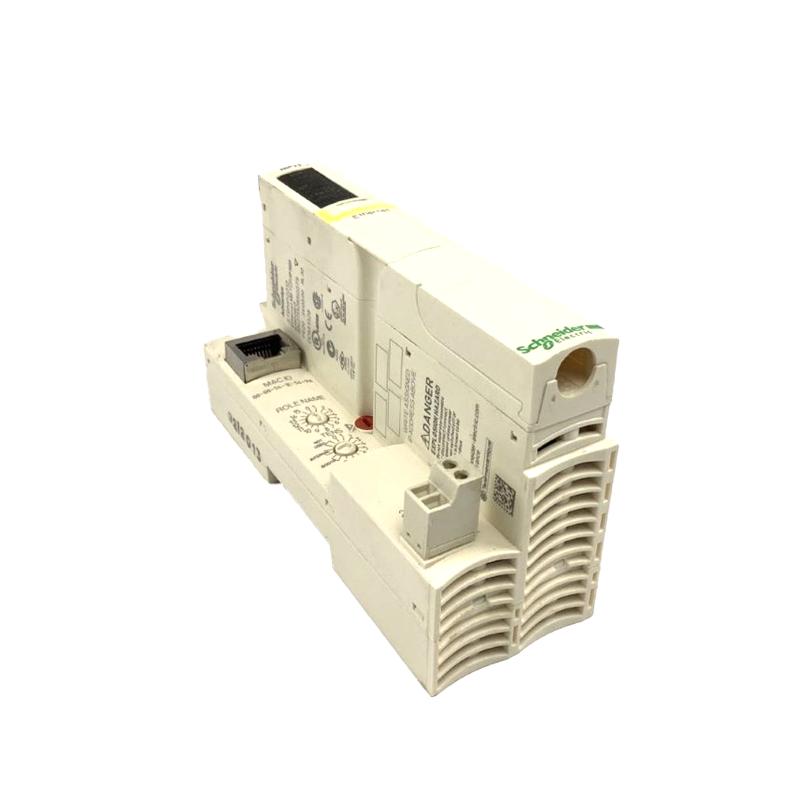

The Schneider STBNIB2212 Standard Network Interface Module is a core communication component designed for the Modicon Advantys STB distributed I/O platform. Acting as the communication gateway for the entire I/O island, this module connects field devices to the industrial network while managing data exchange between the controller and connected I/O modules.
Built for industrial automation systems that require dependable fieldbus communication and scalable system architecture, the STBNIB2212 enables efficient data transfer while supplying logic power to the station bus. Its compact design, strong communication stability, and seamless integration with Advantys STB components make it a widely used solution in modern automation infrastructures.
With support for multiple I/O modules and extension segments, the STBNIB2212 allows engineers to build flexible distributed control systems that can grow alongside expanding production requirements.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Schneider Electric |
| Model | STBNIB2212 |
| Product Type | Standard Network Interface Module |
| Product Series | Modicon Advantys STB |
| Communication Protocol | InterBus |
| Supply Voltage | 24 V DC |
| Voltage Range | 19.2 – 30 V DC |
| Input Current | Up to 700 mA |
| Logic Bus Output Voltage | 5.25 V DC |
| Logic Bus Output Current | 1.2 A |
| Maximum I/O Modules | Up to 32 modules |
| Network Segments | 1 main + up to 6 extension segments |
| Configuration Port | RS-232 |
| Diagnostic Indicators | RUN, PWR, ERR LEDs |
| Mounting Method | DIN Rail |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -25°C to 70°C |
| Dimensions | 128.3 mm × 40.5 mm × 70 mm |
| Weight | Approx. 0.155 kg |
Application Scenarios
The STBNIB2212 network interface module is commonly used in distributed automation systems where stable fieldbus communication is essential.
Manufacturing Automation
In production lines and automated assembly equipment, the module connects distributed I/O devices with PLC controllers to maintain synchronized operations.
Packaging and Logistics Systems
Ideal for conveyor systems, packaging machines, and warehouse automation where real-time data exchange ensures accurate product handling.
Process Industry Facilities
Suitable for water treatment plants, chemical processing facilities, and industrial monitoring systems where reliable field communication is required.
Automotive Production Lines
Frequently deployed in robotic assembly stations and automated body production lines to coordinate multiple I/O modules across different production zones.
Key Advantages
Stable Industrial Communication
Designed for consistent fieldbus performance, the module ensures smooth and reliable communication between controllers and distributed I/O stations.
Expandable Distributed I/O Architecture
The interface supports a large number of I/O modules and extension segments, allowing automation systems to expand without redesigning the network structure.
Integrated Power Supply for Station Bus
The module converts the incoming 24 V DC supply into logic-level power for the internal station bus, simplifying installation and reducing additional power requirements.
Compact Control Cabinet Integration
Its slim DIN-rail design helps optimize cabinet space, making it suitable for both small and large control panels.
Real-Time Diagnostics
Integrated LED indicators provide quick visual feedback on communication status, helping maintenance teams identify issues quickly and reduce system downtime.
Technical FAQs
1. What role does the STBNIB2212 module play in an automation system?
It functions as the network communication interface between the fieldbus network and the Advantys STB distributed I/O island.
2. What voltage is required for operation?
The module operates with a standard 24 V DC power supply.
3. How many I/O modules can be connected?
Up to 32 I/O modules can be connected within a single STB station.
4. Does the module supply power to the internal bus?
Yes, it converts the external supply into logic voltage to power the station bus.
5. Can the system be expanded?
Yes, the architecture supports multiple extension segments for larger distributed systems.
6. What indicators are available on the front panel?
The module includes LEDs that indicate power status, operational state, and communication errors.
7. What installation method is used?
The module is designed for standard DIN-rail mounting in industrial control cabinets.
8. What temperature range can the module operate in?
It is suitable for environments ranging from 0°C to 60°C.
9. Is it suitable for distributed automation systems?
Yes, the module is specifically designed for distributed I/O architecture within industrial automation environments.
10. How is the module configured?
Configuration is typically performed through compatible Advantys STB engineering software via the RS-232 port.
