Product Introduction

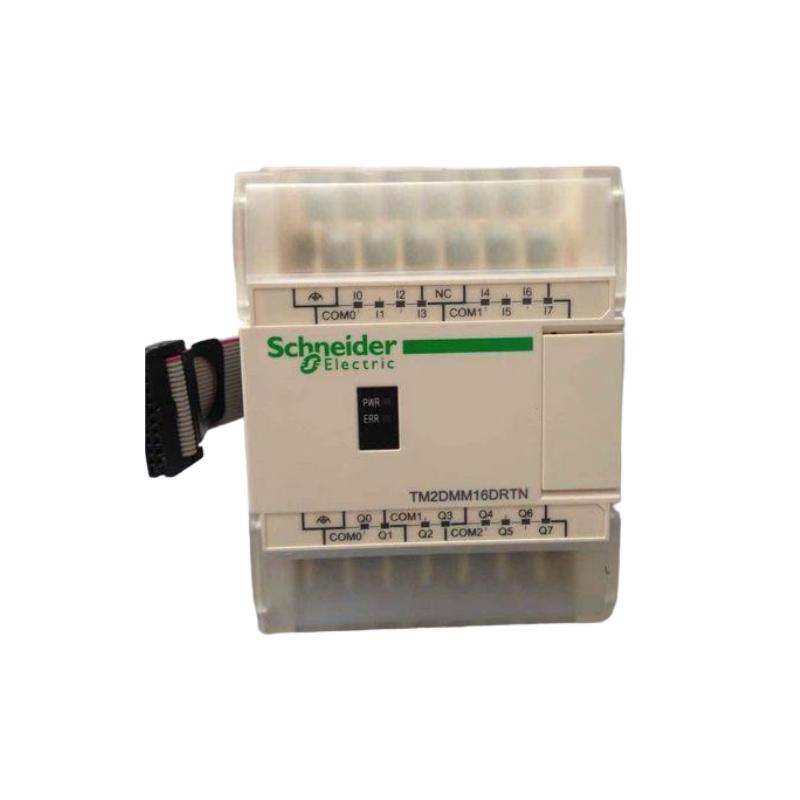

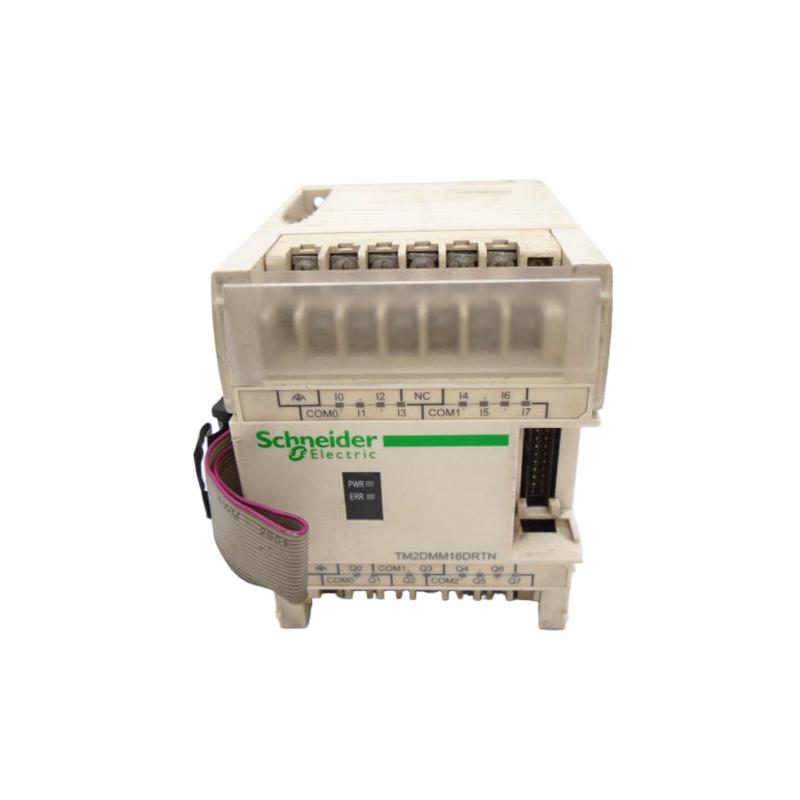

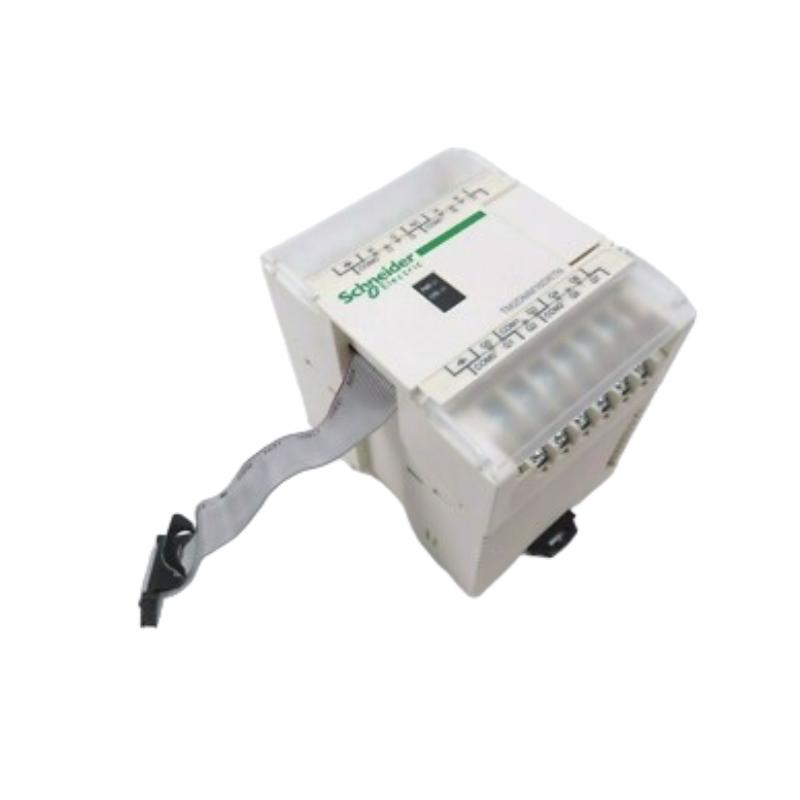

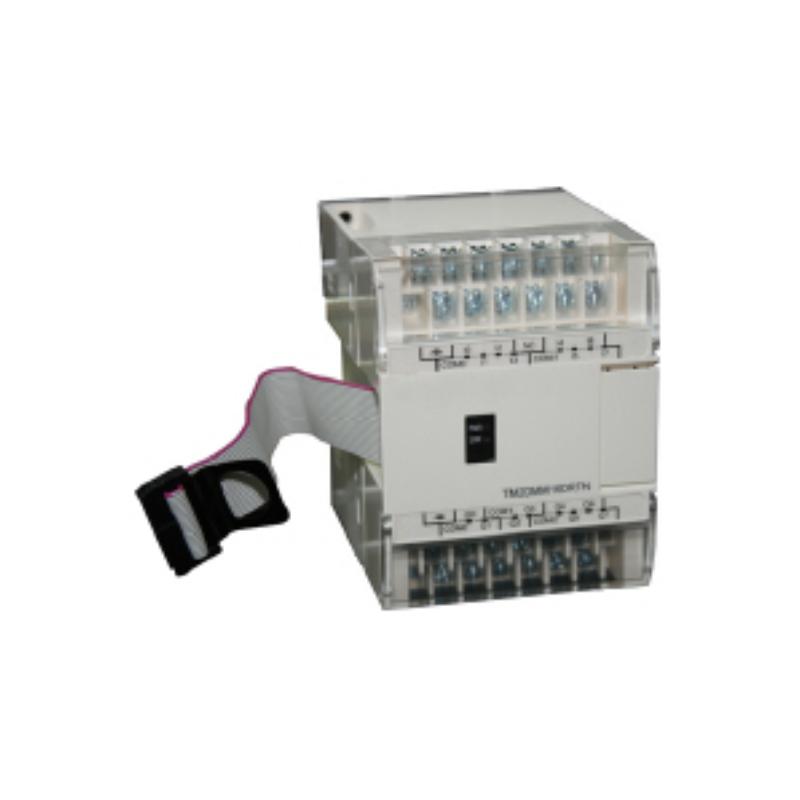

The Schneider Electric TM2DMM16DRTN Digital I/O Module is a powerful and flexible expansion unit designed to extend the digital interfacing capabilities of TM2 series logic controllers. Combining multiple digital input and output channels in a single compact module, it provides efficient signal acquisition and command execution for mid‑range automation systems.
Engineered for industrial reliability and seamless integration with TM2 controllers, the TM2DMM16DRTN supports high‑speed digital processing, clean logic isolation, and user‑friendly installation. Its DIN‑rail friendly footprint and standardized expansion bus interface make it ideal for machine automation, process monitoring, and building management applications where a mix of digital inputs and outputs is required without extensive hardware complexity.
This module expands system flexibility while minimizing panel space and wiring needs, making it a preferred choice for OEM machines, production lines, and distributed control architectures.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Schneider Electric |
| Model Number | TM2DMM16DRTN |
| Module Type | Digital I/O Module |
| Product Series | TM2 Logic & I/O Expansion |
| Digital Inputs | 8 Channels |
| Digital Outputs | 8 Channels |
| Input Voltage | 24 V DC |
| Output Voltage | 24 V DC |
| Input Logic Level | Positive Logic |
| Output Logic Level | Sourcing 24 V DC |
| Input Current per Channel | ~4 mA |
| Output Current per Channel | 500 mA |
| Response Time | <1 ms typical |
| Isolation | Optical isolators for inputs and outputs |
| Supply Method | Powered by TM2 Controller |
| Mounting Method | DIN‑Rail Bus Expansion |
| Protection Rating | IP20 |
| Operating Temperature | 0 °C to 55 °C |
| Dimensions (H × W × D) | 90 × 45 × 70 mm |
| Weight | Approx. 0.23 kg |
Industrial Applications
Production & Assembly Machinery
Ideal for machines that require both discrete signal acquisition and command outputs for actuators, sensors, and safety devices.
Packaging & Material Handling
Used in conveyor systems, packaging lines, and automated logistics equipment where both input detection and output control are essential.
Building & Facility Automation
Supports alarm monitoring, access control signals, lighting commands, and integrative building control tasks.
OEM & Embedded Control Panels
Perfectly suited for OEM panels where compact mixed I/O capability reduces wiring and space, simplifying system design.
Key Advantages
All‑in‑One Digital I/O Expansion
With 8 inputs and 8 outputs in one module, it consolidates multiple I/O functions, saving panel space and reducing hardware count.
Fast, Reliable Logic Processing
High‑speed processing with typical <1 ms response times ensures accurate detection and command execution for time‑critical applications.
Robust Electrical Isolation
Optical isolation on both input and output channels improves system immunity to electrical noise and enhances signal integrity.
Sourcing Output with Strong Drive
Each output can deliver up to 500 mA, making it suitable for driving relays, indicators, and other industrial devices.
Easy Expansion for TM2 Systems
Plug‑in bus connection to TM2 controllers enables quick installation and seamless communication.
Technical FAQs
1. How many digital input channels does this module provide?
The TM2DMM16DRTN provides 8 digital input channels.
2. How many output channels are included?
It includes 8 digital output channels.
3. What voltage levels are used for inputs and outputs?
Both inputs and outputs operate at 24 V DC.
4. What is the typical response time?
Input and output signals are processed in less than 1 ms under normal conditions.
5. What is the maximum output current per channel?
Each output channel can support up to 500 mA.
6. Does the module provide isolation?
Yes, the module uses optical isolation for both inputs and outputs to improve noise immunity.
7. How is the module powered?
It is powered directly through the TM2 controller’s expansion bus.
8. Where is this module mounted?
Standard DIN‑rail bus expansion mounting keeps control panels organized and compact.
9. What types of field devices can it interface with?
Connectors can interface with sensors, switches, contactors, relays, indicators, and other 24 V DC devices.
10. What industries commonly use this module?
Manufacturing automation, packaging, material handling, and building systems frequently deploy this mixed I/O module.
