Product Introduction

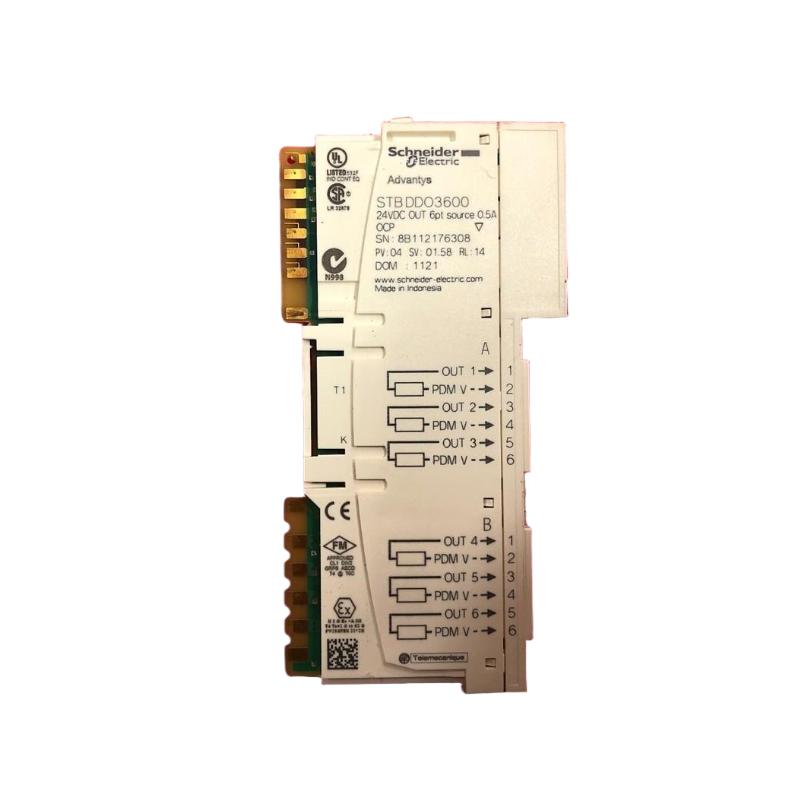

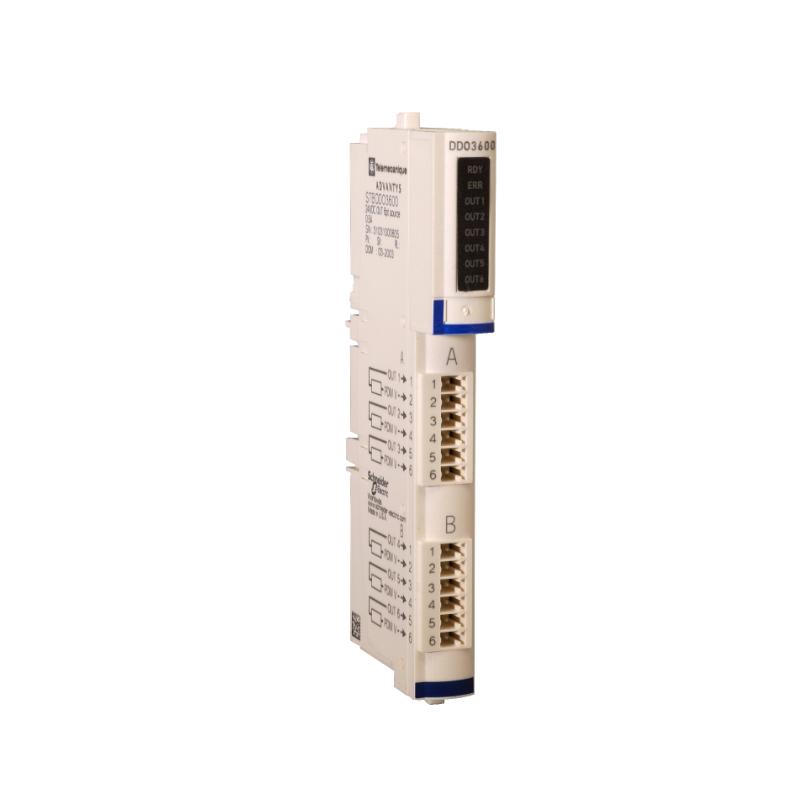

The Schneider Electric STBDDO3600 Standard Digital Output Module is a high-performance discrete output interface designed for the Modicon Advantys STB distributed I/O platform. This module enables automation controllers and PLCs to deliver reliable digital control signals to field devices such as relays, contactors, solenoid valves, and indicator systems.
Built for modern industrial environments, the STBDDO3600 combines solid-state output technology with advanced protection and fast switching response. Its compact modular architecture allows engineers to deploy distributed I/O islands close to machinery, significantly reducing wiring complexity while maintaining precise control over output devices. With flexible logic configuration and hot-swap capability, it is an efficient solution for scalable automation systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model Number | STBDDO3600 |
| Module Type | Standard Digital Output Module |
| Product Series | Modicon Advantys STB |
| Digital Outputs | 6 Outputs |
| Output Type | Solid-State |
| Rated Output Voltage | 24 V DC |
| Output Voltage Range | 19.2 – 30 V DC |
| Output Current | 500 mA per channel |
| Output Logic | Positive (source) or Negative (sink) |
| Response Time | 715 µs (off-to-on), 955 µs (on-to-off) |
| Maximum Surge Current | 5 A (0.5 ms) |
| Maximum Load Capacitance | 50 µF |
| Maximum Load Inductance | 500 mH |
| Minimum Load Current | 0.5 mA |
| Electrical Isolation | 1500 V between channels and logic bus |
| Protection Features | Short-circuit, reverse polarity, thermal overload |
| Supply Method | Power distribution module |
| Current Consumption | 90 mA at 5 V DC logic bus |

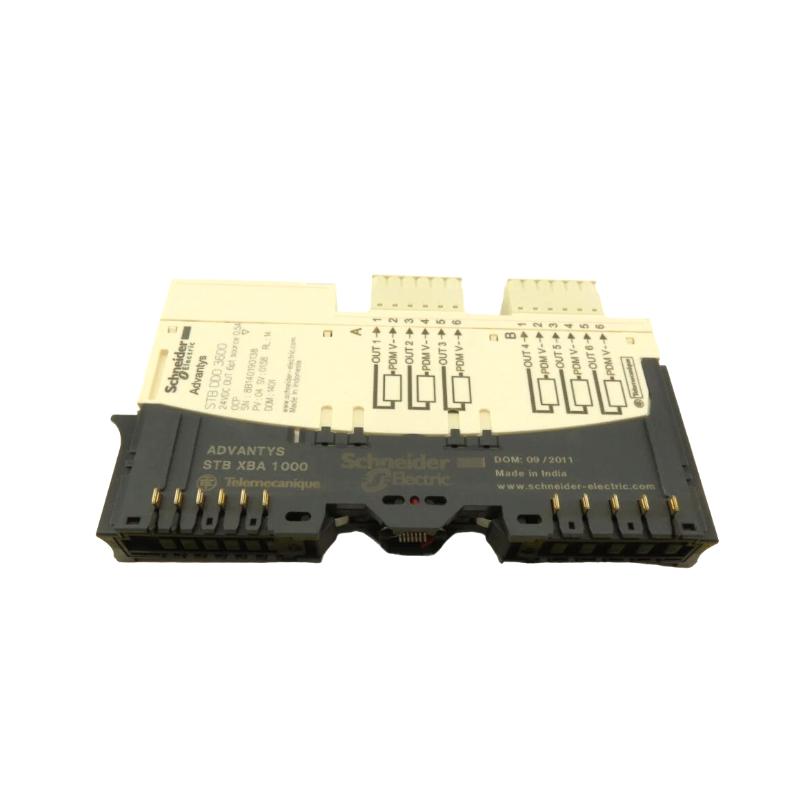

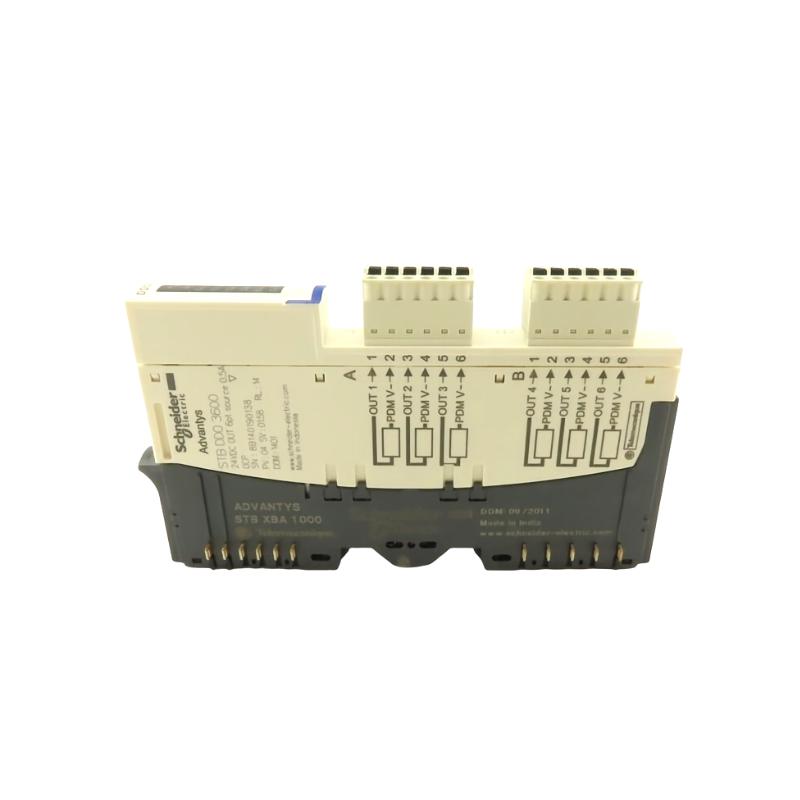

| Mounting Method | Installed on STBXBA1000 I/O Base |
| Protection Rating | IP20 |
| Operating Temperature | 0 °C to 60 °C |
| Dimensions (W × H × D) | 128.3 × 13.9 × 70 mm |
| Weight | Approx. 0.114 kg |
