Product Introduction

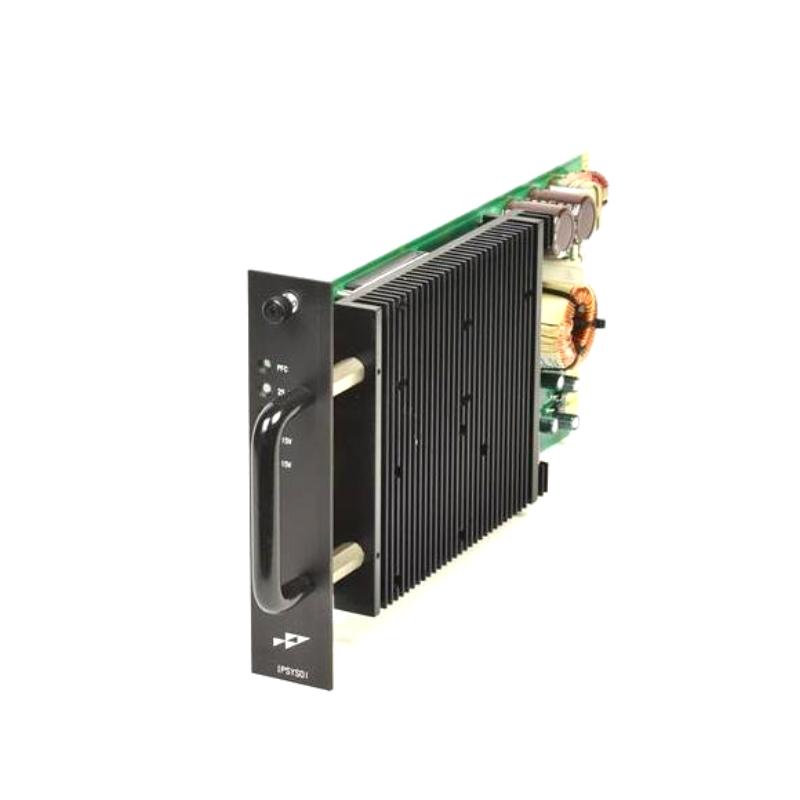

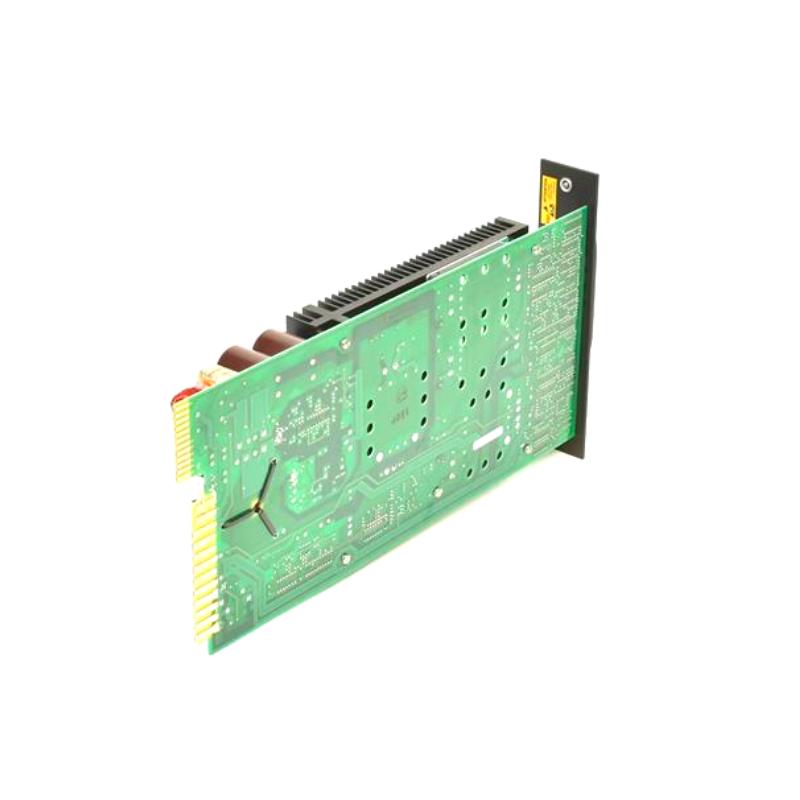

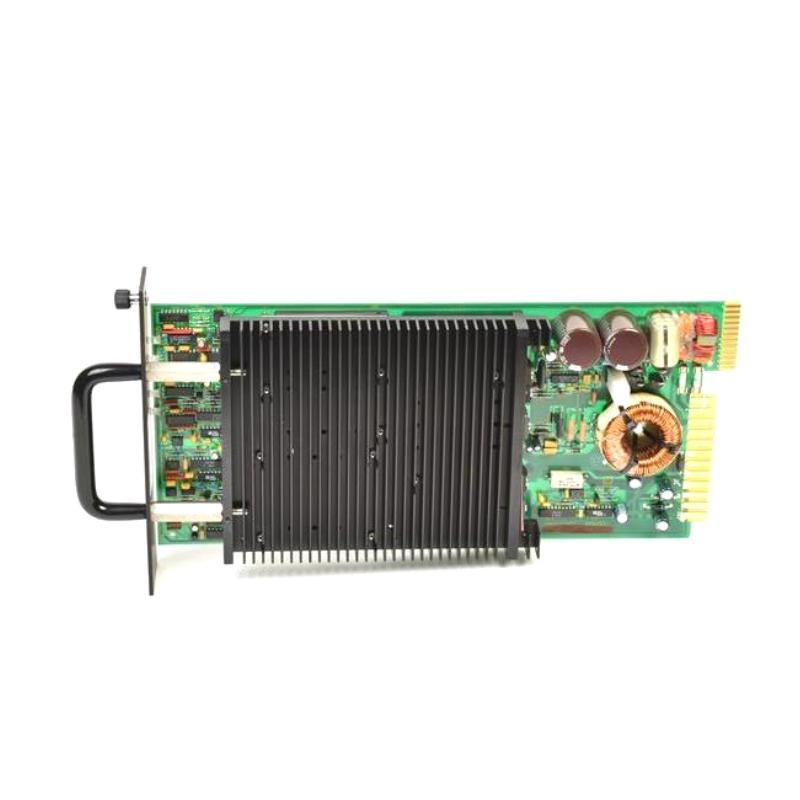

The ABB Bailey IPSYS01 System Power Module is part of the Modular Power System used in ABB Bailey INFI 90 distributed control architectures. Its role is to convert incoming electrical power into regulated DC outputs required for control processors, communication modules, and rack I/O subsystems.
The module supports multiple DC voltage rails to power both internal system electronics and field interface components. It also features active power factor correction and current-sharing technology that allows multiple power modules to operate together in redundant configurations.
This design ensures that industrial automation systems maintain stable electrical conditions even in high-load or mission-critical environments. The IPSYS01 module is commonly deployed in process plants, power generation facilities, and other installations where uninterrupted control system operation is essential.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | ABB Bailey |
| Model | IPSYS01 |
| Module Type | System Power Module |
| System Platform | INFI 90 / Harmony Rack I/O |
| Input Voltage | 102–264 VAC or 102–144 VDC |
| Input Current | 120 VAC: 4.3 A / 240 VAC: 2.0 A / 125 VDC: 4.3 A |
| Output Voltages | 5 VDC, +15 VDC, −15 VDC, 25.5 VDC |
| Output Capacity | Approx. 260 W |
| Power Factor | >0.95 with active correction |
| Hold-Up Time | 20 ms after input loss |
| Heat Dissipation | 175 W |
| Installation | Rack-mounted module |
| Dimensions | 218.4 × 48.3 × 444.5 mm |
| Weight | 2.55 kg (5.62 lb) |
Industrial Control System Power Infrastructure
The ABB Bailey IPSYS01 System Power Module is a core power supply component used within ABB Bailey INFI 90 and Harmony Rack I/O distributed control systems. It provides regulated internal DC voltages required for system logic circuits and field I/O interfaces, ensuring stable operation of rack-mounted control modules.
In complex process automation systems, maintaining consistent internal power rails is essential for reliable communication, signal processing, and control operations. The IPSYS01 module converts incoming AC or DC input power into multiple regulated DC outputs used by the control system.
Typical industrial deployment environments include:
-
Distributed control system cabinets in power plants
-
Process control infrastructure in petrochemical facilities
-
Oil and gas automation control systems
-
Industrial manufacturing automation racks
-
Turbine monitoring and protection systems
-
High-availability process control architectures
By delivering stable system voltages and supporting load-sharing configurations, the module helps maintain operational continuity in critical industrial environments.
Engineering Advantages
Multi-Rail Power Output Architecture
The module generates multiple DC outputs including 5 V, ±15 V, and 25.5 V, supporting both control logic circuits and field I/O devices.
Flexible Input Power Range
It accepts a wide range of power inputs including 120/240 VAC or 125 VDC, allowing installation in diverse industrial power infrastructures.
Active Power Factor Correction
Built-in power factor correction improves energy efficiency and reduces input current distortion.
Current Sharing for Redundant Power Systems
Multiple modules can operate together and share load evenly, supporting redundant power configurations used in mission-critical control systems.
Integrated Status Monitoring
Front-panel LEDs display operating conditions of internal DC-DC converters and power factor circuits for quick diagnostics.
Technical FAQs
1. What voltages does the IPSYS01 provide to the control system?
The module supplies 5 VDC, +15 VDC, −15 VDC system voltages, and approximately 25.5 VDC for I/O power.
2. What input power sources can the module accept?
It supports 102–264 VAC or 102–144 VDC input ranges, allowing flexible integration into industrial electrical systems.
3. How does the module support redundant power systems?
Multiple IPSYS01 modules can operate in parallel with current-sharing circuitry to balance output load.
4. What role does the 25.5 V output play in the system?
The 25.5 V output powers rack I/O devices and field interface circuits within the cabinet.
5. Does the module include diagnostic indicators?
Yes, front-panel LEDs indicate the status of DC-DC converters and power factor correction circuits.
6. What is the typical output power capacity?
The module can provide approximately 260 W output capacity depending on system configuration.
7. How long can the module maintain output after input loss?
The hold-up time is typically around 20 milliseconds after power loss.
8. What type of cooling or thermal behavior should be expected?
The module dissipates approximately 175 W of heat during operation, requiring cabinet ventilation.
9. What automation systems commonly use the IPSYS01 module?
It is used in ABB Bailey INFI 90 and Harmony modular power systems.
10. Can the module operate in harsh industrial environments?
Yes, it is designed for industrial control cabinets and process environments where reliable power distribution is critical.
