Product Introduction

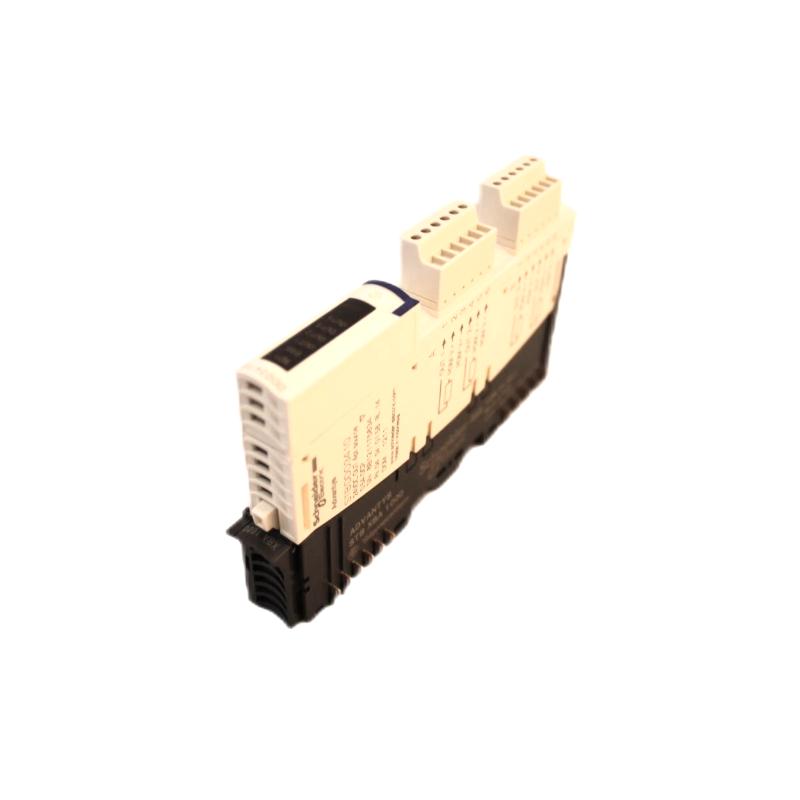

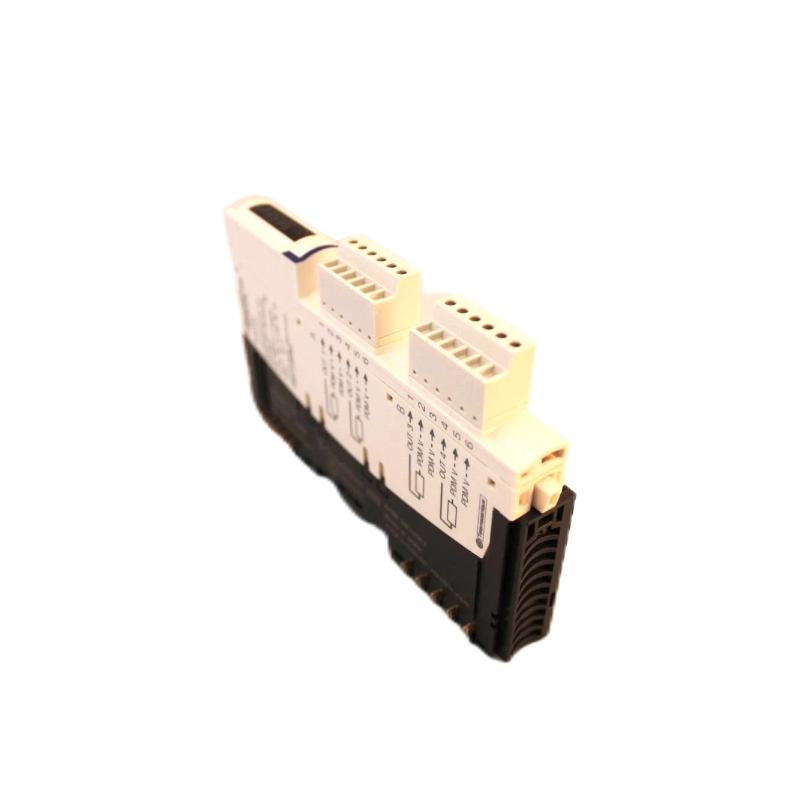

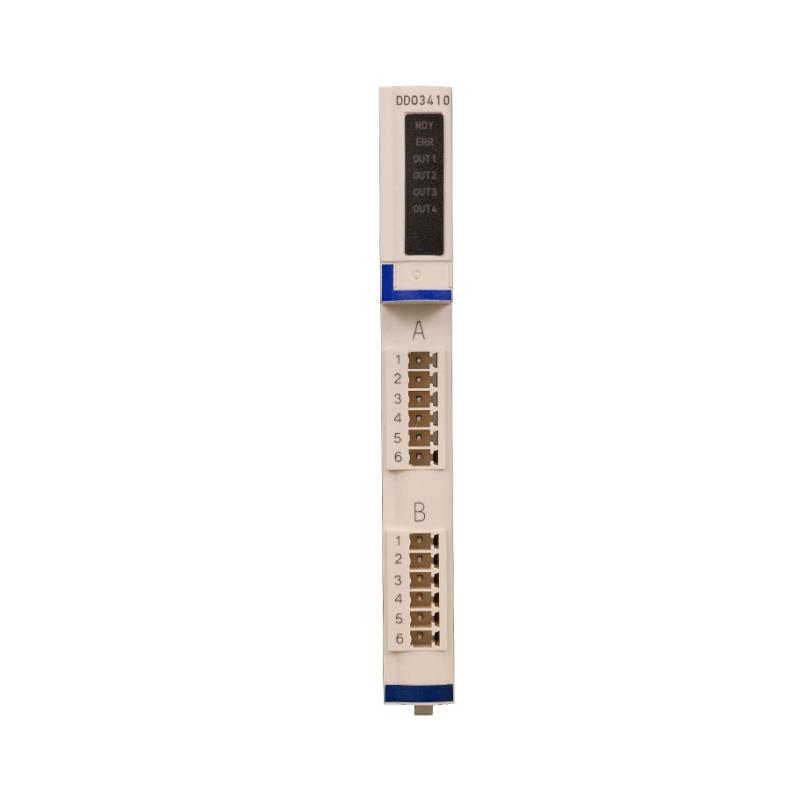

The Schneider Electric STBDDO3410 Standard Digital Output Module is a reliable discrete output interface designed for the Modicon Advantys STB distributed I/O system. This module enables PLCs and automation controllers to send digital control signals to field devices such as relays, solenoid valves, indicator lamps, and contactors.
Built for demanding industrial environments, the STBDDO3410 delivers stable solid-state switching, fast response performance, and robust electrical protection. Its modular architecture simplifies distributed control system design while reducing wiring complexity. With integrated diagnostics and dependable switching performance, this module is widely used in modern automation systems across manufacturing, machine automation, and process control applications.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Schneider Electric |
| Model Number | STBDDO3410 |
| Module Type | Standard Digital Output Module |
| Product Series | Modicon Advantys STB |
| Digital Outputs | 4 Outputs |
| Output Type | Solid-State |
| Rated Output Voltage | 24 V DC |
| Output Voltage Range | 19.2 – 30 V DC |
| Output Current | 500 mA per channel |
| Output Logic | Positive or Negative Logic |
| Response Time | 560 µs (off-to-on), 870 µs (on-to-off) |
| Isolation | 1500 V between channels and logic bus |
| Maximum Surge Current | 5 A (0.5 ms) |
| Maximum Load Capacitance | 50 µF |
| Maximum Load Inductance | 500 mH |
| Minimum Load Current | 0.5 mA |
| Protection Features | Short-circuit, reverse polarity, thermal overload |
| Power Consumption | 70 mA at 5 V DC logic bus |

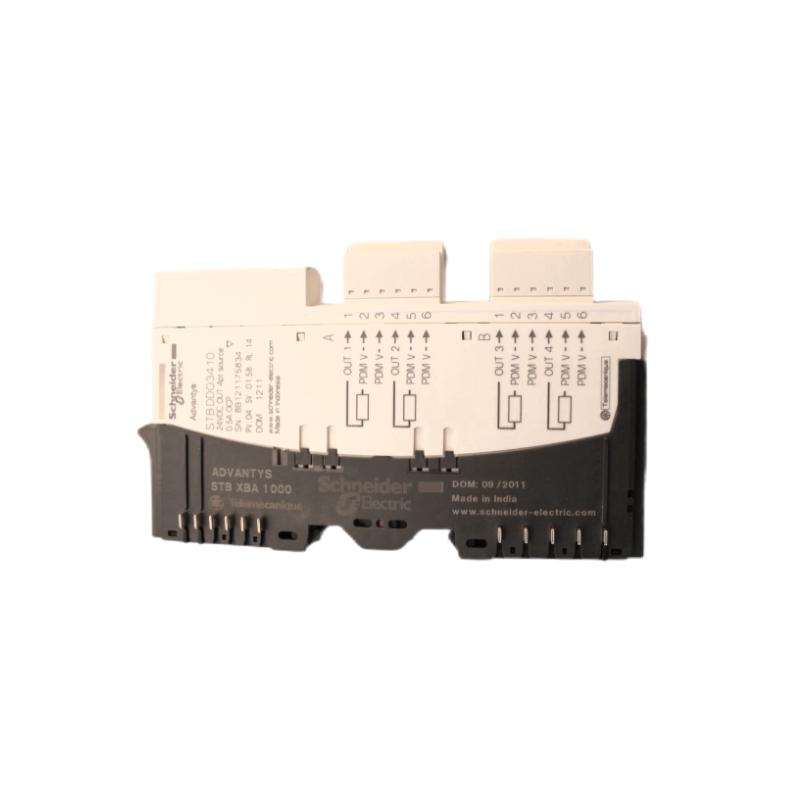

| Mounting Method | Installed on STBXBA1000 I/O Base |
| Protection Rating | IP20 |
| Operating Temperature | 0 °C to 60 °C |
| Dimensions (W × H × D) | 128.3 × 13.9 × 70 mm |
| Weight | Approx. 0.11 kg |
Industrial Applications
Machine Automation
Provides discrete control signals for actuators, solenoid valves, and relays in automated machinery and assembly lines.
Packaging and Processing Equipment
Controls motors, indicator lights, and pneumatic devices used in packaging systems and process automation.
Material Handling Systems
Used in conveyor control systems to drive output devices that manage product movement and routing.
Distributed PLC Architectures
Supports decentralized automation islands where remote output modules execute commands from central controllers through fieldbus networks.
Key Advantages
Reliable Solid-State Switching
The module’s solid-state output technology ensures fast switching and long operational life without mechanical wear.
Fast Response Performance
With switching times below 1 ms, the module reacts quickly to PLC commands, improving machine responsiveness.
Comprehensive Protection
Integrated short-circuit, reverse polarity, and thermal overload protection safeguard the module and connected equipment.
Flexible Logic Configuration
Supports both positive and negative output logic to match various control system requirements.
Hot-Swap Capability
The module can be replaced without shutting down the entire I/O island in many system configurations, reducing maintenance downtime.
Technical FAQs
1. How many output channels does the STBDDO3410 provide?
The module provides 4 digital output channels.
2. What type of outputs are used?
It uses solid-state electronic outputs designed for industrial automation control.
3. What is the rated output voltage?
The module operates with 24 V DC output voltage.
4. What is the maximum current per output channel?
Each output channel supports up to 500 mA.
5. How fast do the outputs switch?
Typical switching times are 560 µs for off-to-on and 870 µs for on-to-off.
6. Does the module provide electrical isolation?
Yes, it provides 1500 V isolation between channels and the logic bus.
7. Can the module be replaced while the system is running?
In many Advantys STB systems, hot-swapping is supported, allowing replacement without shutting down the entire I/O island.
8. What protection mechanisms are built in?
The module includes short-circuit protection, reverse polarity protection, and thermal overload protection.
9. Which base is used for installation?
The module mounts on the STBXBA1000 I/O base.
10. What industries commonly use this module?
Typical industries include factory automation, packaging machinery, material handling, and process automation systems.
