Industrial Use in Turbomachinery Monitoring Systems

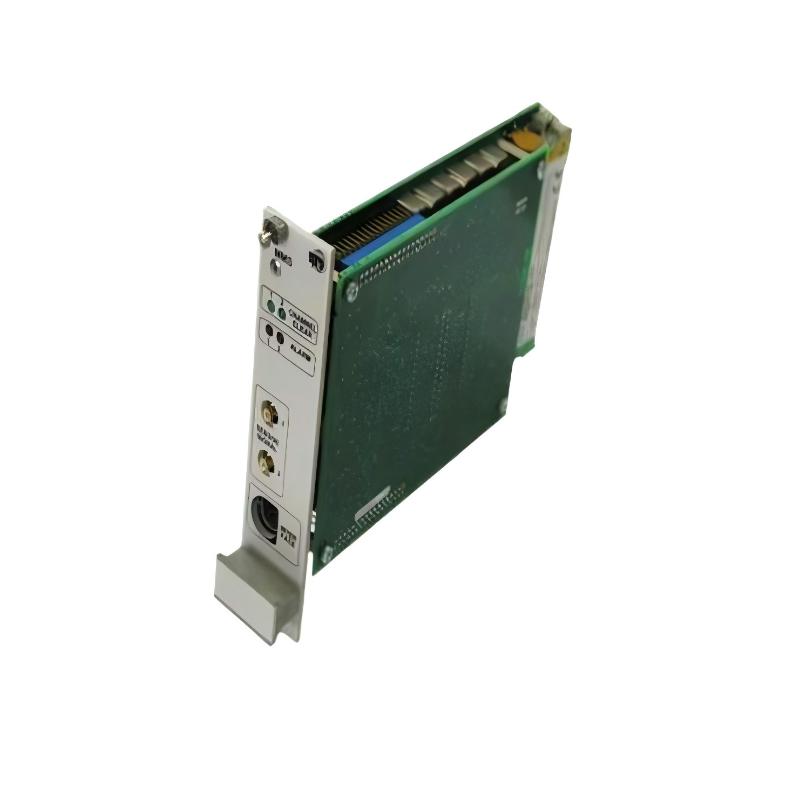

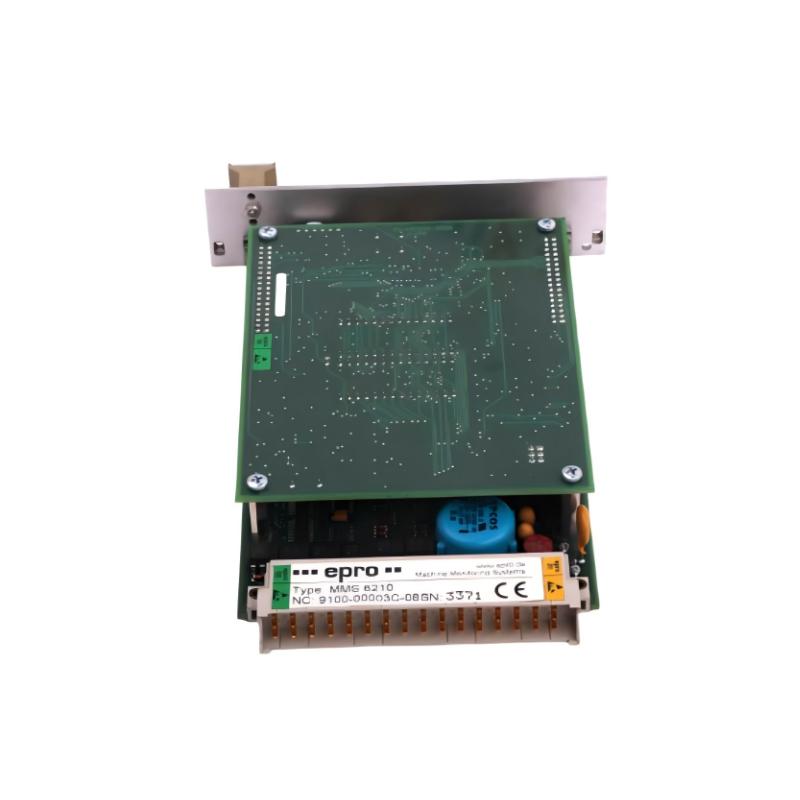

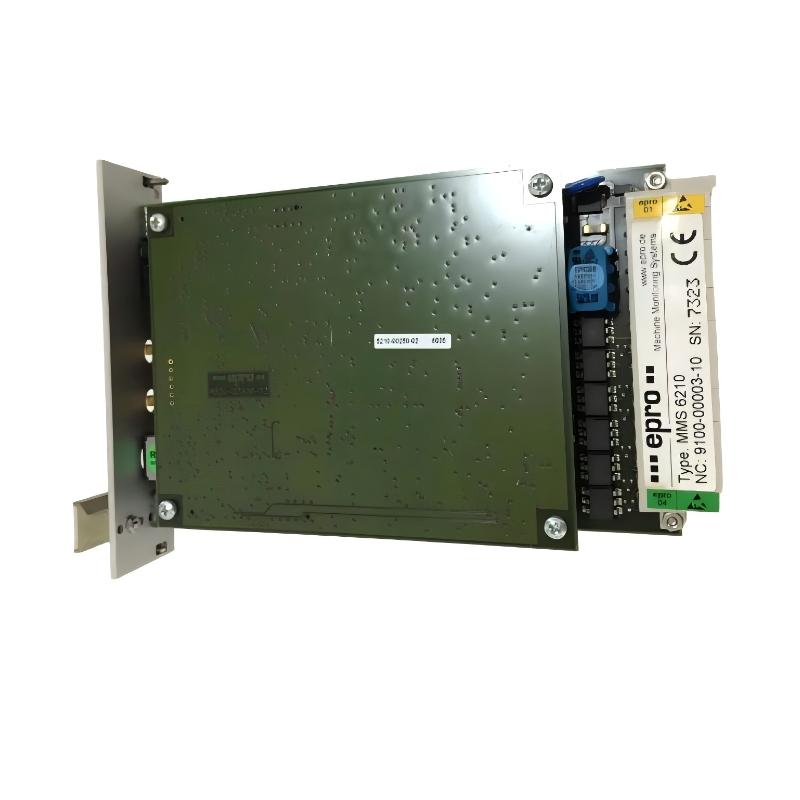

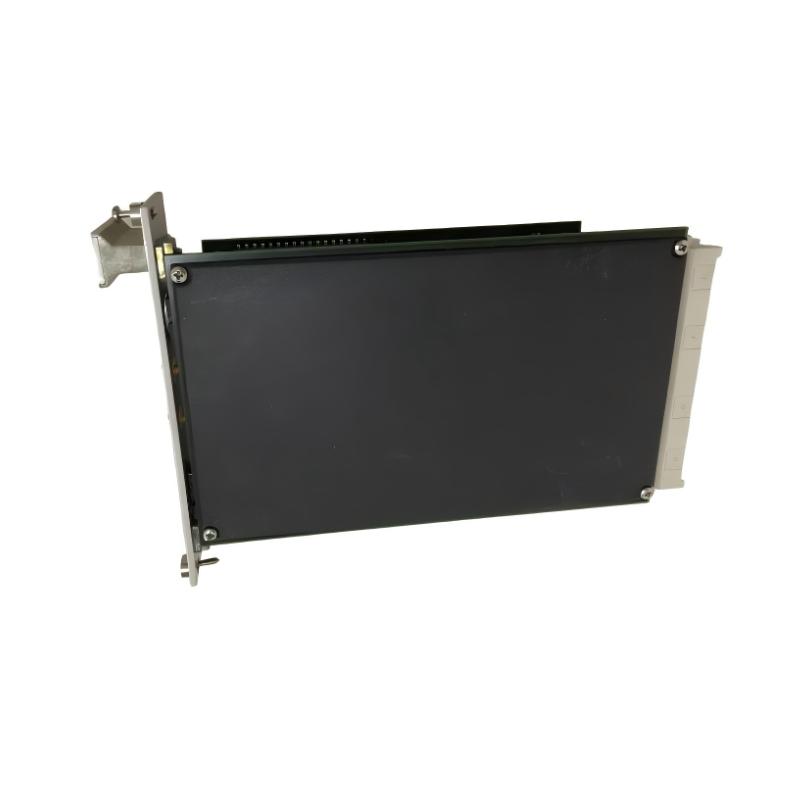

The Epro MMS6210 Dual-Channel Axial Displacement Detection Plate is a monitoring module developed for precision measurement of axial shaft displacement in critical rotating equipment. As part of the MMS6000 machinery protection platform, the module processes signals from eddy current displacement sensors to determine axial movement of rotating shafts.
Axial displacement monitoring is essential for detecting thrust bearing wear, rotor movement, or abnormal mechanical loads. The MMS6210 module enables continuous monitoring and integrates easily with centralized machinery protection systems.
Typical industrial applications include:
-
Steam turbine thrust position monitoring
-
Gas turbine axial shaft displacement supervision
-
Compressor thrust bearing monitoring
-
Generator rotor axial position detection
-
Turbomachinery protection systems in power plants
-
Critical rotating equipment monitoring in petrochemical facilities
By analyzing shaft axial movement in real time, the module helps operators detect early mechanical faults and prevent catastrophic machine damage.
Functional Advantages
Dual-Channel Measurement Architecture
The module provides two independent axial displacement measurement channels, allowing simultaneous monitoring of multiple probe inputs.
High-Precision Non-Contact Measurement
Using eddy current proximity probe signals, the module detects minute axial movements of the shaft without mechanical contact.
Designed for Machinery Protection Systems
The device integrates seamlessly into MMS6000 monitoring racks used in turbine and compressor protection systems.
Reliable Signal Conditioning
Advanced signal processing improves measurement stability even in high-vibration industrial environments.
Continuous Equipment Condition Monitoring
The module supports real-time axial position monitoring for predictive maintenance and machinery protection applications.
Technical FAQs
1. What parameter does the MMS6210 measure?
The module measures axial shaft displacement in rotating machinery.
2. How many measurement channels are available?
The MMS6210 provides two independent monitoring channels.
3. What type of sensors are used with the module?
It operates with eddy current proximity displacement probes.
4. Why is axial displacement monitoring important?
It helps detect thrust bearing wear, rotor movement, or excessive axial load.
5. Can the module be used in turbine monitoring systems?
Yes, it is commonly used in steam and gas turbine machinery protection systems.
6. How is measurement data transmitted to control systems?
The module processes sensor signals and provides conditioned outputs for the MMS6000 monitoring system.
7. Is the module suitable for predictive maintenance programs?
Yes, axial displacement monitoring is a key parameter in condition-based maintenance strategies.
8. What types of machines typically require axial displacement monitoring?
Machines such as turbines, compressors, and generators.
9. Does the module support continuous monitoring?
Yes, it is designed for 24/7 continuous machinery protection monitoring.
10. Can the module detect abnormal shaft movement during operation?
Yes, it continuously monitors axial displacement and can trigger alarms when thresholds are exceeded.
