Product Overview

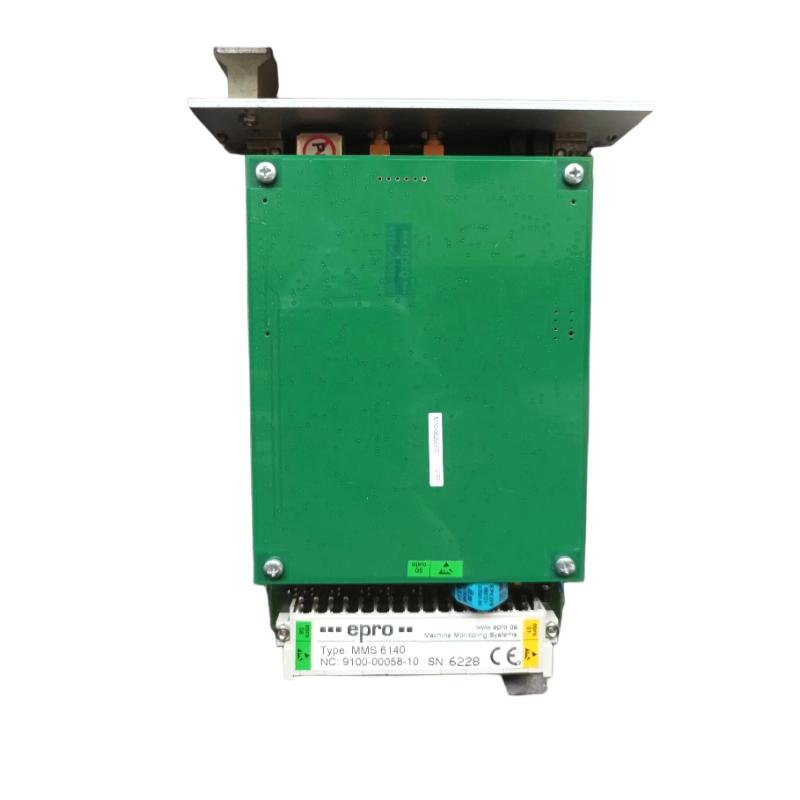

The Epro MMS 6140 Relative Rotor Vibration Monitor is a precision monitoring module developed for industrial machinery protection systems. As part of the MMS 6000 monitoring platform, it processes vibration signals from multiple sensor types to provide accurate condition data for rotating equipment.
The module integrates signal conditioning, alarm management, and communication functions within a compact Euro-card format. By combining signals from shaft displacement sensors and casing vibration sensors, the monitor can calculate absolute shaft vibration values used for machine protection and performance analysis.
Its dual-channel design and industrial communication capabilities make it suitable for advanced turbine monitoring systems, compressor protection platforms, and predictive maintenance solutions in heavy industry.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Epro |
| Model | MMS 6140 |
| Module Type | Relative Rotor Vibration Monitor |
| Monitoring Channels | 2 independent channels |
| Sensor Compatibility | Eddy current, seismic, piezoelectric sensors |
| Signal Frequency Range (Channel 1) | 1 – 250 Hz |
| Signal Frequency Range (Channel 2) | 5 – 2000 Hz |
| Input Voltage Range | 0 – 10 V |
| Input Resistance | ≥ 30 kΩ |
| Input Impedance | > 100 kΩ |
| Resolution | 10-bit |
| Communication Interfaces | RS-232, RS-485 |
| Supply Voltage | 18 – 31.2 V DC |
| Power Consumption | Max 8 W |
| Operating Temperature | 0°C to 65°C |
| Storage Temperature | −30°C to 85°C |
| Protection Class | Module IP00, Front Plate IP21 |
| Dimensions | 30 × 128.4 × 160 mm |
| Weight | 0.32 kg (0.71 lb) |
Typical Machinery Protection Environments
The Epro MMS 6140 Relative Rotor Vibration Monitor is a monitoring module designed for continuous measurement of rotor vibration in critical rotating machinery. It belongs to the MMS 6000 machinery protection system and is widely used in turbine monitoring and industrial condition-based maintenance architectures.
This monitor processes signals from vibration sensors and converts them into diagnostic values used by plant control or protection systems. It supports multiple sensor technologies, making it suitable for complex machinery monitoring networks.
Typical industrial deployment scenarios include:
-
Steam turbine rotor vibration monitoring in power plants
-
Compressor and pump condition monitoring systems
-
Gas turbine shaft vibration protection systems
-
Centrifugal machinery vibration analysis platforms
-
Generator rotor stability monitoring
-
Industrial predictive maintenance systems for rotating equipment
The module integrates measurement, signal conditioning, and alarm monitoring, enabling operators to detect abnormal vibration conditions before mechanical damage occurs.
Key Engineering Advantages
Dual-Channel Measurement Capability
The monitor provides two independent measurement channels, allowing simultaneous monitoring of shaft vibration and bearing vibration signals.
Multi-Sensor Compatibility
Channel 1 supports eddy current displacement sensors, while Channel 2 supports seismic or piezoelectric vibration sensors, enabling flexible monitoring configurations.
Wide Frequency Detection Range
The system processes signals in ranges of 1–250 Hz for shaft vibration and 5–2000 Hz for casing vibration, covering most industrial rotating equipment conditions.
Integrated Alarm and Diagnostic Functions
Built-in warning and danger alarm thresholds allow the module to trigger protective responses when vibration limits are exceeded.
Industrial Communication Interfaces
RS-232 and RS-485 communication interfaces enable configuration, data acquisition, and integration with diagnostic systems or plant control networks.
Technical FAQs
1. What type of vibration does the MMS 6140 monitor?
It monitors relative rotor vibration and absolute shaft vibration depending on sensor configuration.
2. How many measurement channels are included?
The module includes two independent monitoring channels.
3. What sensors can be connected to the module?
It supports eddy current probes, seismic sensors, and piezoelectric vibration transducers.
4. What signal frequency ranges are supported?
Channel 1 supports 1–250 Hz, while Channel 2 supports 5–2000 Hz signal frequencies.
5. Can the channels operate independently?
Yes. Each channel can operate in single-channel mode for independent monitoring tasks.
6. What type of output signals does the monitor provide?
Measurement values are processed into analog current signals for monitoring and control systems.
7. What communication protocols are available?
The module supports RS-232 for configuration and RS-485 for system integration.
8. What power supply range does the module require?
It operates with a DC supply between 18 V and 31.2 V according to industrial standards.
9. Can the module be integrated into larger monitoring systems?
Yes, multiple modules can be connected to machine diagnostic systems through the RS-485 network.
10. What industrial equipment typically uses this monitor?
Common equipment includes turbines, compressors, centrifuges, pumps, and high-speed rotating machines.
