Product Overview

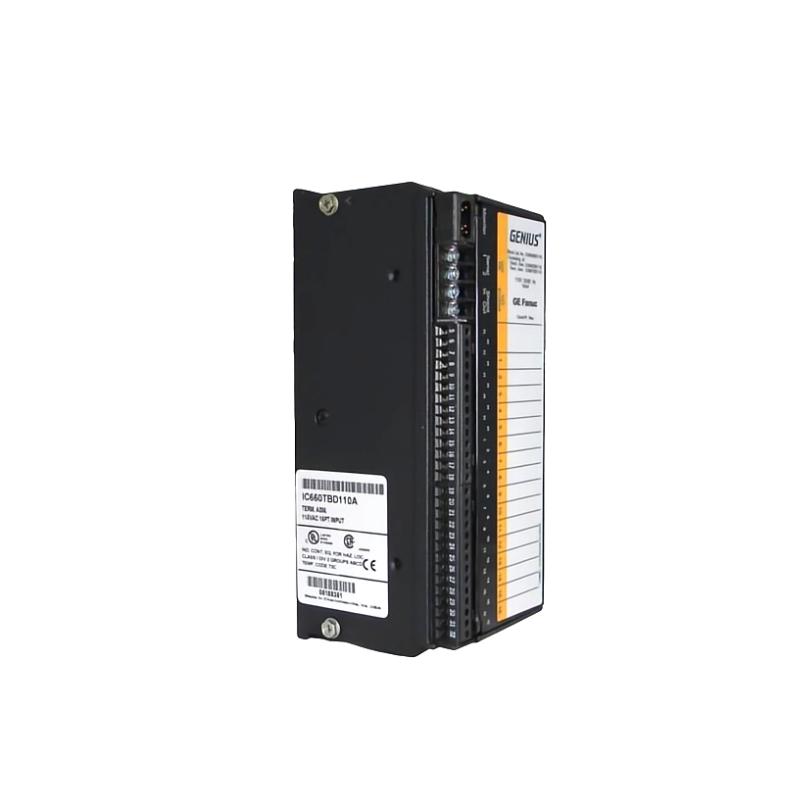

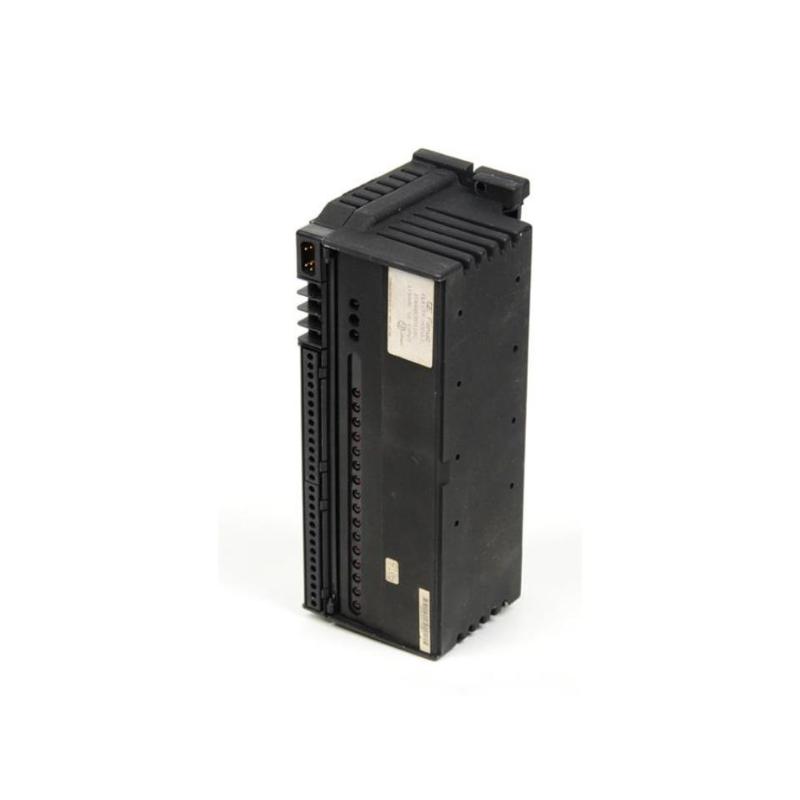

The GE Fanuc IC660BBD110 Discrete Input Module is a distributed input block developed for the Genius I/O architecture. It enables PLC controllers to monitor digital signals from field-level equipment across large automation networks.
With 16 AC discrete input channels, the module can collect operational data from switches, sensors, and other digital devices and transmit that information through the Genius communication bus to the central controller. This design reduces wiring complexity and allows equipment to be monitored remotely within industrial facilities.
Programmable thresholds, integrated diagnostics, and configurable input filtering provide flexibility and reliability, making the IC660BBD110 suitable for demanding automation environments such as manufacturing plants, power facilities, and process control systems.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | GE Fanuc |
| Model | IC660BBD110 |
| Module Type | Discrete Input Module |
| Series | Genius I/O |
| Number of Inputs | 16 discrete AC inputs |
| Nominal Input Voltage | 115 VAC |
| Operating Voltage Range | 93–132 VAC |
| Frequency | 47–63 Hz |
| Input Processing Time | 1 ms (plus filter time) |
| Input Filter Range | 10–100 ms configurable |
| Input Impedance | 11.6 kΩ |
| Diagnostic Functions | Open-wire and short-circuit detection |
| Isolation | 1500 V input-to-bus isolation |
| Operating Temperature | 0°C to 60°C |
| Dimensions | 224.4 × 88.9 × 100 mm |
| Weight | 1.2 kg (2.65 lb) |
Industrial Integration Scenarios
The GE Fanuc IC660BBD110 Discrete Input Module is a Genius series distributed I/O block designed to collect digital status signals from field devices and transmit them to PLC or DCS control systems. It is specifically engineered for AC-based discrete input monitoring in industrial automation environments.
The module provides 16 discrete input channels that allow controllers to monitor the operational state of sensors, switches, and other digital devices across distributed automation networks. Typical industrial deployment includes:
-
Machine safety and interlock monitoring systems
-
Automated manufacturing production lines
-
Conveyor and material handling control systems
-
Power plant equipment monitoring networks
-
Packaging and sorting automation equipment
-
Distributed sensor monitoring in process plants
Through the Genius communication protocol, the module can be installed close to field equipment while maintaining reliable communication with the main controller.
Performance Advantages
16-Point Digital Input Capacity
The module supports 16 discrete AC input circuits, allowing multiple sensors and switches to be monitored simultaneously within a single distributed I/O block.
Wide AC Input Voltage Range
It operates with a nominal 115 VAC input and supports an operating range of 93–132 VAC, making it suitable for many industrial AC control systems.
Configurable Signal Thresholds
Input ON/OFF thresholds can be programmed between 25% and 85% of the line voltage, enabling compatibility with various sensor types and switching conditions.
Integrated Fault Diagnostics
Built-in monitoring detects open wires and short circuits, allowing operators to identify wiring faults quickly and reduce system downtime.
Selectable Noise Filtering
Software-configurable input filtering from 10 ms to 100 ms helps eliminate electrical noise and signal bounce in industrial environments.
Technical FAQs
1. How many input channels are available on the IC660BBD110?
The module includes 16 discrete input circuits designed exclusively for digital input monitoring.
2. What voltage signals can the module accept?
It accepts AC input signals with a nominal voltage of 115 VAC and an operating range of 93–132 VAC.
3. What communication protocol does the module use?
The module communicates through the Genius distributed I/O network used in GE Fanuc automation systems.
4. What is the typical input processing time?
The input processing time is approximately 1 millisecond, plus any configured filter delay.
5. Can the input thresholds be configured?
Yes, ON and OFF thresholds can be adjusted between 25% and 85% of the line voltage.
6. Does the module include wiring fault detection?
Yes, the module can detect open-wire and short-circuit conditions within input circuits.
7. What types of field devices typically connect to this module?
Typical devices include limit switches, pushbuttons, proximity sensors, and relay contacts.
8. What isolation protection does the module provide?
The module offers 1500 V isolation between the input circuits and the serial bus for electrical protection.
9. Are diagnostic indicators available on the module?
Yes, LED indicators show Unit OK, I/O Enabled, and individual input status for maintenance and troubleshooting.
10. What environmental conditions can the module operate in?
The module operates reliably within 0°C to 60°C industrial temperature environments.
