Product Introduction

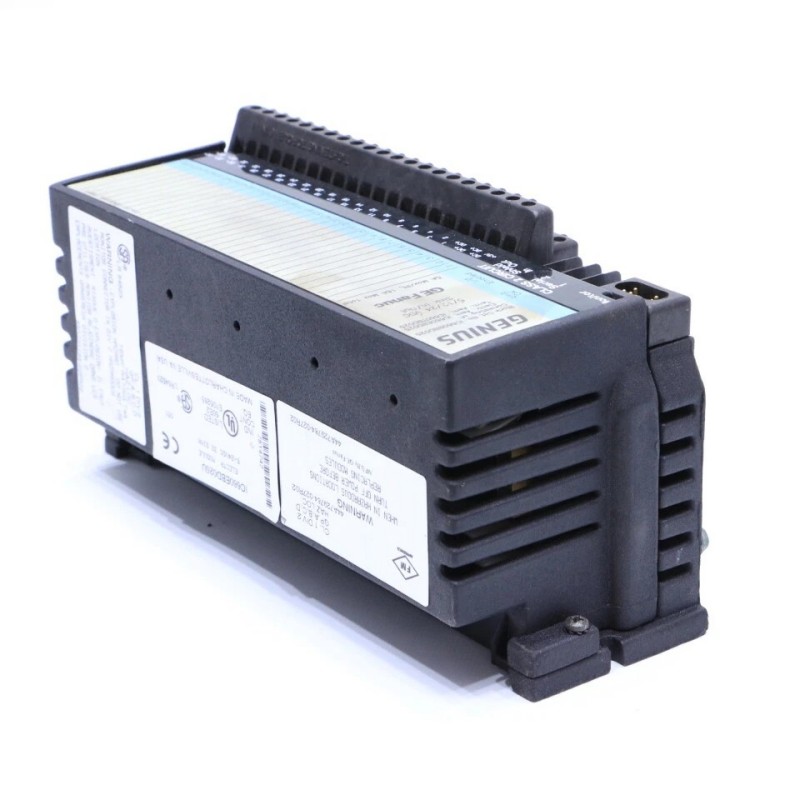

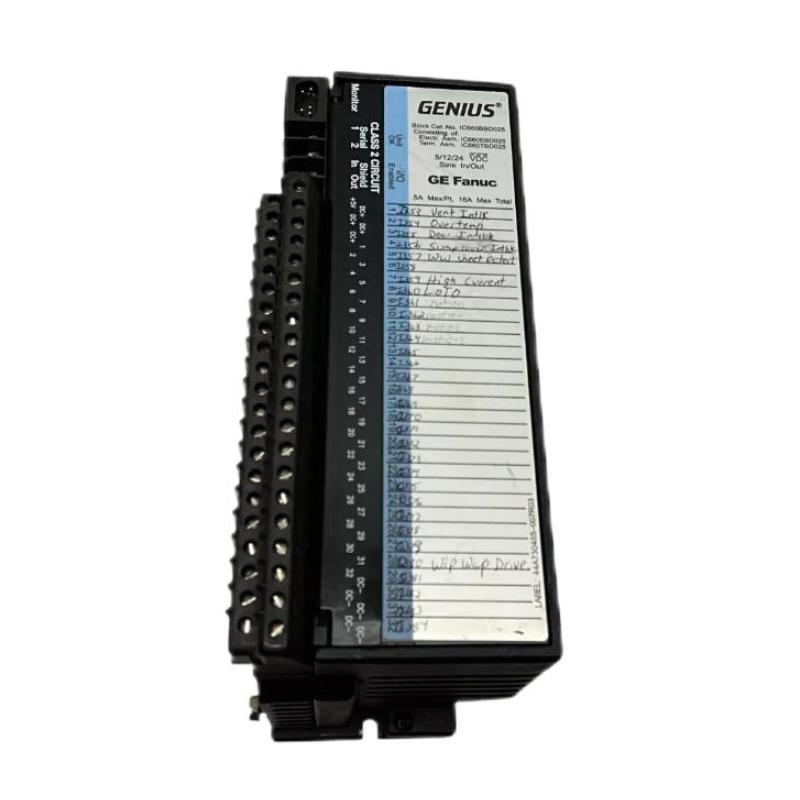

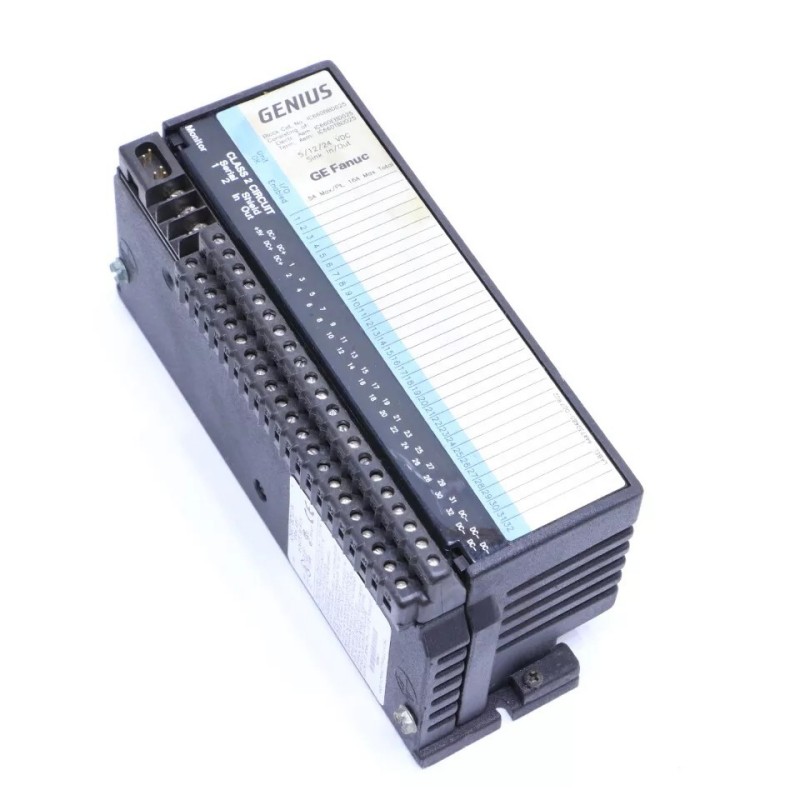

The GE Fanuc IC660BBD025V Discrete I/O Module is a high-density distributed I/O block designed for digital signal management in industrial automation systems. It allows PLC controllers to monitor and control up to 32 discrete circuits from remote field locations.
By supporting multiple voltage levels and configurable input/output channels, the module provides flexibility for engineers designing complex machine control systems. Its compatibility with the Genius communication network enables decentralized control architectures that reduce wiring complexity and improve installation efficiency.
The module also incorporates diagnostic monitoring and protection features, ensuring reliable operation in demanding industrial environments such as manufacturing plants, logistics systems, and process automation facilities.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | GE Fanuc |
| Model | IC660BBD025V |
| Module Type | Discrete I/O Module |
| Series | Genius I/O |
| Number of Circuits | 32 configurable I/O circuits |
| Input Signal Voltage | 5 / 12 / 24 VDC TTL |
| Output Current | 0.5 A per circuit |
| Maximum Inrush Current | 4 A for 10 ms |
| Input Processing Time | 1.4 ms |
| Total Output Current | 16 A |
| Block-to-Block Isolation | 850 V |
| Communication Protocol | Genius I/O Bus |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | −40°C to 100°C |
| Dimensions | 224.4 × 88.9 × 100 mm |
| Weight | 1.8 kg (3.97 lb) |
Industrial Application Environment
The GE Fanuc IC660BBD025V Discrete I/O Module belongs to the Genius distributed I/O family and is designed to connect multiple digital field devices to PLC-based control systems. It enables reliable communication between sensors, switches, and actuators while minimizing field wiring in large automation infrastructures.
This module supports a high density of discrete circuits, making it suitable for installations where numerous digital signals must be monitored and controlled simultaneously. Typical deployment scenarios include:
-
Automated production lines and robotic work cells
-
Conveyor and warehouse logistics systems
-
Industrial machine control and safety interlocks
-
Packaging and material sorting equipment
-
Process monitoring systems in manufacturing plants
-
Distributed machine control in large facilities
Through the Genius I/O network, the module allows remote I/O blocks to communicate with PLC controllers, improving scalability and system flexibility in complex automation architectures.
Operational Advantages
High-Density I/O Architecture
The module supports 32 configurable discrete circuits, enabling engineers to manage large numbers of digital signals from a single distributed block.
Flexible Voltage Compatibility
It accepts 5 V, 12 V, and 24 VDC TTL signals, allowing integration with a wide range of industrial sensors and electronic control devices.
Fast Digital Signal Processing
With an input processing time of approximately 1.4 ms, the module provides rapid response to digital events in automation systems.
Protected Output Circuits
Each output channel can deliver 0.5 A continuous current, with controlled inrush current capability up to 4 A for 10 ms, supporting reliable switching of industrial loads.
Integrated Diagnostics and Monitoring
The block includes LED indicators and diagnostic features that help detect conditions such as failed switches, overloads, and wiring faults.
Technical FAQs
1. How many digital circuits are available on the IC660BBD025V module?
The module provides 32 discrete I/O circuits, each configurable as an input or output.
2. What signal voltage levels are supported?
It supports 5 V, 12 V, and 24 VDC TTL input signals commonly used in industrial control systems.
3. What is the maximum output current per circuit?
Each circuit can deliver 0.5 A continuous output current.
4. What is the allowable inrush current for outputs?
Outputs can tolerate 4 A inrush current for up to 10 milliseconds.
5. What is the input response time for digital signals?
The module processes input signals with a typical response time of 1.4 ms.
6. What automation systems typically use this module?
It is commonly used with GE Fanuc Genius I/O networks and Series 90-30 PLC systems.
7. Does the module include diagnostic monitoring?
Yes, built-in diagnostics monitor output faults, wiring issues, and circuit status.
8. What isolation protection is provided between modules?
The block offers 850 V block-to-block isolation to protect system electronics.
9. What devices typically connect to this module?
Limit switches, pushbuttons, proximity sensors, relay outputs, and digital actuators are common field devices used with this module.
10. Can the module be used in distributed I/O systems?
Yes, it is specifically designed for remote distributed I/O installation within the Genius bus architecture.
