Practical Deployment in Automation Systems

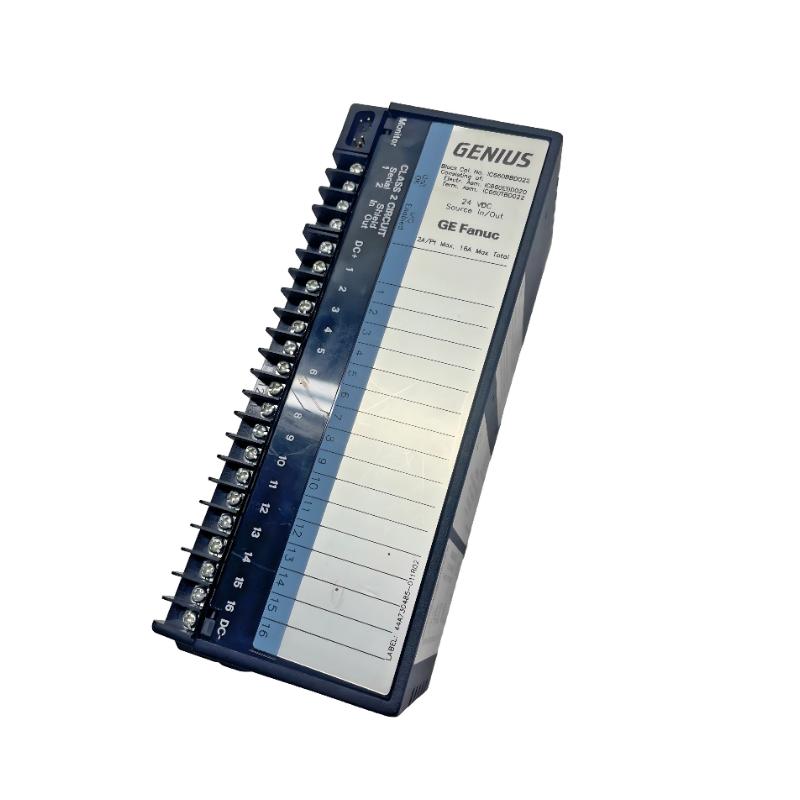

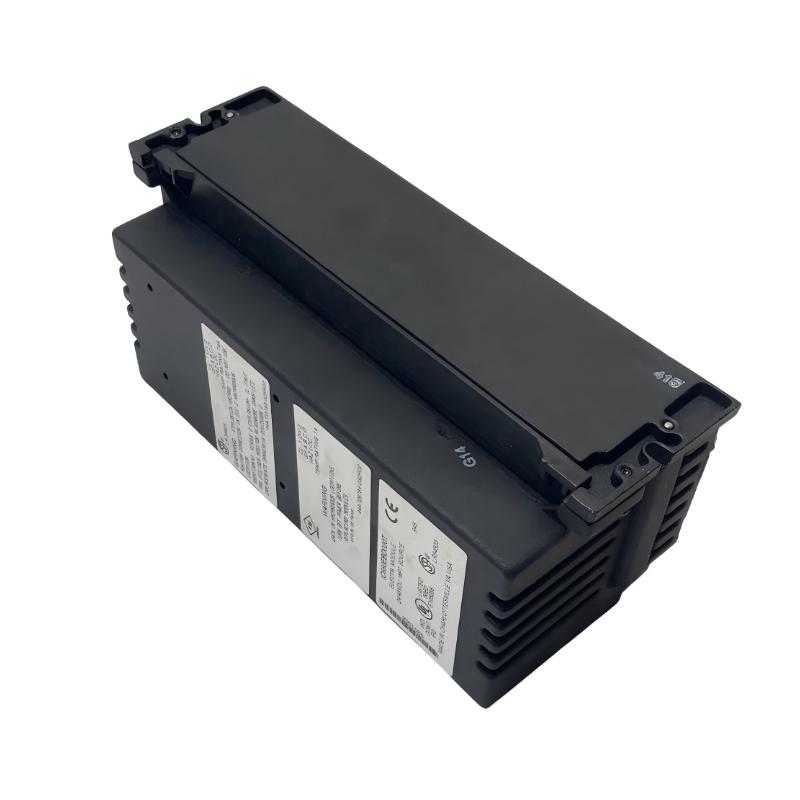

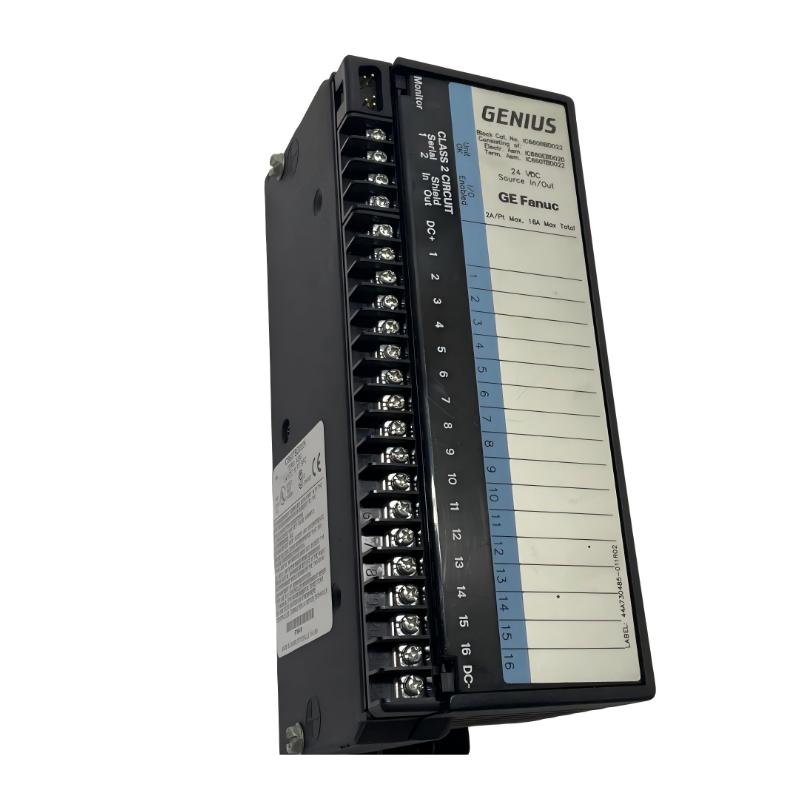

The GE Fanuc IC660BBD022 Discrete I/O Module is designed for distributed industrial automation where digital signals from sensors and actuators must be exchanged efficiently with PLC controllers. As part of the Genius I/O architecture, the module acts as a field-level interface between machine devices and central control systems.
Its 16 configurable circuits allow engineers to integrate multiple digital devices within a single block, making it suitable for complex automation environments. Typical industrial implementations include:
-
Assembly line automation in manufacturing plants
-
Conveyor and logistics control systems
-
Machine interlocking and safety monitoring networks
-
Industrial packaging and sorting equipment
-
Process control instrumentation systems
-
Power generation auxiliary equipment monitoring
The module’s distributed communication capability allows controllers to monitor and control remote devices through the Genius network infrastructure.
Engineering Advantages
Flexible Circuit Configuration
The module includes 16 discrete circuits, each configurable as an input, output, or tri-state input, enabling flexible automation design.
Reliable Source Output Architecture
Designed as a source I/O block, it supplies current to field devices and works effectively with industrial sensors and actuators.
Comprehensive Fault Diagnostics
Integrated monitoring detects conditions such as short circuits, overload, open wire, failed switch, and overtemperature, improving maintenance response and system reliability.
High Current Output Capability
Each circuit can handle up to 2 A of load current, with a short-duration inrush capability up to 10 A, allowing the module to drive industrial loads reliably.
Electrical Isolation Protection
The module provides 1500 V isolation between blocks, helping protect control equipment from electrical interference or transient voltage spikes.
Technical FAQs
1. How many I/O circuits are available on the IC660BBD022 module?
The module contains 16 configurable discrete circuits that can function as inputs, outputs, or tri-state inputs.
2. What operating voltage does the module require?
It operates with 24 VDC or 48 VDC systems, typically within an 18–56 VDC range.
3. What is the maximum output current per circuit?
Each circuit supports 2 amperes of continuous output current.
4. What is the maximum inrush current capability?
The module can handle 10 A inrush current for up to 10 milliseconds.
5. What is the typical input processing time?
The input processing time is approximately 1.7 milliseconds, with selectable filter settings available.
6. What communication protocol does the module use?
It communicates through the Genius distributed I/O protocol used in GE Fanuc automation systems.
7. Can the module support both solid-state and electromechanical sensors?
Yes, it is compatible with two-wire and three-wire industrial sensors.
8. Does the module provide LED status indicators?
Yes, the block includes Unit OK and I/O Enabled LEDs, along with individual circuit indicators.
9. What protective diagnostics are integrated?
It monitors conditions such as overload, short circuit, no-load output, open wire, and overtemperature.
10. What is the recommended operating temperature range?
The module is designed to operate in industrial environments between 0°C and 60°C.
