Product Introduction

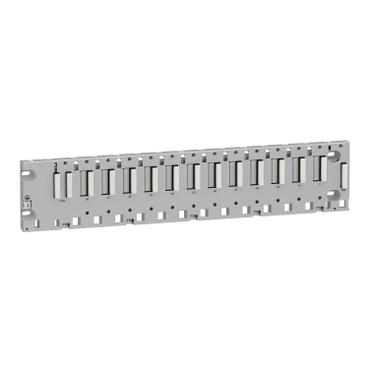

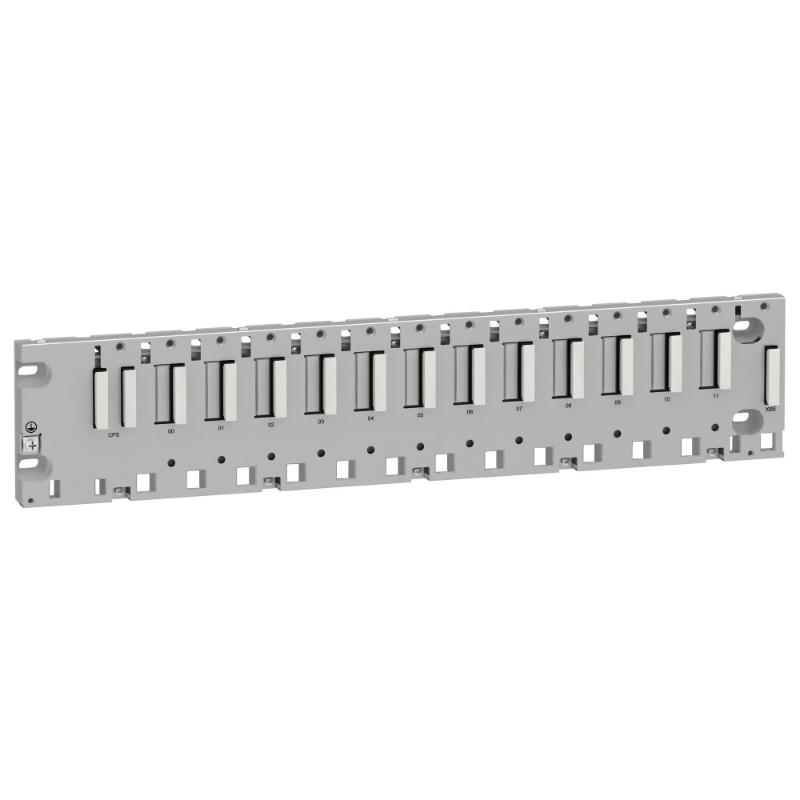

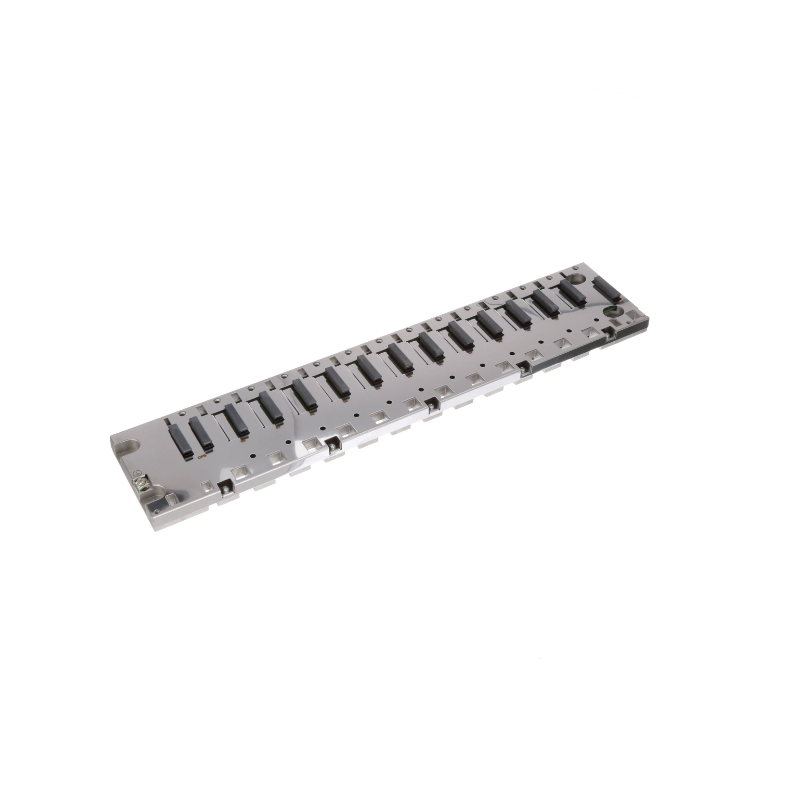

The Schneider Electric BMXXBP1200 X-Bus Rack Module is a high-capacity backplane designed for the Modicon M340 automation platform. Built to support up to twelve X-Bus modules, it serves as the central mounting and communication backbone for processors, I/O modules, and communication interfaces within a PLC system.
Engineered for reliability and flexible system expansion, this rack enables seamless integration of multiple automation components in a single chassis. It simplifies system architecture while maintaining excellent signal integrity and communication stability across the entire control system.
With its slim industrial design and robust mounting options, the BMXXBP1200 is ideal for control cabinets where scalability, organization, and long-term system reliability are critical.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Schneider Electric |
| Model | BMXXBP1200 |
| Module Type | X-Bus Rack / Backplane |
| Product Platform | Modicon M340 / Modicon X80 |
| Number of Slots | 12 X-Bus Slots |
| Compatible Modules | Processor, I/O Modules, Communication Modules, Application Modules |
| Expansion Connection | 1 XBE Connector |
| Power Consumption | Approx. 0.74 W |
| Mounting Options | Panel, Plate, or DIN Rail |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to 60°C |
| Relative Humidity | 10–95% (Non-condensing) |
| Certifications | CE, UL, CSA, RCM, EAC |
Industrial Applications
Manufacturing Automation
In modern manufacturing plants, the BMXXBP1200 rack provides a stable platform for integrating PLC processors, digital/analog I/O modules, and communication interfaces, enabling coordinated machine control.
Process Control Systems
Industries such as chemical processing, oil & gas, and pharmaceuticals rely on modular PLC systems. The BMXXBP1200 allows scalable architecture for monitoring and controlling complex process operations.
Energy and Utilities
Power generation facilities and water treatment plants use modular PLC racks to handle distributed monitoring and control systems with reliable communication between modules.
Infrastructure and Transportation
Automation cabinets in railway signaling systems, tunnel control systems, and smart infrastructure projects often utilize modular racks like the BMXXBP1200 to organize control hardware efficiently.
Key Advantages
High Slot Density
Supports up to twelve modules within a single rack, allowing engineers to build complex automation systems while minimizing cabinet space.
Flexible Installation Options
The rack can be mounted on a panel, plate, or DIN rail, providing installation flexibility for various cabinet configurations.
Seamless Modicon Integration
Designed specifically for the Modicon M340/X80 architecture, ensuring smooth compatibility with processors, I/O modules, and power supplies.
Reliable Communication Backbone
The X-Bus backplane ensures stable communication between modules, maintaining system performance even in demanding industrial environments.
Industrial-Grade Construction
The rack features durable materials and EMC-resistant design to maintain reliable operation in electrically noisy environments.
Technical FAQs
1. What is the main function of the BMXXBP1200 rack?
It acts as the backplane that connects and powers communication between modules in a Modicon M340 PLC system.
2. How many modules can be installed in this rack?
The rack provides 12 X-Bus slots for processors, I/O modules, and communication modules.
3. Is the power supply included in the rack?
No, the power supply is installed as a separate module within the system.
4. What PLC platforms is the rack compatible with?
It is designed for the Modicon M340 and Modicon X80 automation platforms.
5. Can the rack be expanded with additional racks?
Yes, expansion racks can be connected through the XBE expansion connector.
6. What mounting options are available?
The rack supports panel mounting, plate mounting, and DIN-rail installation.
7. What environmental conditions can it operate in?
It operates reliably between 0°C and 60°C with humidity levels up to 95% non-condensing.
8. Is the rack suitable for harsh industrial environments?
Yes, with IP20 protection and industrial certification standards, it is suitable for installation in control cabinets.
9. Does the rack support communication modules?
Yes, communication modules such as Ethernet or fieldbus interfaces can be installed within the rack.
10. What is the typical role of the rack in a PLC architecture?
It serves as the structural and electrical backbone of the PLC system, enabling module connectivity and system expansion.
