Product Introduction

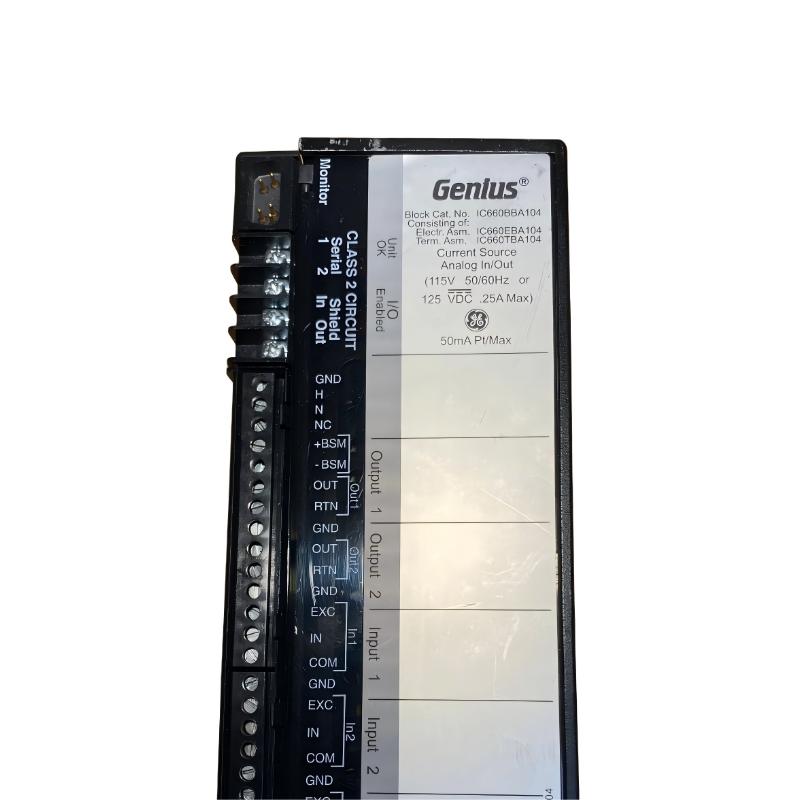

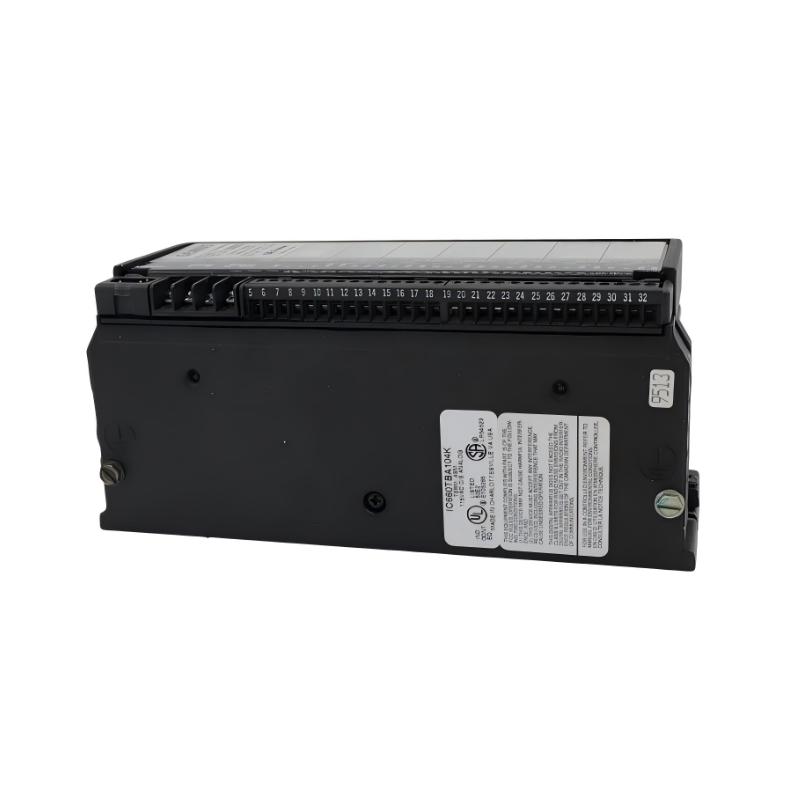

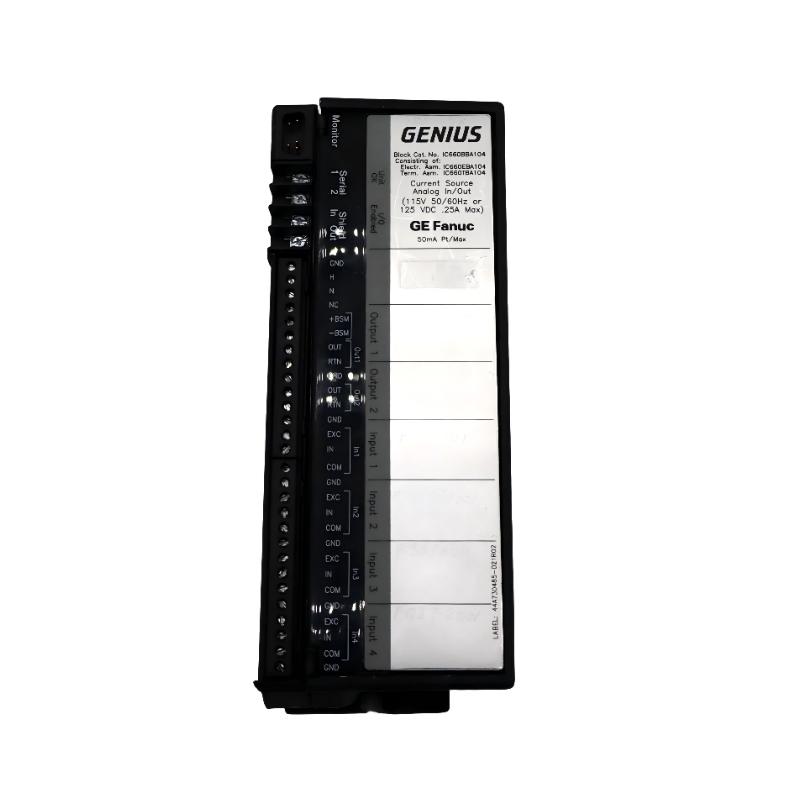

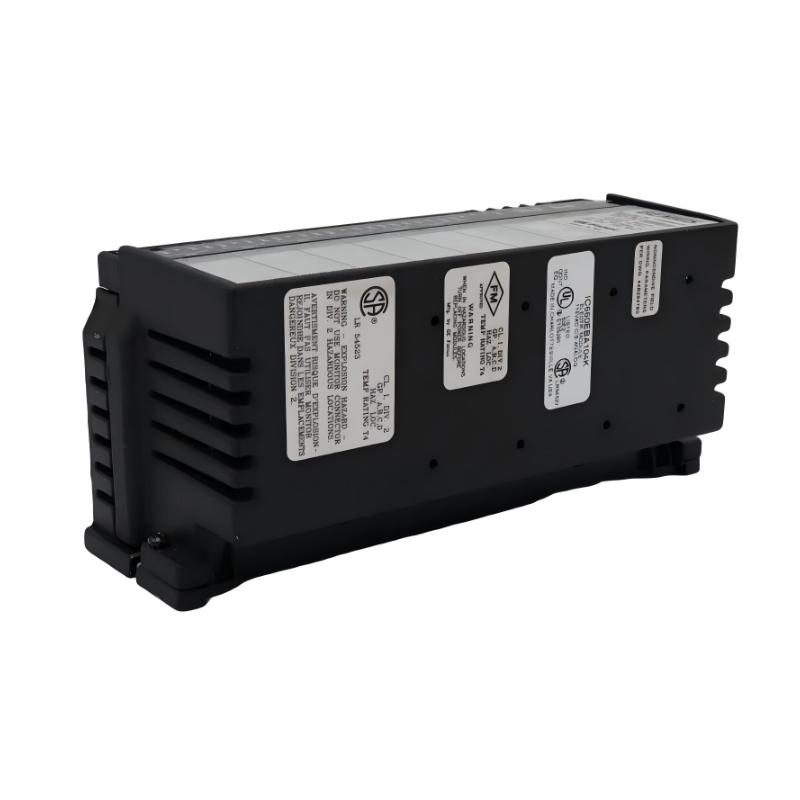

The GE Fanuc IC660BBA104 Current Source Analog I/O Block is a distributed automation component designed to collect current-based analog signals from field instruments and transmit them to a central PLC system via the Genius I/O network.
In industrial process environments, variables such as flow rate, pressure, and liquid level are often transmitted using current signals due to their stability and reliability. This module provides the interface needed to convert those signals into usable data for automation controllers.
By enabling remote signal acquisition and centralized control integration, the module supports efficient monitoring and control across large industrial installations. Its durable design and compatibility with Genius I/O systems make it suitable for long-term operation in demanding industrial environments.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | GE Fanuc |
| Model | IC660BBA104 |
| Module Type | Current Source Analog I/O Block |
| System Compatibility | Genius I/O Architecture |
| Signal Type | Current Source Analog Signals |
| Installation Method | Rack / Panel Mount |
| Diagnostic Features | LED Status Indicators |
| Industrial Application | Process Monitoring and Control |
| Dimensions | 224.4 × 88.9 × 100 mm |
| Weight | 1.8 kg (3.97 lb) |
Industrial Application Overview
The GE Fanuc IC660BBA104 Current Source Analog I/O Block is engineered for industrial automation systems that rely on current-based analog signals for process monitoring and control. As part of the Genius I/O distributed platform, this module allows automation controllers to interface with field instruments that transmit process data through current signals.
Current-based signal communication is widely used in industrial environments due to its reliability over long cable distances and resistance to electrical interference. Typical deployment scenarios include:
-
Chemical processing plants monitoring flow and pressure
-
Power generation facilities supervising operational parameters
-
Oil and gas pipeline instrumentation systems
-
Water treatment and environmental monitoring facilities
-
Manufacturing lines requiring analog process control
-
Distributed industrial monitoring systems across large plants
By integrating current signal handling within the Genius I/O architecture, the module enables accurate signal acquisition from field devices located throughout an industrial facility.
Operational Benefits for Process Control Systems
Reliable Current Signal Processing
The module is optimized for current-source analog signals commonly used in industrial instrumentation such as 4–20 mA transmitters.
Distributed I/O Architecture Support
It allows remote sensors and transmitters to communicate with centralized PLC systems through the Genius I/O communication network.
Noise-Resistant Industrial Design
Current signals maintain accuracy even across long distances or in electrically noisy industrial environments.
Diagnostic Monitoring
Integrated LED indicators provide visual feedback regarding module operation and network communication status.
Scalable Automation Integration
The module can be incorporated into existing Genius I/O installations, allowing system expansion without major architecture changes.
Technical FAQs
1. What signal type does the IC660BBA104 module support?
It processes current-source analog signals typically used in industrial transmitters.
2. What field devices commonly connect to this module?
Flow transmitters, pressure sensors, level transmitters, and other instruments that output current signals.
3. Can this module operate in distributed automation systems?
Yes, it is specifically designed for the Genius distributed I/O architecture.
4. Why are current signals preferred in industrial automation?
Current signals are less susceptible to electrical noise and can maintain signal integrity over long cable runs.
5. Does the module provide built-in diagnostics?
Yes, LED indicators provide status information about module operation and network communication.
6. Can it integrate with GE Fanuc PLC platforms?
Yes, it is compatible with PLC systems that support the Genius I/O communication infrastructure.
7. Is the module suitable for continuous process industries?
Yes, it is designed for long-term industrial operation in continuous monitoring applications.
8. Can the module support remote instrumentation?
Yes, it allows field instruments located far from the PLC to transmit signals through the distributed I/O network.
9. Does the module require special installation hardware?
It is designed for rack or panel installation within standard industrial control cabinets.
10. Can the module improve plant-wide process monitoring?
Yes, by enabling centralized access to analog data collected from distributed sensors throughout the facility.
