Introduction — Reliable Binary Input for ABB DCS Systems

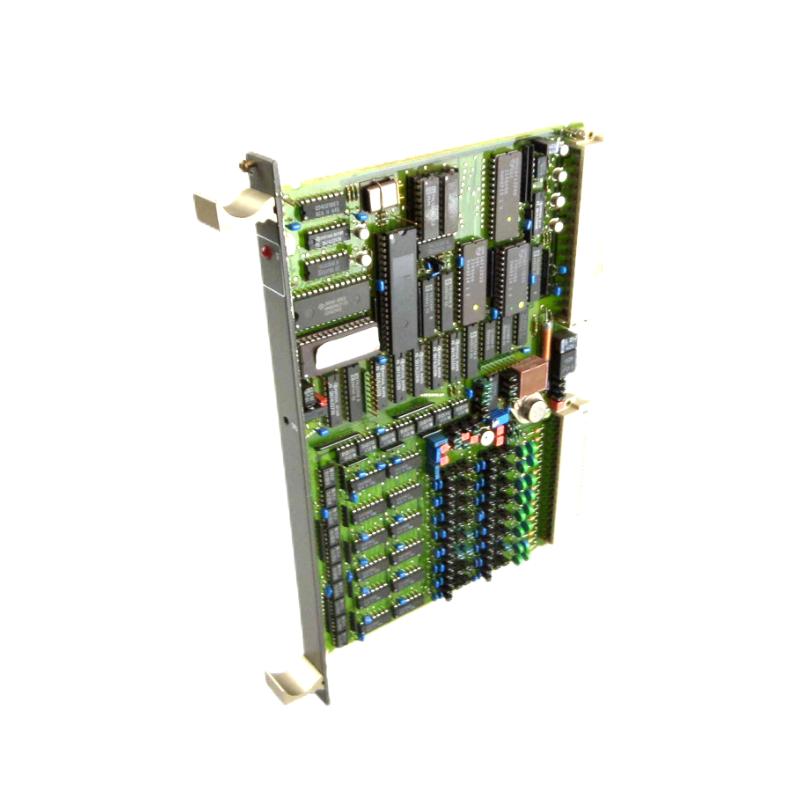

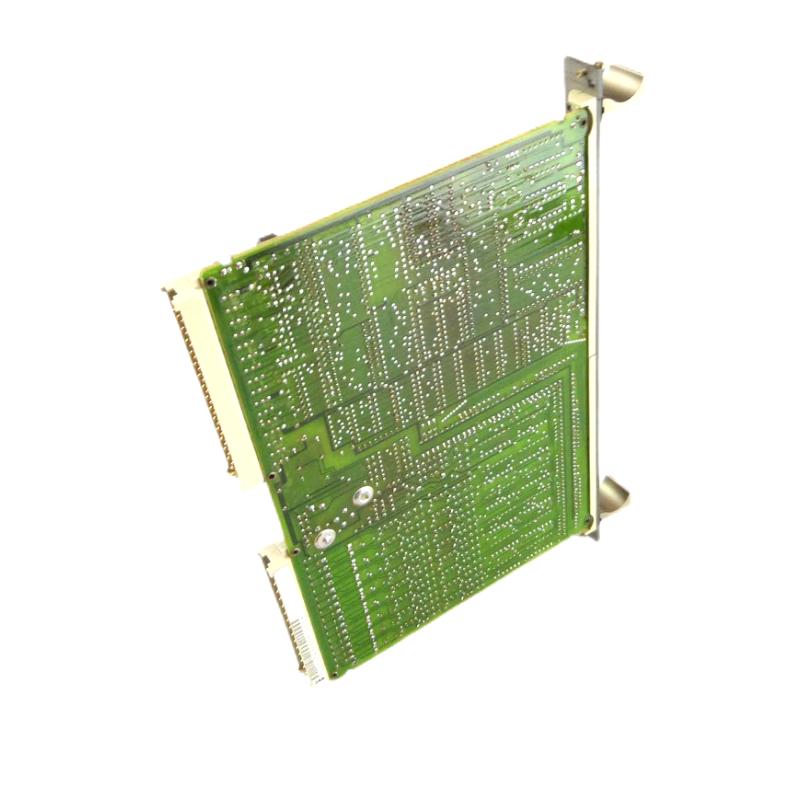

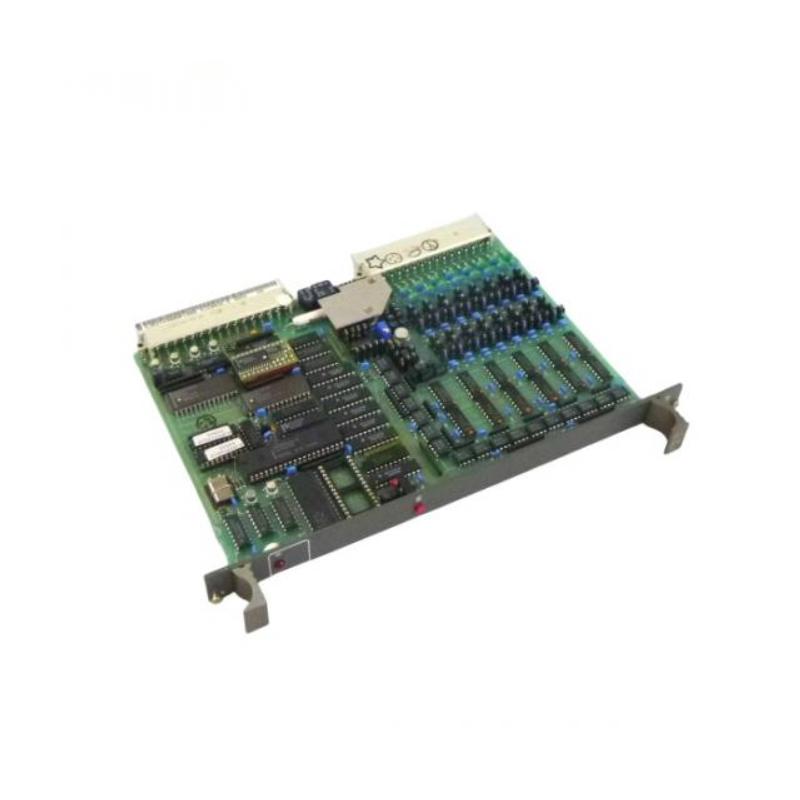

The ABB 81EB02 GJR2349000R1000 Binary Input Module is engineered to provide precise and dependable acquisition of discrete signals in ABB Distributed Control Systems (DCS). Designed for industrial environments, this module allows integration of digital sensors, switches, and contact signals into the control system, ensuring real-time monitoring and accurate process control. With robust electrical isolation and seamless rack compatibility, it delivers reliability and ease of installation for demanding automation applications.
Technical Specifications — Performance & Physical Profile
| Specification | Description |
|---|---|
| Module Type | Binary Input Module |
| Model / Part Number | 81EB02 / GJR2349000R1000 |
| Number of Channels | 16 discrete inputs |
| Input Type | Digital / On-Off signals (dry or wet contact compatible) |
| Nominal Input Voltage | 24 V DC |
| Input Current | Max 5 mA per channel |
| Isolation | Channel-to-bus isolation for electrical safety |
| Response Time | <5 ms per channel |
| Power Consumption | ~2 W |
| Operating Temperature Range | –20 °C to +60 °C |
| Dimensions | 100 mm × 120 mm × 75 mm |
| Weight | ~0.22 kg |
| Mounting | ABB modular rack or DIN rail compatible |
| Compliance / Certifications | CE, UL, RoHS compliant |
