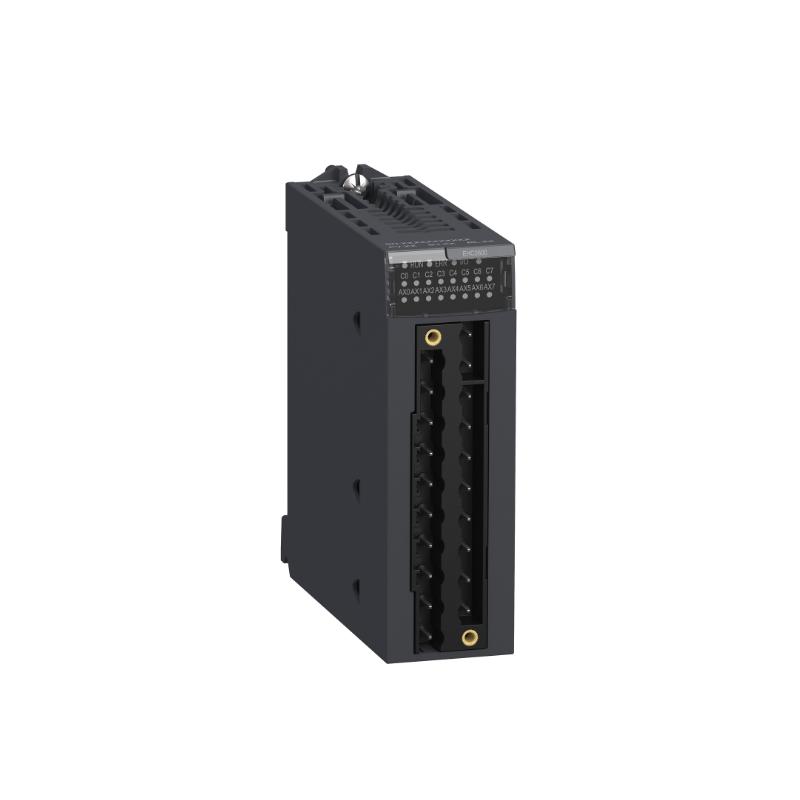

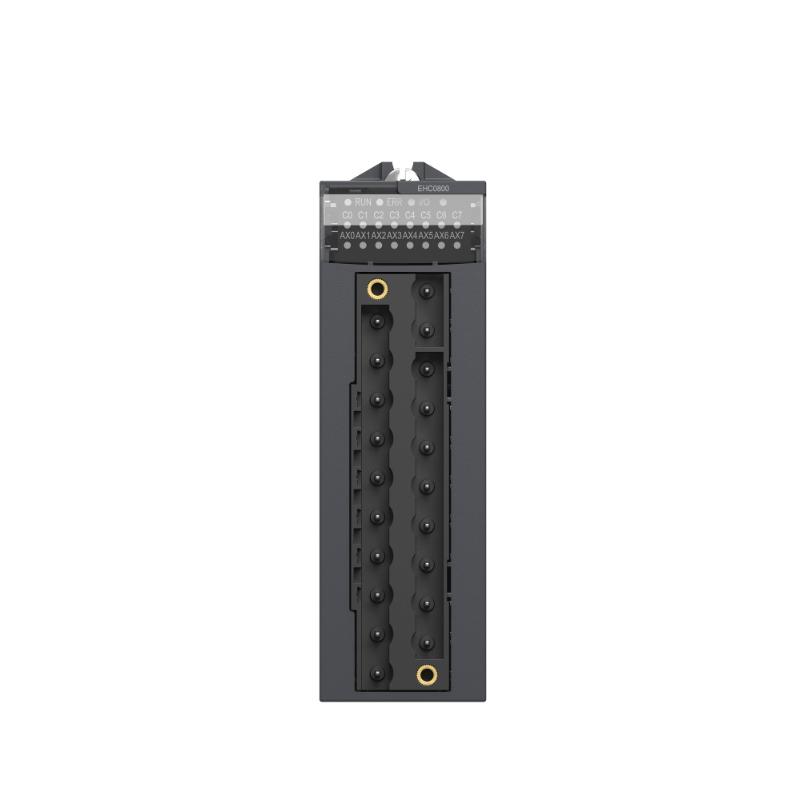

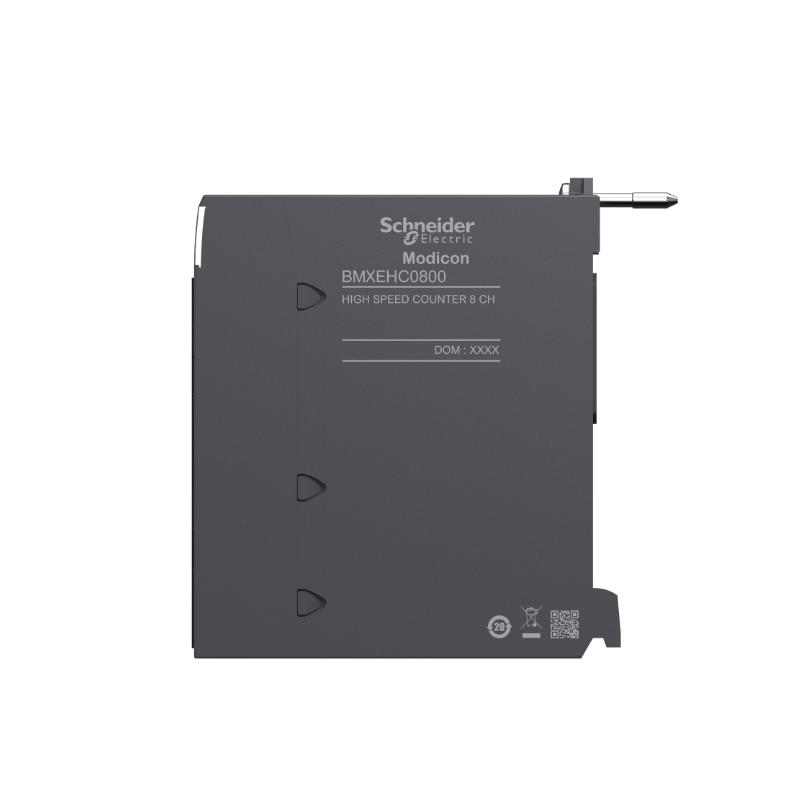

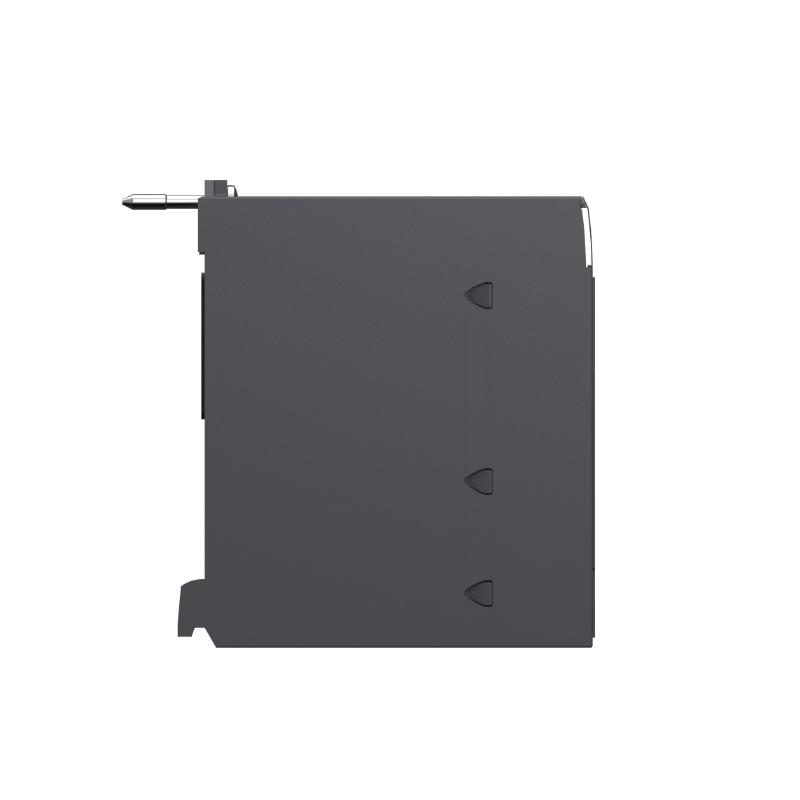

Schneider BMXEHC0800 High Speed Counter Module

Brand:Schneider PLC
Item No.:BMXEHC0800
Product Origin:France
Product Dimensions:100 × 22 × 150 mm
Product Weight:0.18kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

BMXEHC0800-4BMXEHC0800-2BMXEHC0800-3BMXEHC0800-1

Product Introduction

The Schneider BMXEHC0800 High Speed Counter Module is a dedicated industrial I/O module designed for Modicon X80 PLC systems where rapid signal counting and precision timing are essential. Built to handle high‑frequency pulse inputs with excellent noise immunity, this module is ideal for motion control, encoder feedback, speed measurement, and other applications that demand accurate event counting in real‑time automation environments. Its robust design and seamless integration with the Modicon X80 platform make it a dependable choice for advanced machine logic and industrial process control.

Technical Specifications

SpecificationDetails
Model NumberBMXEHC0800
Module TypeHigh Speed Counter Module
PlatformModicon X80 series
Number of Counters8 high‑speed channels
Maximum Input FrequencyUp to 200 kHz per channel (application dependent)
Input Signal TypesTTL / HTL / 5 V – 24 V digital pulses
Counting ModesSingle, directional, quadrature decoder (x2 / x4)
ResolutionUp to 32‑bit counters
Digital Input Voltage24 V DC typical
Input ProtectionOvervoltage and transient suppression
IsolationOptical isolation between input sections
Status IndicatorsLED per channel
Operating Temperature0 °C to +60 °C
Storage Temperature−40 °C to +85 °C
Relative Humidity5–95% non‑condensing
Protection RatingIP20
MountingDIN rail / Modicon X80 backplane installation


Applications

The BMXEHC0800 module is designed for automation tasks that require fast and reliable counting or timing:

  • Encoder Feedback – Speed and position feedback for motors and motion systems

  • High‑Speed Event Counting – Production line sensors, part counters, and RPM monitoring

  • Speed Monitoring and Control – Integration with control logic for safety and precision

  • Position Tracking in Robotics – Accurate path and travel measurement via incremental encoders

  • Pulse Measurement Systems – Flow meters, frequency measurement, and pulse‑based transducers

This module helps capture and process high‑frequency pulse signals that standard digital input modules cannot handle effectively.


Applications

The BMXEHC0800 module is designed for automation tasks that require fast and reliable counting or timing:

  • Encoder Feedback – Speed and position feedback for motors and motion systems

  • High‑Speed Event Counting – Production line sensors, part counters, and RPM monitoring

  • Speed Monitoring and Control – Integration with control logic for safety and precision

  • Position Tracking in Robotics – Accurate path and travel measurement via incremental encoders

  • Pulse Measurement Systems – Flow meters, frequency measurement, and pulse‑based transducers

This module helps capture and process high‑frequency pulse signals that standard digital input modules cannot handle effectively.


Technical FAQs

  1. How many high‑speed counters does the BMXEHC0800 provide?
    It provides 8 high‑speed counting channels suitable for rapid pulse acquisition.

  2. What maximum input frequency can this module handle?
    It supports fast input frequencies up to around 200 kHz per channel, depending on application conditions.

  3. What types of signals can it process?
    It processes TTL/HTL and 5 V–24 V digital pulse inputs, including encoder outputs.

  4. Does it support quadrature encoders?
    Yes, it supports quadrature decoding (x2 / x4) for incremental encoder feedback.

  5. Is the module isolated?
    Yes, it features optical isolation for improved noise immunity between input sections.

  6. Does it provide visual status indicators?
    Yes, each channel has LED indicators showing signal activity and count status.

  7. What is the resolution of the counters?
    The module supports up to 32‑bit counting resolution for large counts.

  8. How is it mounted?
    It installs via DIN rail or Modicon X80 backplane for modular PLC installations.

  9. What temperature range can it operate in?
    Standard operation is between 0 °C and +60 °C.

  10. Can this module be expanded with other I/O modules?
    Yes, it integrates with other Modicon X80 I/O modules for scalable control systems.
