Schneider BMXDDO3202K Discrete Output Module

Brand:Schneider PLC
Item No.:BMXDDO3202K
Product Origin:France
Product Dimensions:160 × 90 × 58 mm
Product Weight:0.26kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

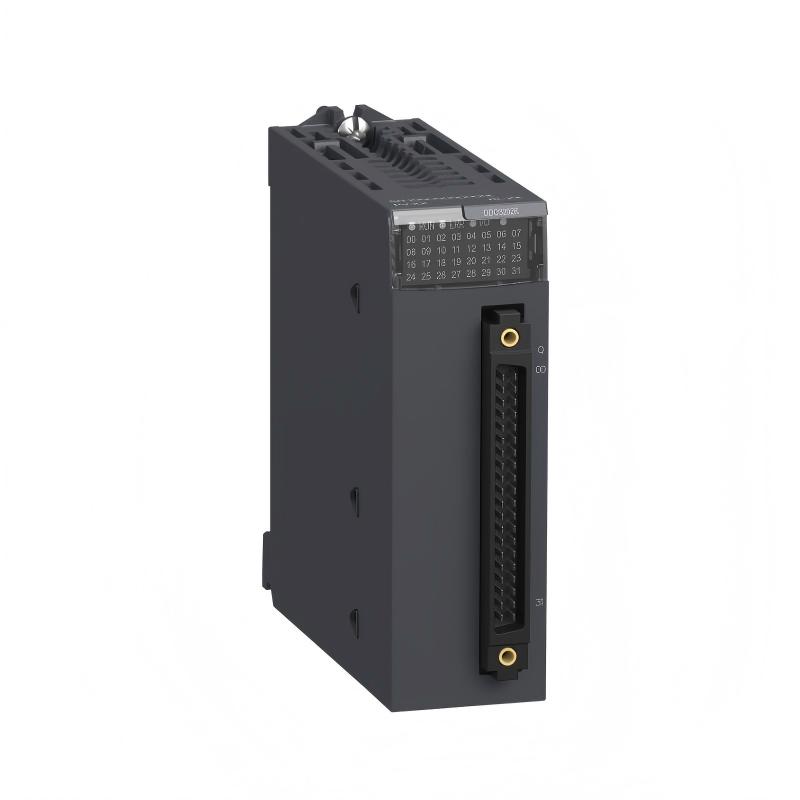

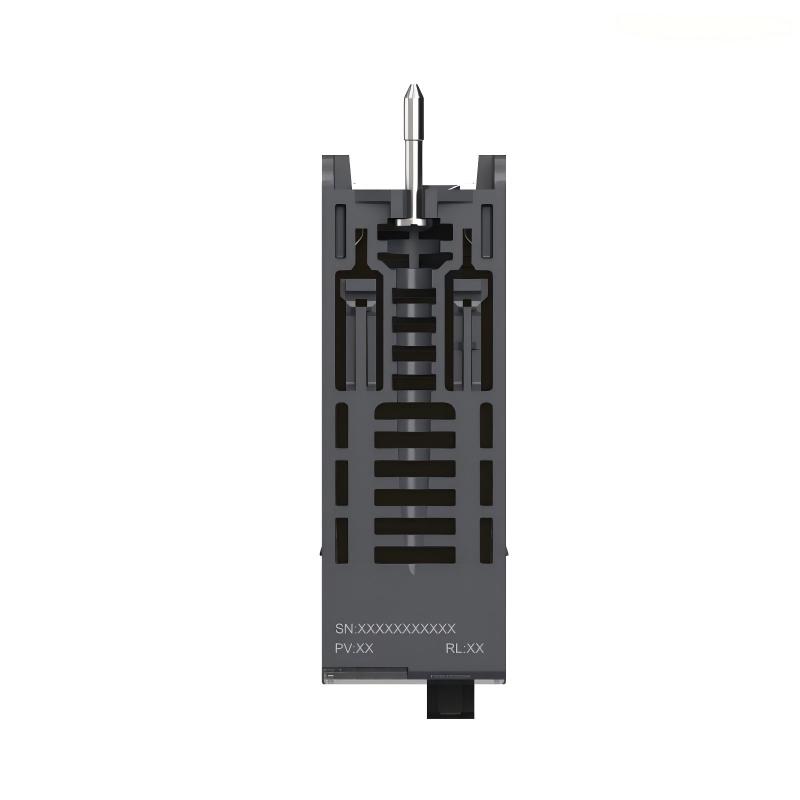

BMXDDO3202K-1BMXDDO3202K-2BMXDDO3202K-4BMXDDO3202K-3

Introduction

The Schneider BMXDDO3202K Discrete Output Module is a high‑density digital output module designed for modular PLC systems within the Modicon X80 automation platform. Built for industrial environments, this output module provides 32 discrete outputs with robust isolation and reliable switching performance. It’s engineered for controlling a wide range of field devices such as actuators, solenoids, relays, lights, and other digital loads, making it ideal for complex automation and machine control tasks.

Technical Specifications

SpecificationDetails
Model NumberBMXDDO3202K
Module TypeDiscrete Output Module
PlatformModicon X80 series
Number of Outputs32 discrete outputs
Output TypeSourcing transistor outputs
Output Voltage24 V DC
Output Current per ChannelUp to 0.5 A (aggregate current limits apply)
IsolationOptically isolated outputs for enhanced noise immunity
Output ProtectionShort‑circuit and overload protection (module dependent)
Status IndicatorsLED per channel
Operating Temperature0 °C to +60 °C
Storage Temperature‑40 °C to +85 °C
Relative Humidity5–95% non‑condensing
Protection RatingIP20
MountingDIN‑rail compatible / backplane installation


Applications

The BMXDDO3202K is suitable for systems and applications where extensive discrete output control is required:

  • Actuator and Solenoid Control – Operating valves, pneumatic and hydraulic actuators

  • Industrial Lighting and Indicators – Switching status lights, alarms, and signal beacons

  • Contactor and Relay Interfaces – Driving intermediate relays and motor contactors

  • Material Handling Systems – Conveyor starts/stops, diverter actuators, gating systems

  • Sequence Control Logic – Coordinated control in automated lines or batch process machinery

The high channel count streamlines wiring and system architecture in larger control installations.


Advantages

  • High Output Density – 32 discrete outputs provide extensive load control without the need for multiple modules.

  • Strong Signal Isolation – Optically isolated outputs enhance noise resistance and improve system reliability.

  • Visual Output Status – Individual LEDs allow rapid visual verification of channel states for commissioning and maintenance.

  • Compact and Modular – Efficient form factor for large I/O racks or compact control panels.

  • Industrial Protection – IP20 rating and wide environmental tolerance for industrial use.

  • Flexible Load Driving – Designed for standard 24 V DC discrete devices in automation environments.


Technical FAQs

  1. How many discrete outputs does the BMXDDO3202K provide?
    It provides 32 independent discrete outputs suitable for broad control tasks.

  2. What output voltage does this module support?
    Outputs operate at 24 V DC, standard for industrial automation logic.

  3. Are the outputs isolated?
    Yes, the outputs are optically isolated to improve noise immunity and operational stability.

  4. What types of devices can this module drive?
    Solenoids, contactors (via relays), indicator lights, alarms, and other discrete field devices.

  5. Does the module provide visual status indications?
    Yes, each output channel has an LED status indicator for easy monitoring.

  6. What mounting options are available?
    DIN rail mounting and backplane installation are supported for modular PLC systems.

  7. What temperature range can the module operate in?
    It operates reliably from 0 °C to +60 °C in typical industrial environments.

  8. What protection rating does the module have?
    The module carries an IP20 rating appropriate for indoor industrial cabinets.

  9. Is this module suitable for wiring‑dense installations?
    Yes, the high 32‑output count reduces the need for additional I/O modules in large systems.

  10. Can this module expand with other PLC I/O modules?
    Yes, it integrates seamlessly with other Modicon X80 I/O modules for flexible system expansion.
