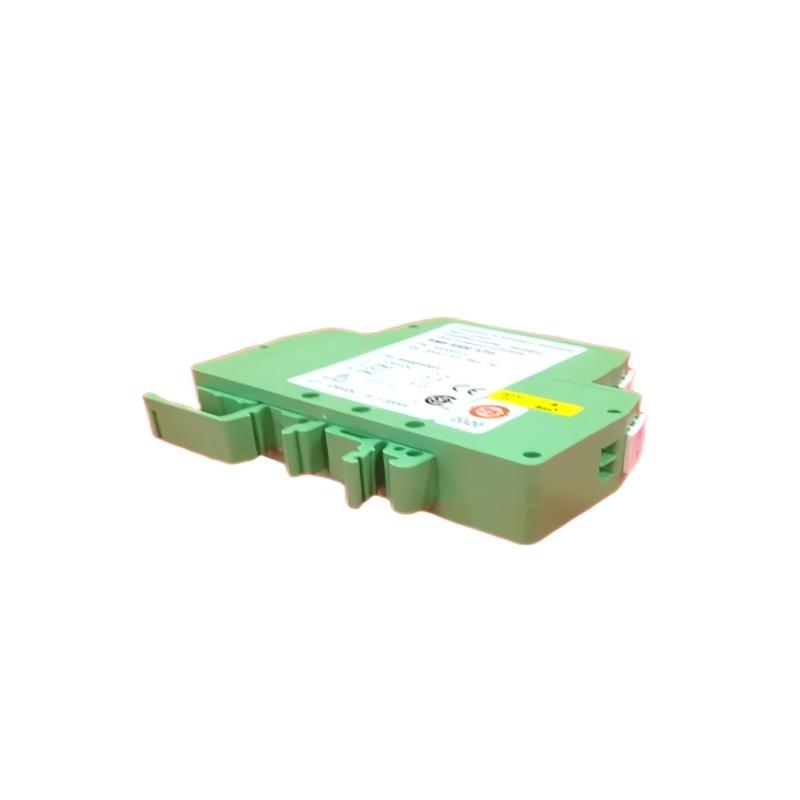

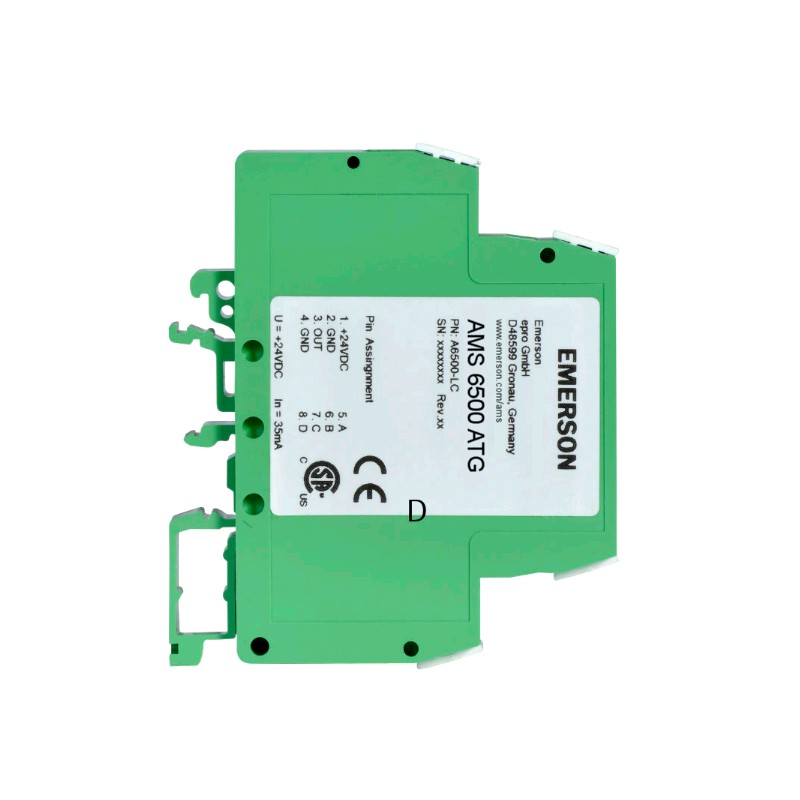

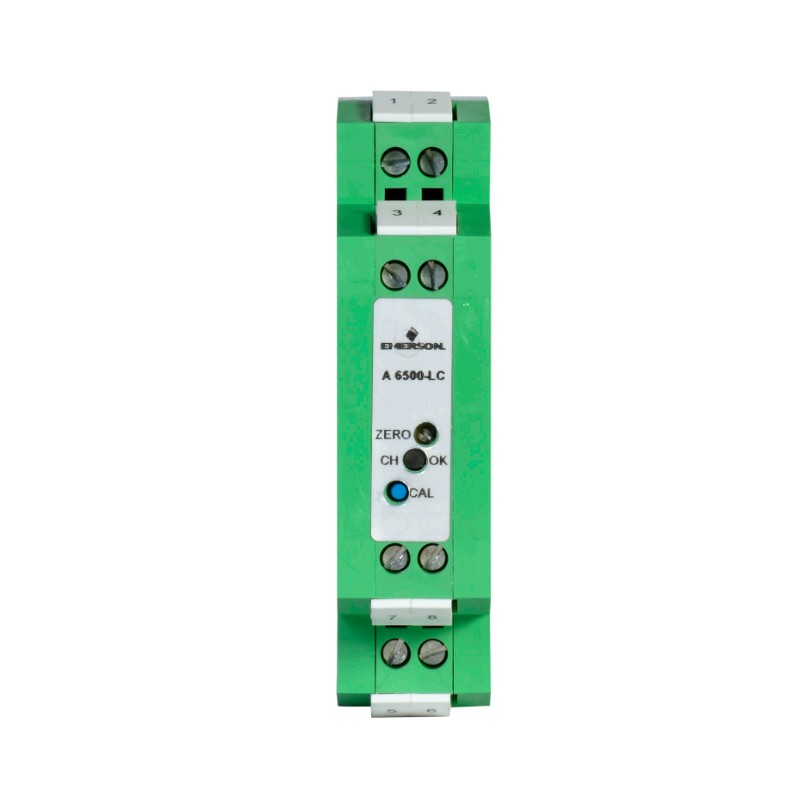

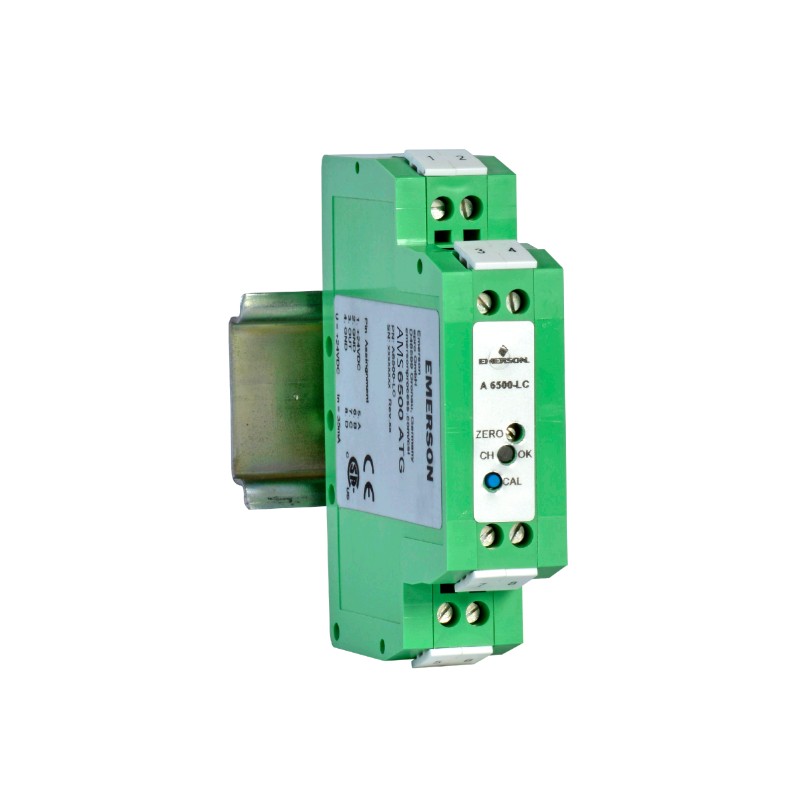

Product Introduction
The Emerson A6500-LC LVDT Converter Module is designed to support precise displacement and position monitoring in industrial machinery. Many critical mechanical systems rely on LVDT sensors to measure linear movement in components such as valves, actuators, and rotating machinery assemblies.
The converter processes the electrical signals generated by LVDT sensors and converts them into outputs compatible with monitoring and control systems. This enables operators to analyze displacement data, monitor equipment condition, and ensure that mechanical components operate within safe limits.
With its compact design and reliable signal conditioning capabilities, the A6500-LC module plays an important role in machinery protection and precision measurement systems.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | LVDT Converter Module |
| Manufacturer | Emerson |
| Model Number | A6500-LC |
| Function | LVDT Signal Conversion and Conditioning |
| Typical Applications | Displacement and Position Monitoring |
| Installation | Machinery Monitoring Rack / Control Cabinet |
| Operating Environment | Industrial Automation and Machinery Monitoring Systems |
| Dimensions | 79.5 mm × 20 mm × 69.5 mm |
| Weight | 0.065 kg (0.14 lb) |
Deployment in Precision Displacement Measurement Systems
The Emerson A6500-LC LVDT Converter is designed to convert signals from Linear Variable Differential Transformer (LVDT) sensors into usable electrical outputs for monitoring and control systems. In industrial machinery, LVDT sensors are widely used to measure displacement, position, and expansion with high accuracy.
This converter module is commonly used in applications such as:
-
Steam turbine valve position monitoring systems
-
Control valve stroke measurement in power generation plants
-
Shaft displacement monitoring in rotating machinery
-
Industrial process equipment requiring precision position feedback
-
Machinery protection systems within oil, gas, and petrochemical facilities
By transforming raw LVDT sensor signals into standardized electrical signals, the module enables accurate integration with monitoring and automation systems.
Functional Advantages for Industrial Measurement Systems
Precise Signal Conversion
The converter translates LVDT sensor signals into stable output signals for monitoring platforms.
High Accuracy Displacement Monitoring
It supports precise measurement of mechanical movement and positioning.
Reliable Integration with Monitoring Systems
The module connects easily with industrial control and machinery protection systems.
Compact Installation Design
Its compact structure allows convenient mounting within monitoring racks or control cabinets.
Supports Predictive Maintenance Programs
Accurate displacement data helps identify abnormal mechanical movement before equipment damage occurs.
Technical FAQs
1. What is the main purpose of the A6500-LC LVDT converter?
It converts signals from LVDT displacement sensors into standardized electrical signals used by monitoring systems.
2. What does an LVDT sensor measure?
LVDT sensors measure linear displacement or position changes with high precision.
3. Why is signal conversion necessary for LVDT sensors?
Raw LVDT signals require conditioning and conversion before they can be processed by control or monitoring systems.
4. What types of equipment commonly use LVDT converters?
Steam turbines, control valves, hydraulic actuators, and precision industrial machinery.
5. Can this converter be integrated with machinery protection systems?
Yes, it can provide displacement signals used by protection and monitoring platforms.
6. What advantages do LVDT sensors offer in industrial applications?
They provide high accuracy, repeatability, and reliable position measurement.
7. Where is the converter typically installed?
It is usually mounted in monitoring racks or industrial control cabinets near monitoring modules.
8. How does displacement monitoring improve equipment reliability?
It helps detect abnormal movement or misalignment early in the operating cycle.
9. What industries commonly use LVDT-based monitoring systems?
Power generation, oil and gas processing, petrochemical production, and heavy industrial manufacturing.
10. What maintenance practices are recommended for LVDT monitoring systems?
Periodic sensor calibration, inspection of wiring connections, and verification of signal accuracy.
