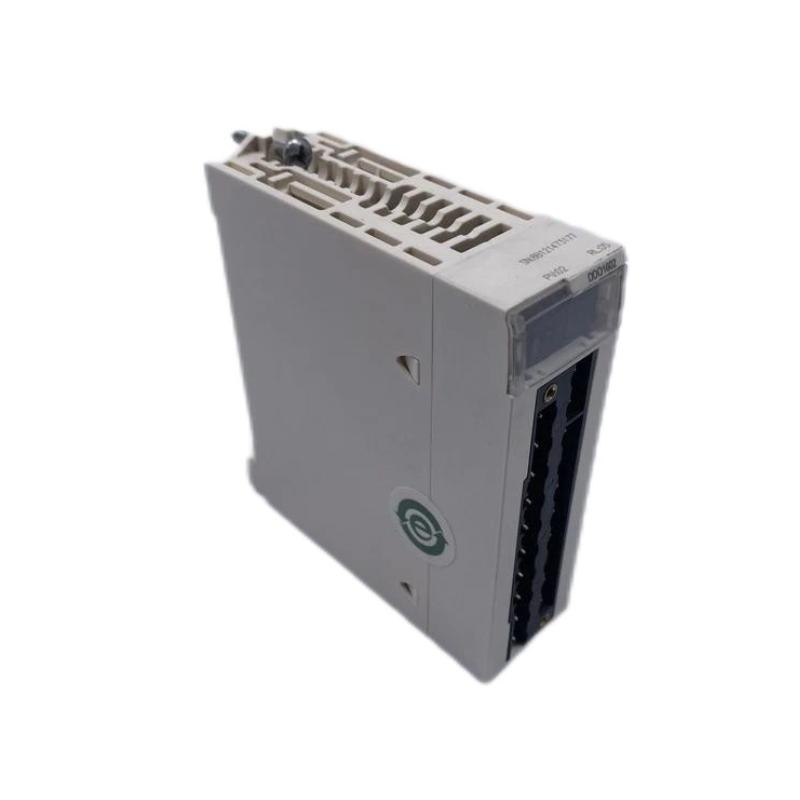

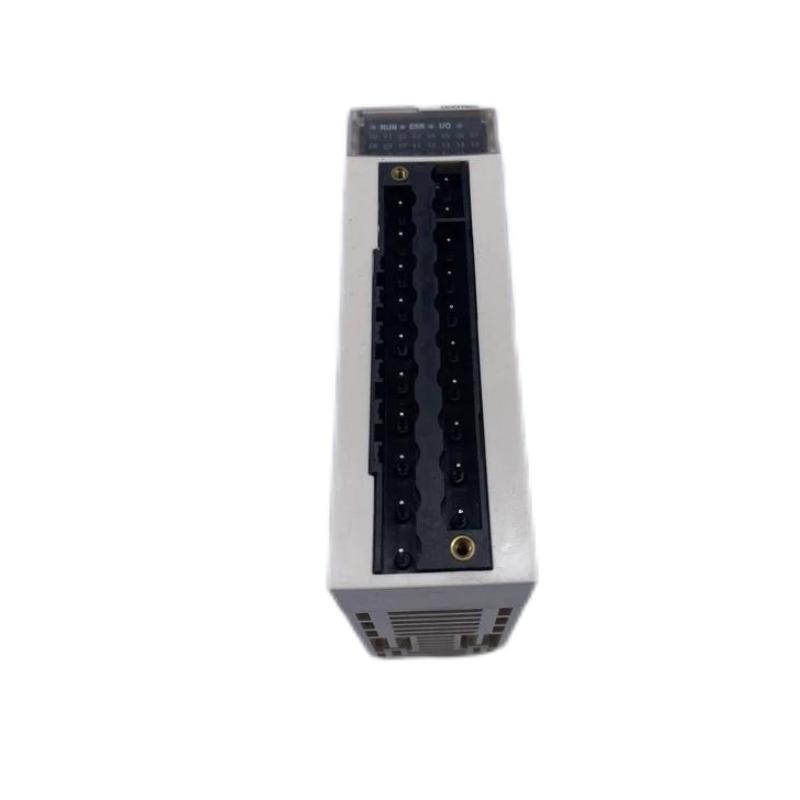

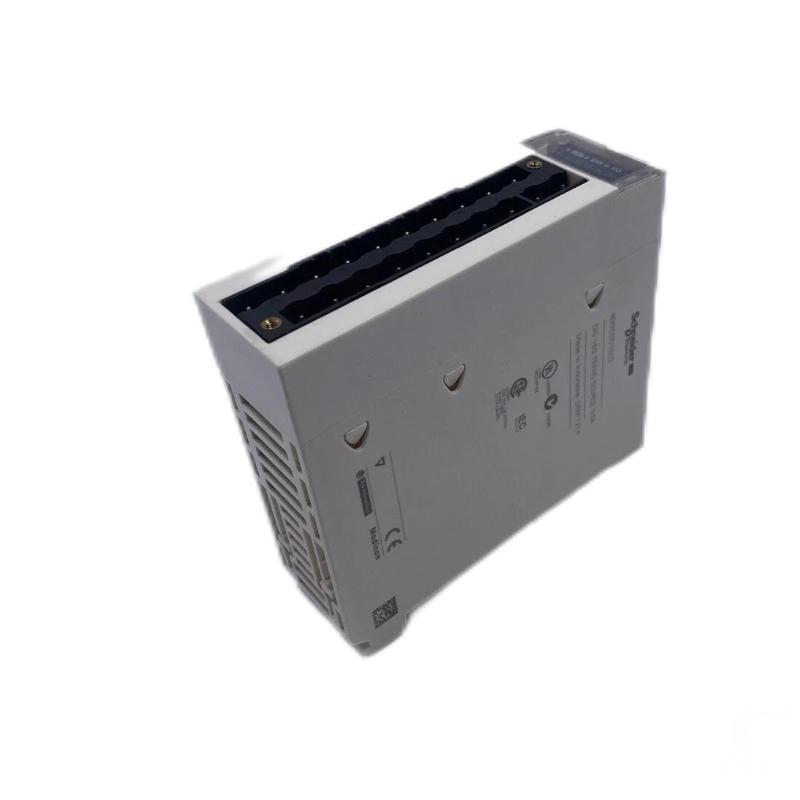

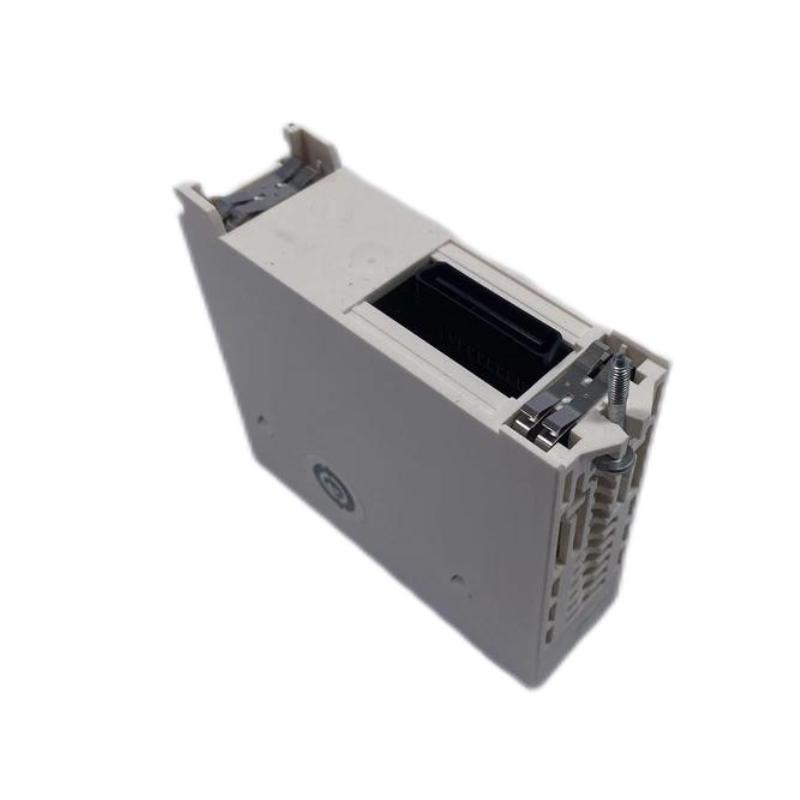

Schneider BMXDDO1602 Discrete Output Module

Brand:Schneider PLC
Item No.:BMXDDO1602
Product Origin:USA
Product Dimensions:100 × 22 × 145 mm
Product Weight:0.12kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

BMXDDO1602 (5)BMXDDO1602 (4)BMXDDO1602 (3)BMXDDO1602 (2)BMXDDO1602 (1)

Introduction

The Schneider BMXDDO1602 Discrete Output Module is a rugged digital output module designed for industrial PLC systems within the Modicon X80 automation platform. Purpose‑built for reliable control of discrete devices, this module provides 16 high‑current isolated outputs, making it ideal for driving actuators, solenoids, contactors, and indicators in automated systems. Its robust isolation and noise immunity ensure dependable performance in electrically harsh environments.

Technical Specifications

SpecificationDetails
Model NumberBMXDDO1602
Product TypeDiscrete Output Module
PlatformModicon X80 series
Output Channels16 discrete outputs
Output TypeRelay / Transistor (depending on variant and configuration)
Output Voltage24 V DC
Maximum Load Current per ChannelTypically up to 0.5 A – 2 A (depending on transistor vs. relay version)
IsolationOptically isolated outputs for noise immunity and safety
Response TimeFast switching suitable for industrial automation
Status IndicatorsLED status per output channel
Operating Temperature0 °C to +60 °C
Storage Temperature‑40 °C to +85 °C
Relative Humidity5–95% non‑condensing
Protection RatingIP20
MountingDIN rail compatible / backplane installation


Applications

The BMXDDO1602 is widely used in industrial automation systems where multiple discrete outputs are required:

  • Actuator Control – Driving solenoid valves, pneumatic actuators, and small motors

  • Indicator and Alarm Systems – Switching lamps, buzzers, signal towers

  • Contactor and Relay Interfaces – Controlling high‑power loads via intermediate relays or contactors

  • PLC Interlocking Logic – Enabling coordinated control of process sequencing

  • Material Handling Systems – Activation of gates, conveyors, sorters, and diverters

Its discrete outputs help automate real‑time switching tasks with high reliability and noise immunity.


Advantages

  • High Channel Count – 16 independent outputs provide extensive control capacity.

  • Industrial‑Grade Isolation – Optical isolation improves noise immunity and network integrity.

  • Flexible Load Driving – Suitable for driving various field devices with solid switching performance.

  • Visual Status Feedback – Individual channel LEDs make troubleshooting and status monitoring straightforward.

  • Compact and Modular – Designed for efficient installation in control cabinets with modular PLC backplane systems.

  • Wide Environmental Range – Supports typical industrial temperature and humidity conditions.


Technical FAQs

  1. How many discrete outputs does this module provide?
    It provides 16 isolated discrete outputs for control of field devices.

  2. What output voltage does it support?
    The module supports 24 V DC output for logic and actuator interfaces.

  3. Is each output isolated?
    Yes, outputs are optically isolated to enhance noise immunity and safety.

  4. What types of devices can be driven?
    Actuators, solenoid valves, indicators, small motors (via external relays), and contactors.

  5. Does the module include status indicators?
    Yes, individual LED indicators show output channel status.

  6. What mounting method does it use?
    DIN‑rail compatible and PLC backplane installation for modular control systems.

  7. What is the operating temperature range?
    Standard operation is 0 °C to +60 °C.

  8. Can it handle noisy industrial electrical environments?
    Yes, optical isolation and industrial design provide strong noise immunity.

  9. What protection rating does the module have?
    IP20, suitable for industrial control cabinets.

  10. Is expansion with other I/O modules supported?
    Yes, it integrates seamlessly with other X80 I/O modules for larger control architectures.
