Technical FAQs

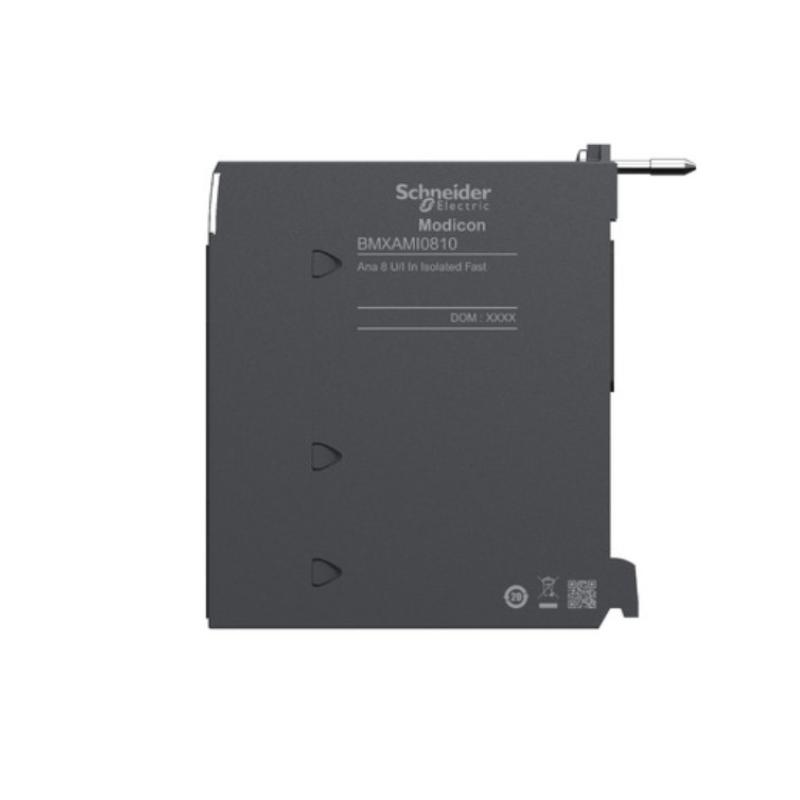

1. How many analog input channels does this module have?
   It features 8 isolated analog input channels for simultaneous measurement

2. What signal types can it measure?
   Supports current (±20 mA, 0–20 mA, 4–20 mA) and voltage (±10 V, ±5 V, 0–10 V, 0–5 V, 1–5 V) signals

3. What is the resolution of the analog inputs?
   Uses 16-bit ADC with 15-bit + sign resolution

4. What isolation levels does it provide?
   Isolation is 300 V DC between channels and 1400 V DC to ground/bus

5. How fast is the module’s reading cycle?
   Fast read cycle is 1 ms + 1 ms per channel, with nominal 9 ms for all eight channels

6. What protections and standards does the module comply with?
   Meets major industrial standards for safety and EMC; CE, UL, CSA, RCM, EAC certified

7. What environmental conditions can it operate in?
   Operates from 0 °C to +60 °C, and can be stored from −40 °C to +85 °C

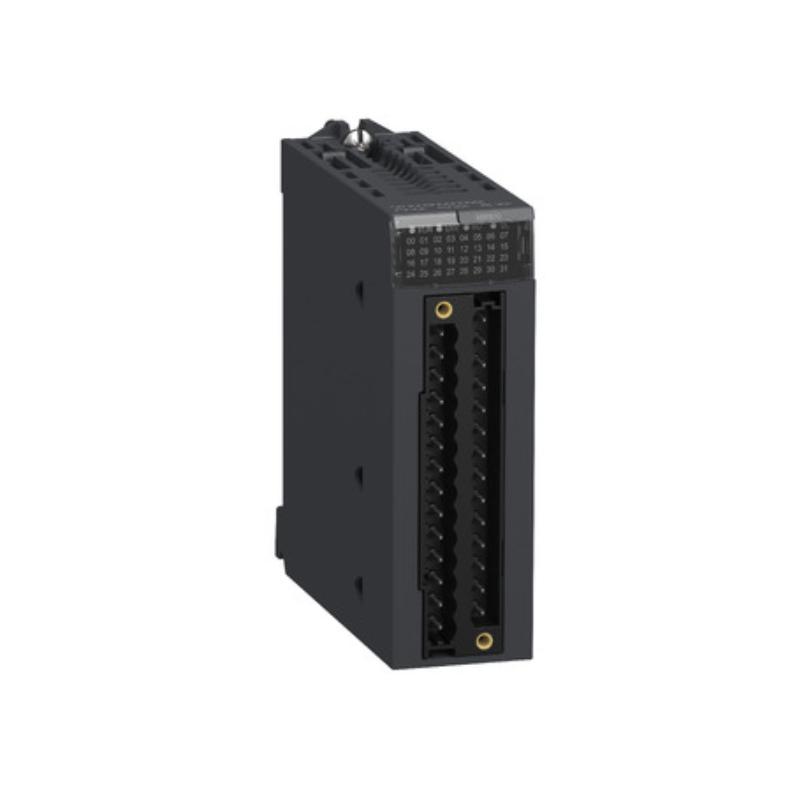

8. What mounting system does it use?
   Connects via a 28-way removable terminal block on the Modicon X80 backplane

9. Is it suitable for noisy electrical environments?
   Yes, channel isolation and high common-mode rejection maintain signal integrity

10. How much power does this module consume?
    Typical consumption is 1.06 W at 24 V DC and 0.32 W at 3.3 V DC
