Introduction

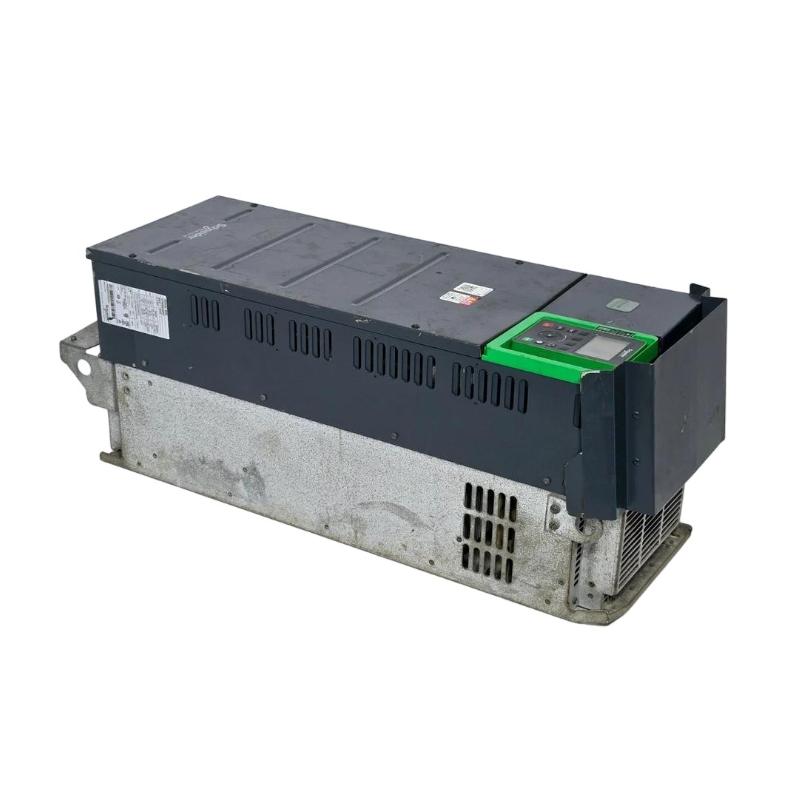

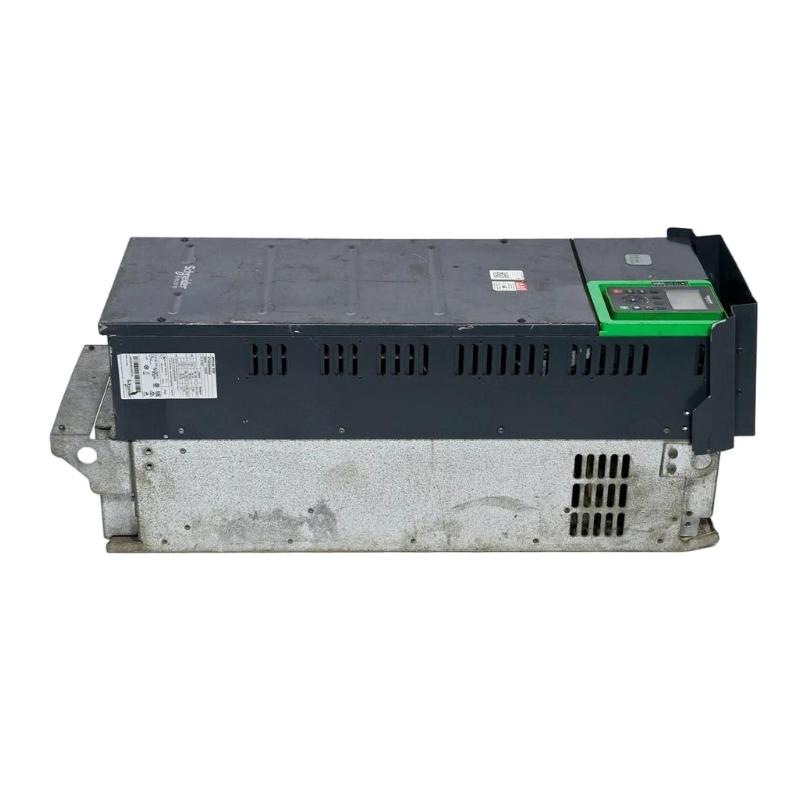

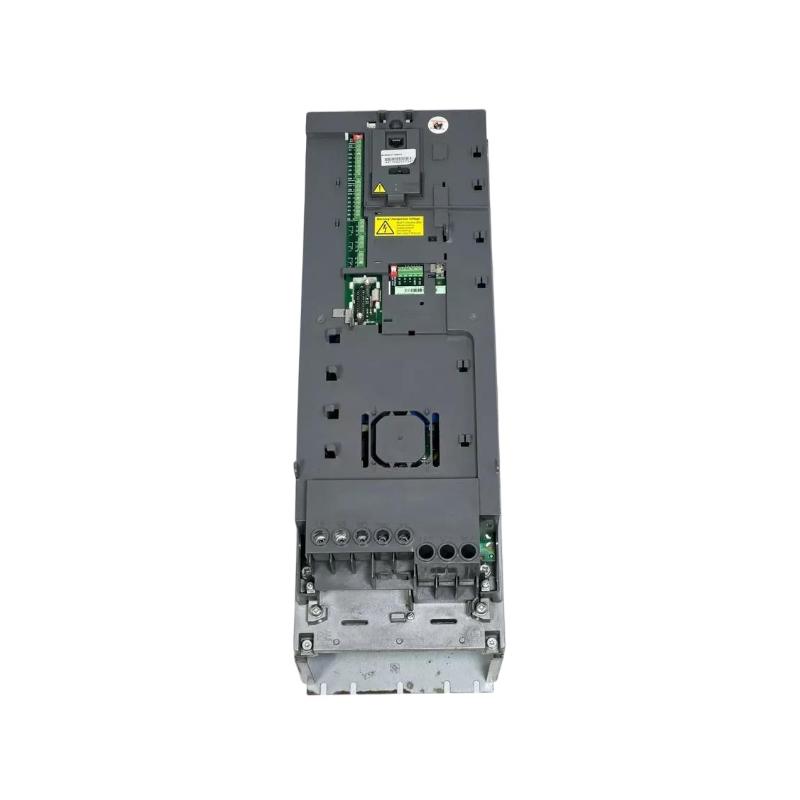

The Schneider Electric ATV630D90N4 Variable Speed Drive is a dependable industrial motor controller from the Altivar Process ATV600 family. Engineered for process‑driven environments, it provides precise control of motor speed and torque with robust performance and energy‑saving capabilities. This drive is ideal for applications where efficiency, flexibility, and integration with automation systems are essential. Its industrial‑grade design ensures consistent smooth operation for a wide range of rotating machinery.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | ATV630D90N4 |
| Product Series | Altivar Process ATV600 |
| Device Type | Variable Speed Drive |
| Rated Motor Power | 90 kW Normal Duty / 75 kW Heavy Duty |
| Motor Horsepower | Approx. 125 HP ND / 100 HP HD |
| Input Voltage | 380–480 V AC |
| Input Phase | Three‑phase |
| Output Frequency Range | 0.1 – 500 Hz |
| Continuous Output Current | ~185 A (ND) / ~155 A (HD) |
| Switching Frequency | 2 – 12 kHz adjustable |
| Protection Rating | IP21 / UL Type 1 |
| Communication Interfaces | Ethernet, Modbus Serial, Modbus TCP |
