Introduction

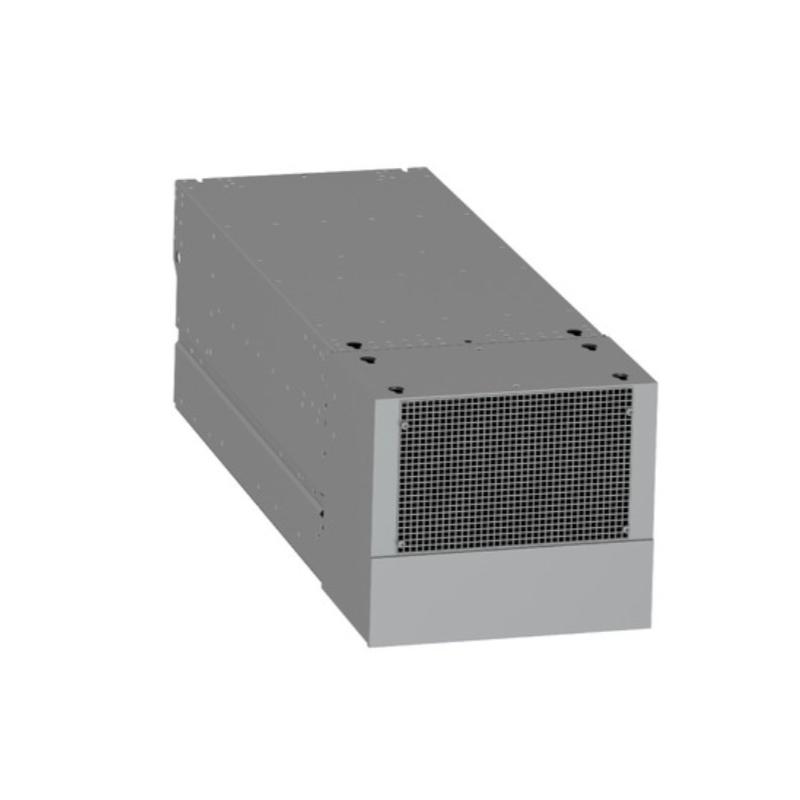

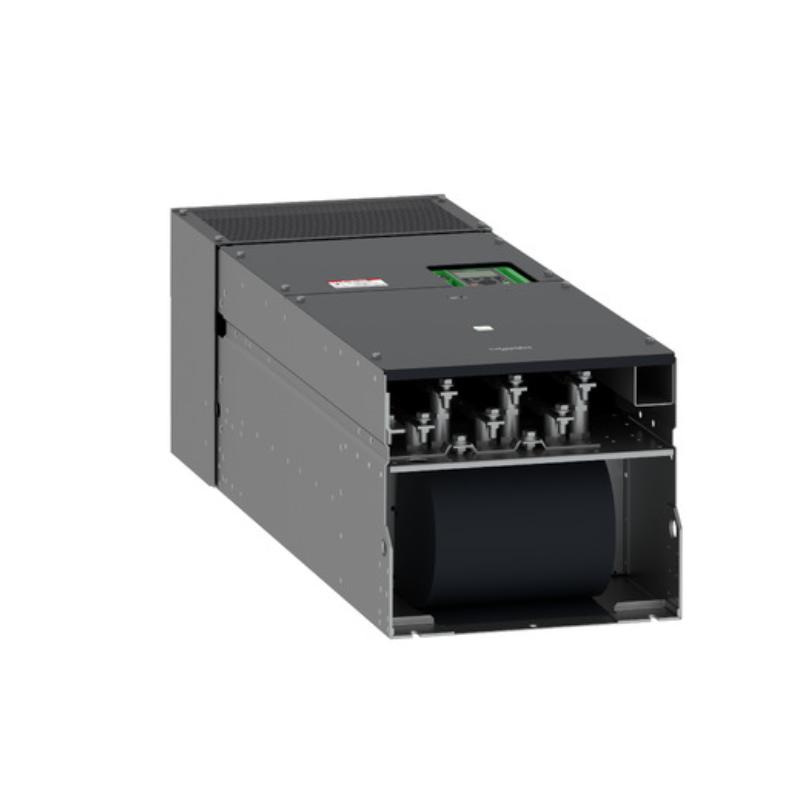

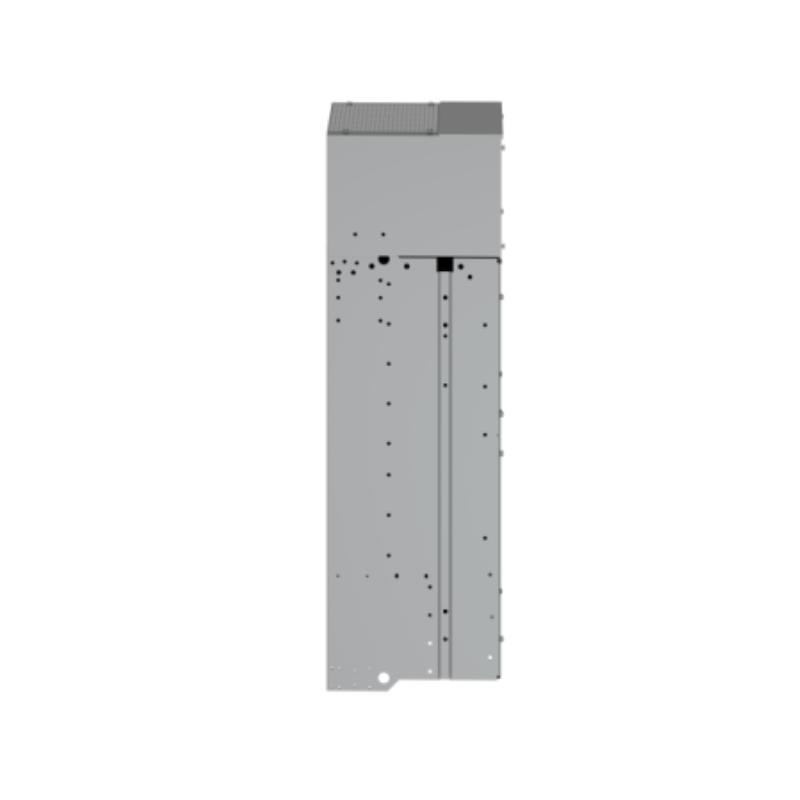

The Schneider Electric ATV630C22N4 Variable Speed Drive is part of Schneider’s Altivar Process ATV600 family, designed for industrial process control where high reliability, energy efficiency, and flexible connectivity are essential. This drive delivers precise control of motor speed and torque for demanding applications involving pumps, fans, compressors, and other rotating equipment. Its robust design, process‑focused features, and scalable architecture make it an ideal choice for systems requiring long‑term performance and seamless integration into automated operations.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | ATV630C22N4 |
| Product Series | Altivar Process ATV600 |
| Device Type | Variable Speed Drive |
| Rated Motor Power | 220 kW Normal Duty / 200 kW Heavy Duty |
| Maximum Horsepower | 300 HP ND / 250 HP HD |
| Input Voltage | 380–480 V AC |
| Input Phase | 3‑Phase |
| Output Frequency Range | 0.1 – 500 Hz |
| Continuous Output Current | ~410 A (ND) / ~380 A (HD) |
| Switching Frequency | Adjustable 2 – 8 kHz |
| Communication Interfaces | Ethernet, Modbus TCP, Modbus Serial |
| Digital Inputs | 8 |
| Analog Inputs / Outputs | 3 AI / 2 AO |
| Relay Outputs | 3 |
| Protection Rating | IP00 (IP21 optional with enclosure kit) |
| Cooling Method | Forced convection |
| Safety Function | Safe Torque Off (STO) with SIL3 |
| Mounting Type | Vertical wall mounting |
| Operating Temperature | −15 °C to +50 °C |
