Introduction

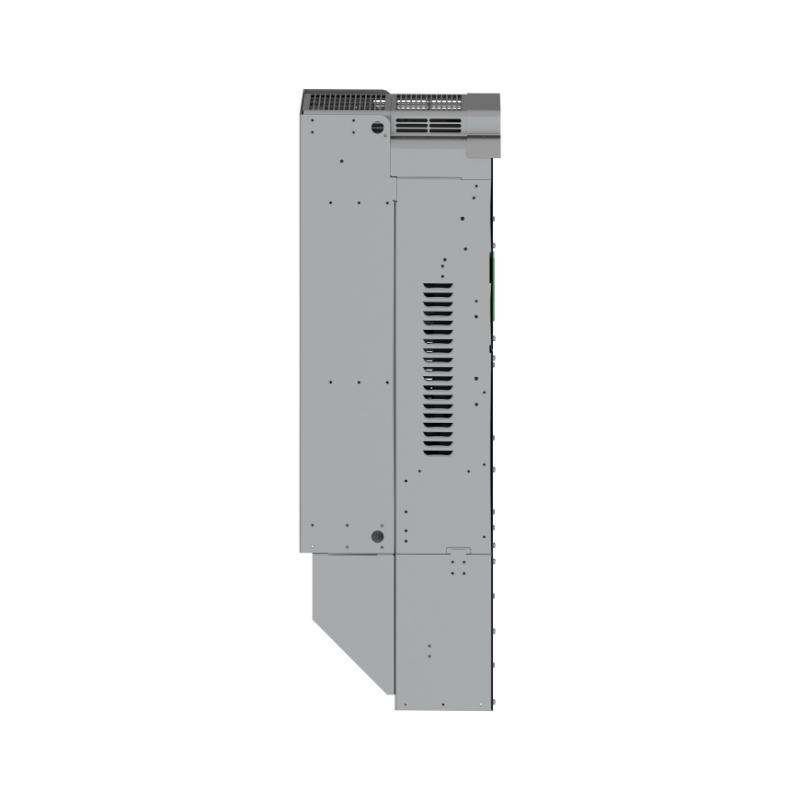

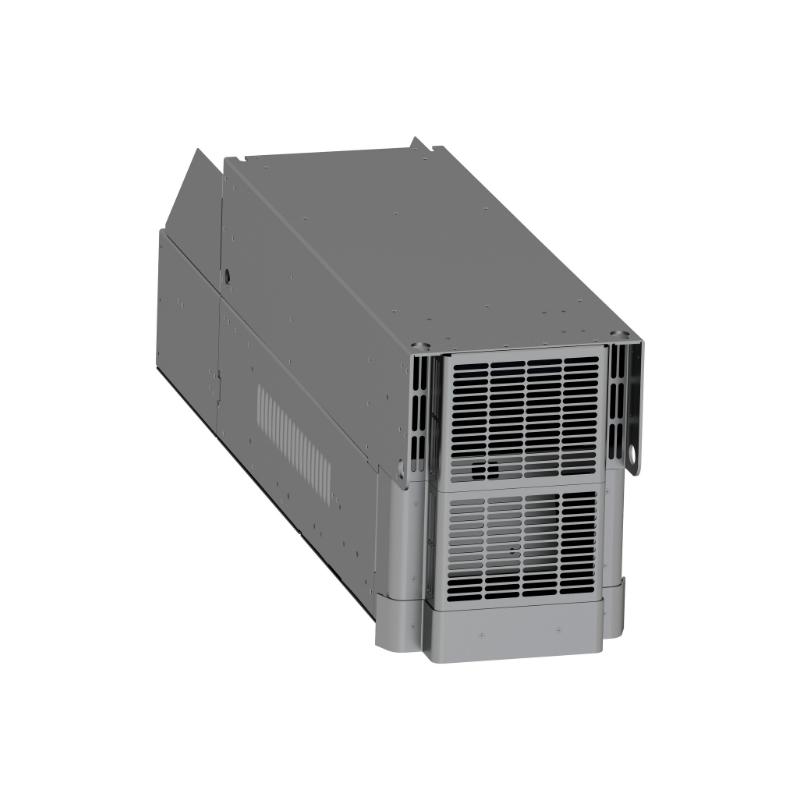

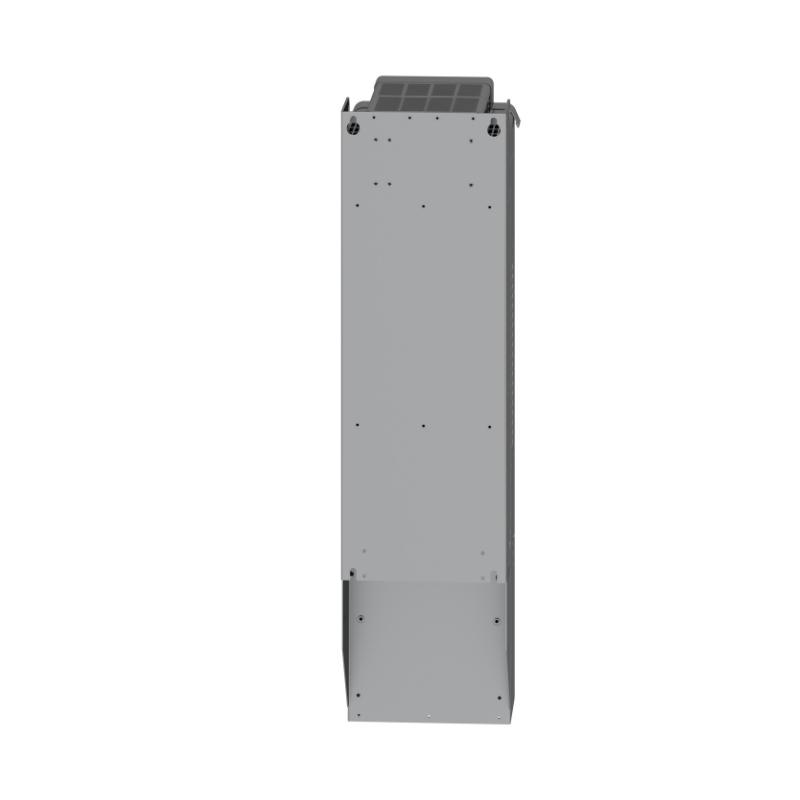

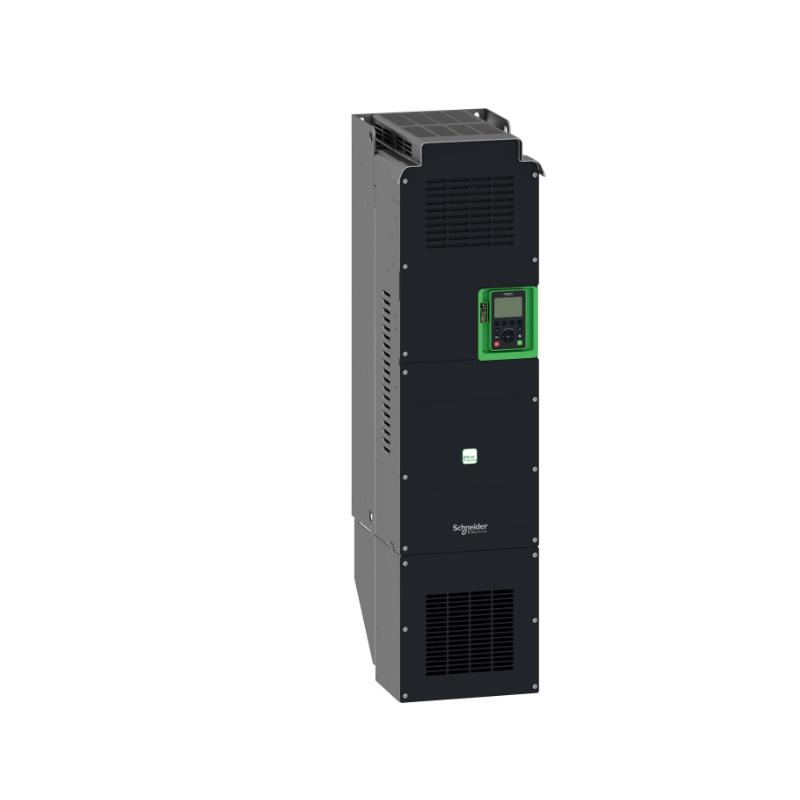

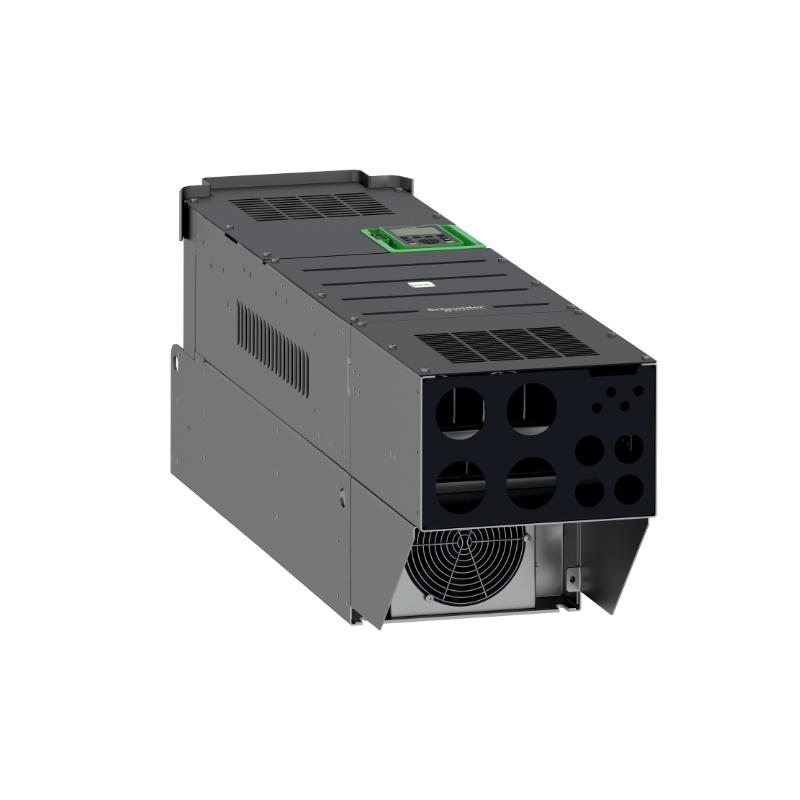

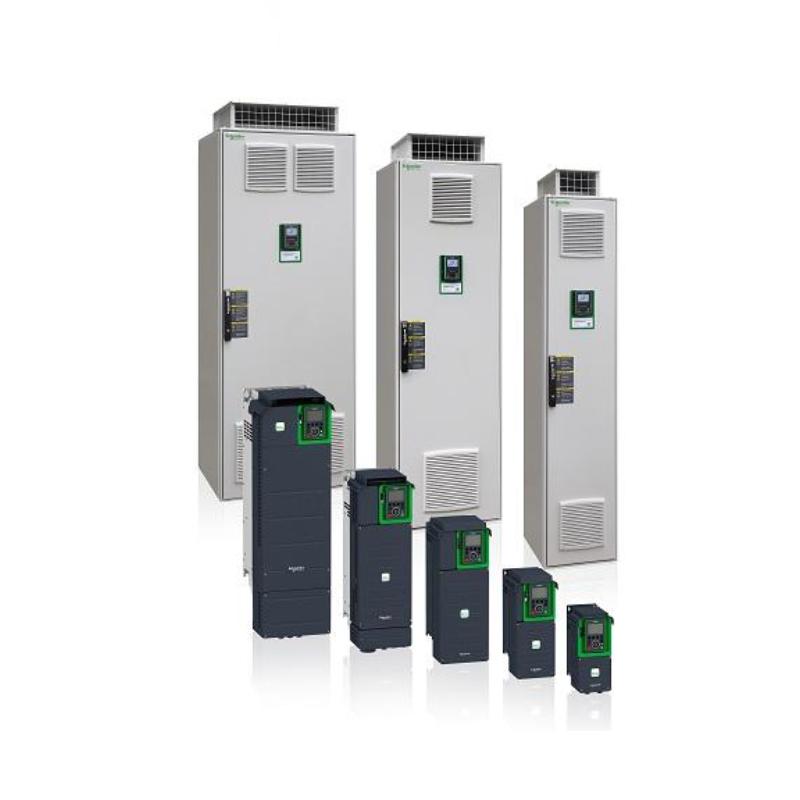

The Schneider Electric ATV630C16N4 Variable Speed Drive is a high-capacity motor control solution from the Altivar Process ATV600 series. Designed for industrial process environments, it provides precise motor speed control, energy optimization, and advanced connectivity for large-power motors.
Engineered to support demanding operations such as pumping, ventilation, and compressor systems, the ATV630C16N4 integrates advanced control algorithms and built-in communication protocols to simplify system integration. Its robust construction and process-focused functionality make it a reliable choice for industries seeking improved productivity, lower energy consumption, and long-term operational stability.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | ATV630C16N4 |
| Product Series | Altivar Process ATV600 |
| Device Type | Variable Speed Drive |
| Rated Motor Power | 160 kW (Normal Duty) / 132 kW (Heavy Duty) |
| Maximum Horsepower | 250 HP ND / 200 HP HD |
| Input Voltage | 380–480 V AC |
| Input Phase | 3-Phase |
| Supply Frequency | 50–60 Hz |
| Continuous Output Current | 302 A (ND) / 250 A (HD) |
| Output Frequency Range | 0.1 – 500 Hz |
| Switching Frequency | 2 – 8 kHz adjustable |
| Communication Interfaces | Ethernet, Modbus TCP, Modbus Serial |
| Analog Inputs / Outputs | 3 AI / 2 AO |
| Digital Inputs | 8 |
| Relay Outputs | 3 |
| Protection Rating | IP00 (IP21 optional with enclosure kit) |
| Cooling Method | Forced convection |
| Safety Function | STO (Safe Torque Off) SIL3 |
