Product Introduction

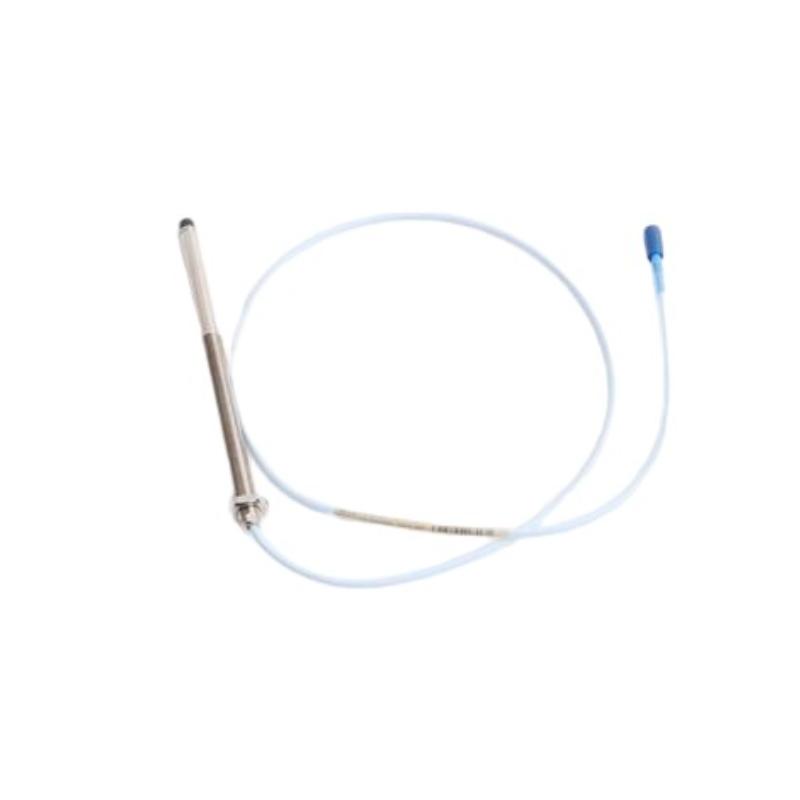

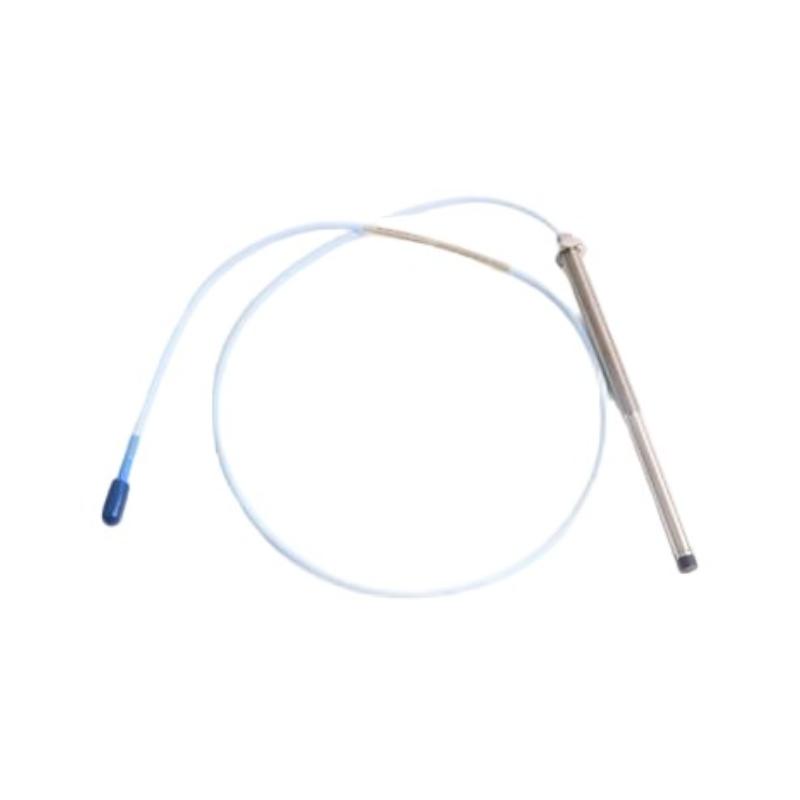

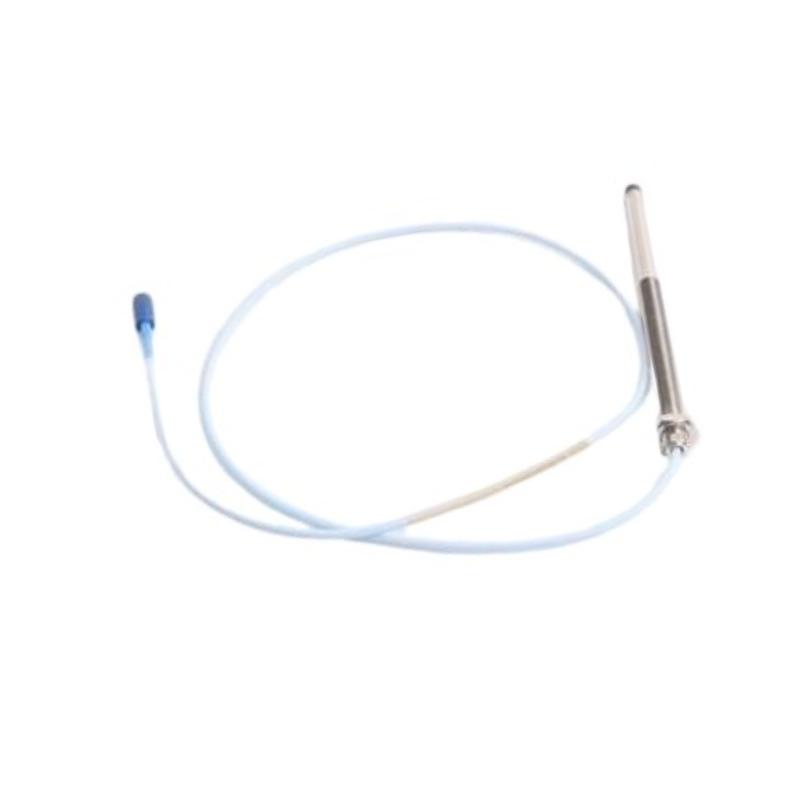

The Bently Nevada 330103‑07‑18‑10‑02‑00 3300 XL 8 mm Proximity Probe is a high-precision, non-contact sensor designed for monitoring shaft vibration and position in critical rotating machinery. Engineered for reliability, durability, and seamless integration with 3300 XL Proximitor systems, this probe ensures continuous, accurate measurements in demanding industrial environments. Its compact 8 mm diameter, M10 × 1 threaded design, and robust stainless-steel housing make it ideal for turbines, compressors, generators, and other high-value rotating equipment.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | 330103‑07‑18‑10‑02‑00 |
| Series | 3300 XL 8 mm Proximity Probe |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1, unarmored |
| Unthreaded Length | 0 mm |
| Overall Case Length | 1.95 in (≈49.5 mm) |
| Total Cable Length | 1.0 m (3.3 ft) standard cable |
| Connector Type | Miniature coaxial ClickLoc™ |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Case Material | Stainless steel AISI 303/304 |
| Operating Temperature | ‑50 °C to +177 °C (‑58 °F to +351 °F) |
