Product Introduction

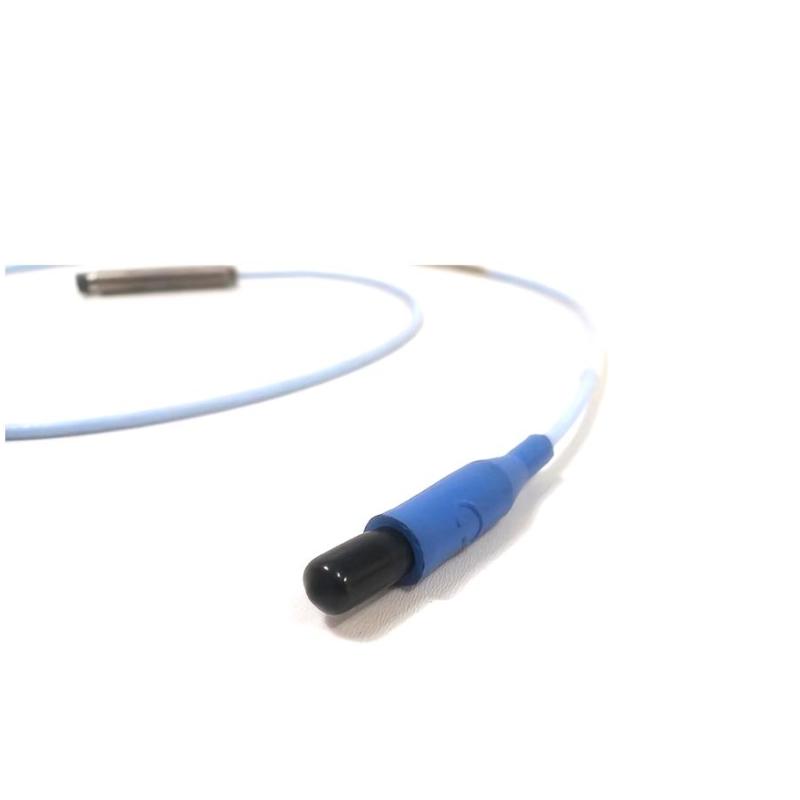

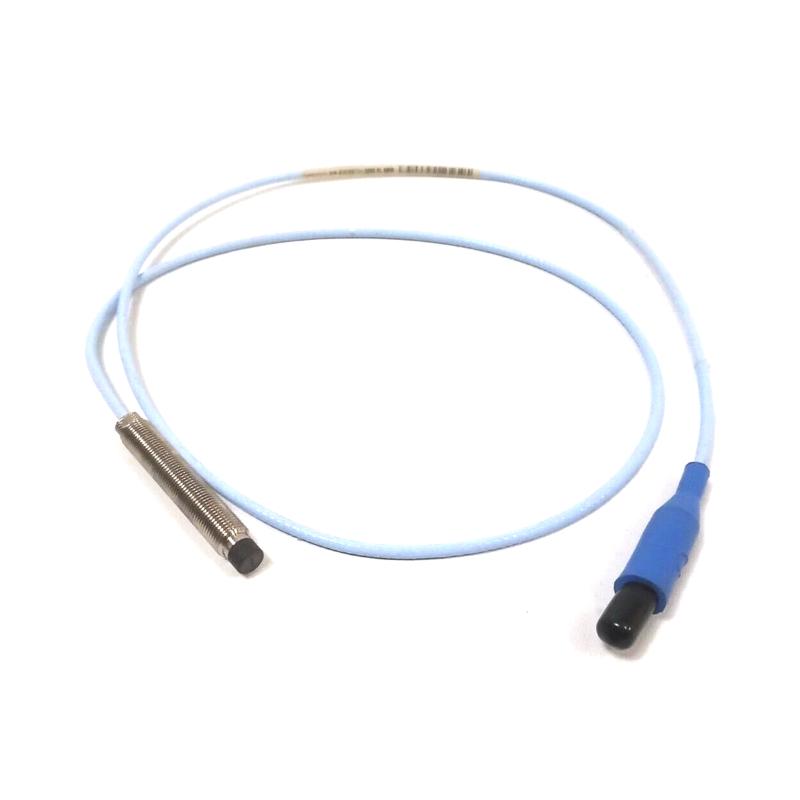

The Bently Nevada 330103‑00‑06‑15‑02‑CN 3300 XL 8 mm Proximity Probe is a high-precision, non-contact sensor designed to measure shaft vibration and displacement in critical rotating machinery. Built with a robust stainless-steel body and durable PPS probe tip, this probe ensures reliable long-term performance under extreme industrial conditions. Its compact 8 mm diameter and M10 × 1 threading allow for flexible installation in turbines, compressors, generators, and other high-demand equipment. Optimized for seamless integration with 3300 XL Proximitor systems, it delivers accurate monitoring to support predictive maintenance and maximize uptime.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | 330103‑00‑06‑15‑02‑CN |
| Series | 3300 XL 8 mm Proximity Probe |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1, unarmored |
| Unthreaded Length | 0 mm |
| Overall Case Length | 1.90 in (≈48 mm) |
| Total Cable Length | 1.0 m (3.3 ft) standard cable |
| Connector Type | Miniature coaxial ClickLoc™ |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Case Material | Stainless steel AISI 303/304 |
| Operating Temperature | ‑50 °C to +177 °C (‑58 °F to +351 °F) |
