Product Introduction

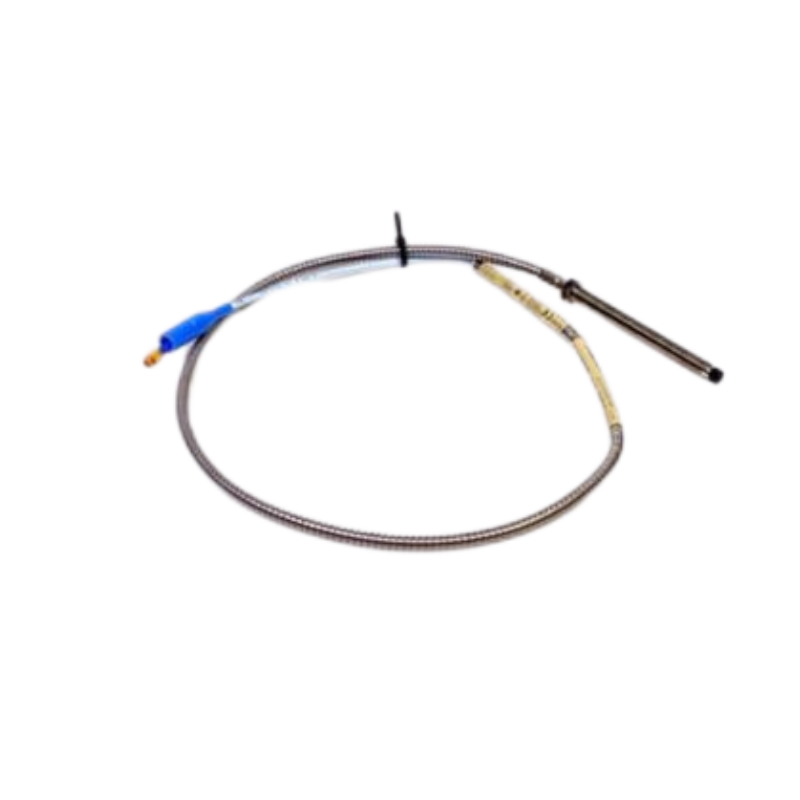

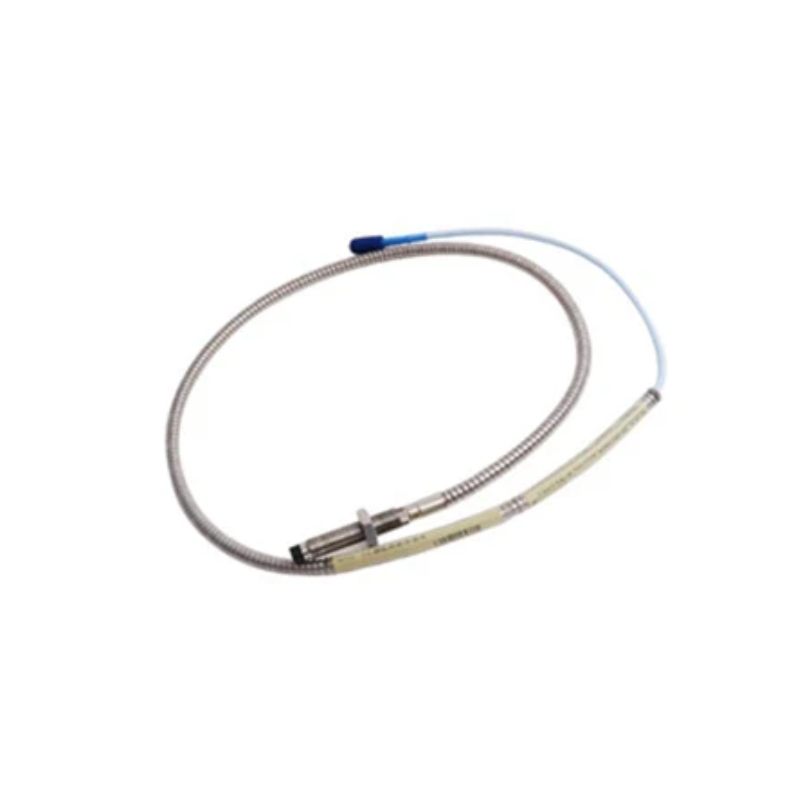

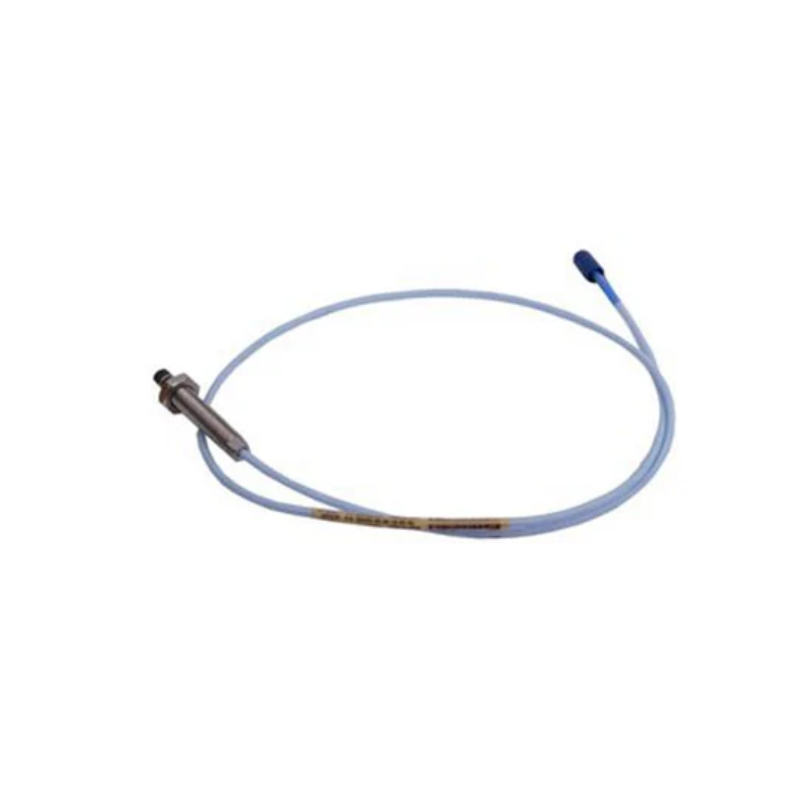

The Bently Nevada 330103‑00‑06‑05‑02‑00 3300 XL 8 mm Proximity Probes are precision eddy-current sensors designed to monitor shaft position and vibration in demanding industrial applications. With a compact 8 mm diameter, durable stainless-steel housing, and PPS probe tip, these probes provide reliable, non-contact measurements for turbines, compressors, generators, and other rotating machinery. They are engineered to deliver high accuracy, long-term reliability, and seamless integration with 3300 XL Proximitor systems.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | 330103‑00‑06‑05‑02‑00 |
| Series | 3300 XL 8 mm Proximity Probe |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1, unarmored |
| Unthreaded Length | 0 mm |
| Overall Case Length | 1.90 in (≈48 mm) |
| Total Cable Length | 1.0 m (3.3 ft) standard cable |
| Connector Type | Miniature coaxial ClickLoc™ |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Case Material | Stainless steel AISI 303/304 |
| Operating Temperature | ‑50 °C to +177 °C (‑58 °F to +351 °F) |
