Product Introduction

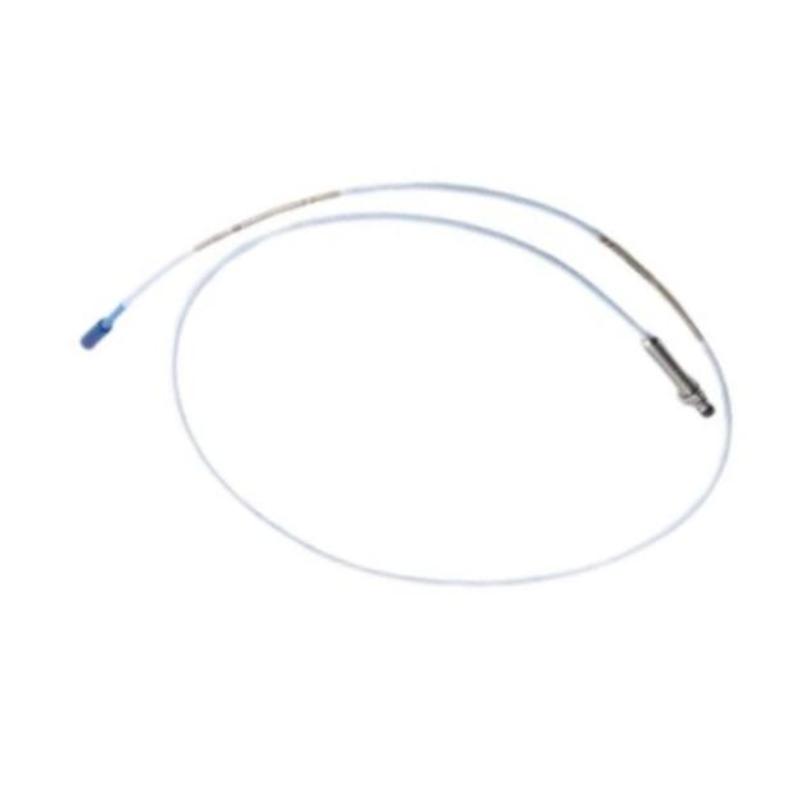

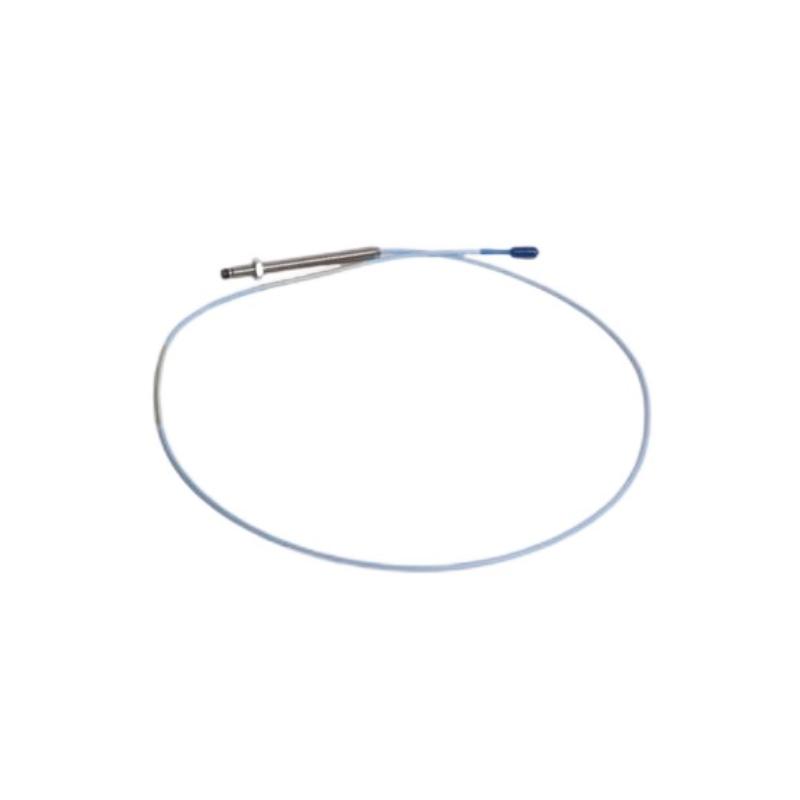

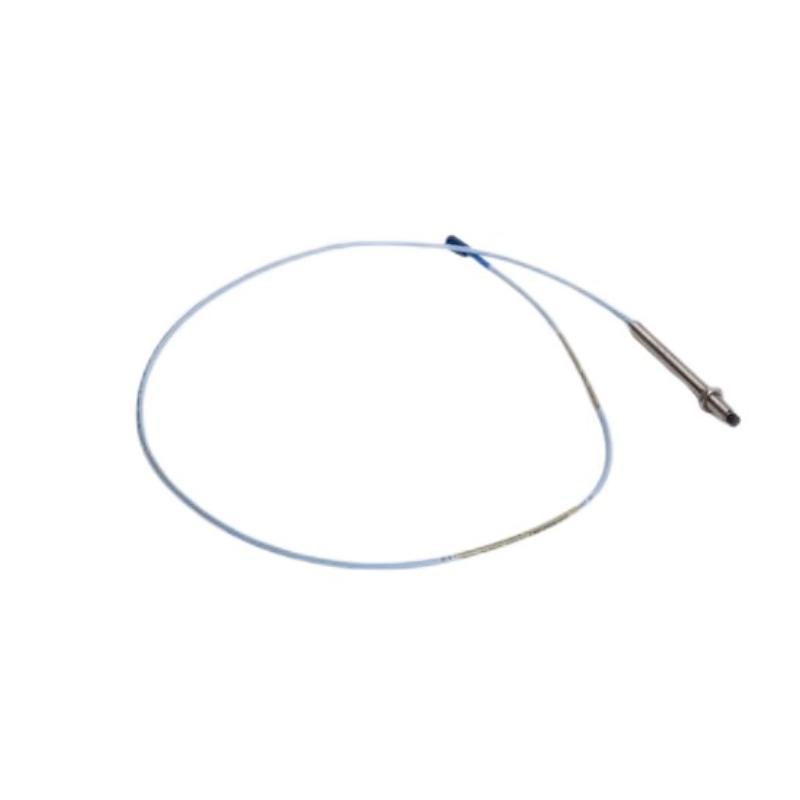

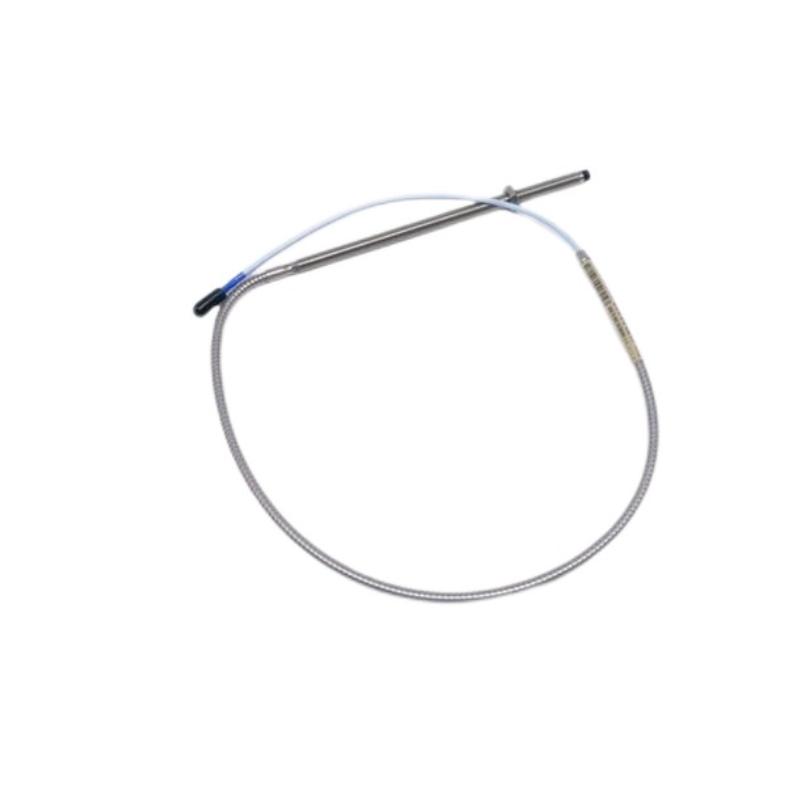

The Bently Nevada 330103‑00‑05‑10‑12‑00 3300 XL 8 mm Proximity Probe is a precision sensor designed for high-performance monitoring of rotating machinery. Featuring a compact 8 mm diameter, robust stainless-steel housing, and durable PPS probe tip, it provides accurate non-contact measurement of shaft vibration and displacement. This probe is ideal for turbines, compressors, generators, and critical industrial equipment, ensuring reliability, uptime, and predictive maintenance insights.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | 330103‑00‑05‑10‑12‑00 |
| Series | 3300 XL 8 mm Proximity Probe |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1, unarmored |
| Unthreaded Length | 0 mm |
| Overall Case Length | 1.85 in (≈47 mm) |
| Total Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature coaxial ClickLoc™ |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Case Material | Stainless steel AISI 303/304 |
| Operating Temperature | ‑50 °C to +177 °C (‑58 °F to +351 °F) |
