Product Overview

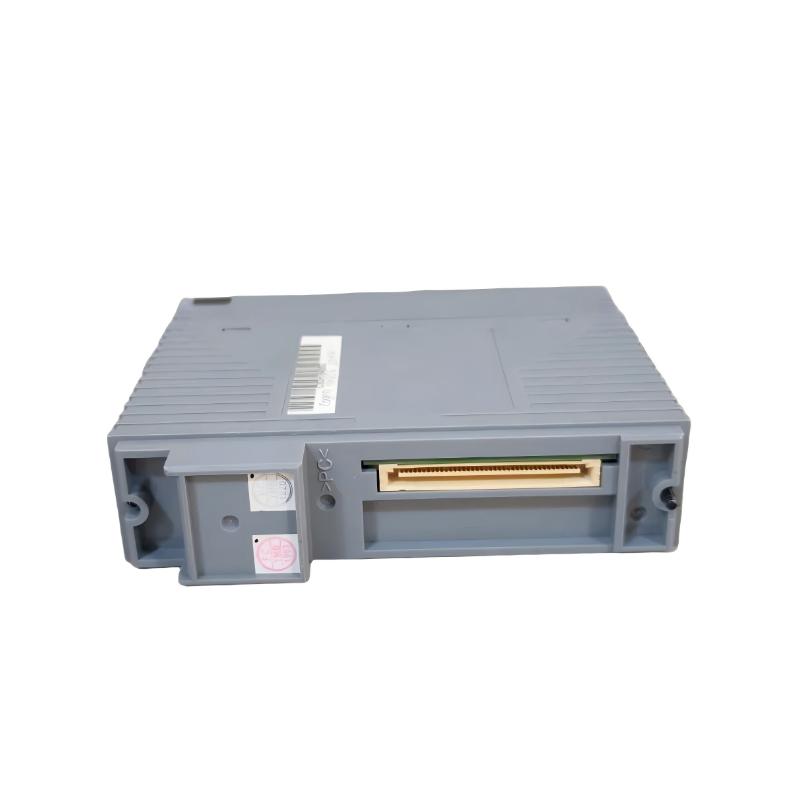

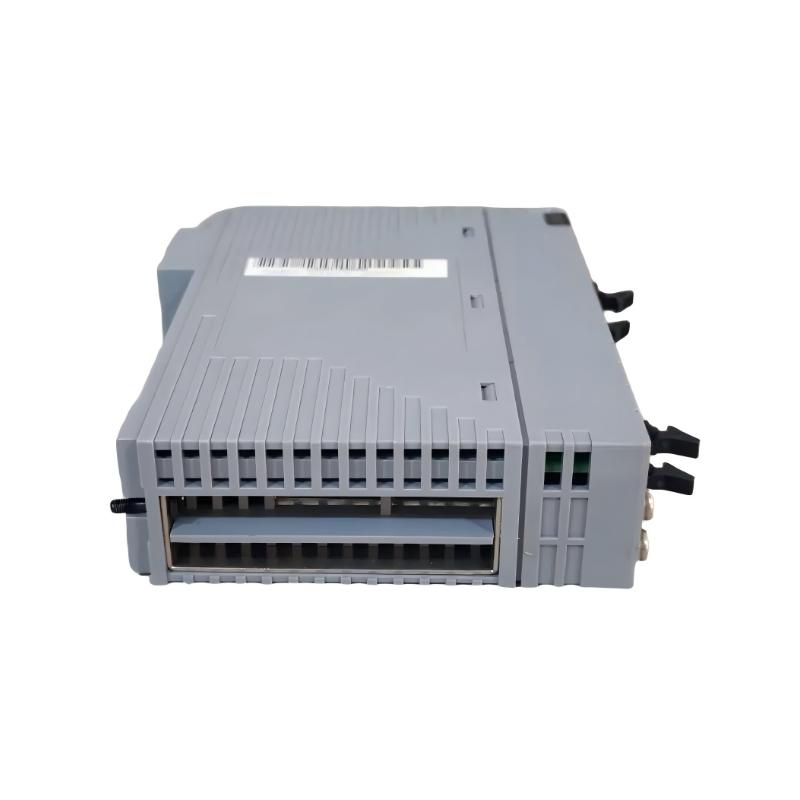

The Yokogawa ADV569-P50 Digital I/O Module provides a reliable interface for discrete signal communication within industrial automation environments. Digital I/O modules are essential components in control systems because they allow controllers to detect field events and operate mechanical devices.
In practice, the module receives digital signals from field equipment and transmits commands from the control system to actuators. This bidirectional communication enables automated processes such as equipment startup, shutdown sequences, alarm activation, and safety interlocking.
Its compact mechanical design and reliable signal processing capability make the ADV569-P50 suitable for industrial plants where stable digital communication between equipment and controllers is critical.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | Digital I/O Module |
| Manufacturer | Yokogawa |
| Model Number | ADV569-P50 |
| Function | Discrete Signal Interface for Industrial Automation |
| Signal Type | Digital Input and Output Signals |
| Typical Applications | Distributed Control Systems and Industrial Automation |
| Installation | Automation Rack or Control Cabinet |
| Dimensions | 130 mm × 127.2 mm × 32.8 mm |
| Weight | 0.3 kg (0.66 lb) |
Where This Module Fits in Modern Automation Systems
The Yokogawa ADV569-P50 Digital I/O Module is designed to manage digital signal exchange between field devices and industrial control systems. In automated plants, digital I/O modules serve as the interface that converts discrete signals from switches, sensors, and actuators into signals that controllers can process.
The ADV569-P50 is typically deployed in environments such as:
-
Distributed control systems in petrochemical and refining facilities
-
Power generation plants supervising auxiliary equipment
-
Manufacturing automation lines with multiple discrete sensors and actuators
-
Water treatment facilities controlling pumps and valve operations
-
Industrial monitoring systems requiring reliable discrete signal processing
By enabling stable digital signal communication, the module ensures that field-level events are accurately transmitted to the control system.
Operational Strengths in Field Signal Handling
Reliable Discrete Signal Processing
The module efficiently handles digital input and output signals from industrial devices such as limit switches, relays, and solenoids.
Seamless Integration with Control Platforms
It is designed to operate within modular control architectures commonly used in large-scale automation systems.
Efficient Response for Control Logic
Digital signals are transmitted quickly to the controller, allowing timely system responses to operational changes.
Space-Efficient Cabinet Installation
The slim design supports installation in dense automation racks where panel space must be carefully managed.
Stable Performance in Industrial Conditions
The module is built for environments where equipment must operate continuously with minimal interruption.
Technical FAQs
1. What is the primary function of the ADV569-P50 digital I/O module?
It processes discrete input and output signals between field devices and the control system.
2. What types of devices typically connect to this module?
Devices such as limit switches, push buttons, relays, solenoid valves, and status indicators.
3. How does a digital I/O module support automation systems?
It allows the control system to monitor field events and control devices through discrete signals.
4. Can the module be used in distributed control systems?
Yes, it is commonly integrated into distributed automation platforms managing complex industrial processes.
5. Does the module support continuous industrial operation?
Yes, it is designed for systems where equipment must run reliably over long operating periods.
6. How does the module assist system diagnostics?
Digital I/O modules often include status indicators that help technicians verify signal activity and module operation.
7. What types of industrial processes rely on digital I/O modules?
Manufacturing automation, process control, energy production, and infrastructure monitoring.
8. How is the module typically installed?
It is mounted in an automation rack or control cabinet as part of a modular control system.
9. Can digital I/O modules be expanded in large systems?
Yes, multiple modules can be added to accommodate additional field devices as systems grow.
10. What maintenance is recommended for reliable operation?
Regular inspection of wiring connections, terminal integrity, and signal status indicators is recommended.
