ABB 81EA02E GJR2366000R1000 Analog Input Module

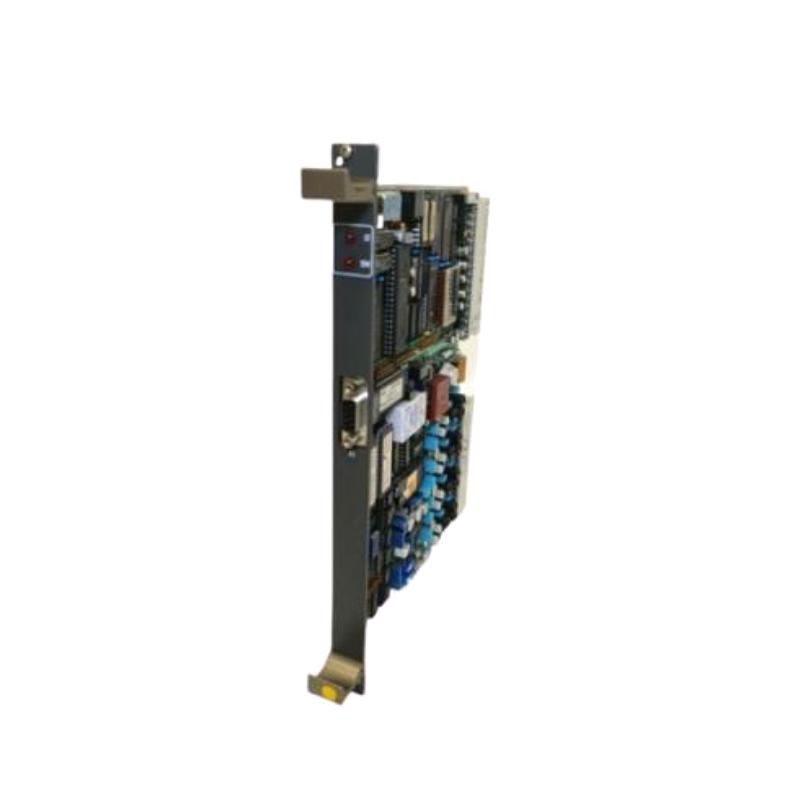

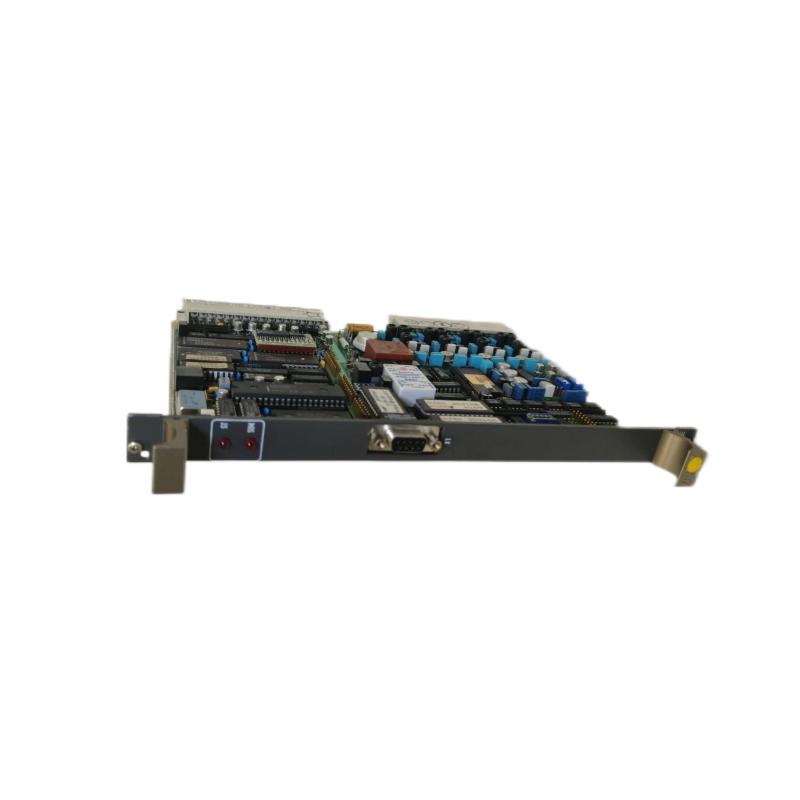

Name: ABB 81EA02E GJR2366000R1000 Analog Input Module
Brand: ABB PLC
SKU: 570
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:81EA02E GJR2366000R1000
Product Origin:Sweden
Product Dimensions:160 mm × 120 mm × 50 mm
Product Weight:0.5KG
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction — High-Precision Analog Input for ABB DCS Systems

The ABB 81EA02E GJR2366000R1000 Analog Input Module is designed for reliable acquisition of analog signals in ABB Distributed Control Systems (DCS). It captures precise measurements from sensors such as temperature, pressure, flow, and level devices, providing accurate input data for process monitoring and automation. Built for demanding industrial environments, this module offers robust performance, electrical isolation, and seamless integration with ABB control racks.

Technical Specifications — Performance & Physical Profile

Specification	Description
Module Type	Analog Input Module
Model / Part Number	81EA02E / GJR2366000R1000
Number of Channels	8 analog input channels
Input Type	Voltage (0–10 V), Current (4–20 mA)
Input Range	Configurable per channel
Accuracy	±0.1% of full scale
Resolution	16-bit A/D conversion
Update Rate	10 ms per channel
Isolation	Channel-to-system isolation for electrical safety
Power Supply	24 V DC via system backplane
Operating Temperature Range	–20 °C to +60 °C
Dimensions	160 mm × 120 mm × 50 mm
Weight	~0.50 kg
Mounting	ABB modular rack or DIN rail compatible
Compliance / Certifications	CE, UL, RoHS compliant

Applications — Key Use Cases

Acquisition of analog signals from industrial sensors (temperature, pressure, flow, level)
Integration with ABB DCS for precise process control and monitoring
Expanding or retrofitting analog input capabilities in existing automation systems
High-precision data collection for real-time control and analysis
Industrial applications in chemical, power, water/wastewater, and manufacturing sectors

Advantages — Why Choose the 81EA02E GJR2366000R1000

Accurate analog measurement with ±0.1% full-scale accuracy
Supports multiple signal types including voltage and current
16-bit resolution ensures high-precision data acquisition
Channel-to-system isolation improves safety and noise immunity
Compact and rugged design suitable for harsh industrial environments
DIN rail or modular rack mounting simplifies installation
Wide operating temperature range ensures reliability in extreme conditions
CE, UL, RoHS certified for compliance and safety

Technical FAQs — 10 Key Questions

How many analog channels does the module have?
- 8 channels.
Which signal types are supported?
- Voltage (0–10 V) and Current (4–20 mA).
What is the accuracy?
- ±0.1% of full scale.
What is the resolution?
- 16-bit A/D conversion.
What is the update rate per channel?
- 10 ms per channel.
Is the module electrically isolated?
- Yes, for safe operation.
What is the operating temperature range?
- –20 °C to +60 °C.
What are the dimensions and weight?
- 160 mm × 120 mm × 50 mm; ~0.50 kg.
How is the module mounted?
- ABB modular rack or DIN rail compatible.
Is it compatible with ABB DCS systems?
- Yes, it integrates seamlessly with ABB modular racks and DCS architectures.
