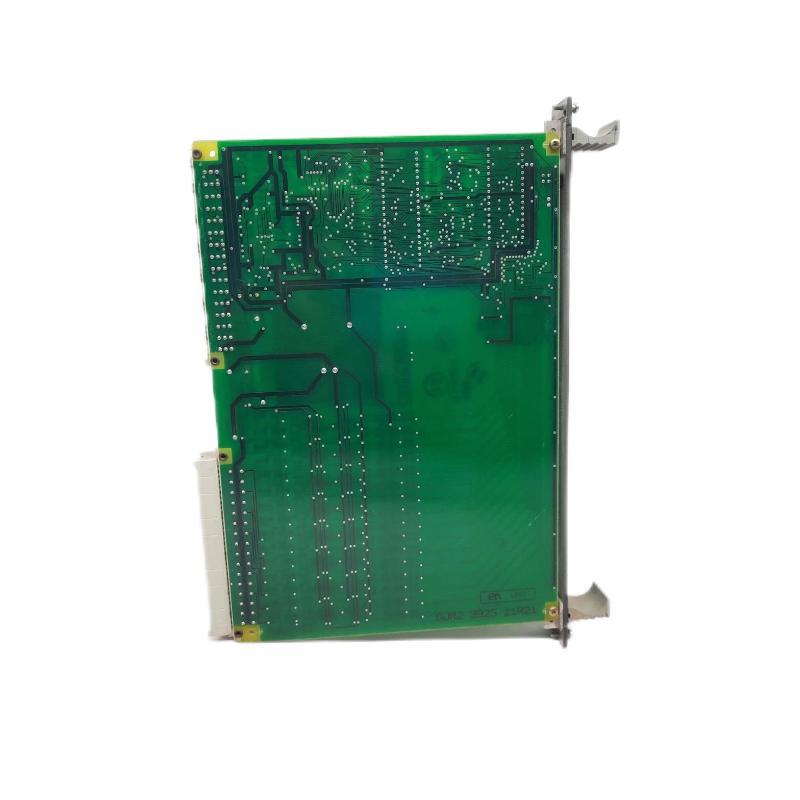

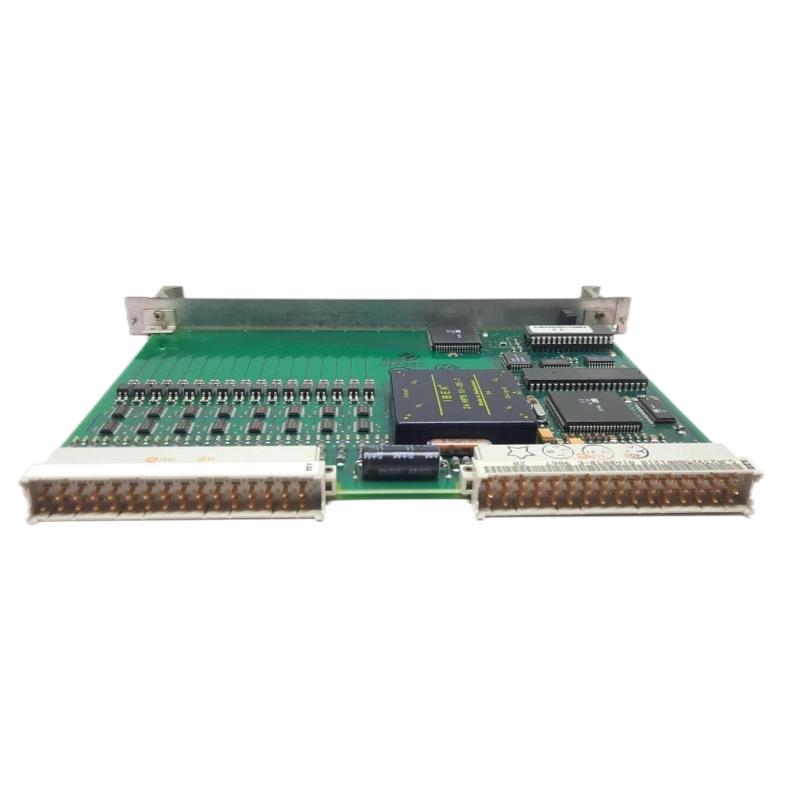

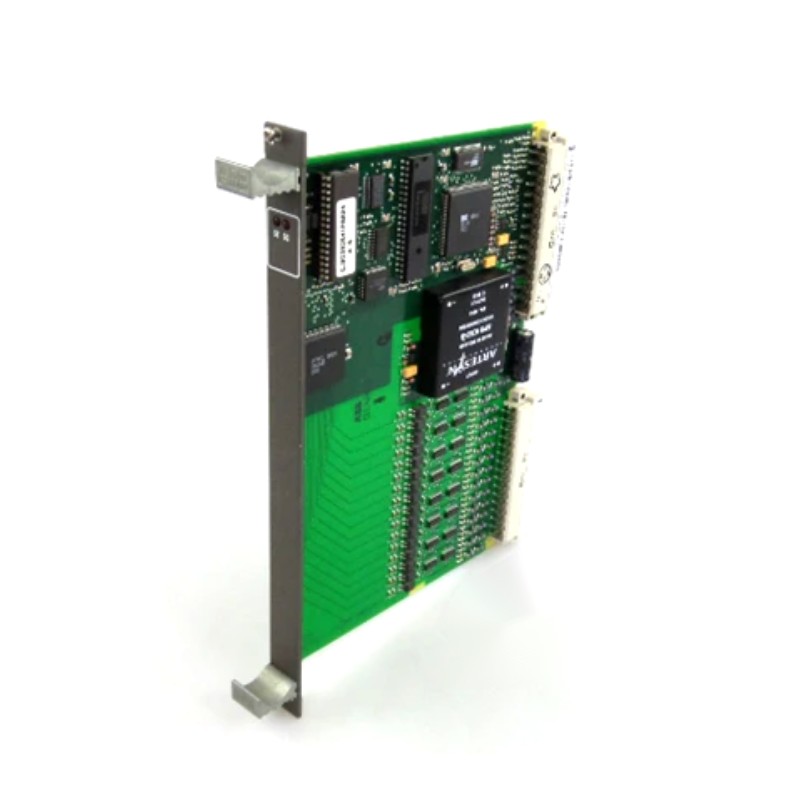

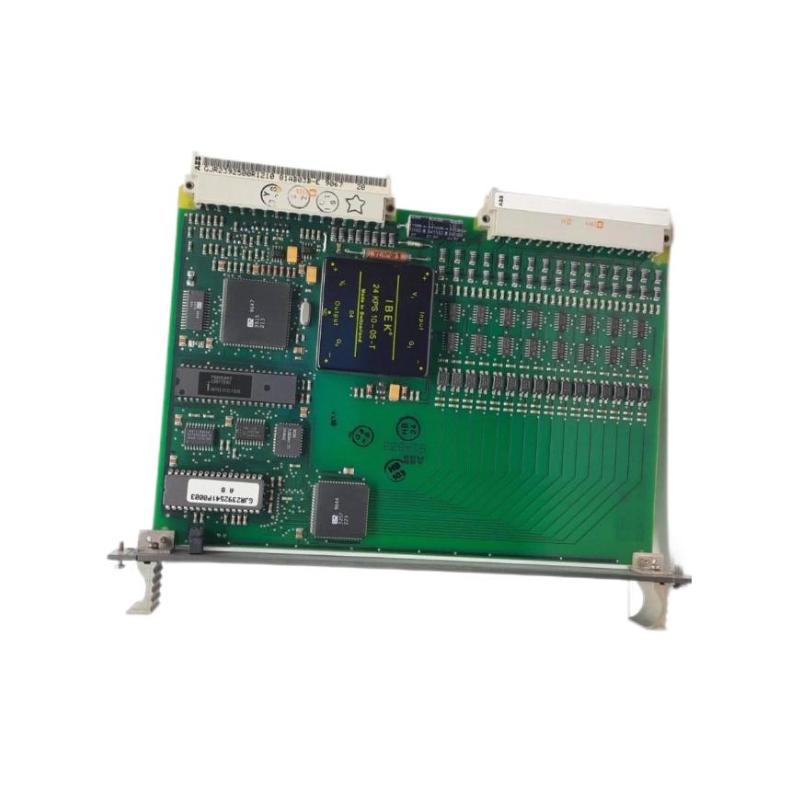

ABB 81AB03 GJR2392500R1210 Binary Output Module

Name: ABB 81AB03 GJR2392500R1210 Binary Output Module
Brand: ABB PLC
SKU: 568
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:81AB03 GJR2392500R1210
Product Origin:Sweden
Product Dimensions:100 mm × 120 mm × 75 mm
Product Weight:0.25KG
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction — Robust Binary Output for ABB DCS Systems

The ABB 81AB03 GJR2392500R1210 Binary Output Module is designed to deliver reliable on/off control signals to actuators, relays, and other binary field devices within ABB Distributed Control Systems (DCS). Engineered for high performance and durability, this module provides precise switching, electrical isolation, and seamless integration with ABB control racks, ensuring dependable operation in demanding industrial environments.

Technical Specifications — Performance & Physical Profile

Specification	Description
Module Type	Binary Output Module
Model / Part Number	81AB03 / GJR2392500R1210
Number of Channels	16 discrete outputs
Output Type	Relay / Digital on/off signals
Nominal Output Voltage	24 V DC
Output Current	2 A per channel
Isolation	Electrical isolation between channels and bus
Response Time	< 5 ms per channel
Power Consumption	~3 W
Operating Temperature Range	–20 °C to +60 °C
Dimensions	100 mm × 120 mm × 75 mm
Weight	~0.25 kg
Mounting	ABB modular rack or DIN rail compatible
Compliance / Certifications	CE, UL, RoHS compliant

Applications — Key Use Cases

Controlling discrete actuators, relays, contactors, and solenoids in industrial systems
Integration into ABB DCS racks for process automation
High-speed switching of digital signals for process control loops
Expansion or retrofitting of ABB binary output modules in existing control systems
Monitoring and control of binary field devices in chemical, power, water/wastewater, and manufacturing plants

Advantages — Why Choose the 81AB03 GJR2392500R1210

Reliable switching for critical industrial processes
16 output channels support multiple devices per module
Electrical isolation protects the system from interference
Fast response time (<5 ms) ensures near real-time control
Compact, durable design suitable for harsh industrial environments
DIN rail or modular rack mounting simplifies installation
Wide operating temperature range ensures reliable operation
Compliance with CE, UL, RoHS guarantees safety and regulatory adherence

Technical FAQs — 10 Key Questions

How many output channels does the module have?
- 16 discrete channels.
What type of output signals does it provide?
- Relay / on-off digital signals.
What is the nominal output voltage?
- 24 V DC.
What is the maximum current per channel?
- 2 A per channel.
Is the module electrically isolated?
- Yes, outputs are isolated from each other and the bus.
What is the response time per channel?
- Less than 5 ms.
What is the operating temperature range?
- –20 °C to +60 °C.
What are the dimensions and weight?
- 100 mm × 120 mm × 75 mm; ~0.25 kg.
How is it mounted?
- ABB modular rack or DIN rail compatible.
Is it compatible with ABB DCS systems?
- Yes, fully compatible with ABB modular control racks.
